Installation Report
DVIA-M Series
08-20-2020
MFLEX Suzhou Zeiss Sigma 500 DVIA-MB1000 (190109R5 · P109) Remote measurement — Internal program plots — 2020.08.20
DVIA-M Series
Installation Report
DVIA-MB1000
190109R5
P109
ZEISS
Sigma 500
Suzhou
YIMO
MFLEX
Contents
(MB1000_190109R5(P109) Set up)
| Target equipment | Zeiss sigma 500 |
|---|---|
| Place of installation | Suzhou, 1st floor |
| Remark | Good Performance |
| END USER | 苏州维信电子有限公司 |
| Operator: Noh, Munho | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.20 | Date of reporting : 20.08.20 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.20 (THU),
Operator: Daeil System, Manager Munho, Noh
Place of measurement : Suzhou, 苏州维信电子有限公司, 1st floor
Equipment Model: Zeiss Sigma 500
Measurement conditions and results
Summary of measurement results
Test Condition Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -26.23 dB | -31.18 dB | -28.02 dB |
| X | -22.61 dB | -30.14 dB | -28.11 dB |
| Y | -32.54 dB | -37.96 dB | -24.17 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

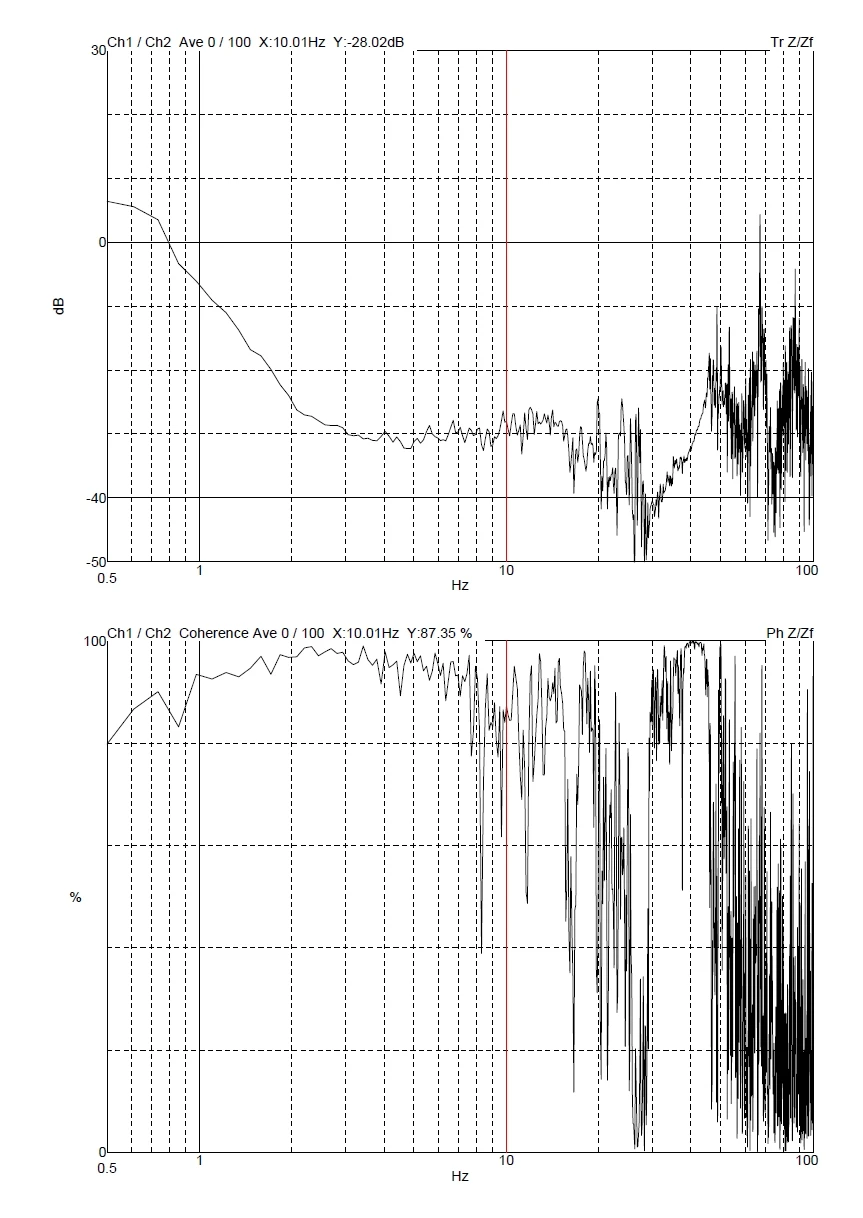

Z axis

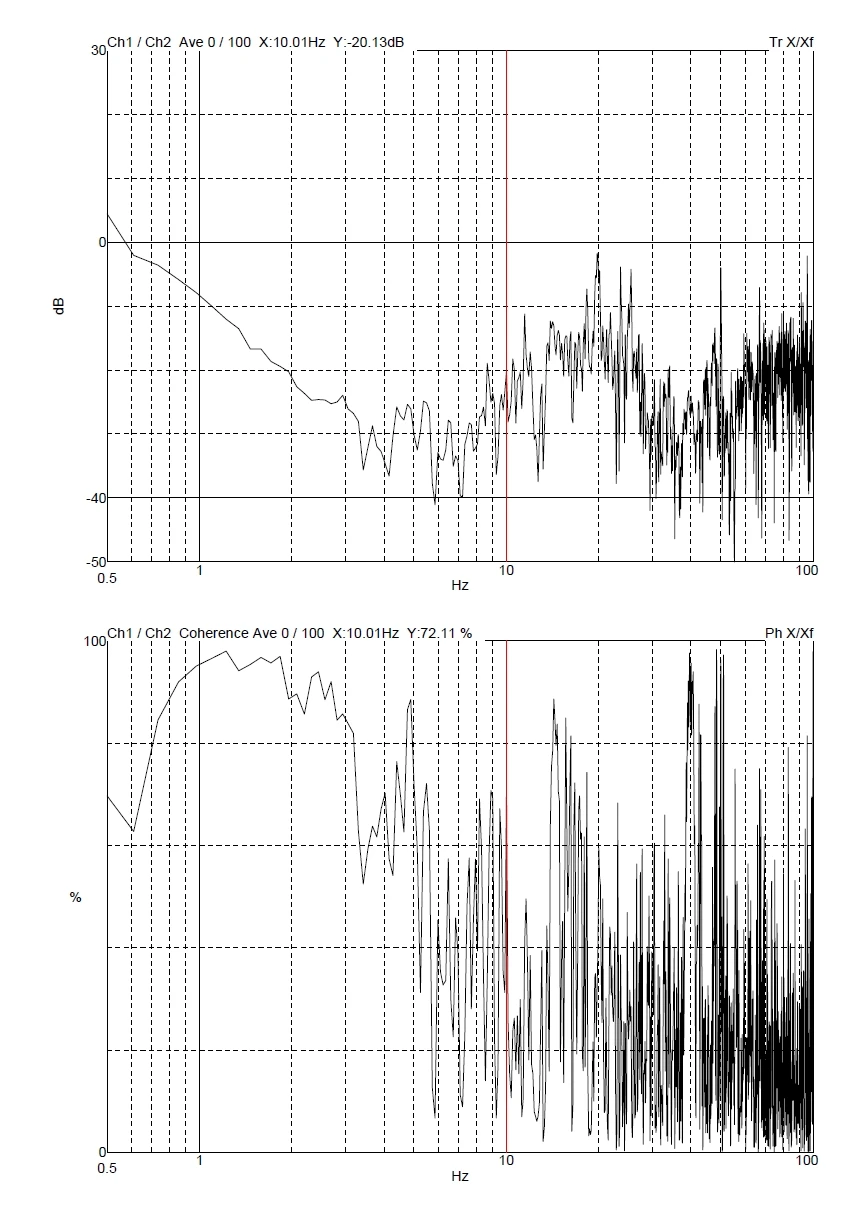

X axis

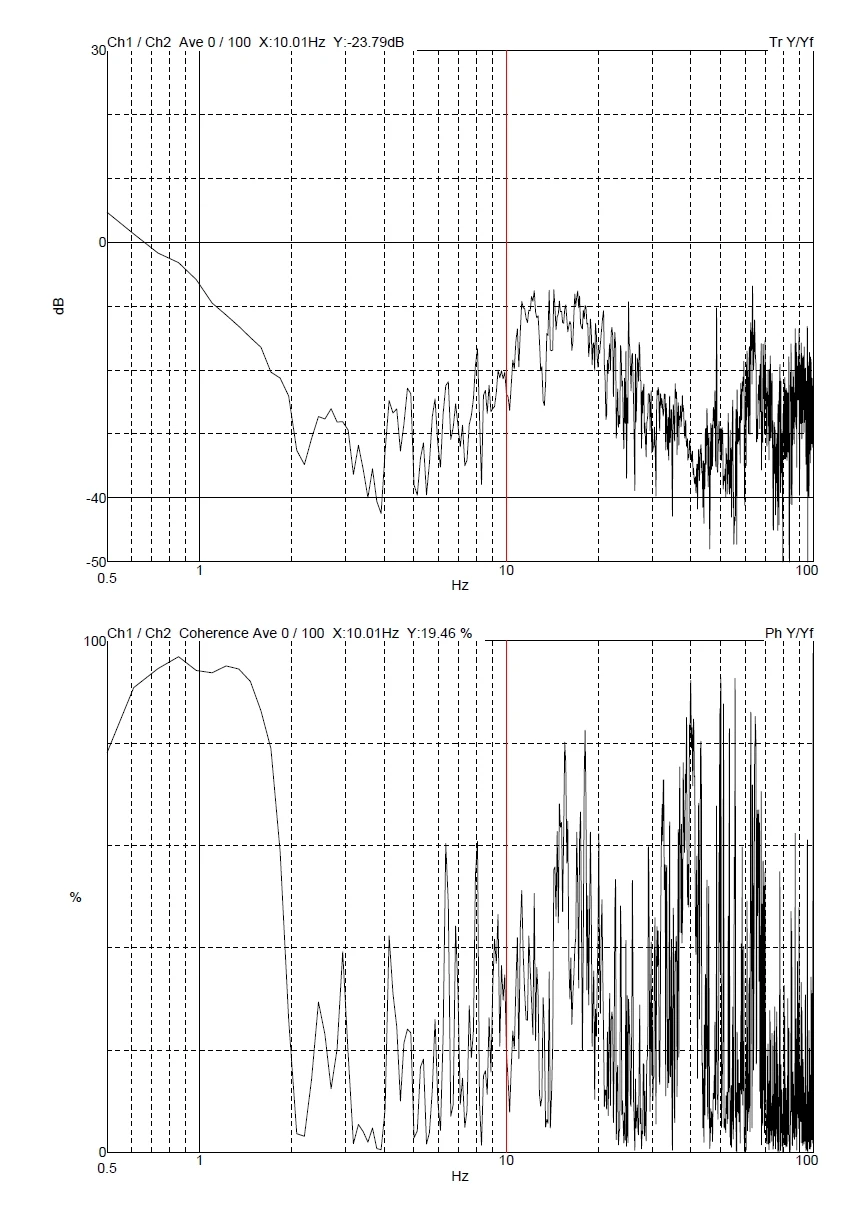

Y axis
