Installation Report
DVIA-M Series
08-20-2020
Suzhou Weixin Electronics Zeiss Sigma 500 DVIA-MB1000 (190109R5 · P109) Remote tuning — Internal program plots — 2020.08.20
DVIA-M Series
Installation Report
DVIA-MB1000
190109R5
Zeiss
Sigma 500
Suzhou
YIMO
Remote tuning
Contents
(MB1000_190109R5(P109) Set up)
| Target equipment | Zeiss sigma 500 |
|---|---|
| Place of installation | Suzhou, 苏州维信电子有限公司, 1st floor |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.20 | Date of reporting : 20.08.20 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.20 (THU),
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Suzhou, 苏州维信电子有限公司, 1st floor
Equipment Model: Zeiss Sigma 500
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | |||
| Above Active |
Good omnidirectional performance.
MB1000 internal program performance measurement result

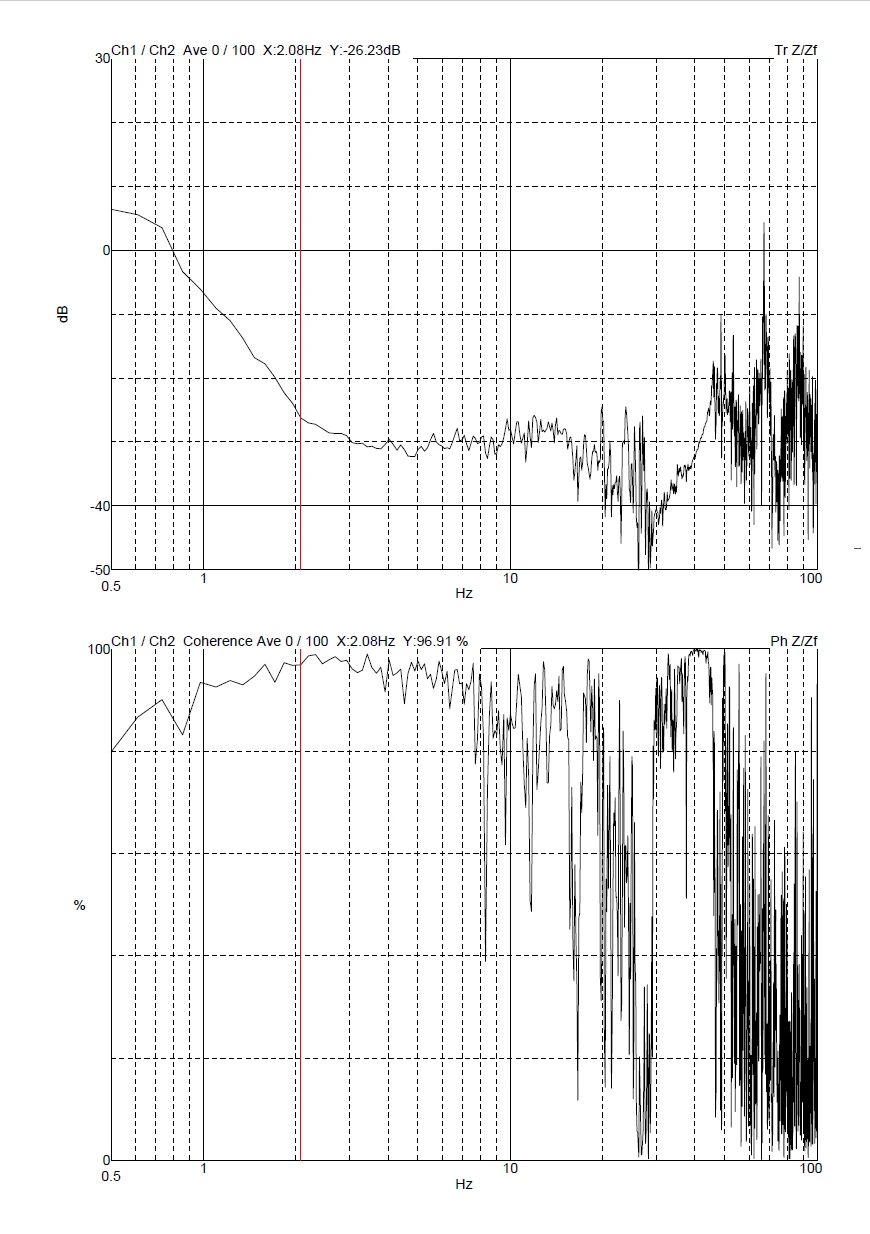

Z axis

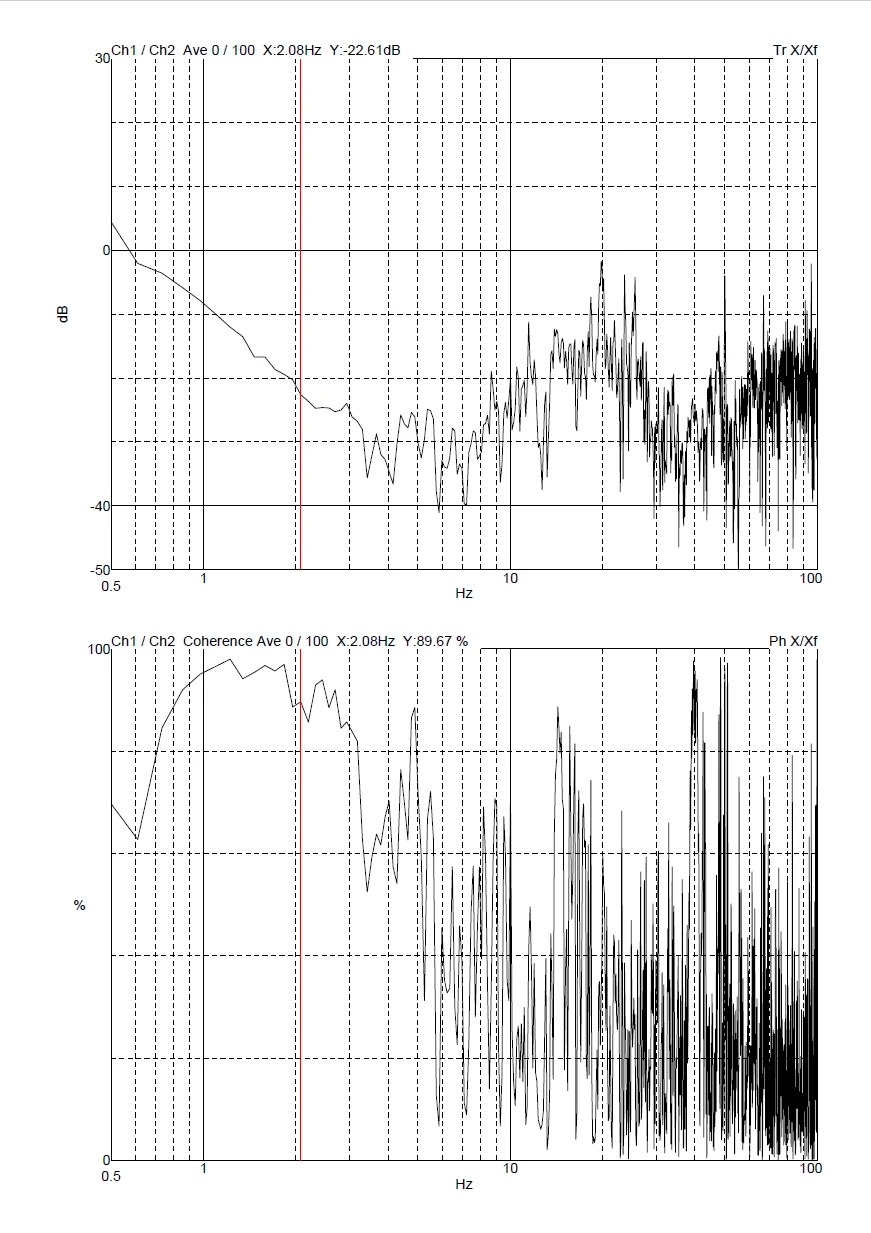

X axis

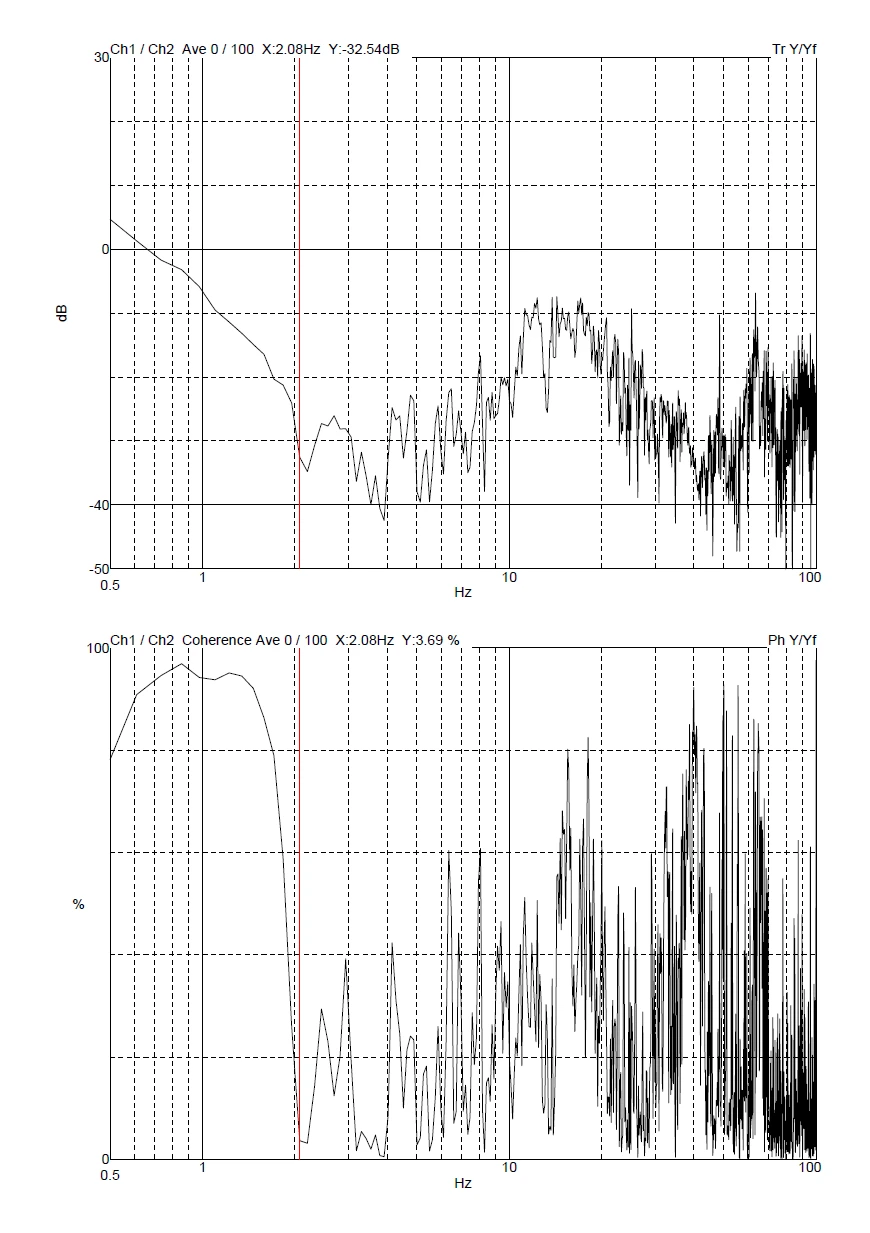

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date08-20-2020
Tags
DVIA-M Series
Installation Report
DVIA-MB1000
190109R5
Zeiss
Sigma 500
Suzhou
YIMO
Remote tuning
Related Case Studies
DVIA-M Series

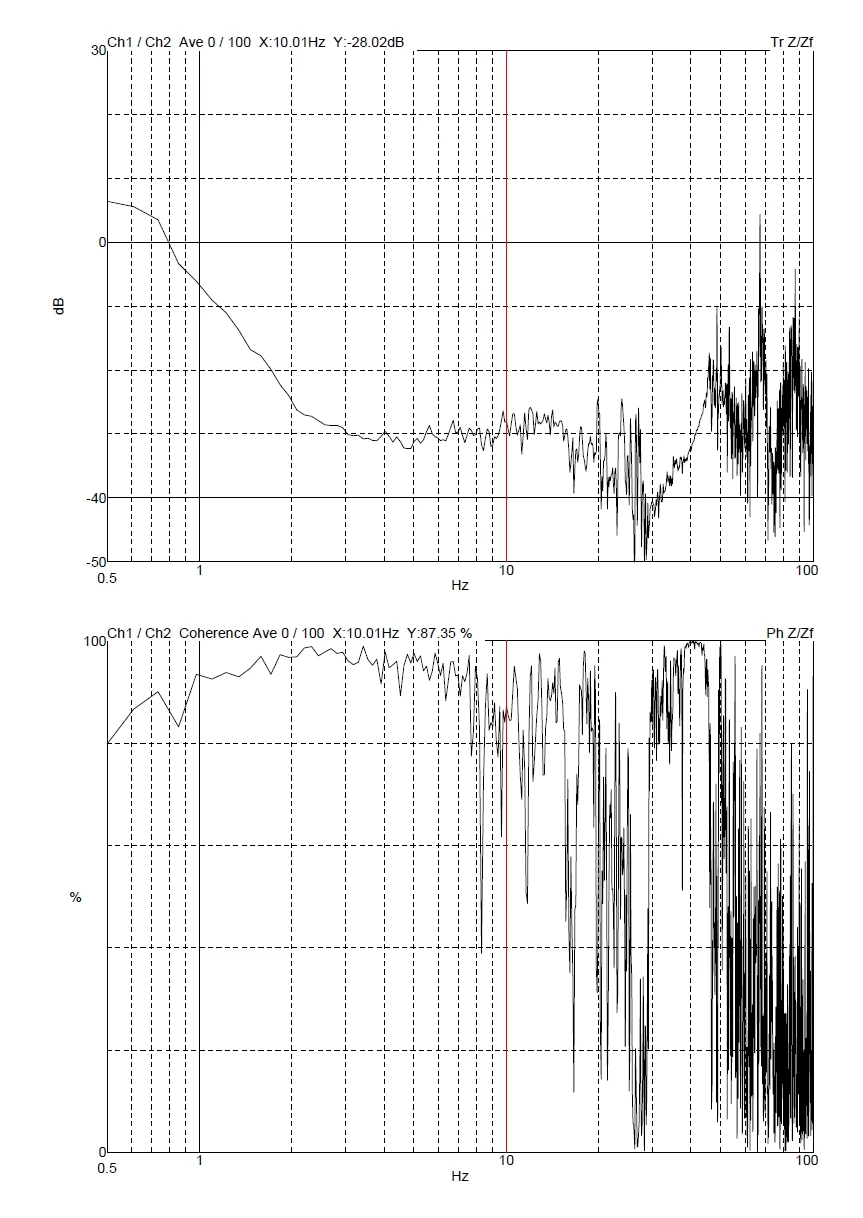

MFLEX Suzhou Zeiss Sigma 500 DVIA-MB1000 (190109R5 · P109) Remote measurement — Internal program plots — 2020.08.20
08-20-2020Read more
DVIA-M Series

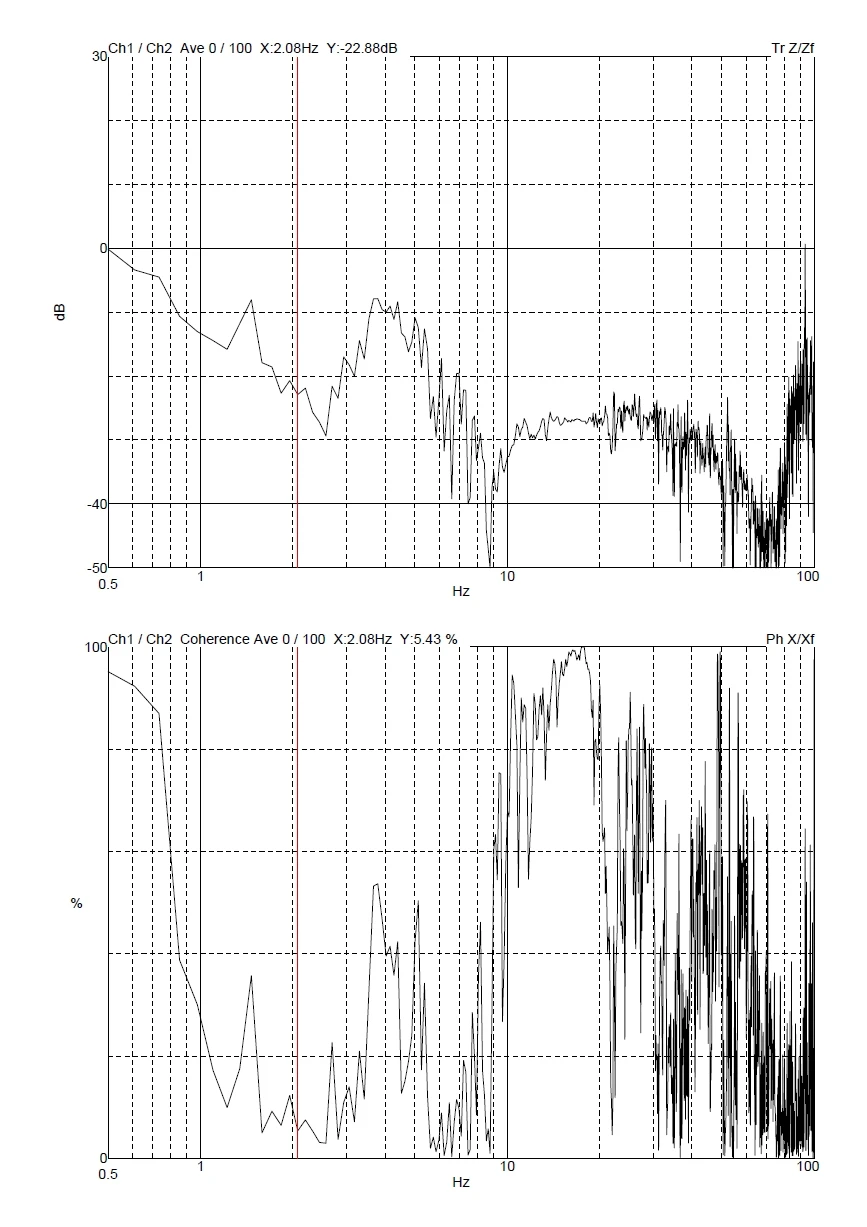

Zili Co., Ltd. Zeiss Sigma 500 DVIA-MB1000 (200715R3-2 · P187) Remote measurement — Internal program plots — 2020.12.02
