Installation Report
DVIA-M Series
08-19-2020
Zhejiang Zili Co., Ltd. Zeiss Sigma 500 DVIA-MB1000 (200715R3-1 · P186) Remote measurement — Internal program plots — 2020.08.19
DVIA-M Series
Installation Report
DVIA-MB1000
200715R3-1
Zeiss
Sigma 500
Thermo Scientific
Shaoxing
YIMO
P186
Contents
(MB1000_200715R3-1(P186) Set up)
| Target equipment | Zeiss sigma 500 |
|---|---|
| Place of installation | Shaoxing，3rd floor |
| Remark | Good Performance |
| END USER | 浙江自立股份有限公司， |
| Operator: Noh, Munho | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.19 | Date of reporting : 20.08.19 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.19 (WED),
Operator: Daeil System, Manager Munho, Noh
Place of measurement : Shaoxing,自立股份有限公司，3rd floor
Equipment Model: Thermo scientific Scios 2
Measurement conditions and results
Summary of measurement results
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -24.25 dB | -27.05 dB | -31.71 dB |
| X | -27.22 dB | -35.68 dB | -38.90 dB |
| Y | -24.92 dB | -37.14 dB | -38.4d dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

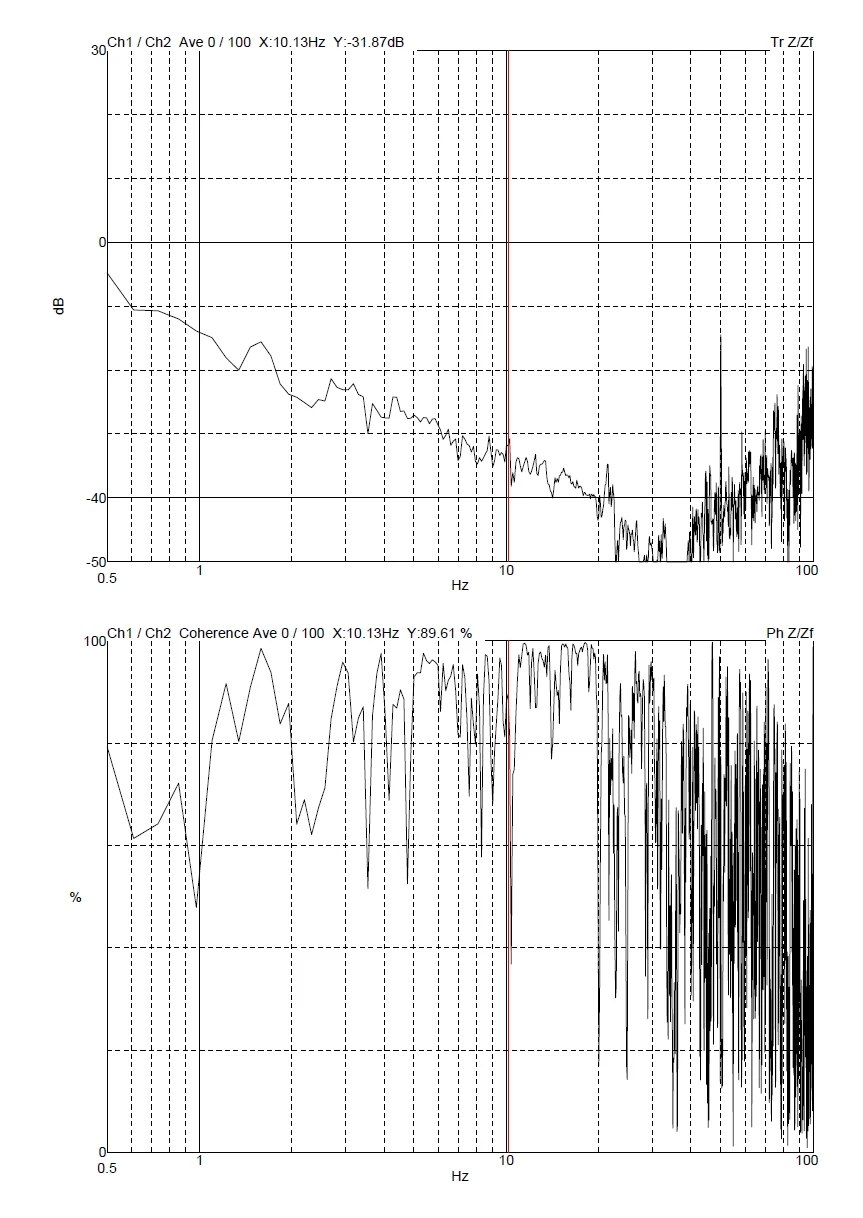

Z axis

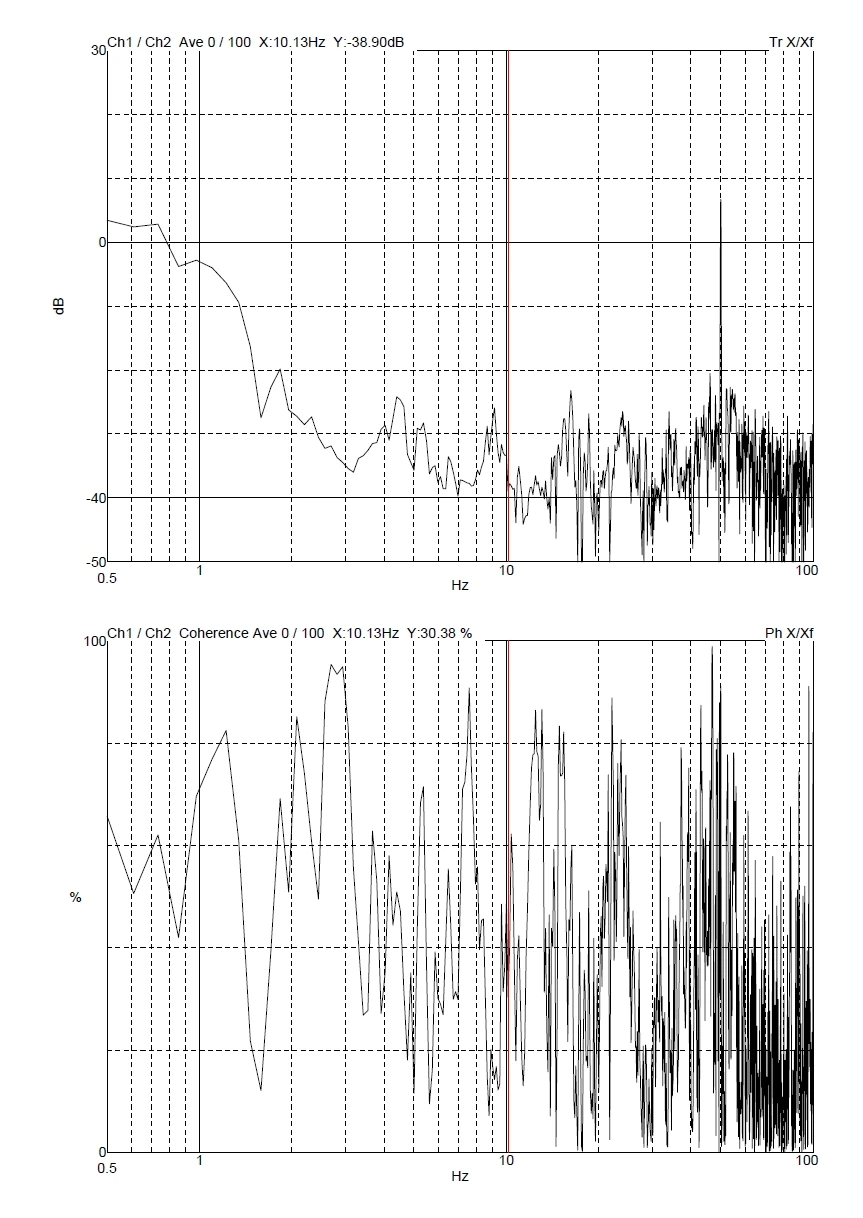

X axis

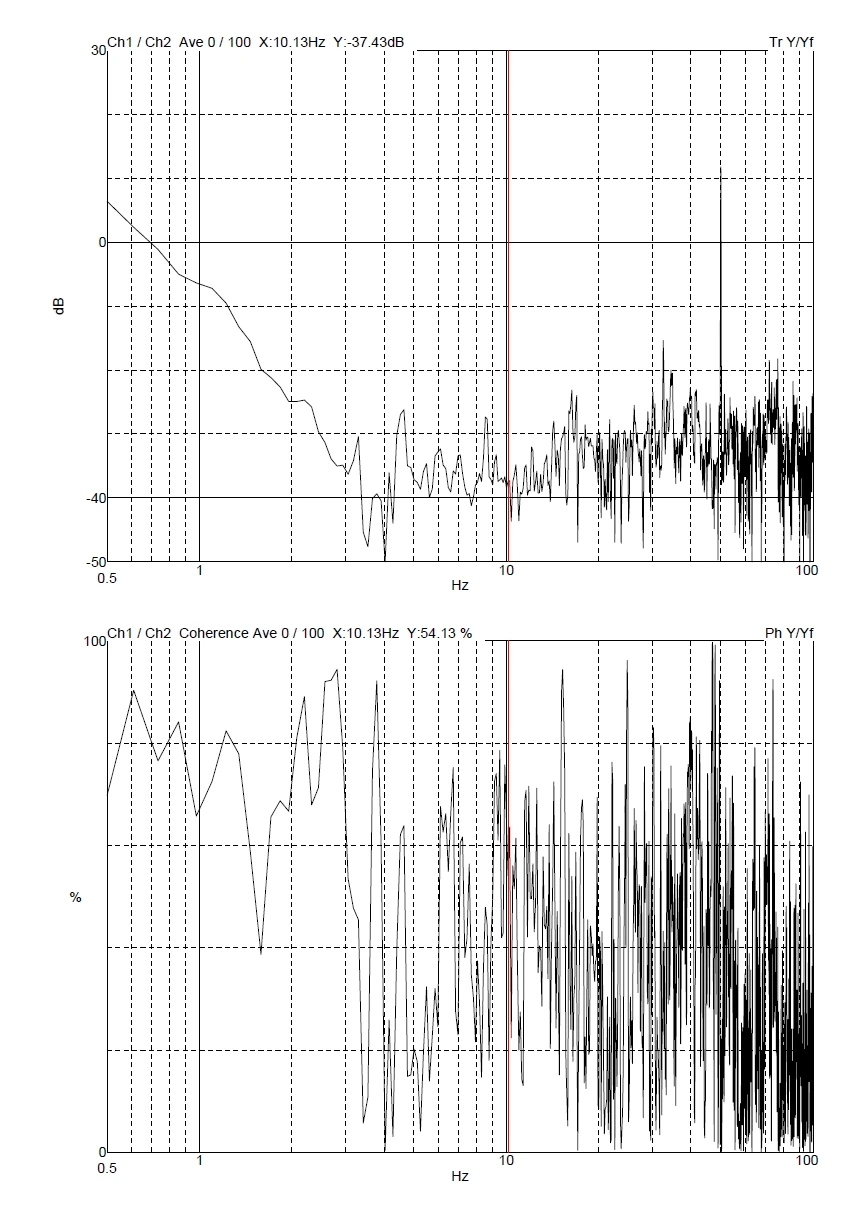

Y axis
