Installation Report
DVIA-M Series
06-27-2019
MFLEX Suzhou ZEISS Sigma500 DVIA-MB1000 (190109R5) Installation worksheet — 2019.06.27
DVIA-M Series
Installation Report
MFLEX
Suzhou
ZEISS
Sigma500
DVIA-MB1000
MB1000
190109R5
Contents
MB1000 190109R5 Set up
Target equipment
ZEISS Sigma500
Place of installation

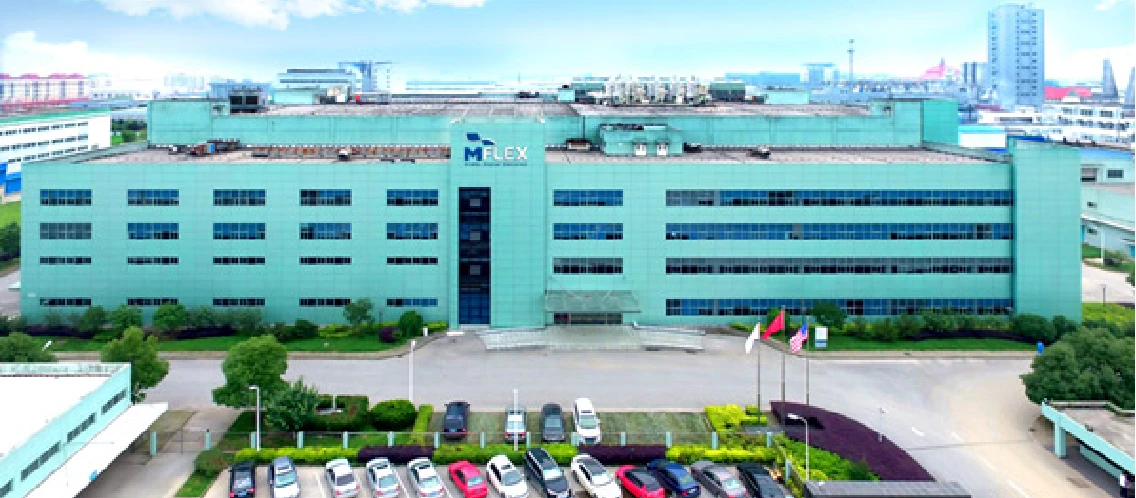

MFLEX Suzhou MFC3, F4
MFLEX Suzhou facility
Remark
Good Performance
END USER
MFLEX
Operator
Operator: Choi, Sung Won
Date of setup
Date of setup : 19.06.25
Date of reporting
Date of reporting : 19.06.27
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2019.06.25 (Thursday),
Operator: Daeil System, Manager Sung Won Choi
Place of measurement
Place of measurement : 4th Floor, MFLEX
Equipment Model
Equipment Model: ZEISS Sigma500
Measurement conditions and results
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | B | C | C |
| Above Active | E | E | F |
Good omnidirectional performance.
MB1000 internal program performance measurement result

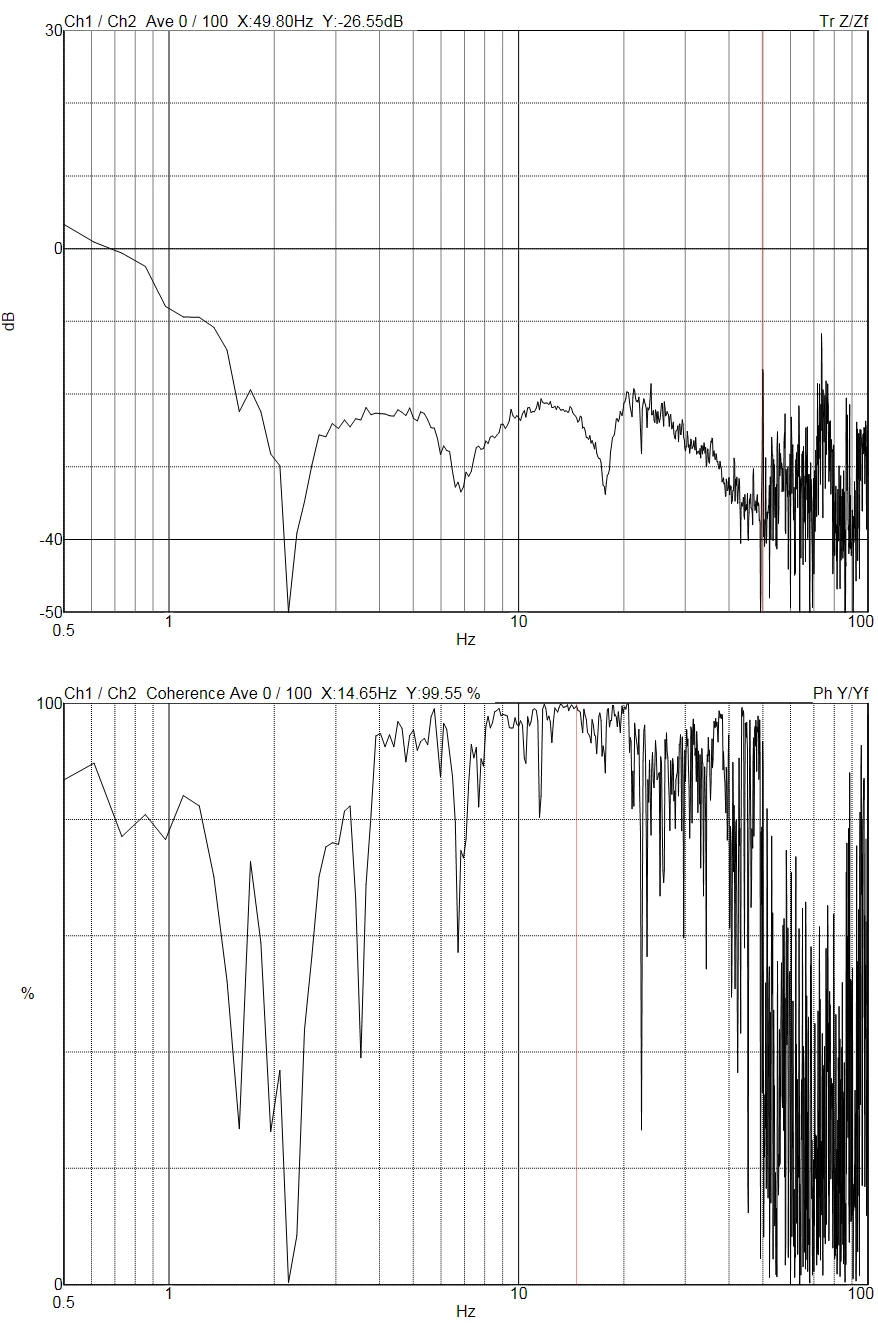

MB1000 internal program — Z axis

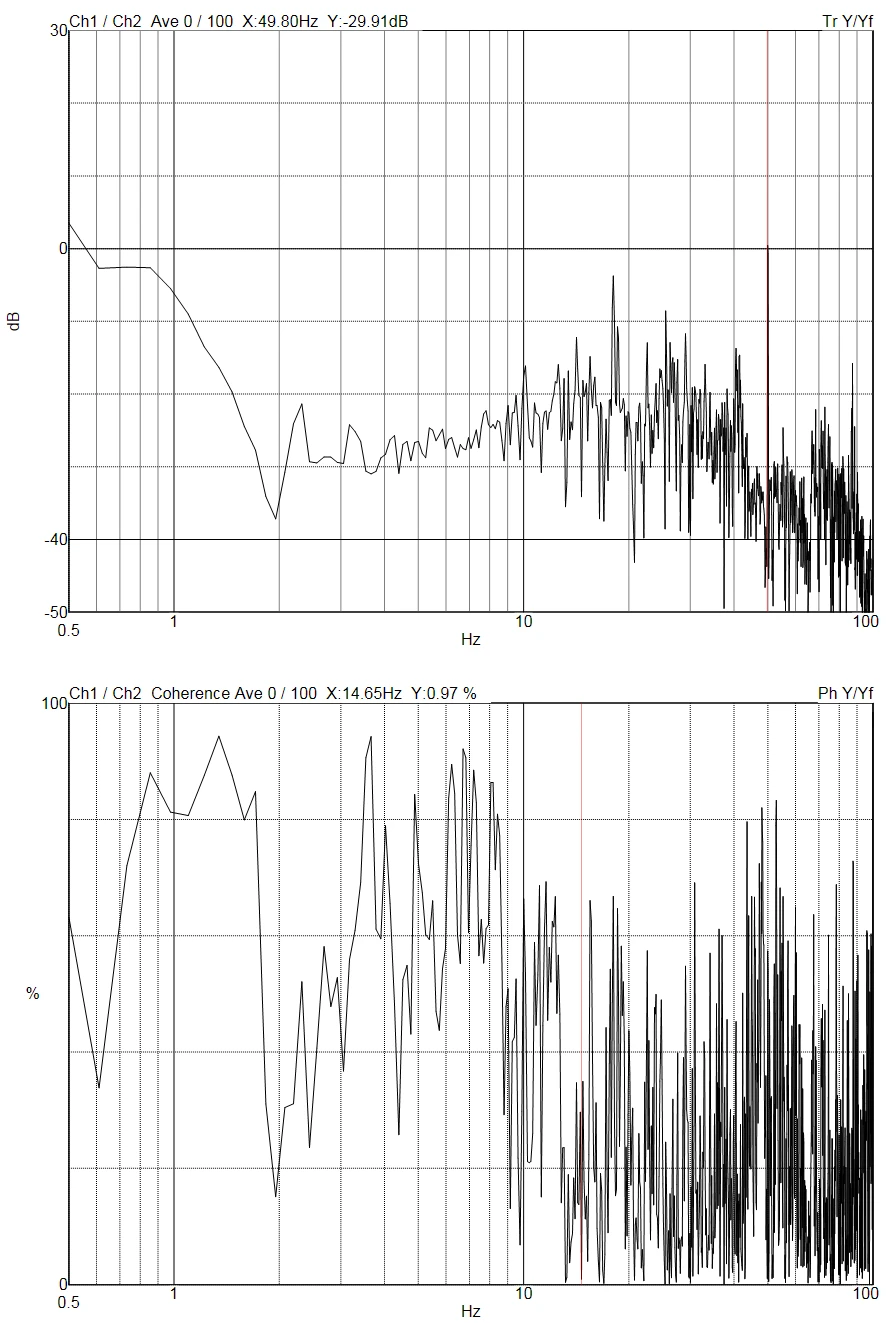

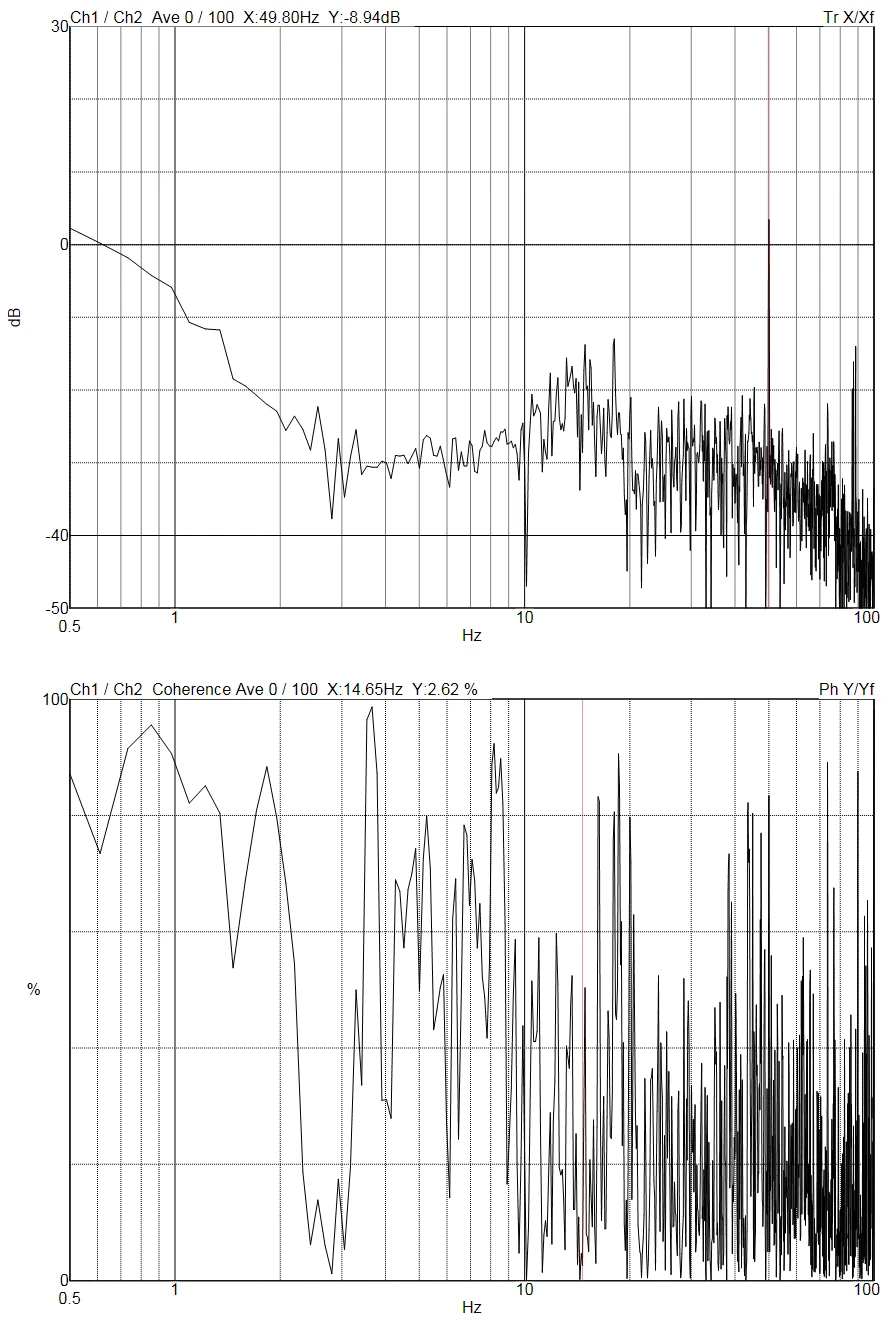

MB1000 internal program — X axis
MB1000 internal program — Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

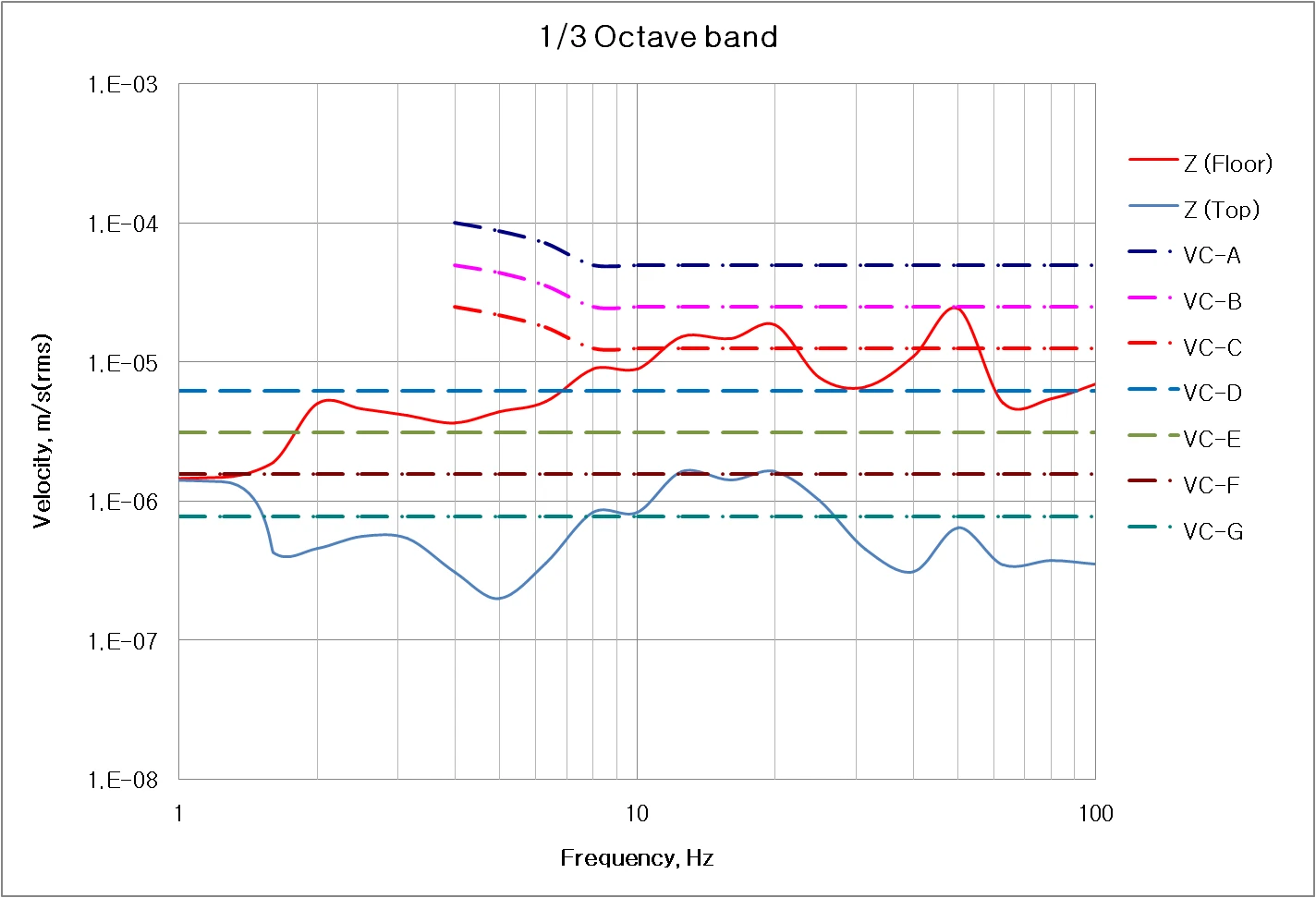

Octave band — Z axis

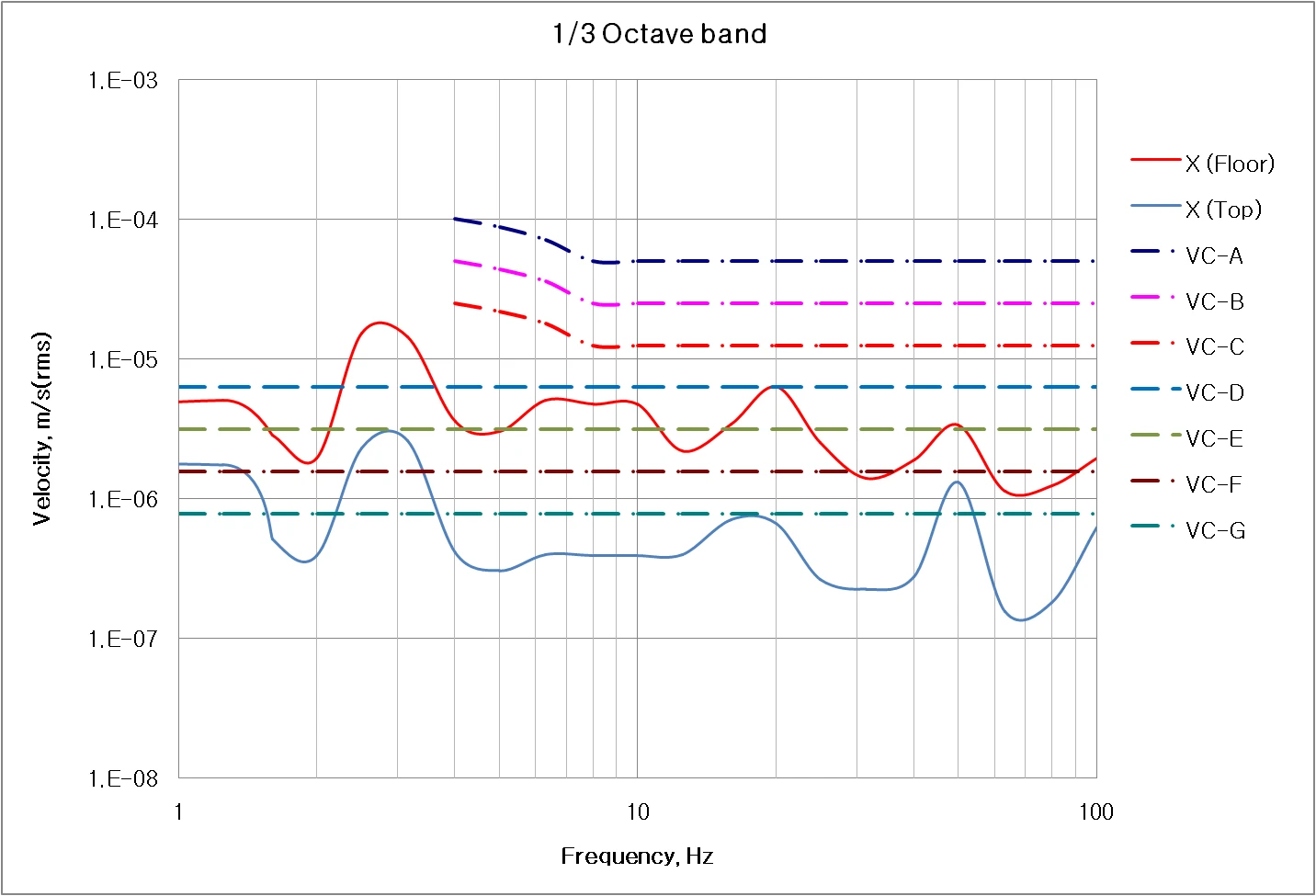

Octave band — X axis

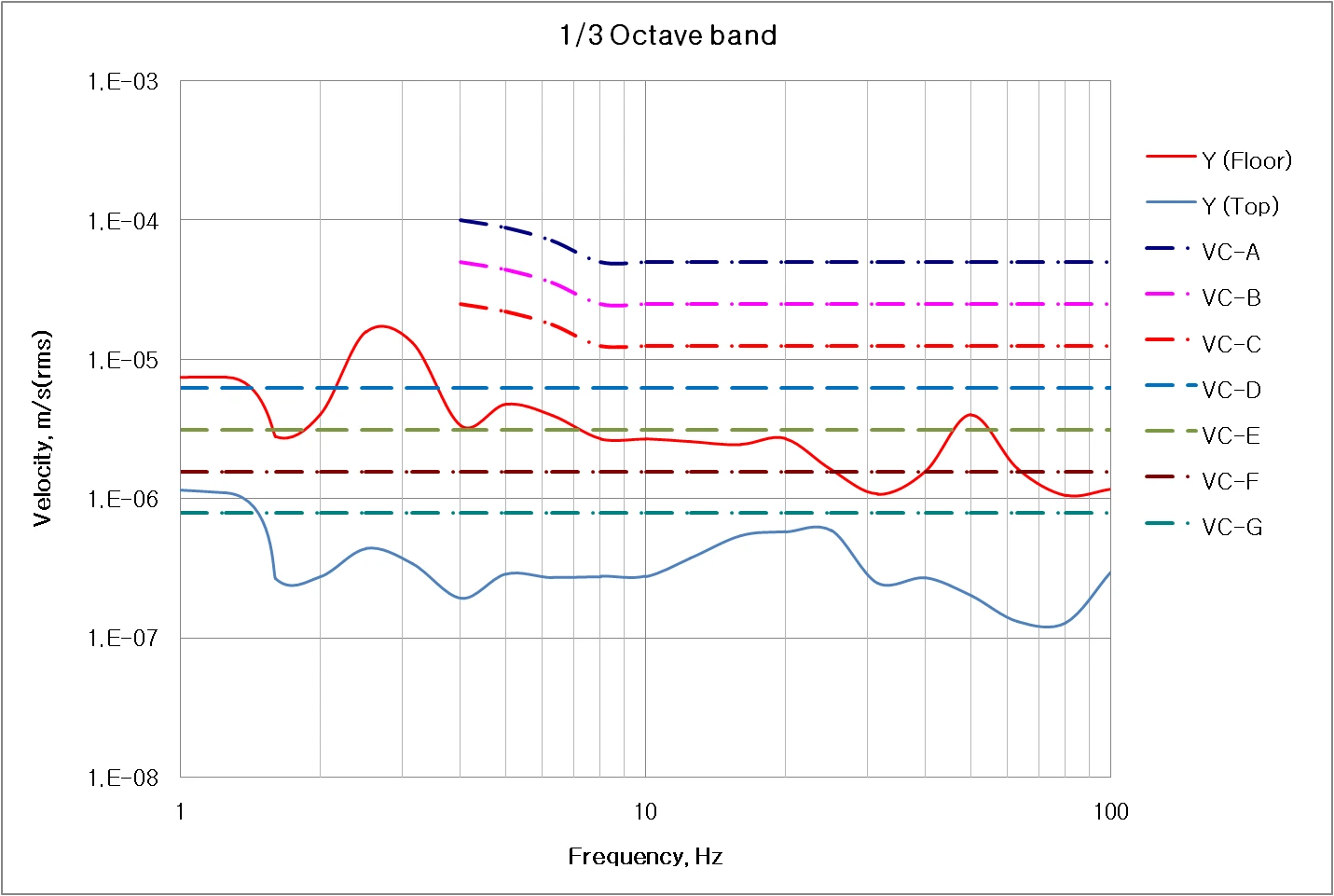

Octave band — Y axis
