Installation Report
DVIA-M Series
06-27-2019
MFLEX Suzhou ZEISS Sigma500 DVIA-MB1000 (MB1000 P109) China business trip worksheet — 2019.06.27
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000 P109
Carl Zeiss
SIGMA 500
Sigma500
MFLEX
Suzhou
China
Contents
China business trip report (MB1000_P109 Set up)

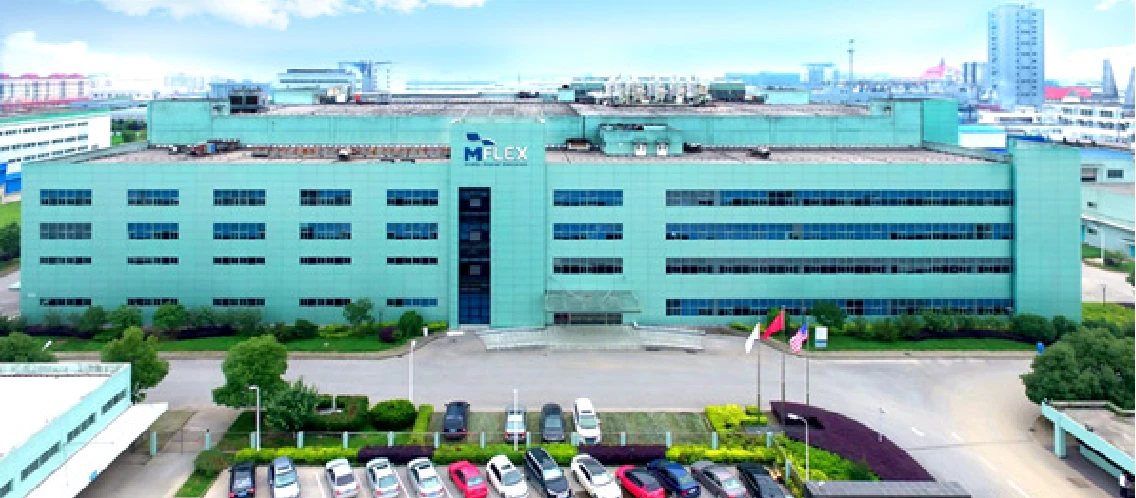

Installation photograph
Target equipment
ZEISS Sigma500
Place of installation
MFLEX Suzhou MFC3, F4
Remark
Good Performance
END USER
MFLEX
Business trip personnel and dates
출장자 : 최성원
출장일 : 19.06.25
작성일 : 19.06.27
Installation summary
| Test Direction | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | B | E |
| X | C | E | |
| Y | C | F |
전 방향 성능 양호
MB1000 internal program performance measurement result

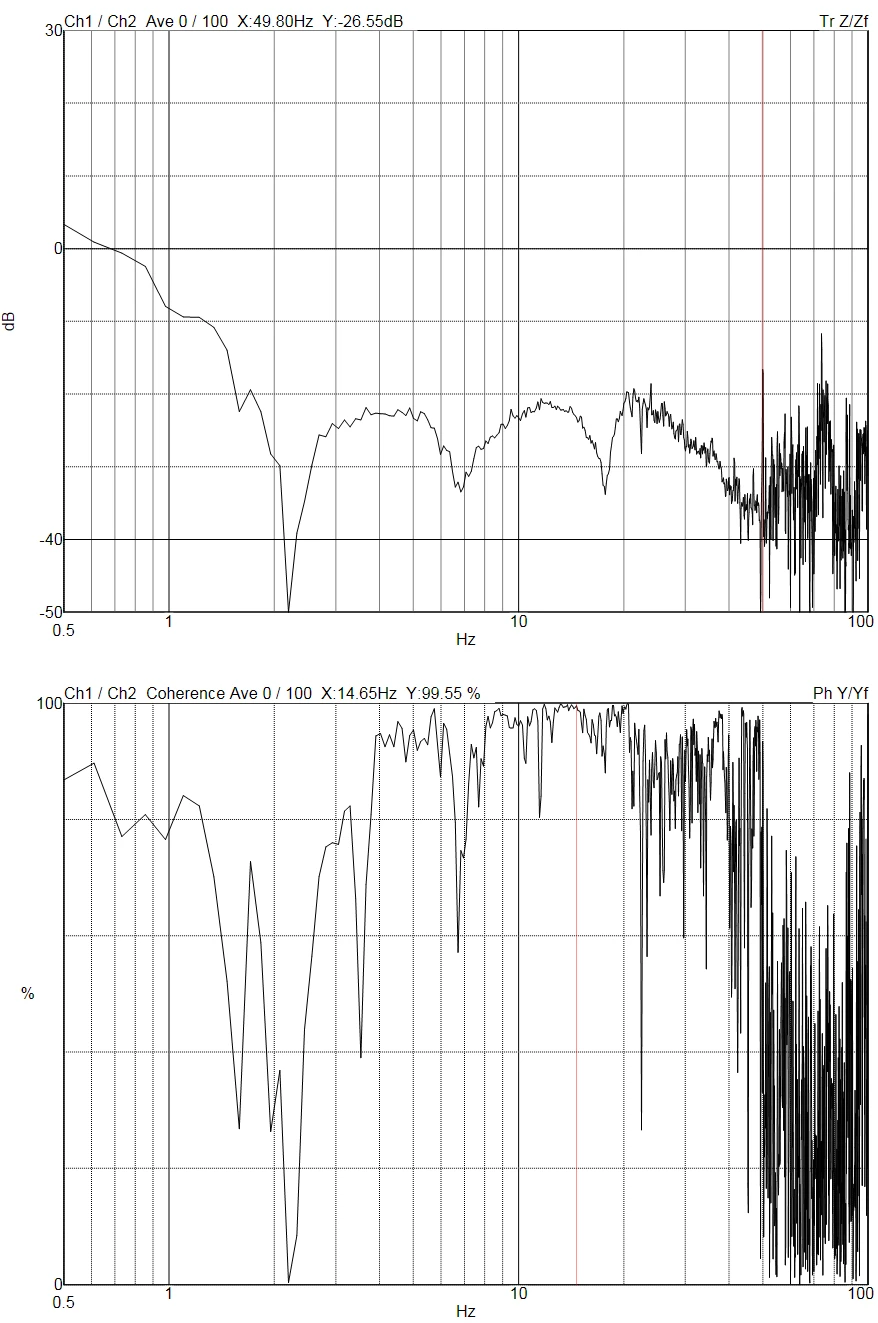

Internal program: Z axis

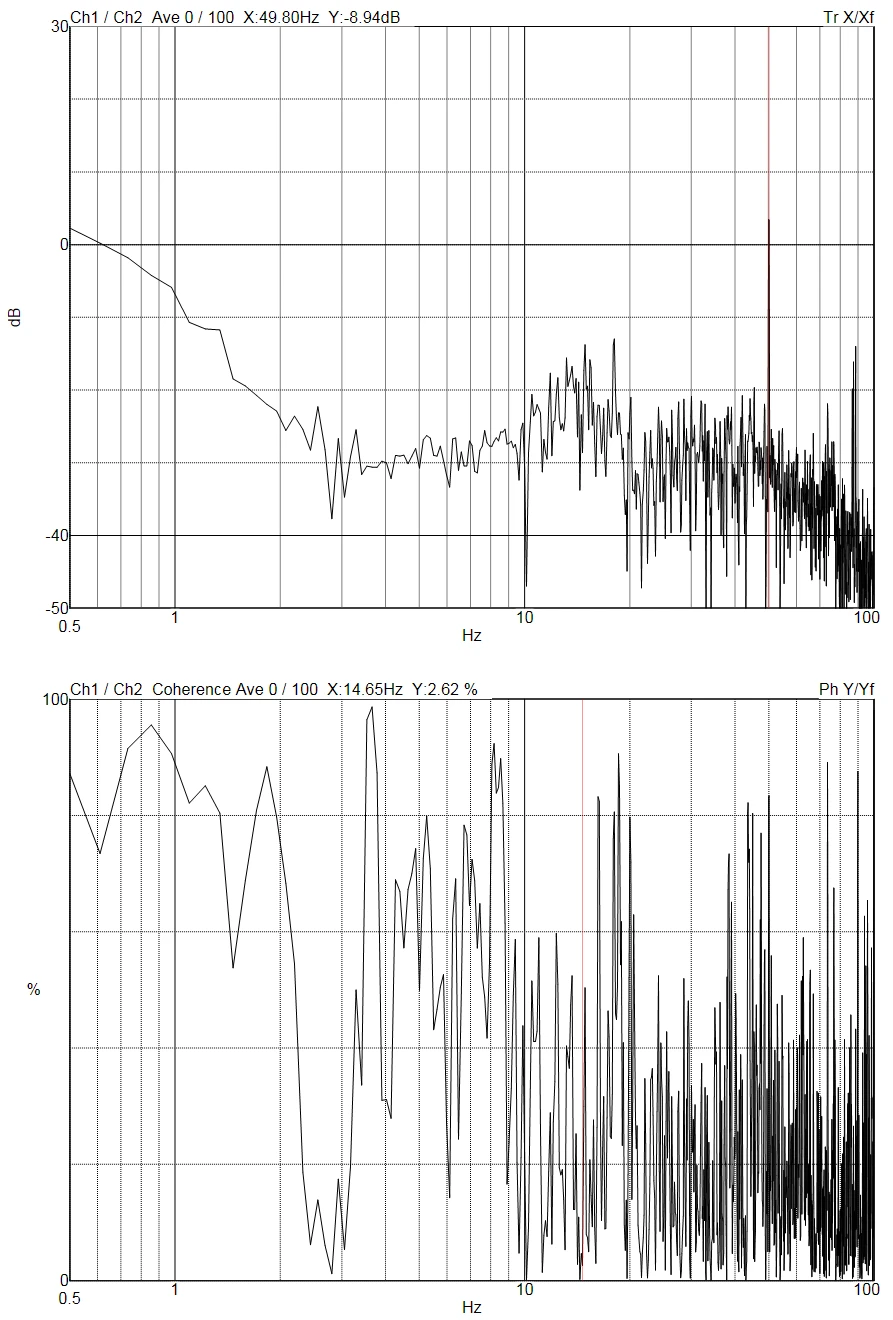

Internal program: X axis

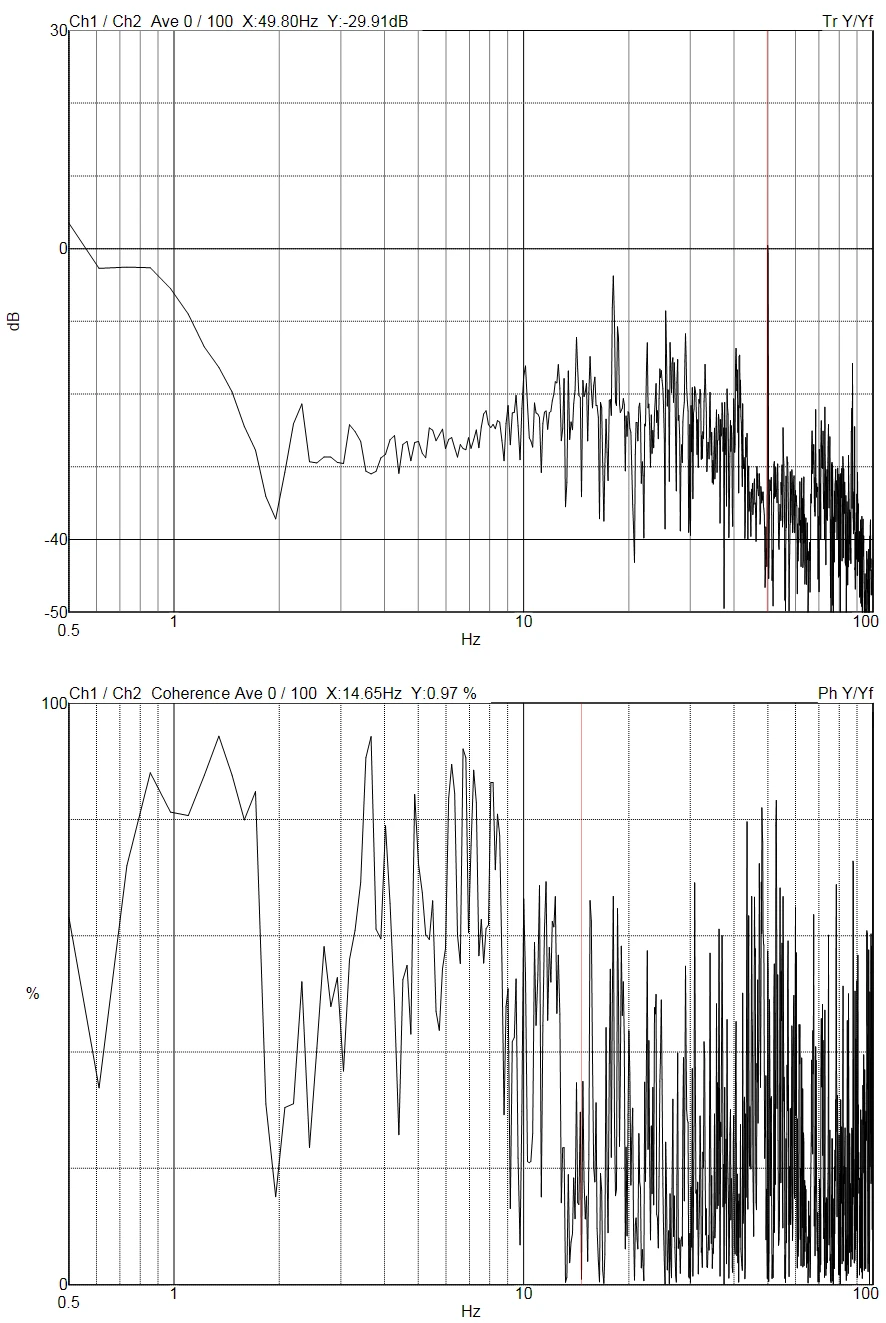

Internal program: Y axis
Vibration environment measurement result

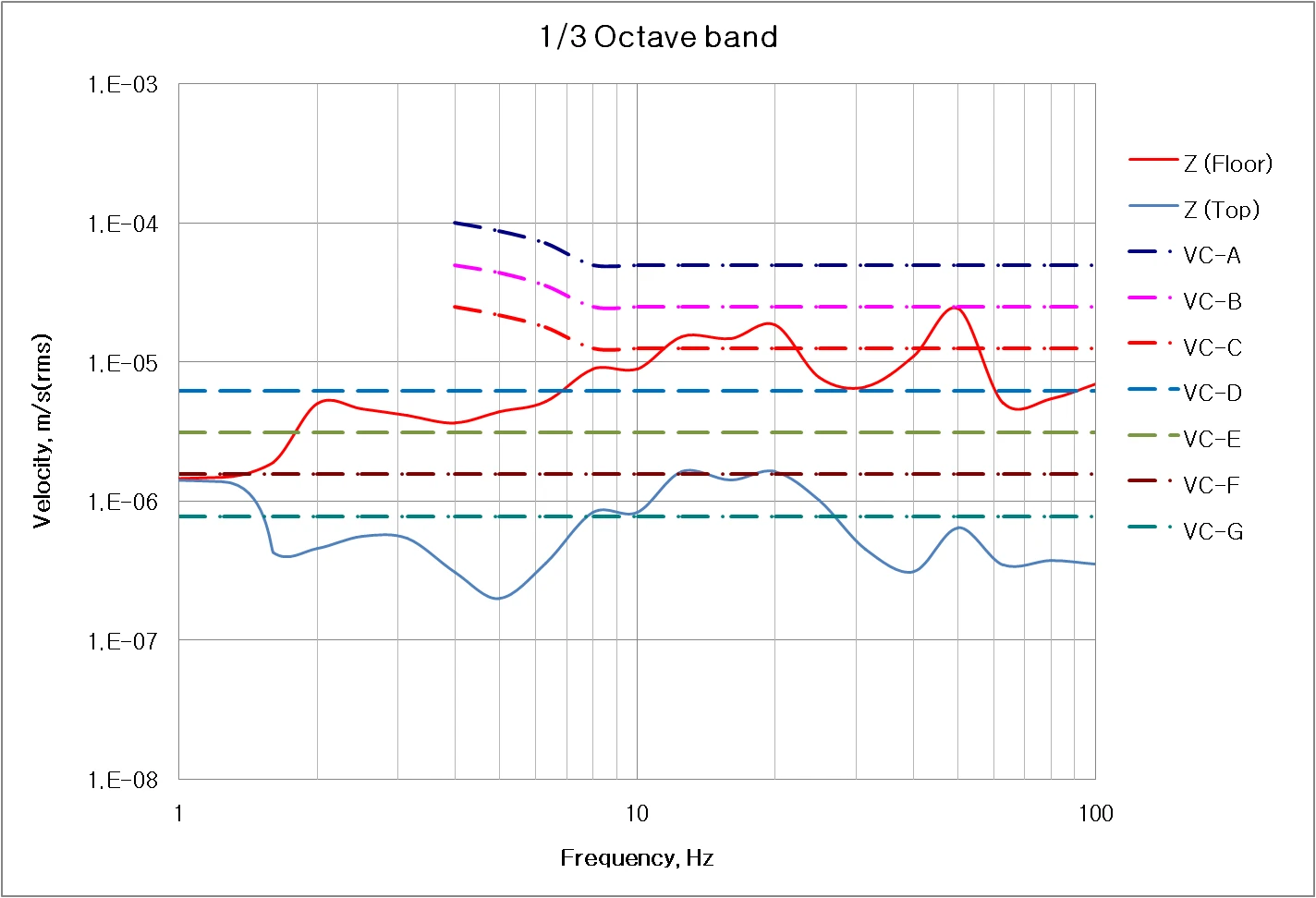

Vibration environment: Z axis

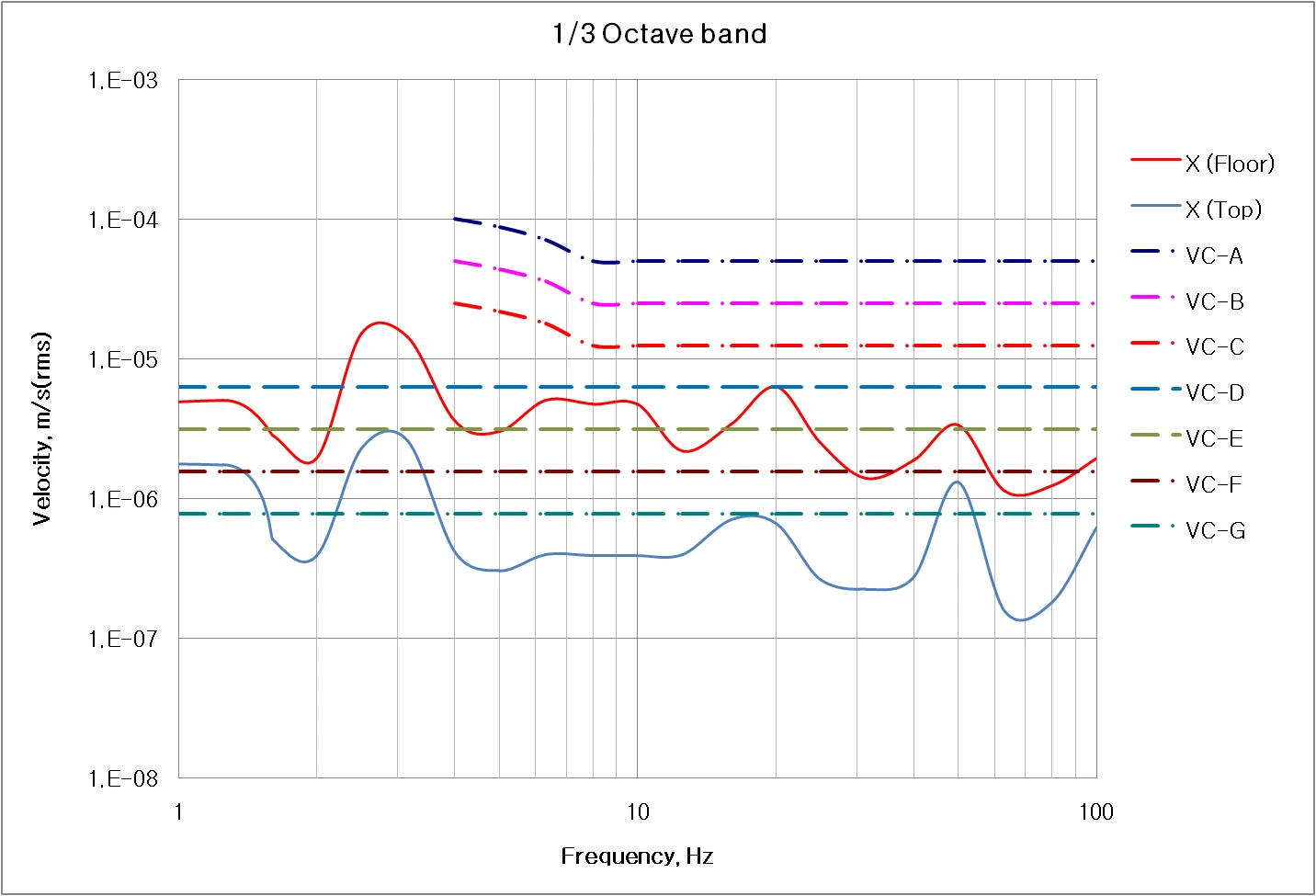

Vibration environment: X axis

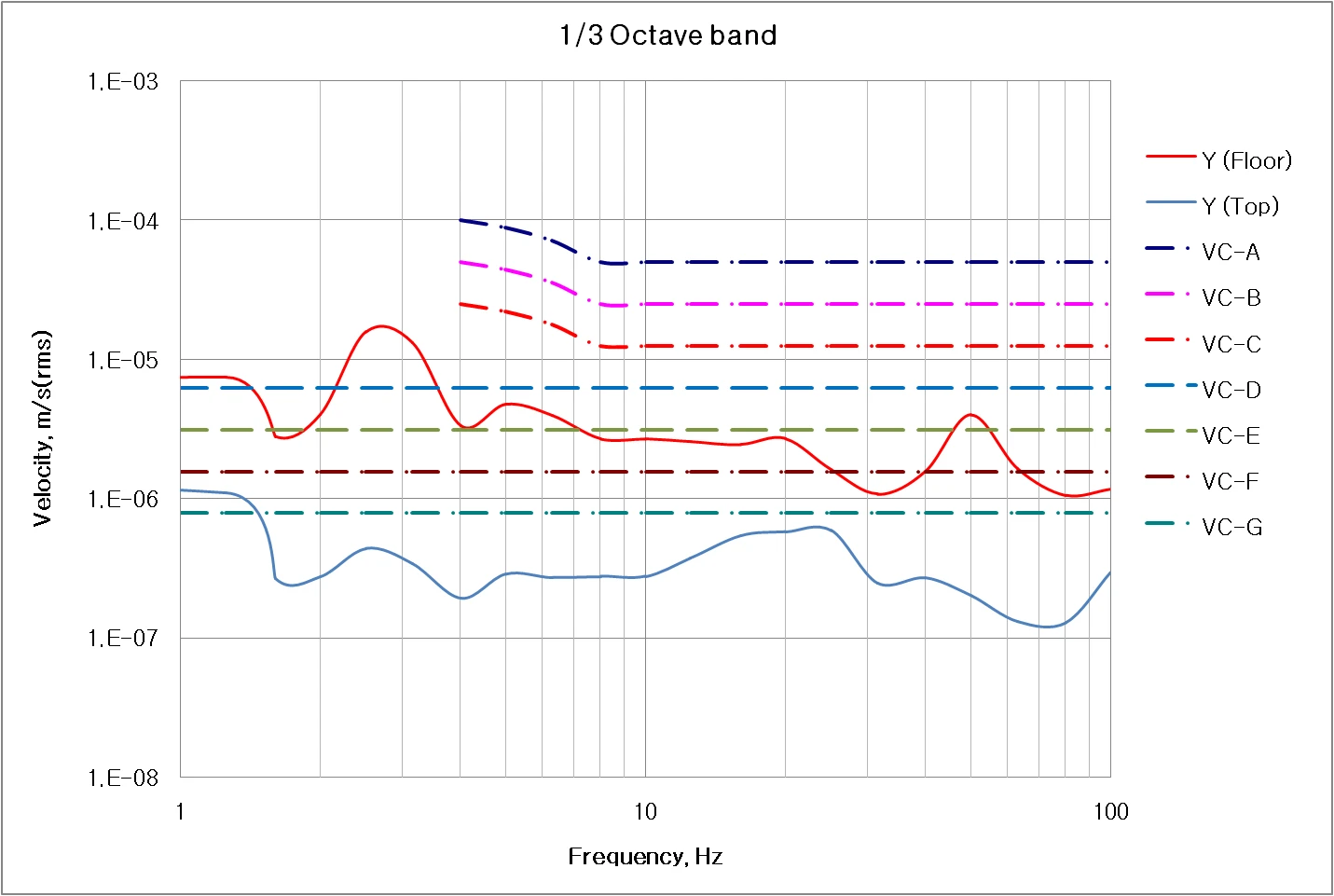

Vibration environment: Y axis
