Installation Report
DVIA-M Series
03-20-2017
KPSNC Shanghai ZEISS EVO18 DVIA-MB1000 (MB1000 P22) China business trip worksheet — 2017.03.20
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
MB1000 P22
Carl Zeiss
ZEISS
EVO18
KPSNC
Kolbenscnmidt Pierburg Shanghai
Shanghai
China
Contents
China business trip report (MB1000_P22 Set up)

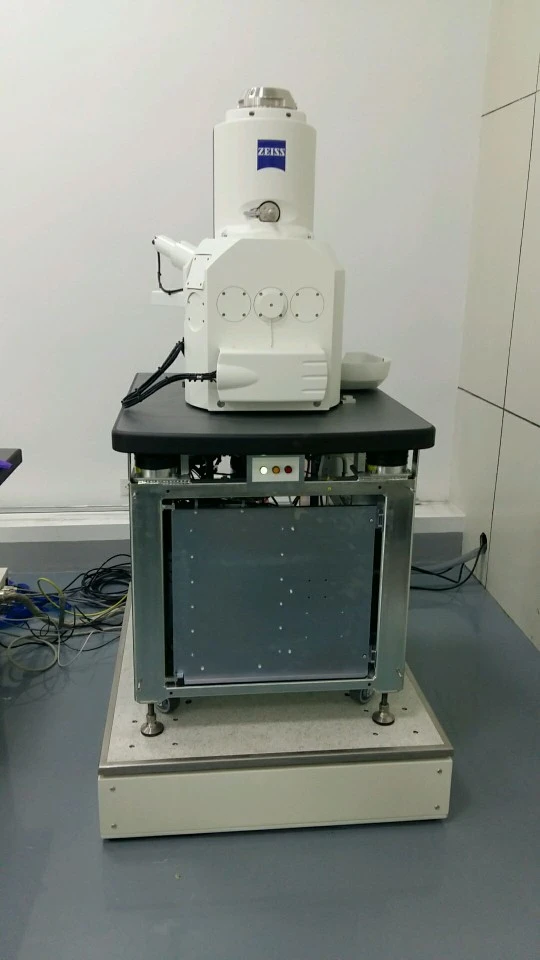

Installation photograph
Target equipment
ZEISS EVO18
Installation site
중국 상해
Remark
Located in a corporate R&D laboratory on the 1st floor.
There is an automated production plant immediately next door.
End user
Kolbenscnmidt Pierburg Shanghai Nonferrous Compenents co.,ltd
(KPSNC)
Business trip personnel and dates
출장일 : 17.03.17
출장자 : 임종욱
작성일 : 17.03.20
Installation summary
| Test Direction | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | B | F |
| X | D | F | |
| Y | E | G |
Omnidirectional performance is favorable.
Floor vibration was measured as Vertical B Class, X-axis D Class, and Y-axis E Class.
Vertical-axis vibration was measured as very severe, attributed to the influence of the adjacent production plant.
With active isolation, the vibration environment on top of the isolator platform is Z-axis and X-axis F Class and Y-axis G Class, indicating favorable performance.
Equipment images were checked; the customer was satisfied.
MB1000 internal program performance measurement result

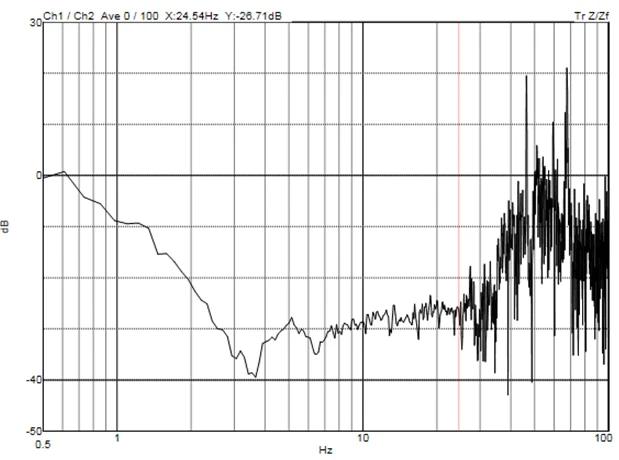

Internal program: Z axis

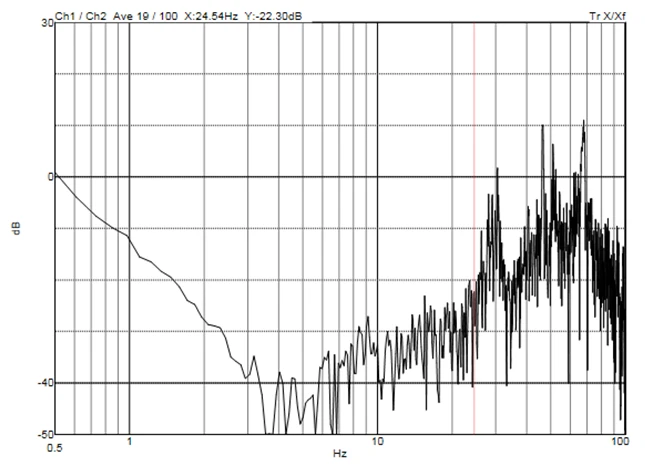

Internal program: X axis

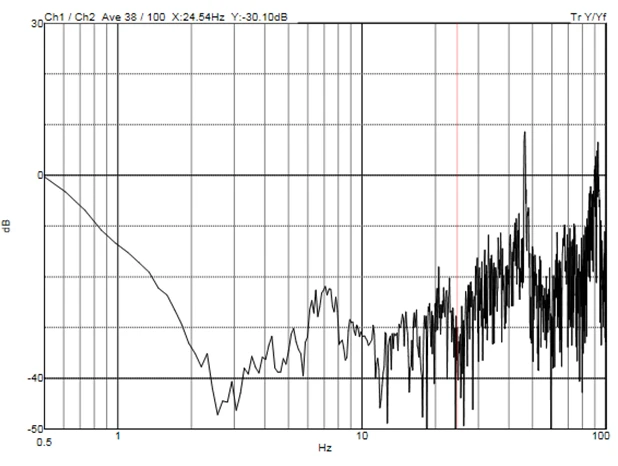

Internal program: Y axis
Vibration environment measurement result

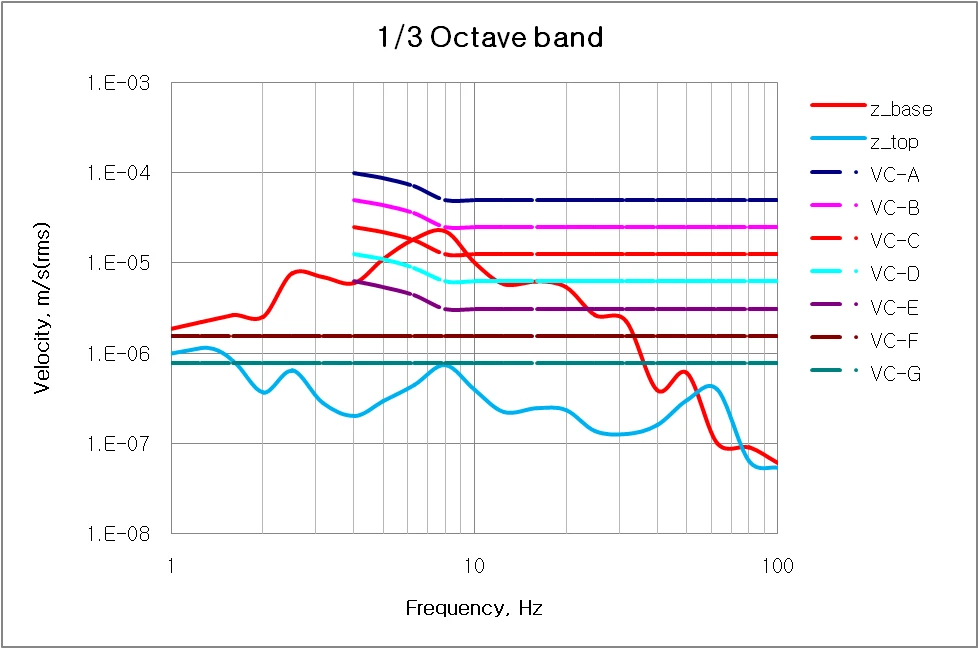

Vibration environment: Z axis

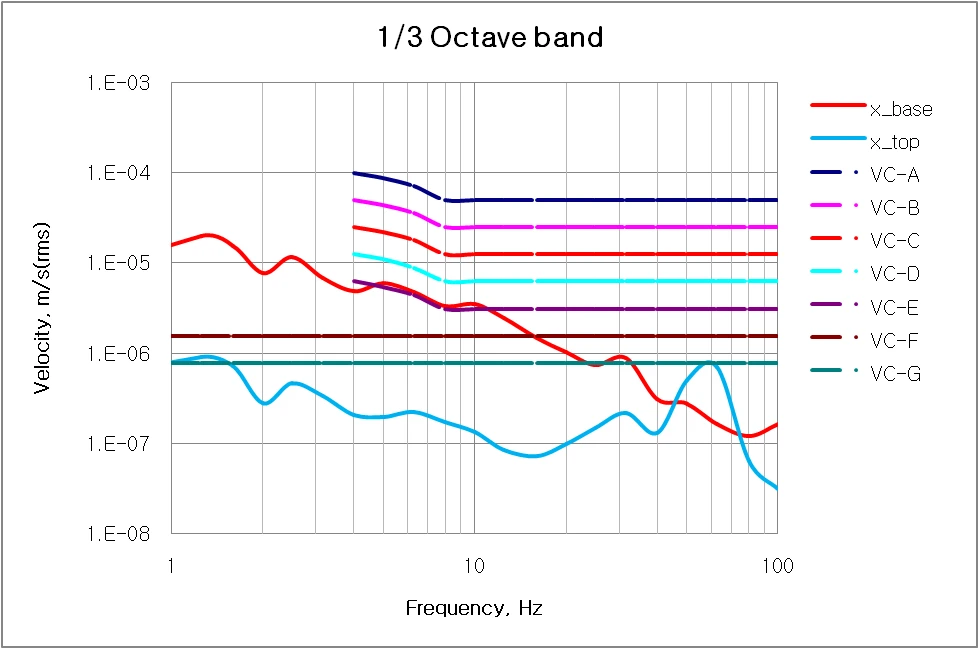

Vibration environment: X axis

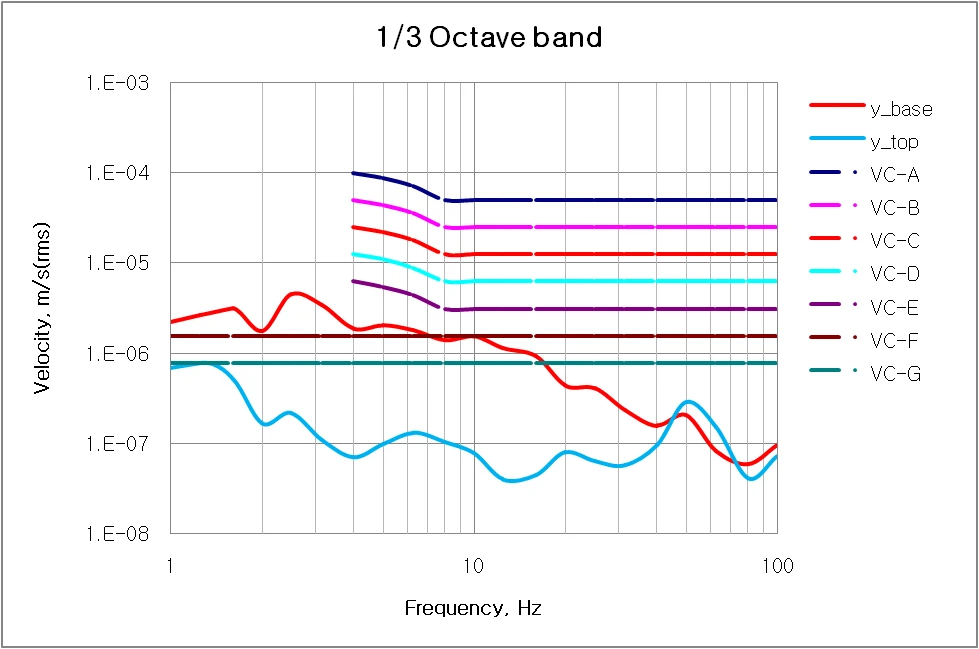

Vibration environment: Y axis
Image comparison (approx. 300000× magnification)
| ✓ PASSIVE | |
| ACTIVE |
