Kolbenscnmidt Shanghai Piston (KSSP) ZEISS EVO18 DVIA-MB1000 (MB1000 P56) China outbound report — 2018.01.02
Contents
China business trip report (MB1000_P56 Set up)
Target equipment
ZEISS EVO18

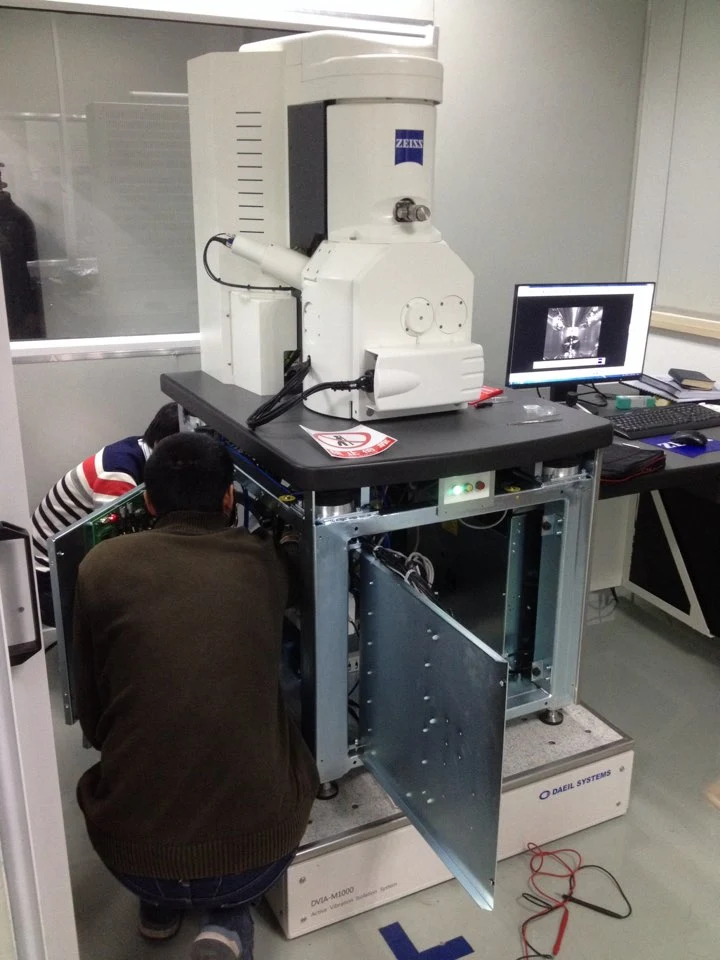

Installation site
중국 상해
Notes
1층에 위치한 기업연구소에 설치
End user
Kolbenscnmidt Shanghai Piston
(KSSP)
Business trip date
출장일 : 17.12.27
Traveler
출장자 : 최성원
Report written date
작성일 : 18.01.02
Installation result summary
| Test Direction | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | D | E |
| X | E | F | |
| Y | E | E |
Omnidirectional performance is favorable.
Floor vibration was measured as vertical axis Class D, X axis Class E, and Y axis Class E, with relatively large vibration below 4 Hz.
With active control, the vibration environment on the isolation platform top surface is Z axis Class E, X axis Class F, and Y axis Class E, with favorable performance.
A 70 Hz vibration peak can be seen on transmissibility and octave-band graphs. It occurs when the equipment is running and disappears when the equipment is stopped, so it was confirmed to be unrelated to the isolation platform. VC-Class entries ignore the 70 Hz component.
The equipment image quality is poor; a ZEISS engineer is repairing an equipment-side issue.
MB1000 internal program performance measurement result

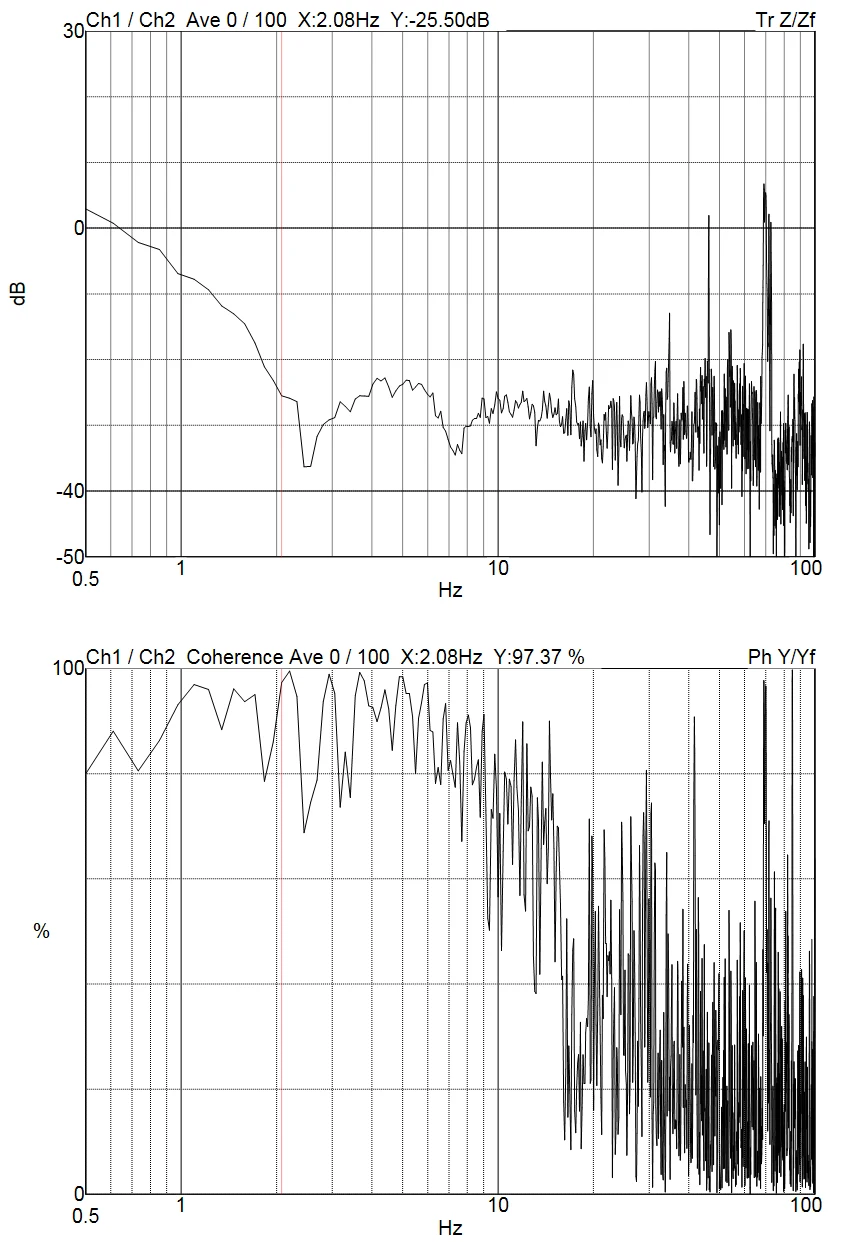

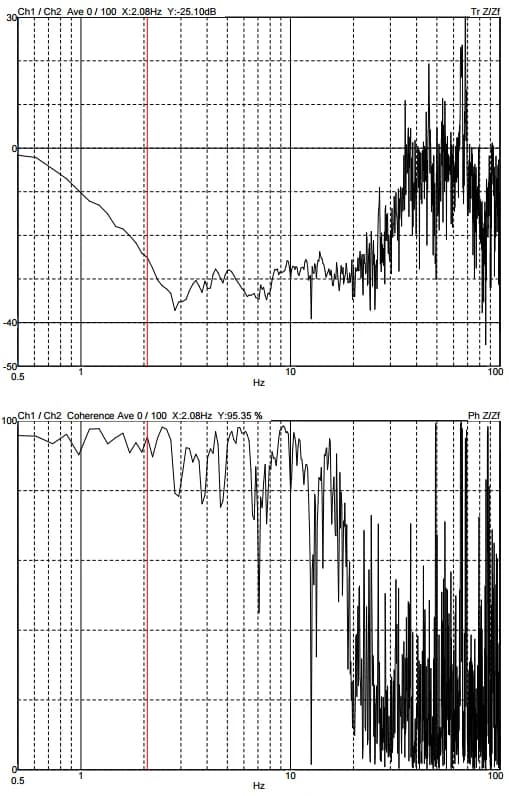

MB1000 internal program: Z axis

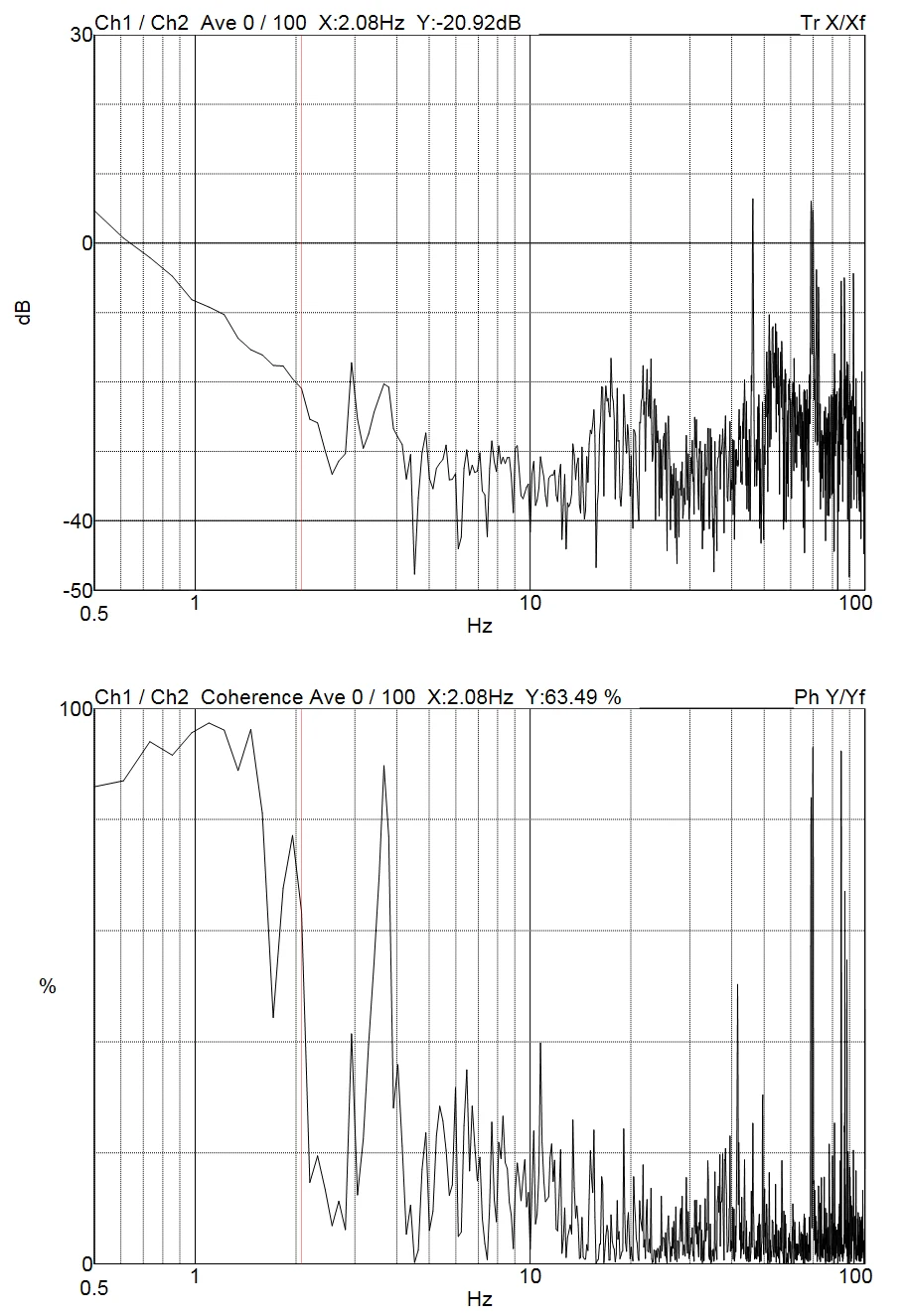

MB1000 internal program: X axis

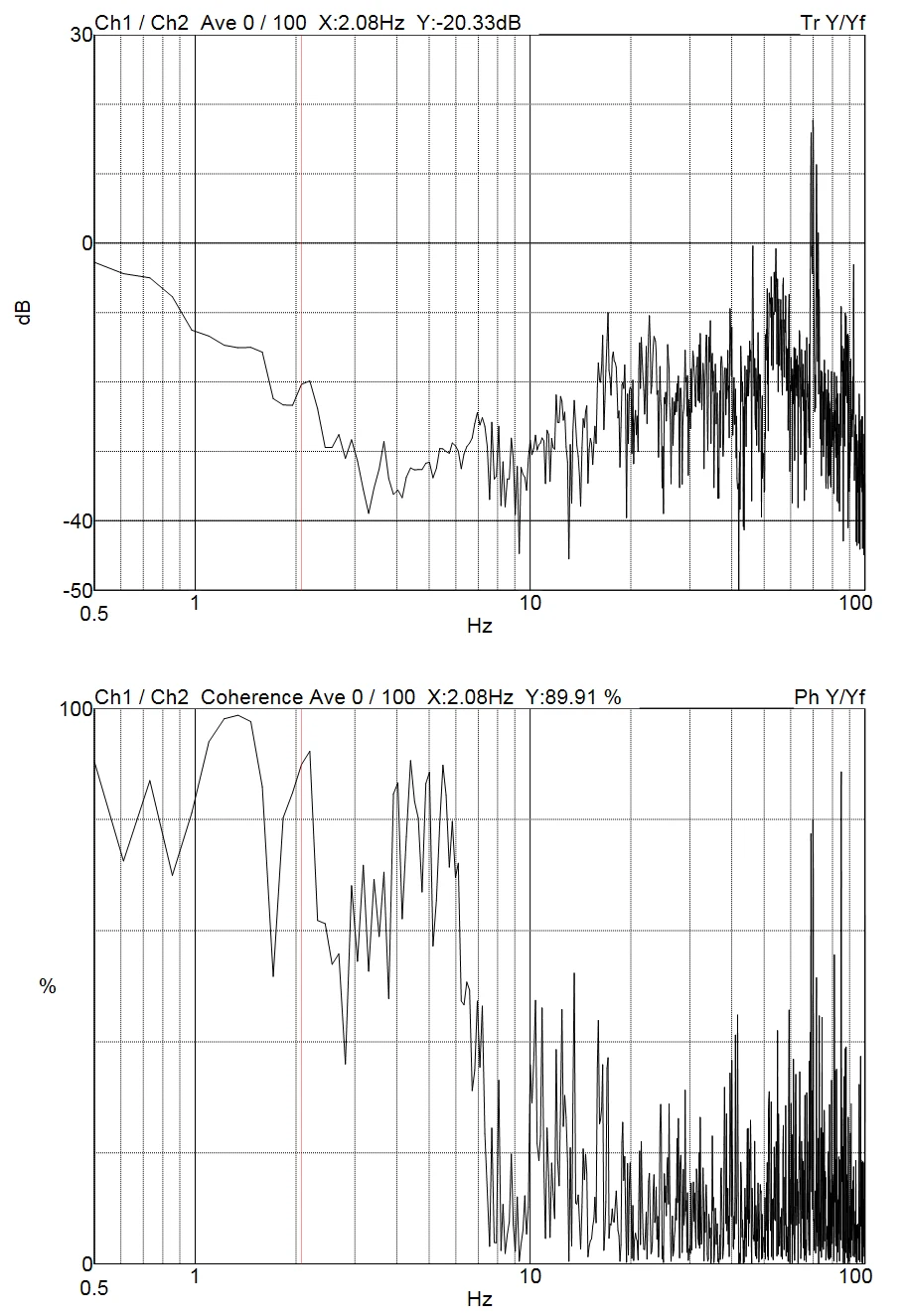

MB1000 internal program: Y axis
Vibration environment measurement result

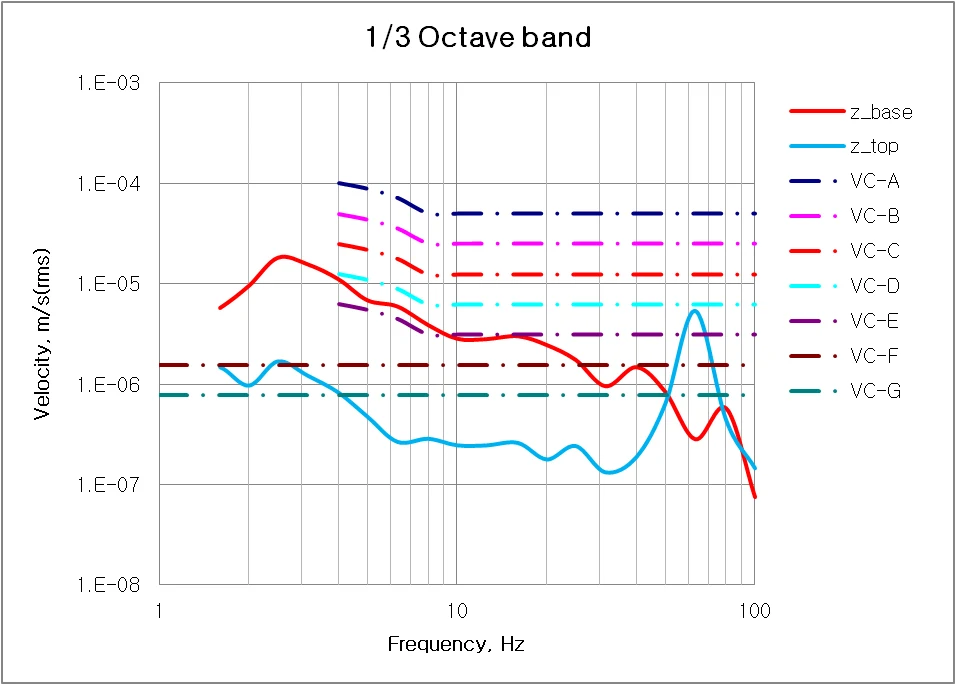

Vibration environment: Z axis

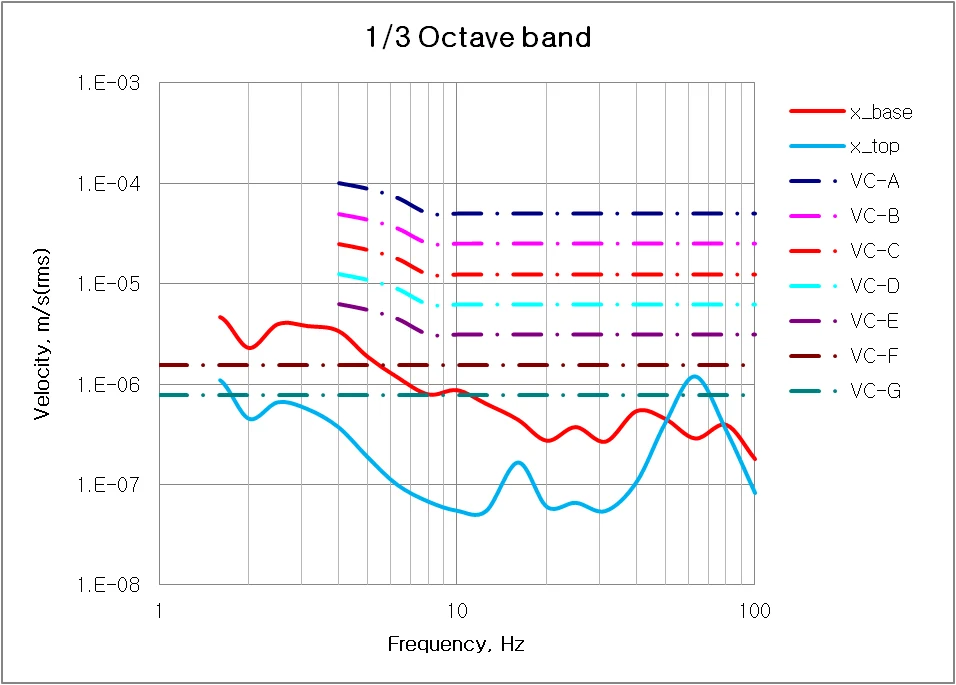

Vibration environment: X axis

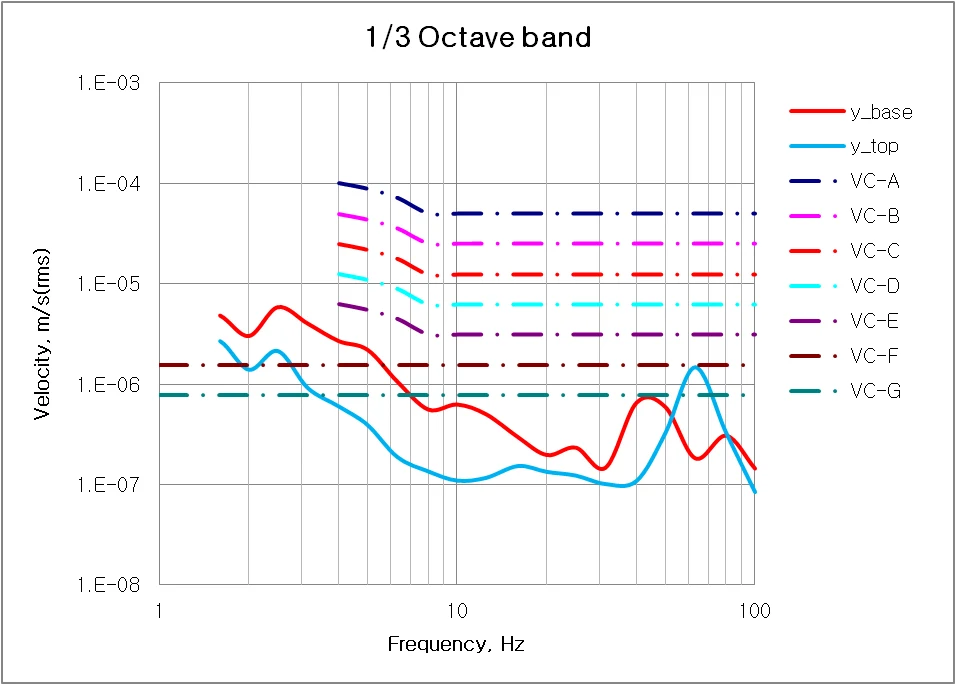

Vibration environment: Y axis
Image comparison (approx. 300000× magnification)
| ✓ PASSIVE | |
| ACTIVE |
