Installation Report
DVIA-M Series
12-03-2018
Shanghai Institute of Materials Research ZEISS Sigma 500 DVIA-MB1000 (MB1000 P64) Internal program worksheet — 2018.12.03
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
P64
ZEISS
Sigma 500
Shanghai
Materials Research
Contents
(Shanghai OPTON MB1000_P64 Set up)
Target equipment
ZEISS Sigma 500
Place of installation
institute of materials, 1th FLOOR
Uniqueness
Good Performance
END USER
Shanghai institute of material research
Date of business trip
Date of business trip : 18.11.27
Business traveler
Business traveler: Choi, HyoungMun
Date Created
Date Created : 18.12.03
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.11.27 (Tuesday),
Rater
Rater: Daeil System, Manager Choi , Hyoung Moon
Place of measurement
Place of measurement : institute of materials, 1th FLOOR
Equipment Model
Equipment Model: ZEISS Sigma 500
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | B | E | E |
| Above Active | F | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

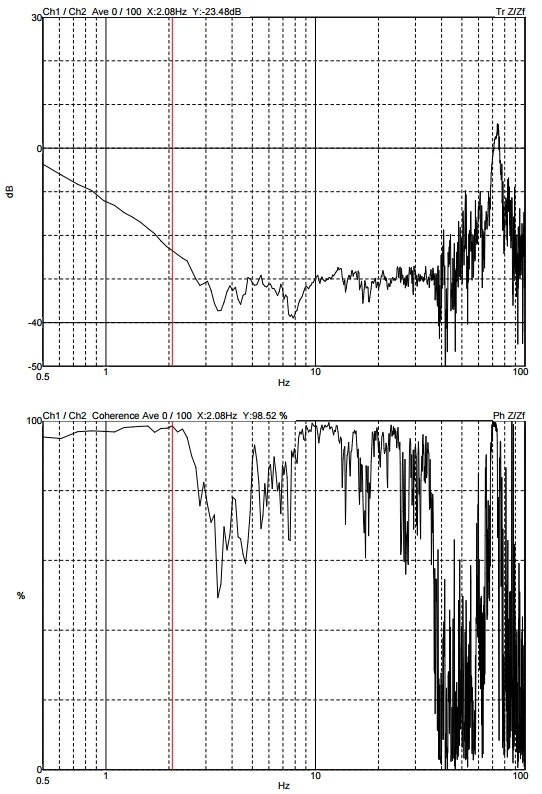

Z axis

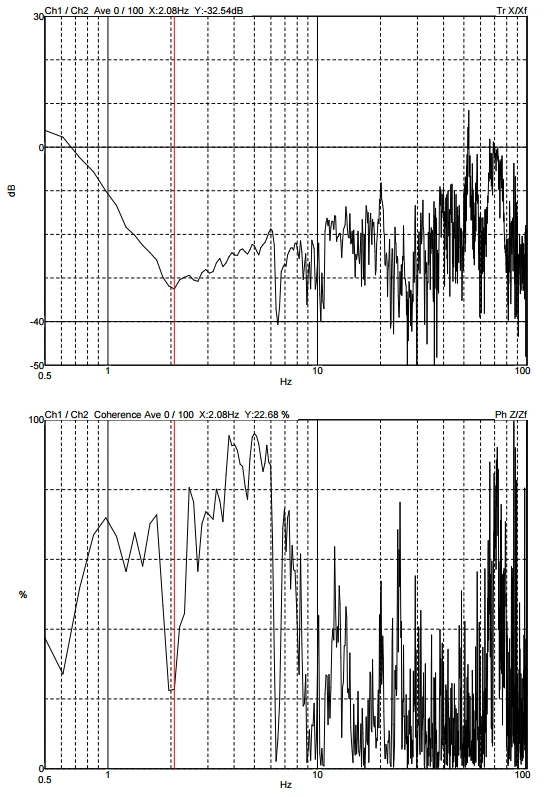

X axis

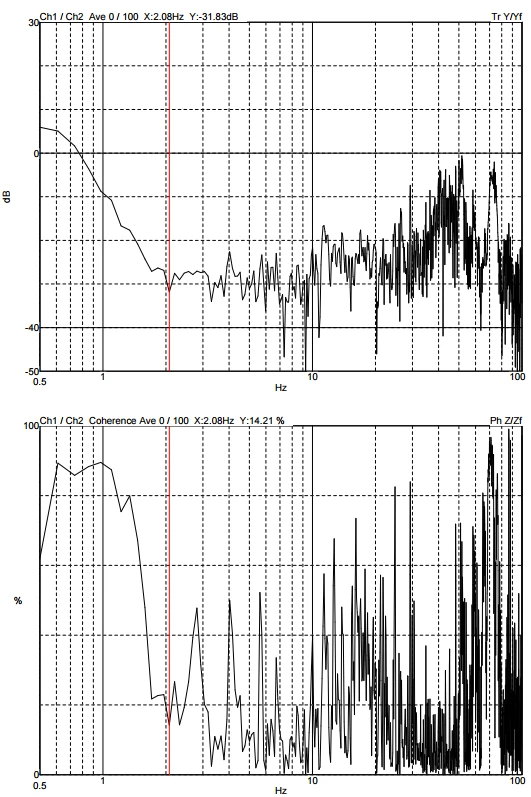

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date12-03-2018
Tags
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
P64
ZEISS
Sigma 500
Shanghai
Materials Research
Related Case Studies
DVIA-M Series
Shanghai Institute of Materials Research ZEISS Gemini 500 DVIA-MB1000 (P64) Installation Worksheet — 2017.07.02
07-02-2017Read more
DVIA-M Series

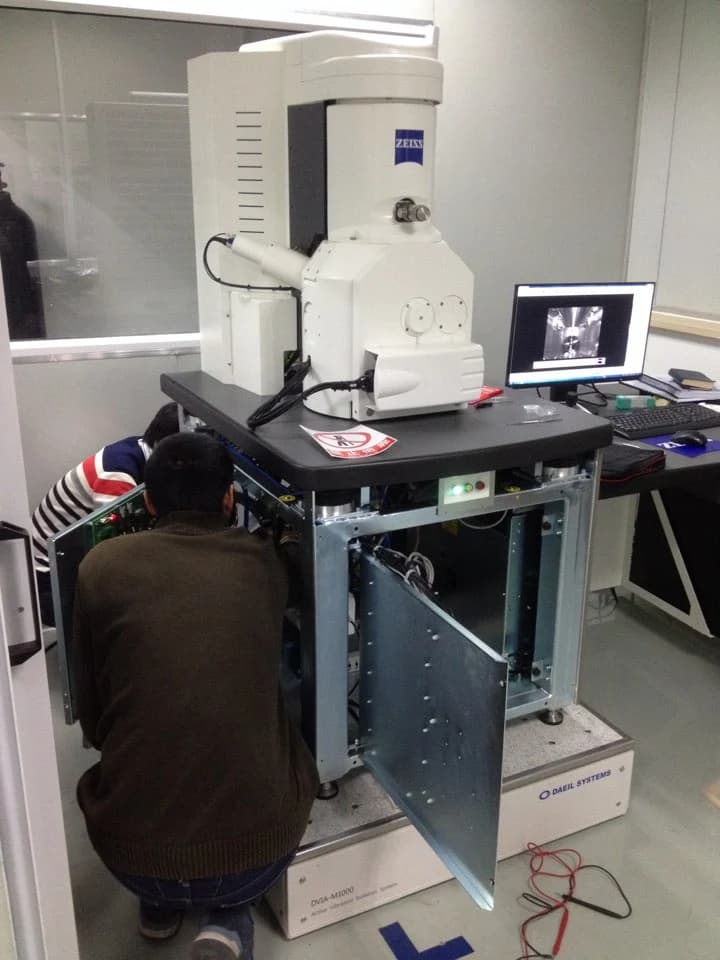

Kolbenscnmidt Shanghai Piston (KSSP) ZEISS EVO18 DVIA-MB1000 (MB1000 P56) China outbound report — 2018.01.02
