Installation Report
DVIA-M Series
11-19-2020
Foxconn ZEISS Sigma 500 DVIA-MB1000 (200522R2-5 · P159) Remote measurement — Internal program plots — 2020.11.19
DVIA-M Series
Installation Report
DVIA-MB1000
200522R2-5
ZEISS
Sigma 500
Foxconn
YIMO
Contents
(MB1000_200522R2-5(P159) Set up)
| Target equipment | Zeiss Sigma500 |
|---|---|
| Place of installation | Foxconn |
| Remark | Good Performance |
| END USER | Foxconn |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.11.19 | Date of reporting : 20.11.19 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.11.19 (THU)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Foxconn
Equipment Model: Zeiss Sigma500
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -19.12 dB | -27.69 dB | -31.53 dB |
| X | -21.23 dB | -32.63 dB | -32.65 dB |
| Y | -26.29 dB | -41.45 dB | -38.52 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

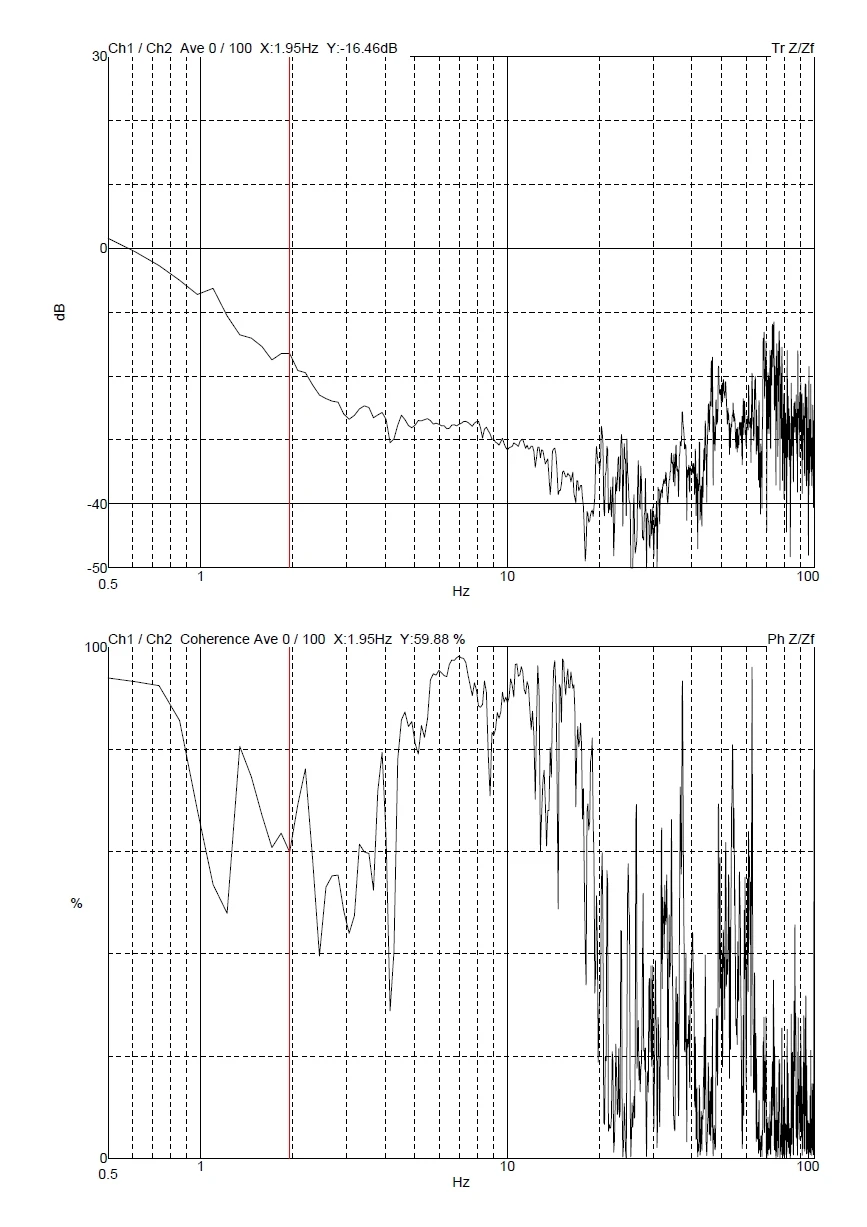

Z axis

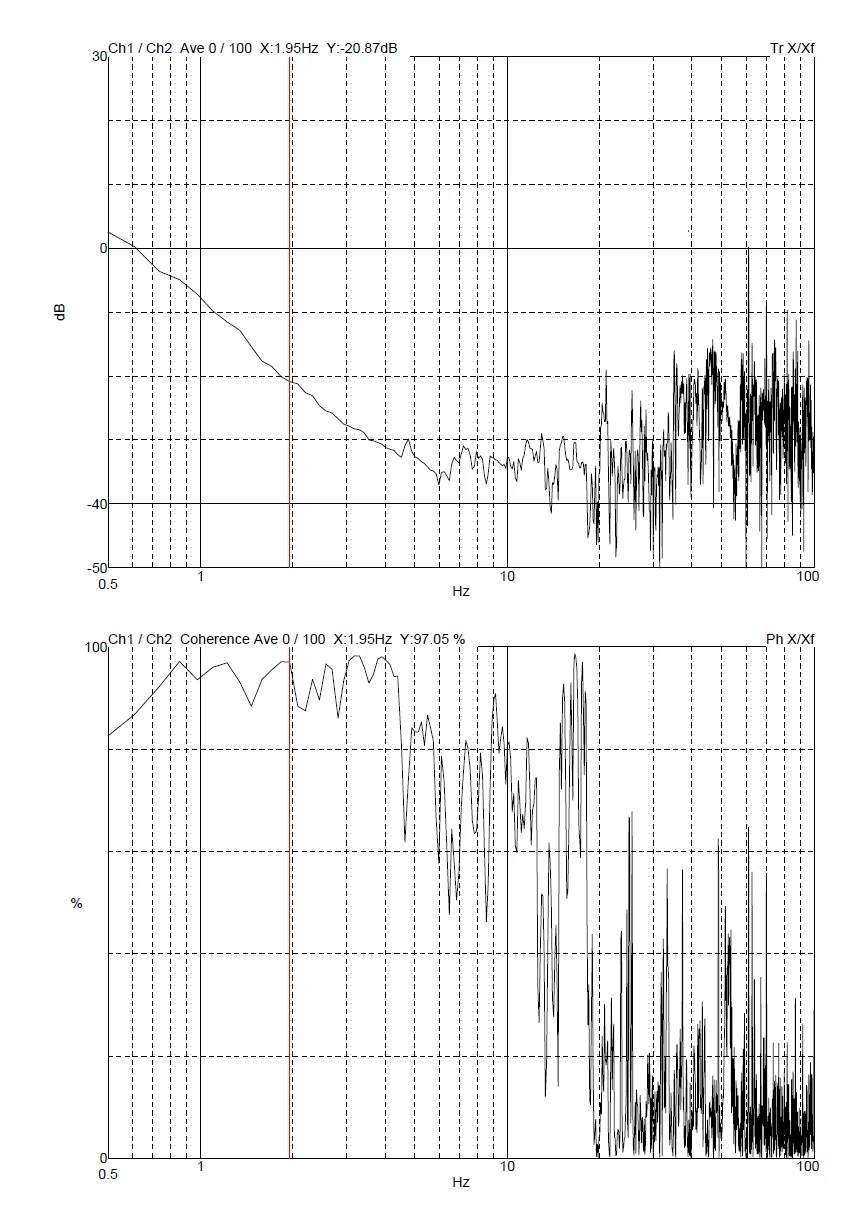

X axis

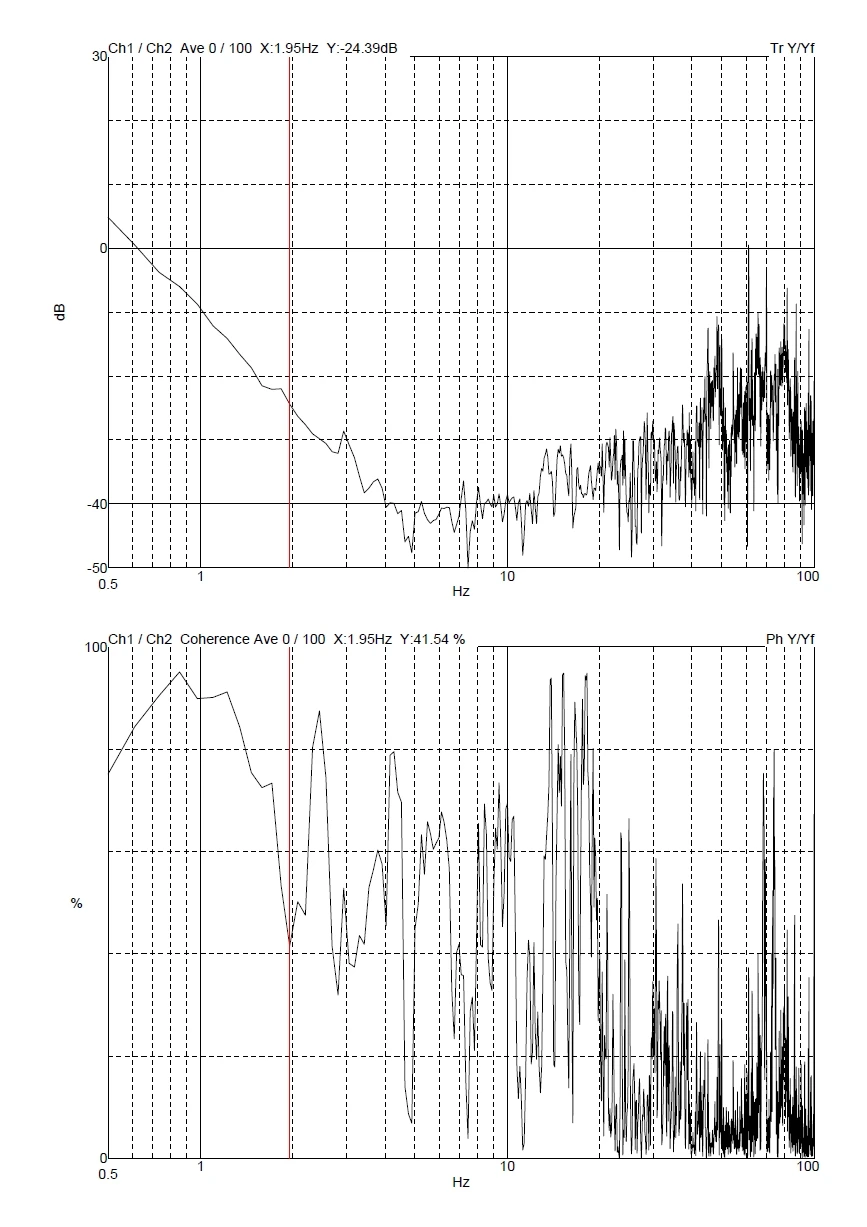

Y axis
