Installation Report
DVIA-M Series
11-11-2021
YIMO Hitachi HT7800 MB1000 P243 (210608R1) internal program handout — 2021.11.11
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
210608R1
P243
Hitachi
HT7800
Contents
(MB1000 P243(210608r1) Set up)
Target equipment
Hitachi HT7800
Place of installation
shanghai
Remark
Good Performance
END USER
第九人民医院
Operator
Kim, Doohyun
Date of setup
Date of setup : 21.11.11
Date of reporting
Date of reporting : 21.11.11
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.11.11 (THU)
Operator: Daeil System, Research engineer Kim, Doohyun
Place of measurement
Place of measurement : shanghai, 第九人民医院
Equipment Model
Equipment Model: Hitachi HT7800
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz | ||
|---|---|---|---|---|---|
| Z | -22 dB | -25 dB | -35 dB | ||
| X | -34 dB | -35 dB | -35 dB | ||
| Y | -28 dB | -31 dB | -31 dB | ||
Good omnidirectional performance.
MB1000 internal program performance measurement result

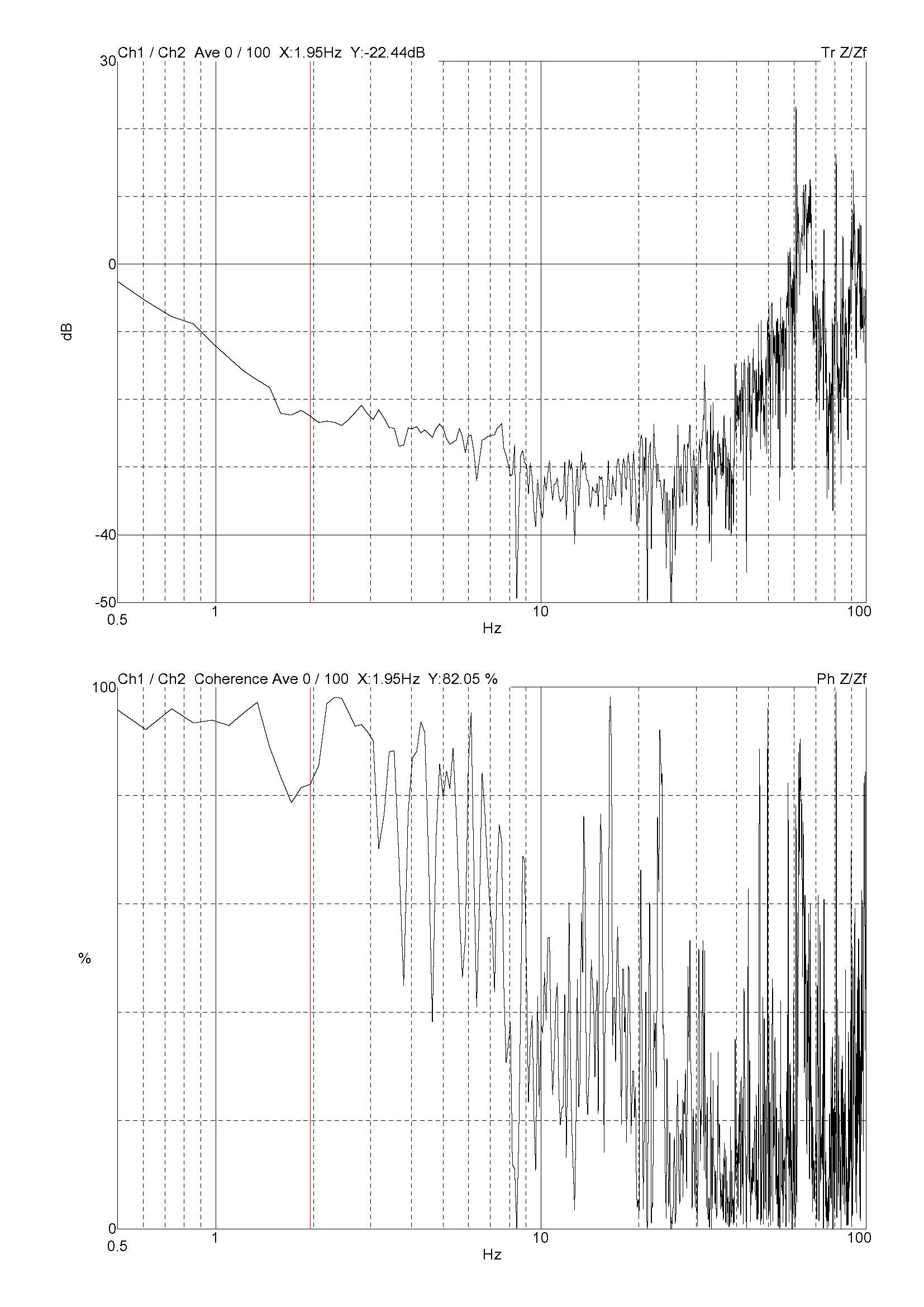

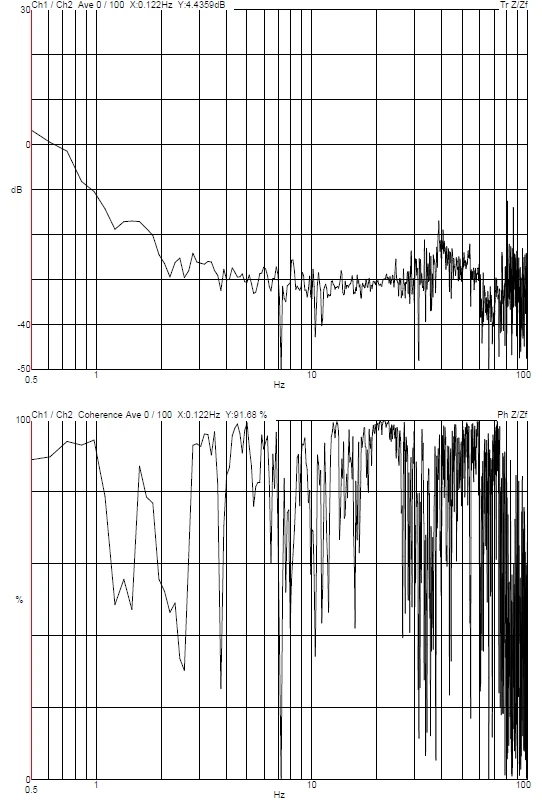

Z axis

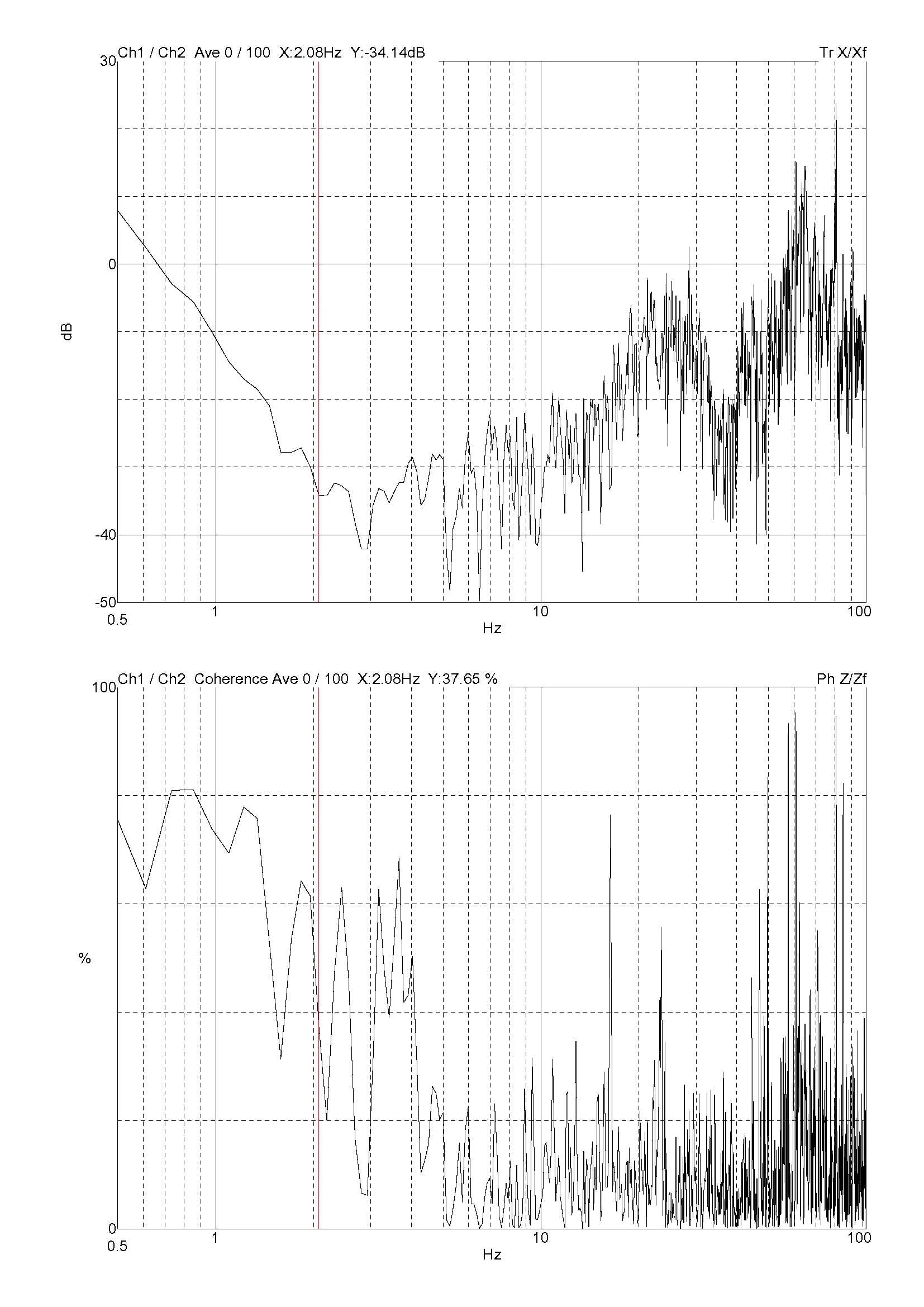

X axis

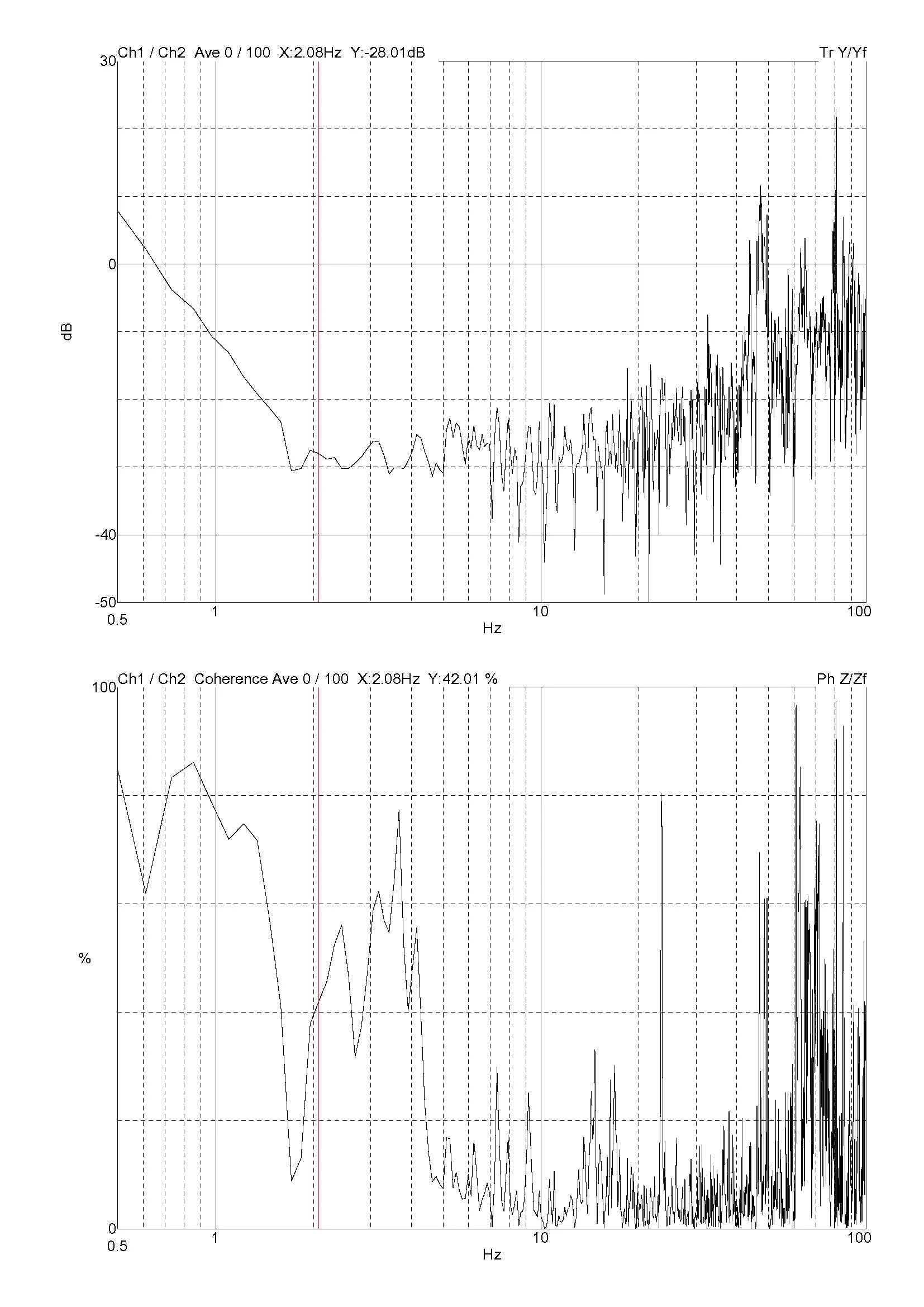

Y axis
