Installation Report
DVIA-M Series
09-03-2020
Hitachi HT7800 DVIA-MB1000 (P173 / 191219R3-4, Nimo remote tuning) — 2020.09.03
DVIA-M Series
Installation Report
DVIA-MB1000
Hitachi
HT7800
Nimo
Remote tuning
P173
191219R3-4
Contents
MB1000_P173 191219R3-4 Set up
| Target equipment | HITACHI-HT7800 |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.09.02 | Date of reporting : 20.09.03 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.09.02 (Wed),
Operator: Daeil System, Manager Choi, HyoungMun
Place of measurement : N/A
Equipment Model: HITACHI-HT7800
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class | ||
|---|---|---|---|
| Z | X | Y | |
| Floor | |||
| Above Active |
Good omnidirectional performance.
MB1000 internal program performance measurement result

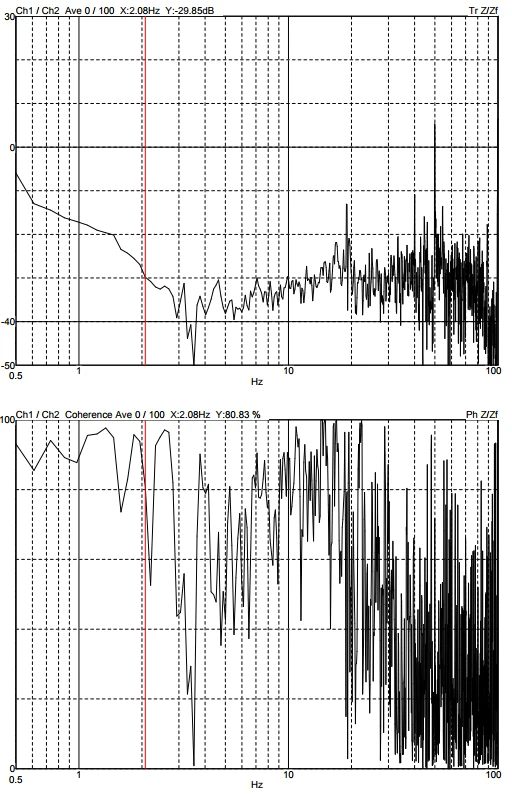

Z axis

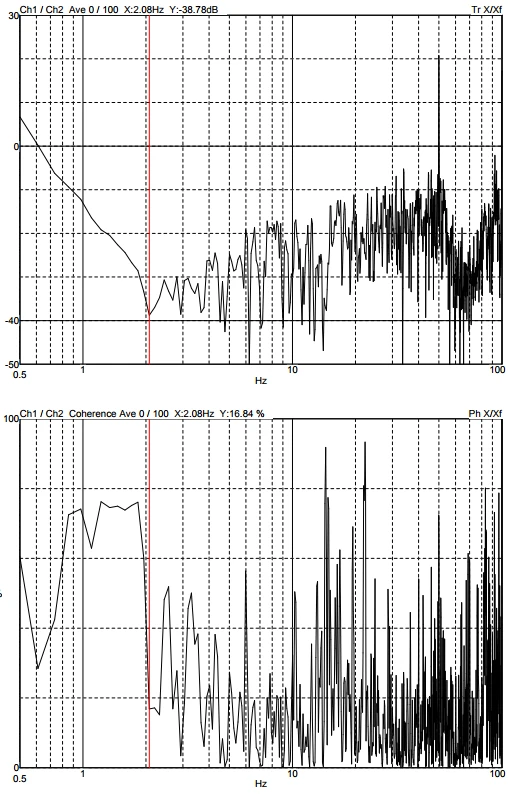

X axis

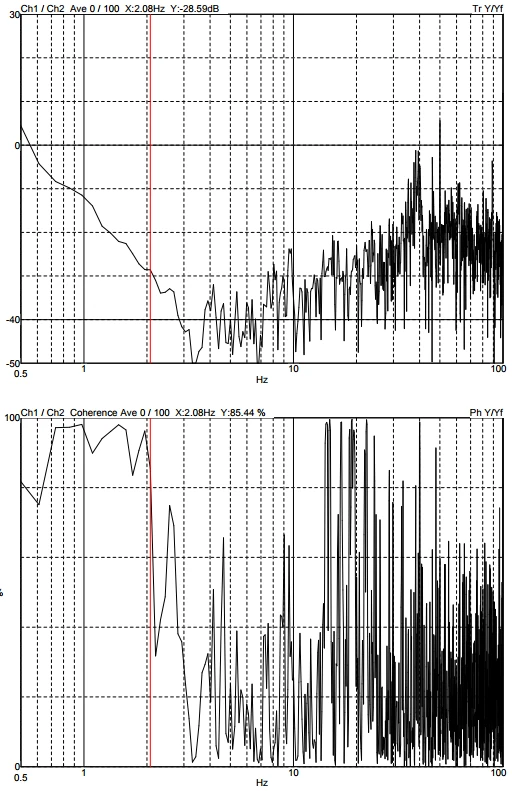

Y axis
