Installation Report
DVIA-M Series
06-10-2021
Inner Mongolia University Hitachi HT7800 DVIA-MB1000 (201216R1-3 · P217) Remote measurement — Internal program plots — 2021.06.10
DVIA-M Series
Installation Report
DVIA-MB1000
201216R1-3
Hitachi
HT7800
Inner Mongolia
NeiMengGu
YIMO
Contents
(MB1000_ 201216R1-3 (P217) Set up)
| Target equipment | Hitachi HT7800 |
|---|---|
| Place of installation | NeiMengGu |
| Remark | Good Performance |
| END USER | 内蒙古大学 |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.06.10 | Date of reporting : 21.06.10 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.06.10 (THU)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : NeiMengGu
Equipment Model: Hitachi HT7800
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -41.87 dB | -27.61 dB | -38.42 dB |
| X | -39.25 dB | -36.46 dB | -37.42 dB |
| Y | -41.40 dB | -54.92 dB | -39.47 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

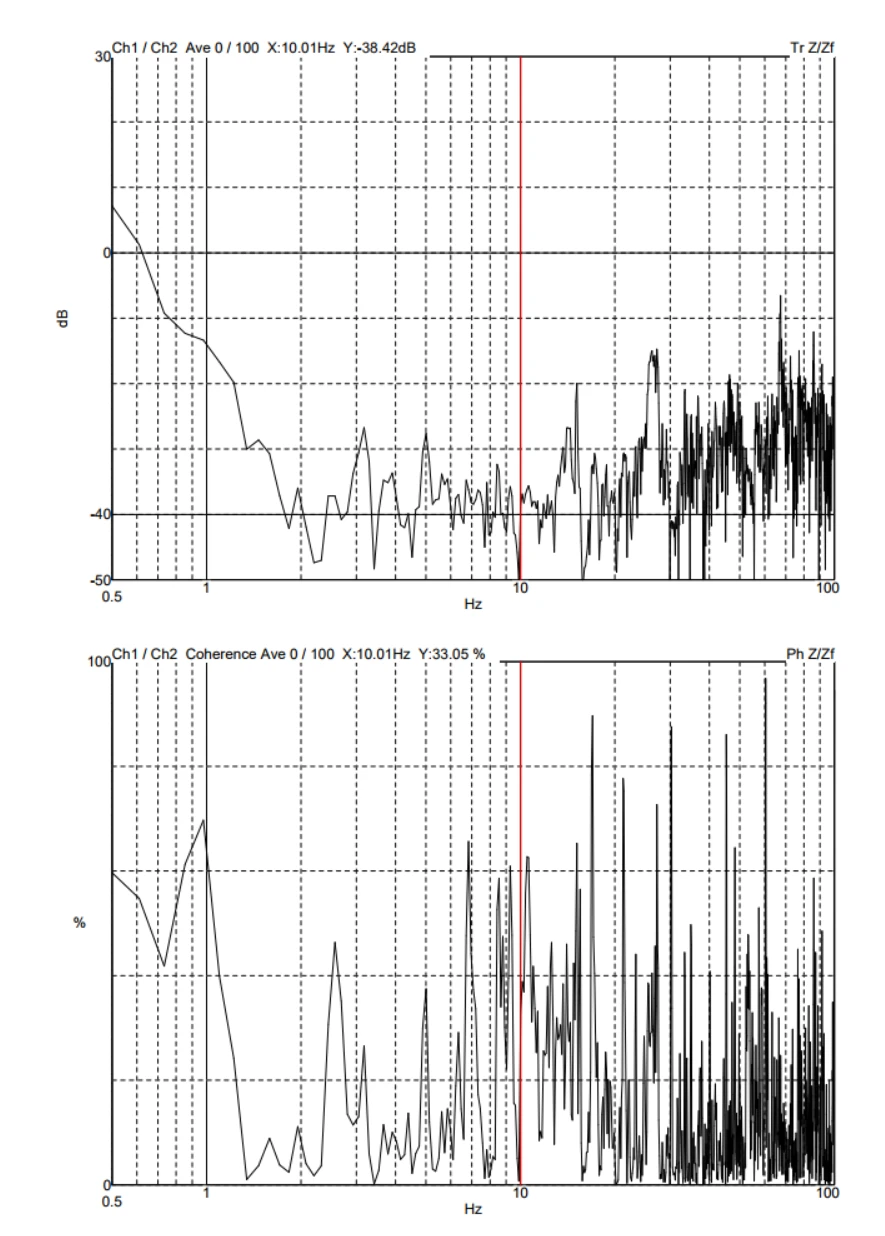

Z axis

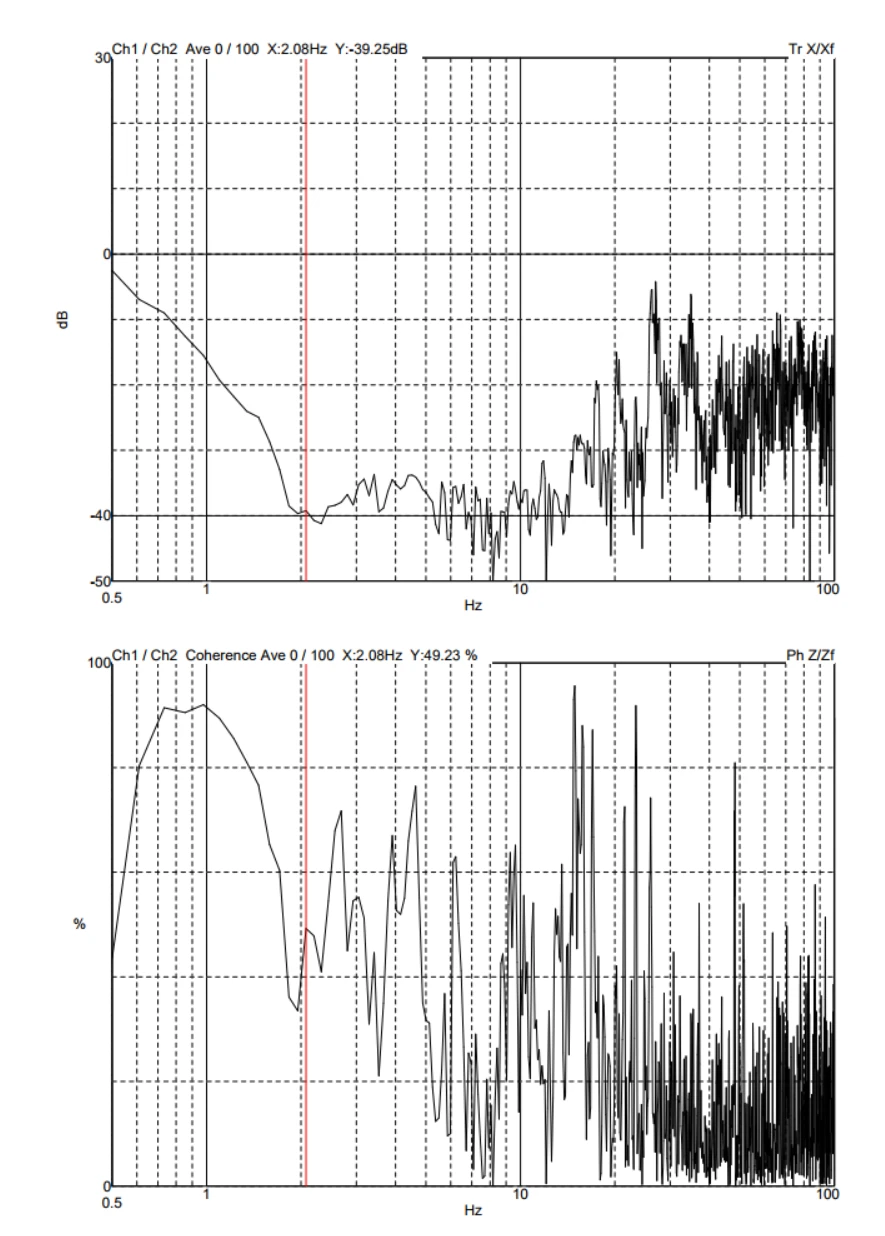

X axis

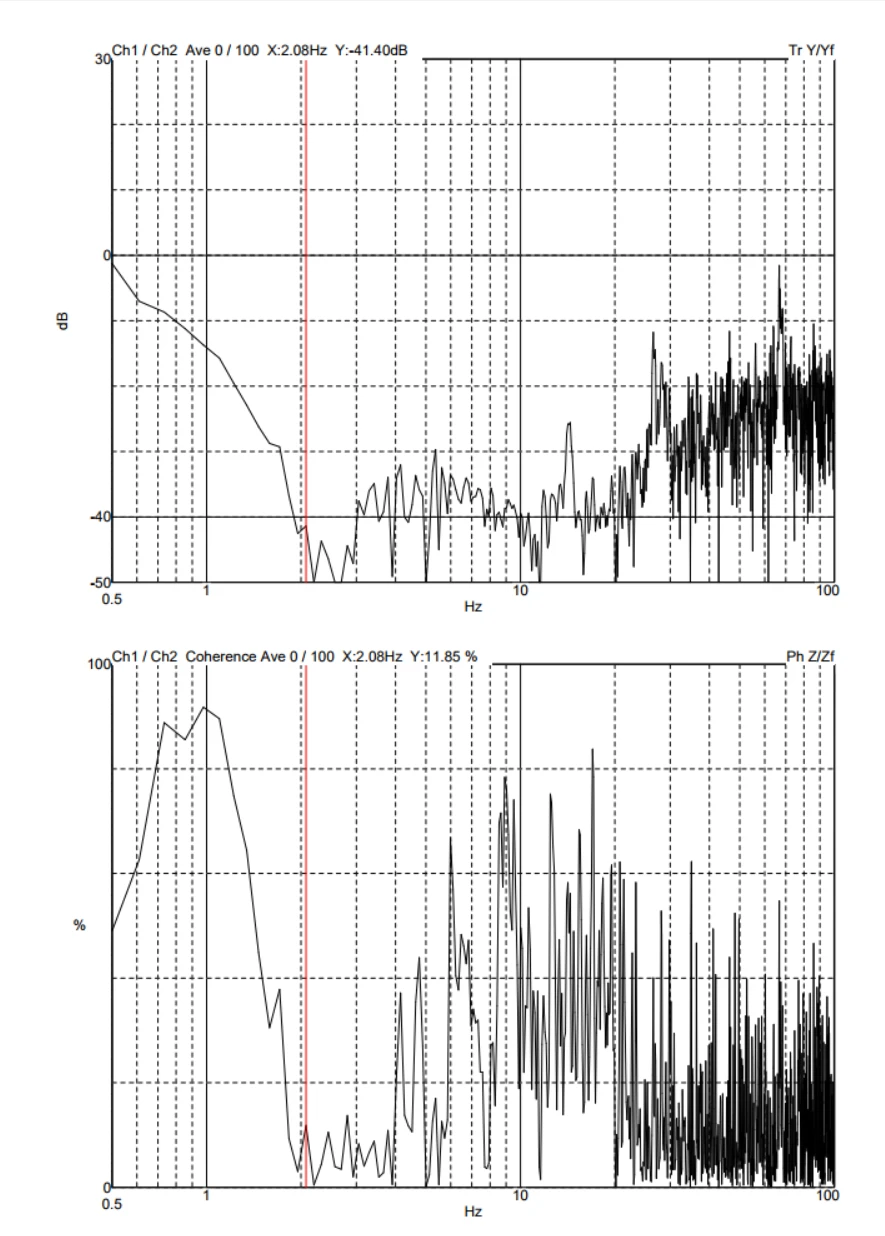

Y axis
