Huawei TESCAN Solaris GMH DVIA-M1000 Installation Report (YIMO, MB1000 P249, 210517R4) — 2021.09.29

DVIA-M Series

Installation Report

YIMO

Huawei

TESCAN

Solaris

DVIA-M1000

210517R4

MB1000 P249(210517r4)

Target equipment and site

Target equipment	Tescan solaris gmh
Place of installation	N/A
Remark	Good Performance
END USER	Huawei

Reporting schedule

Operator: Kim, Doohyun

Date of setup : 21.09.24

Date of reporting : 21.09.29

Date of business trip : 17.12.27~17.12.29

Overview

After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.

Measurement date: 21.09.24 (FRI)

Operator: Daeil System, Research engineer Kim, Doohyun

Place of measurement : N/A

Equipment Model: Tescan solaris gmh

Measurement conditions and results

Summary of measurement results

Test Condition

Transmissibility

Test Condition	Transmissibility	Transmissibility	Transmissibility
	2 Hz	5 Hz	10 Hz
Z	-23 dB	-40 dB	-40 dB
X	-29 dB	-35 dB	-31 dB
Y	-37 dB	-33 dB	-31 dB

Good omnidirectional performance.

MB1000 internal program performance measurement result

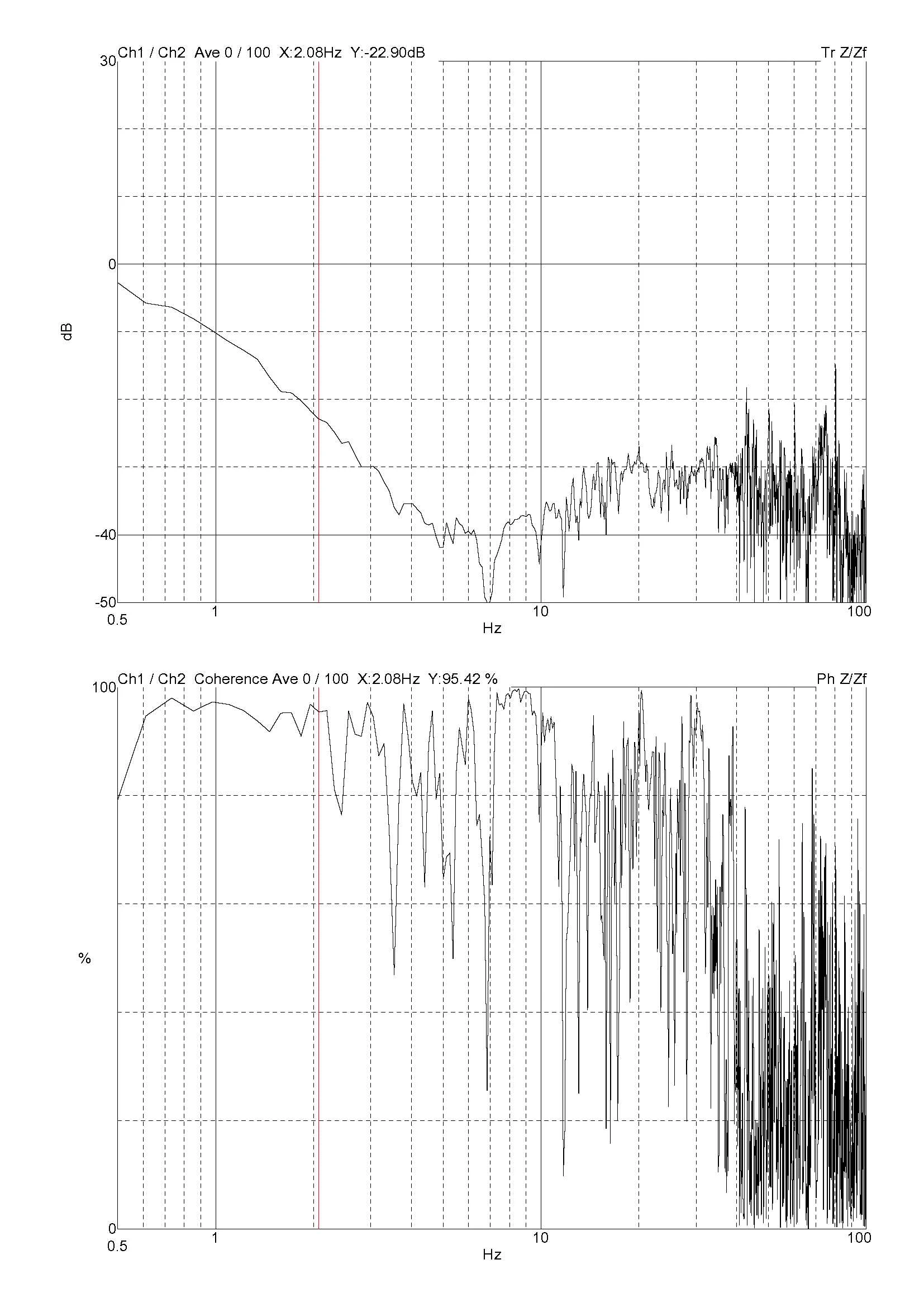

Z axis

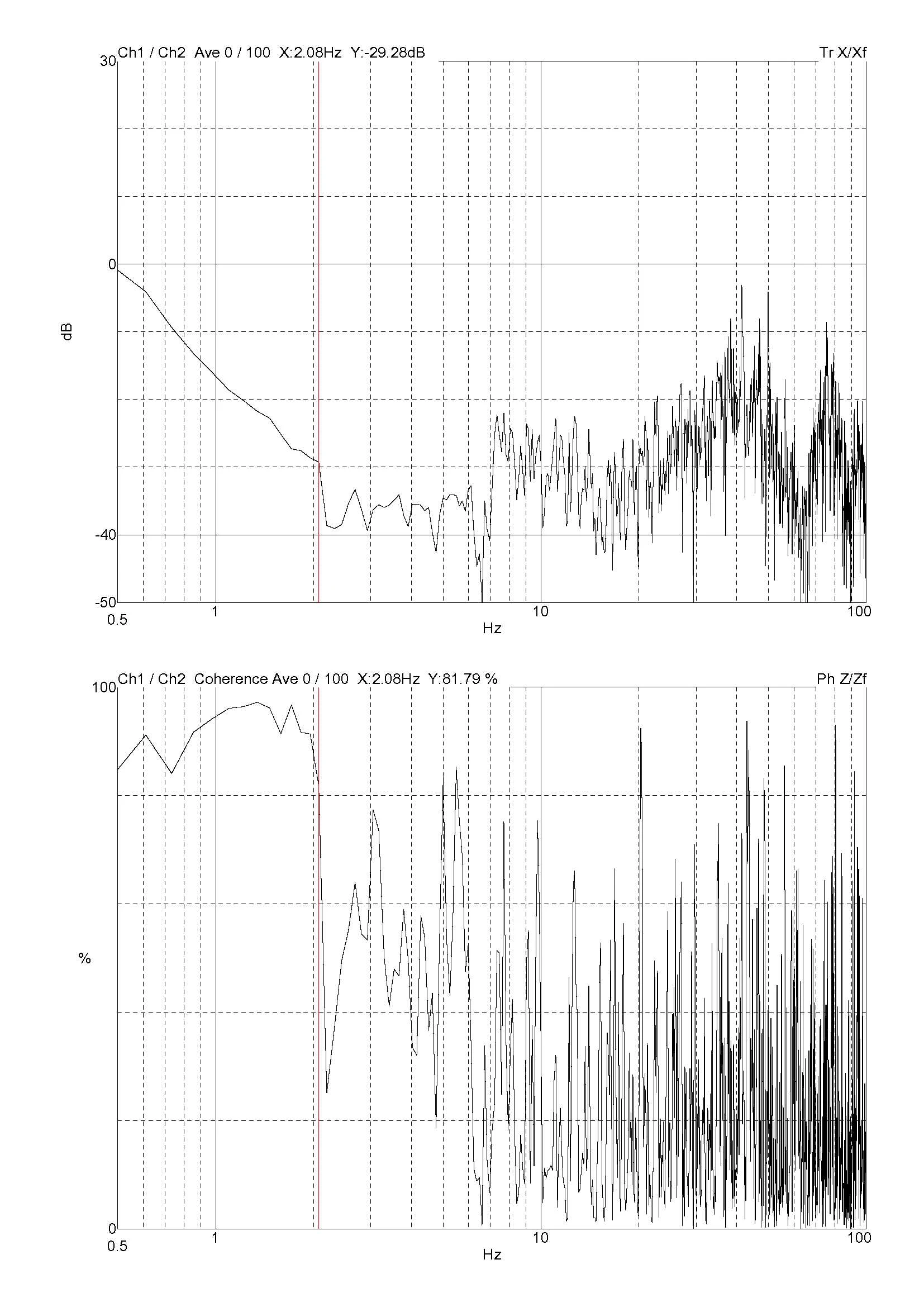

X axis

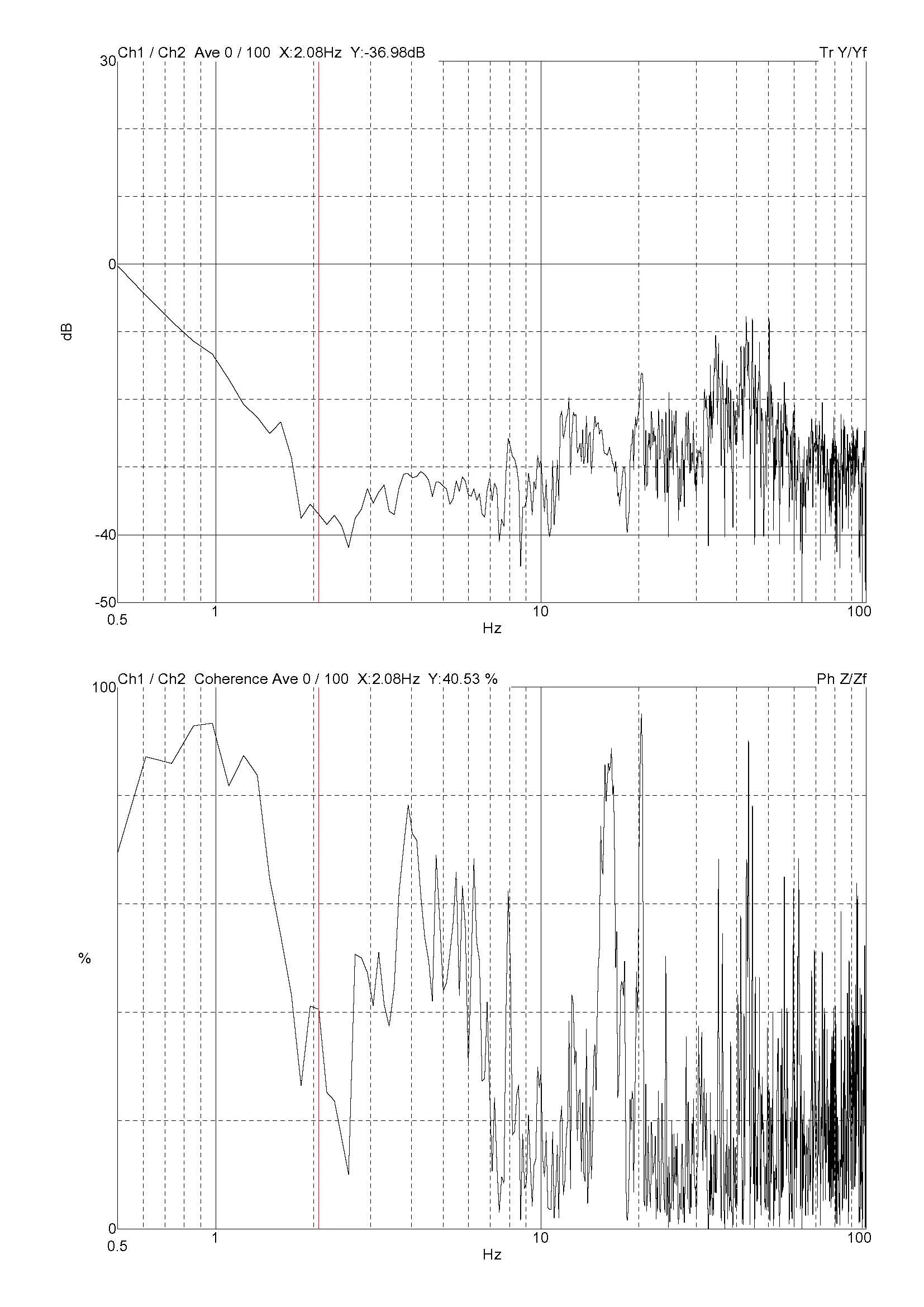

Y axis
