CNITECH Qianwan Institute Thermo Fisher Scientific Helios 5 CX DVIA-MB1000 (191219R3-2) — MB1000 P169 worksheet — 2021.03.11
DVIA-M Series
Installation Report
CNITECH
Qianwan Institute
Helios 5 CX
Thermo Fisher Scientific
DVIA-MB1000
MB1000
P169
191219R3-2
Contents
CNITECH
CNITECH
(MB1000 P169 191219R3-2)

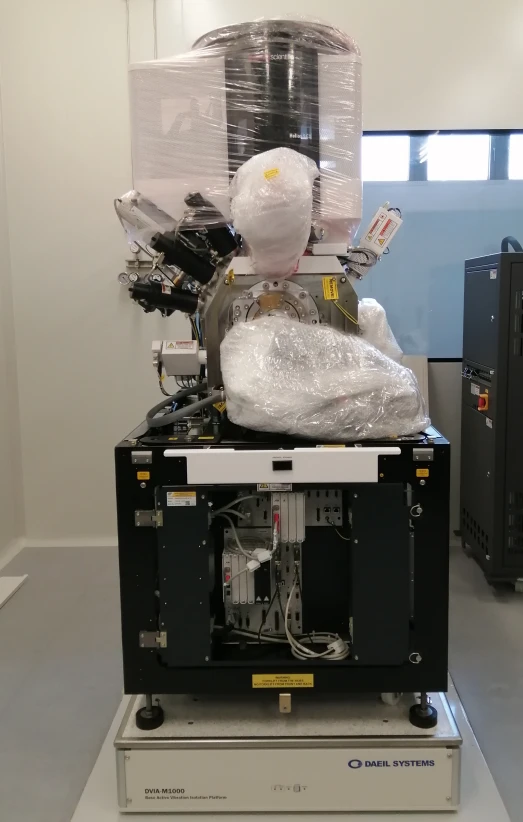

Target equipment photo
Site checklist
| Target equipment | Helios 5 CX |
|---|---|
| Place of installation | Qianwan Institute |
| Remark | Good Performance |
| END USER | CNITECH |
Operator and dates
Operator: Choi, HyoungMun
Date of setup : 21.03.10
Date of reporting : 21.03.11
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.03.10 (Wed)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : Qianwan Institute
Equipment Model: Helios 5 CX
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -24 dB | -28 dB | -29 dB |
| X | -22 dB | -35 dB | -25 dB |
| Y | -23 dB | -26 dB | -23 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

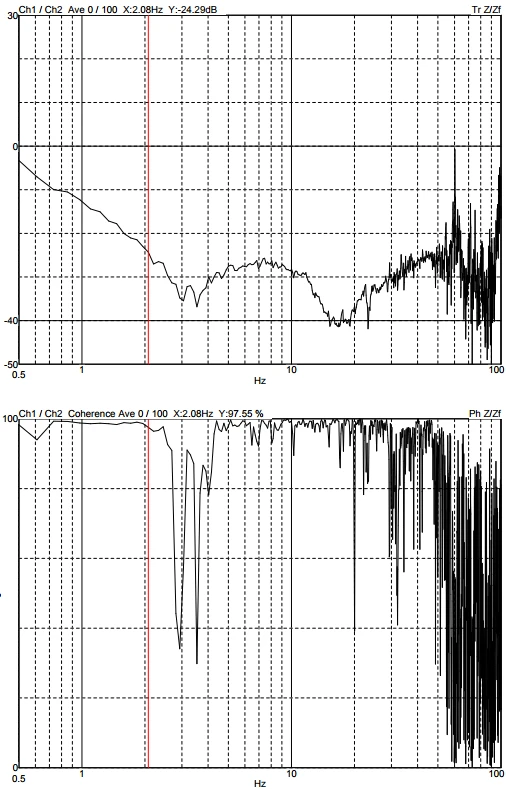

Z axis

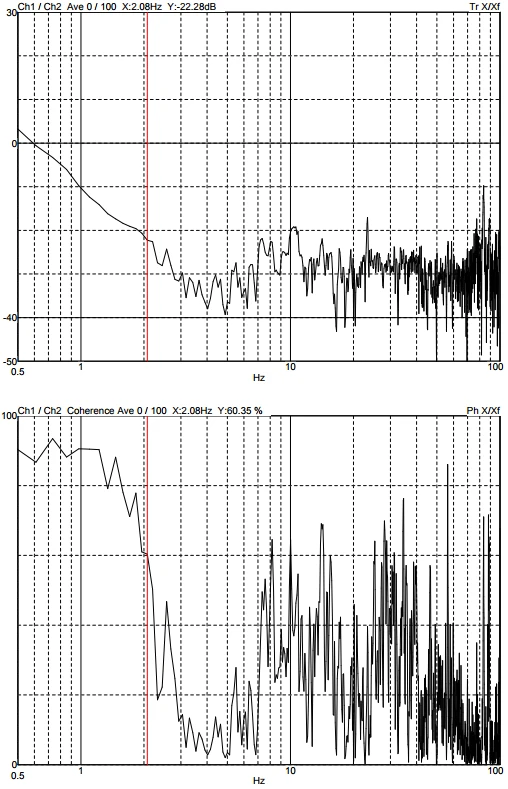

X axis

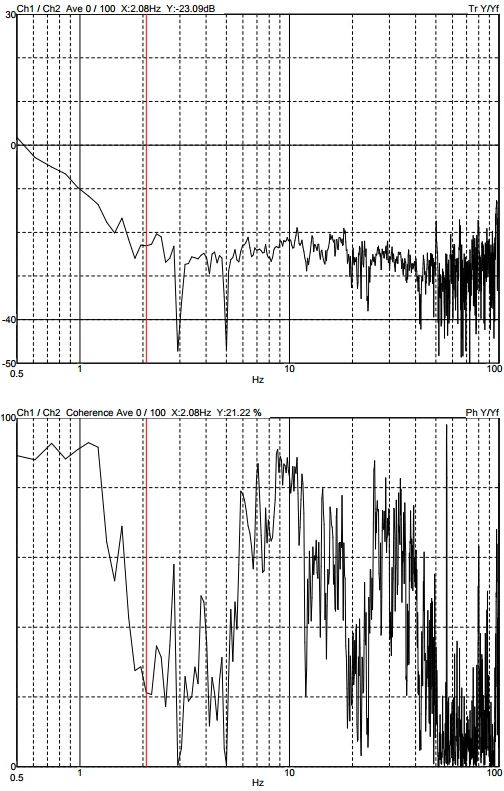

Y axis
