Installation Report
DVIA-M Series
06-23-2021
Visionox (Guangzhou) Thermo Fisher Scientific Helios 5 CX DVIA-MB1000 (210524R4) — YIMO MB1000 P232 worksheet — 2021.06.23
DVIA-M Series
Installation Report
YIMO
Visionox
Guangzhou
DVIA-MB1000
210524R4
Helios 5 CX
Thermo Fisher Scientific
Contents
Visionox (Guangzhou)
Visionox (Guangzhou)
(MB1000 P232 210524R4)
Site checklist
| Target equipment | THERMO SCIENTIFIC-HELIOS 5 CX |
|---|---|
| Place of installation | Visionox (Guangzhou) |
| Remark | Good Performance |
| END USER | Visionox (Guangzhou) |
Operator and dates
Operator: Choi, HyoungMun
Date of setup : 21.05.10
Date of reporting : 21.05.12
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.06.23 (TUE)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : Visionox (Guangzhou)
Equipment Model: THERMO SCIENTIFIC-HELIOS 5 CX
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -25 dB | -30 dB | -33 dB |
| X | -36 dB | -32 dB | -40 dB |
| Y | -34 dB | -32 dB | -38 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

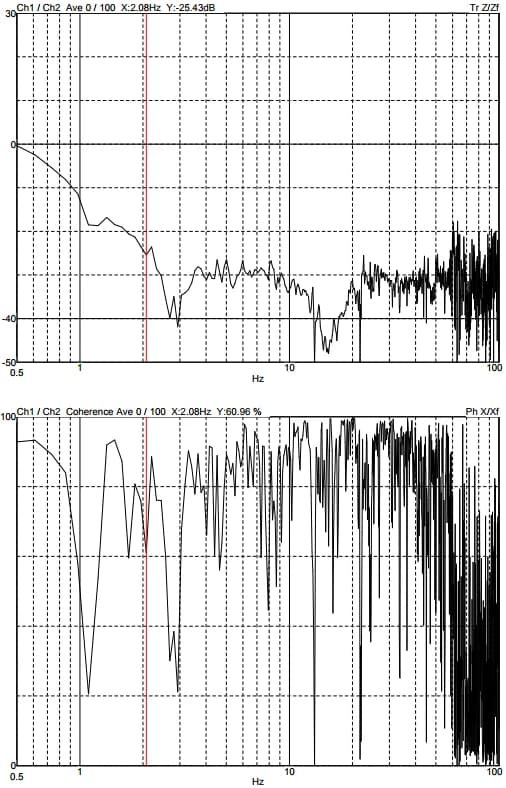

Z axis

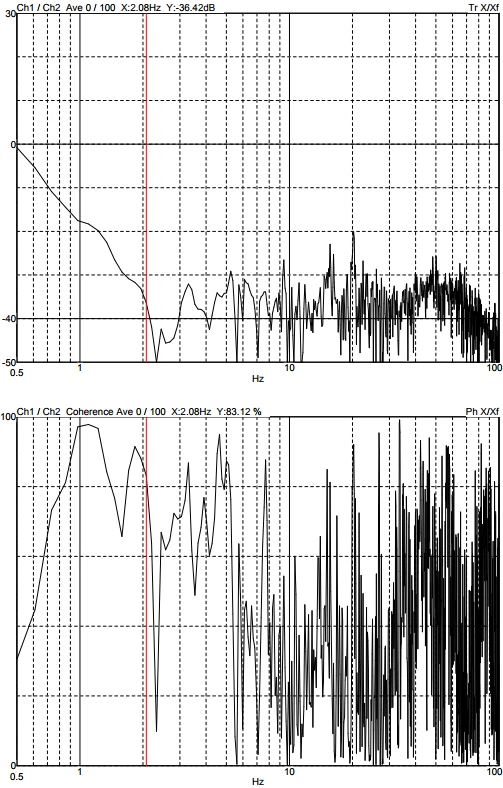

X axis

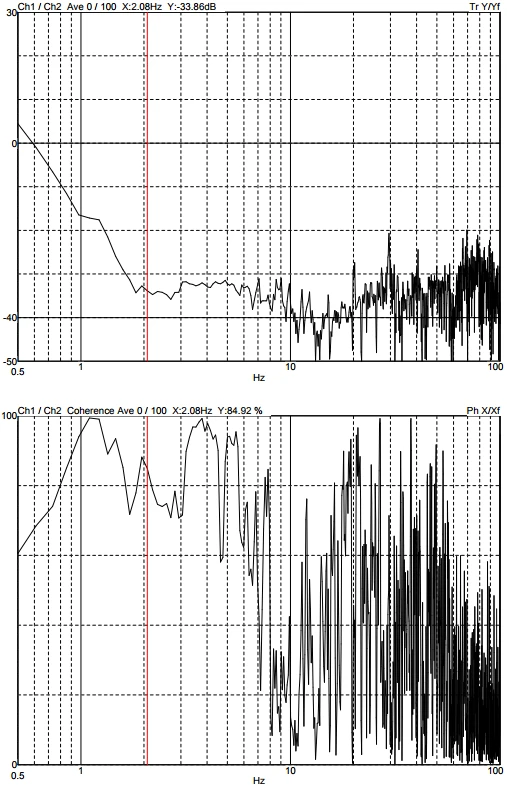

Y axis
