Installation Report
DVIA-M Series
07-26-2022
Chinese Academy of Forestry Hitachi SU8230 Nanjing DVIA-M1000 Installation Report (210111R3, 2022-07-26)
DVIA-M Series
Installation Report
Chinese Academy of Forestry
Nanjing
DVIA-M1000
Hitachi
SU8230
210111R3
SEM
Contents
Chinese Academy of Forestry
Chinese Academy of Forestry
（中国林业科学研究院）

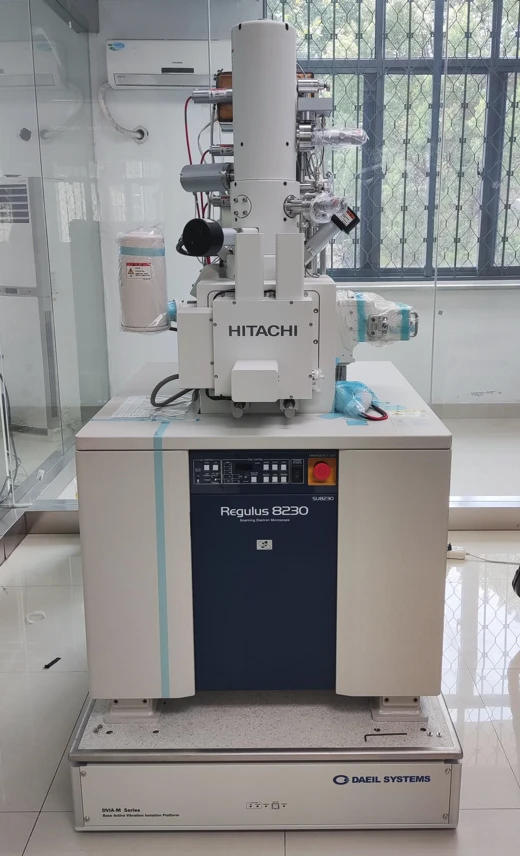

(M1000_ 210111R3 Set up)
Site checklist
| Target equipment | Hitachi SU8230 |
|---|---|
| Place of installation | NANJING |
| Remark | Good Performance |
| END USER | Chinese Academy of Forestry |
Operator and dates
Operator: Cheon, Seoung hoon
Date of setup: 22.07.25
Date of reporting: 22.07.26
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.07.25 (Monday),
Operator: DAEIL SYSTEMS, Seounghoon Cheon, Youngha Lee
Place of measurement: NANJING
Equipment Model: Hitachi SU8230
Measurement conditions and results
Summary of measurement results
| Z | X | Y | |
|---|---|---|---|
| Floor | B | D | C |
| Above Active | E | F | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

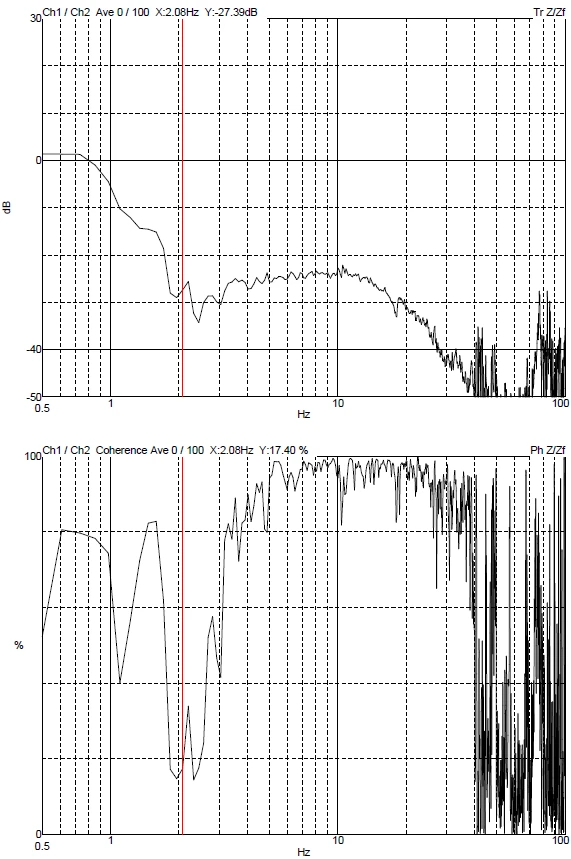

MB1000 internal program — Z axis

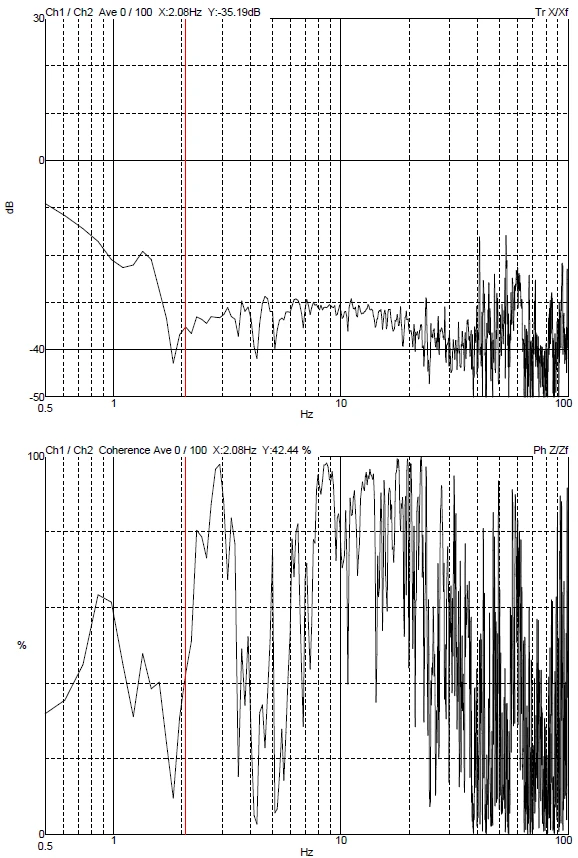

MB1000 internal program — X axis

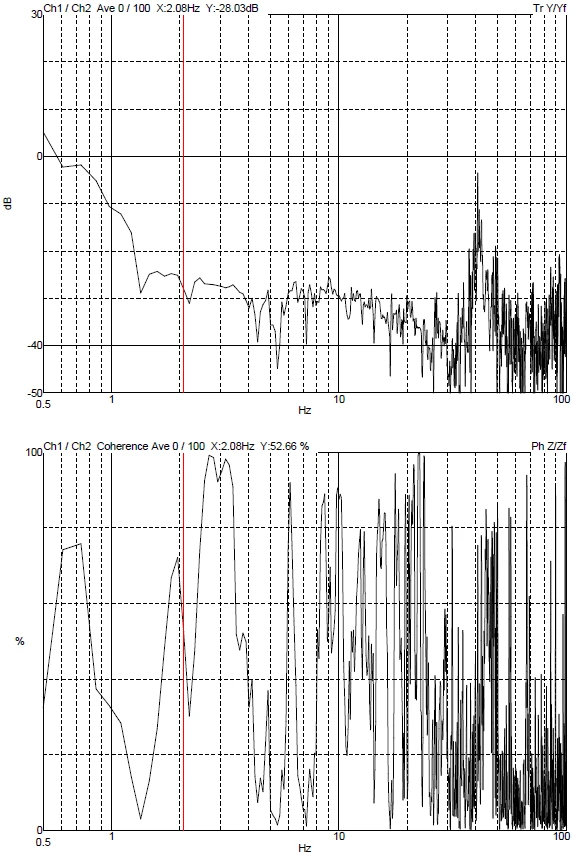

MB1000 internal program — Y axis
Octave Band Result

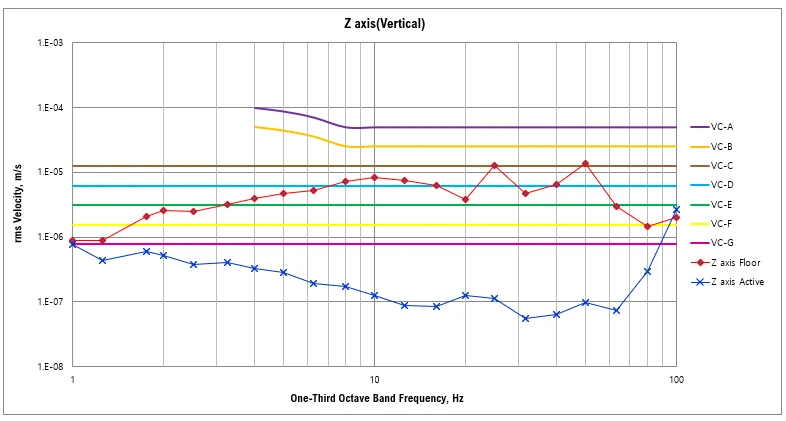

Octave Band Result — Z axis

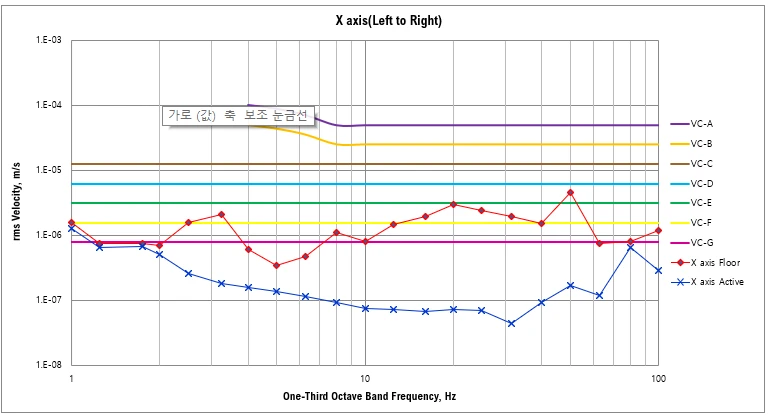

Octave Band Result — X axis

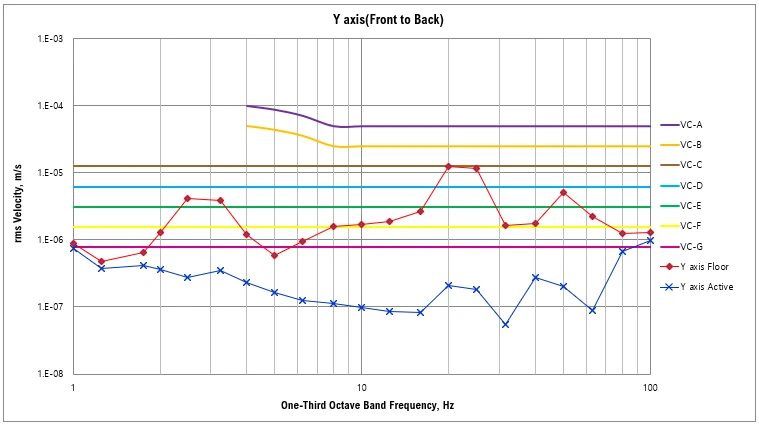

Octave Band Result — Y axis
