Installation Report
DVIA-M Series
11-13-2017
Tier-1 Semiconductor ZEISS SIGMA 300 DVIA-MB1000 (MB1000 P53) Installation Report — 2017.11.13
DVIA-M Series
Installation Report
Tier-1 Semiconductor
ZEISS
SIGMA 300
DVIA-MB1000
MB1000
P53
Contents
(MB1000 Set up)
ZEISS — Tier-1 Semiconductor (Manila).
(MB1000_P53)

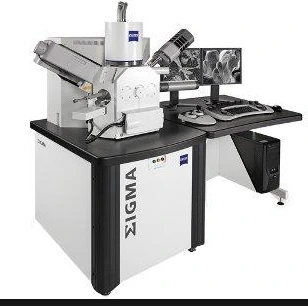

Target equipment photo
| Target equipment | ZEISS SIGMA 300 |
|---|---|
| Place of installation | Tier-1 Semiconductor — Manila analysis laboratory 2F |
| Remark | Good performance |
| END USER | Tier-1 Semiconductor |
| Operator: Choi, Hyoung Mun | Date of business trip : 2017-11-07 — 2017-11-11 |
| Measurement date : 2017-11-08 | |
| Date of report : 2017-11-13 |
Overview
After the isolator installation, the vibration environment was measured to confirm there is no problem for equipment use.
Measurement date
Measurement date: 2017. 11. 08 (Wed), Operator: DAEIL SYSTEMS, Manager Choi, Hyoung Mun.
Place of measurement
Place of measurement: Tier-1 Semiconductor — Manila analysis laboratory 2F.
Equipment Model
Equipment model: ZEISS SIGMA 300.
Measurement conditions and results
Summary of measurement results
VC-Class (typical conditions)
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Building floor | C | C | C |
| Isolator top | G | G | G |
| SIGMA 300 top | G | G | G |
Omnidirectional performance is favorable; VC-Class graphs are attached.
Even when surrounding pumps operate or people move around, the vibration environment at the isolator top is largely unaffected.
During image measurements the customer was satisfied with performance.

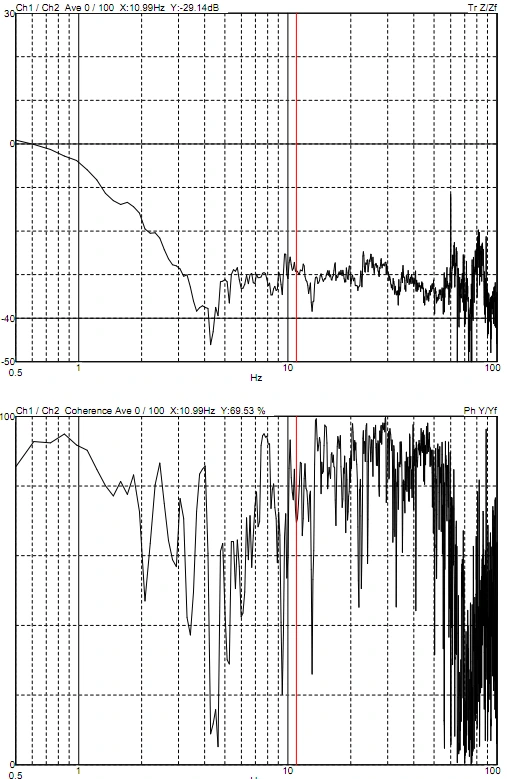

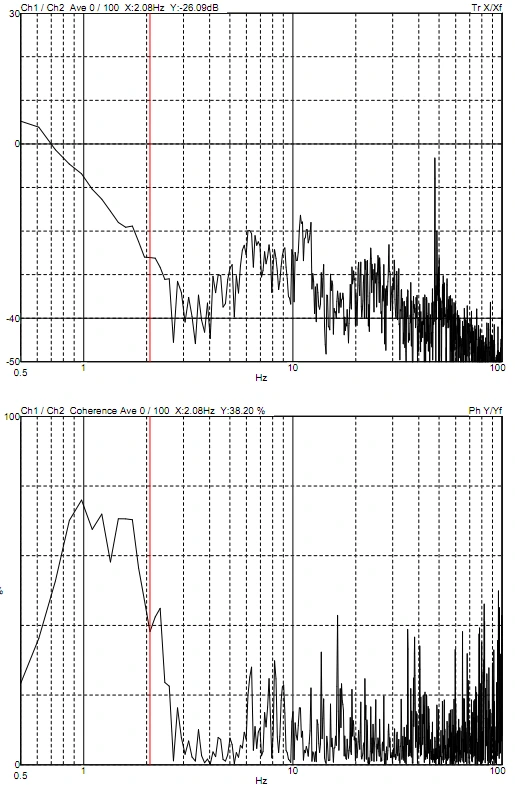

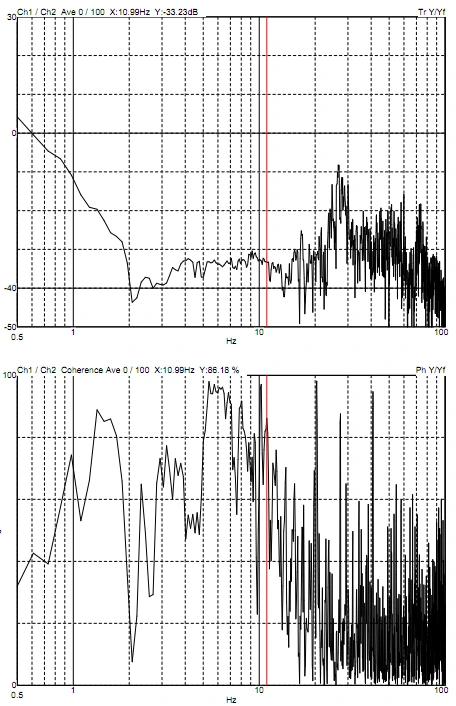

MB1000 internal program performance measurement result
Z axis
X axis
Y axis

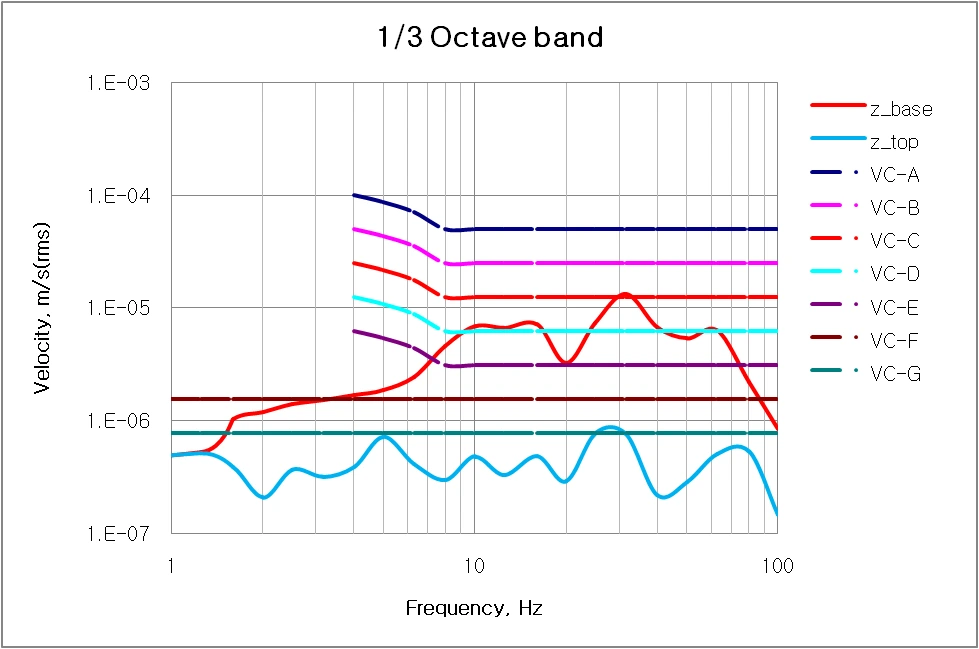

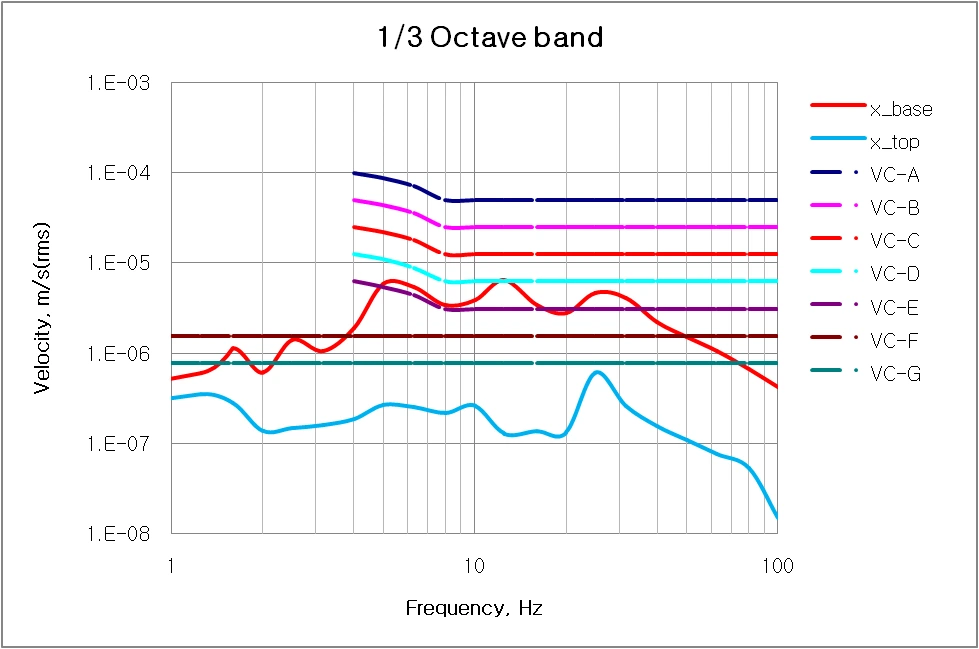

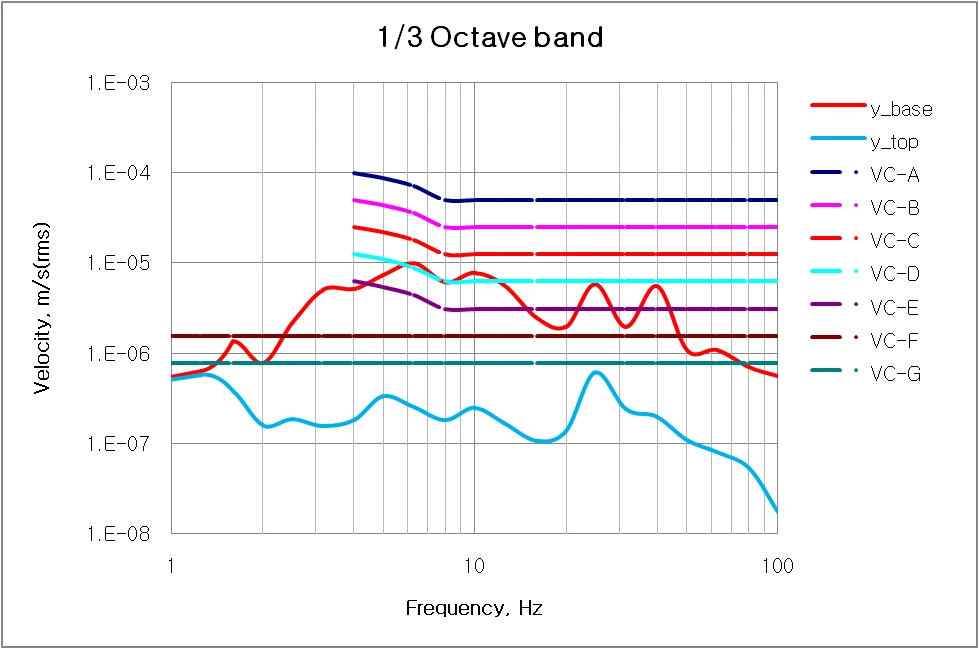

Octave Band Result (BASE: Building floor, TOP: Isolator top)
Z axis
X axis
Y axis

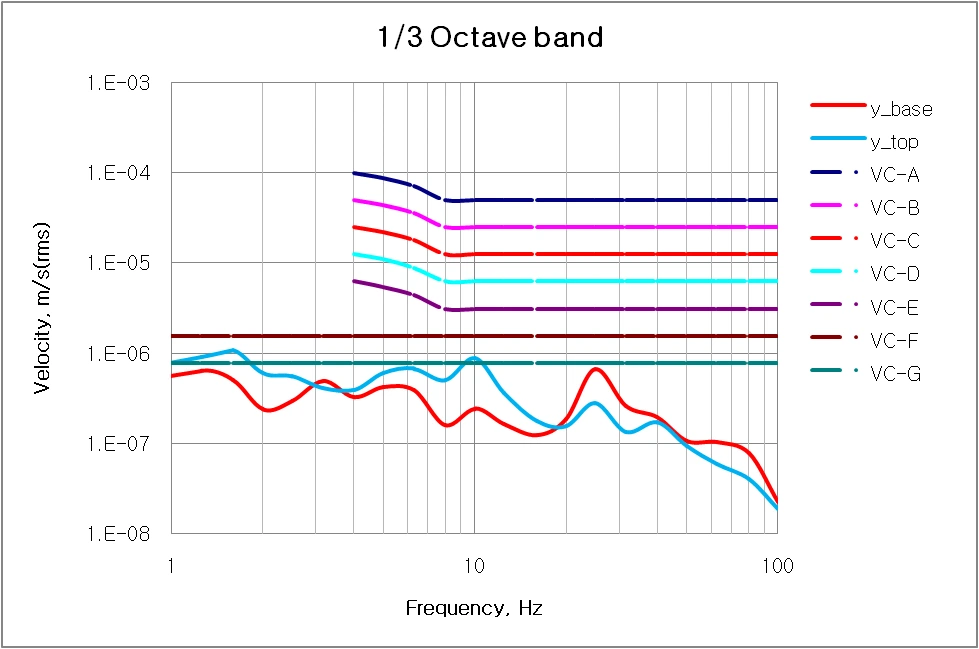

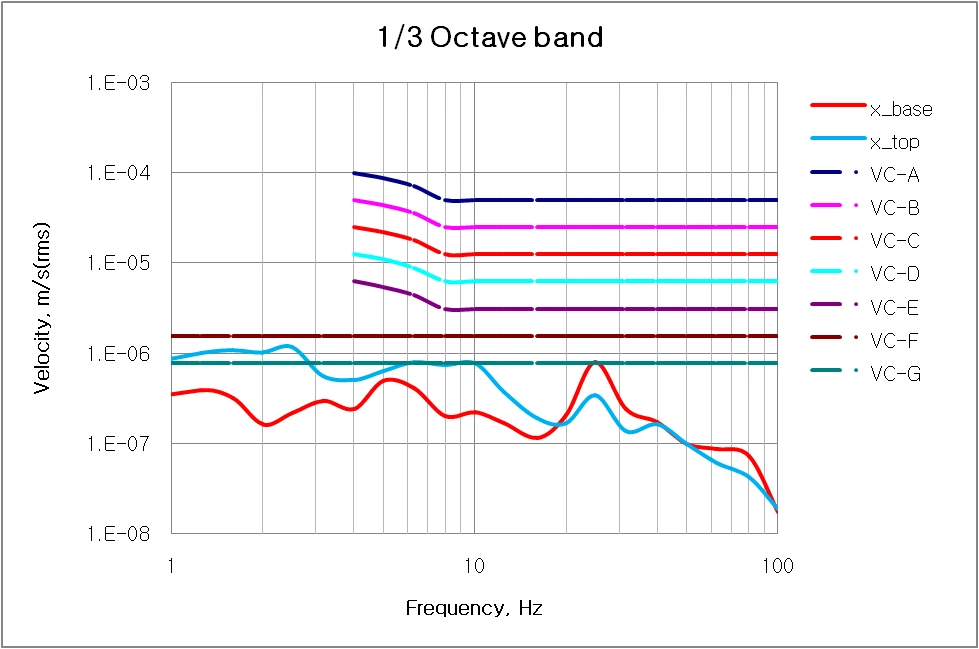

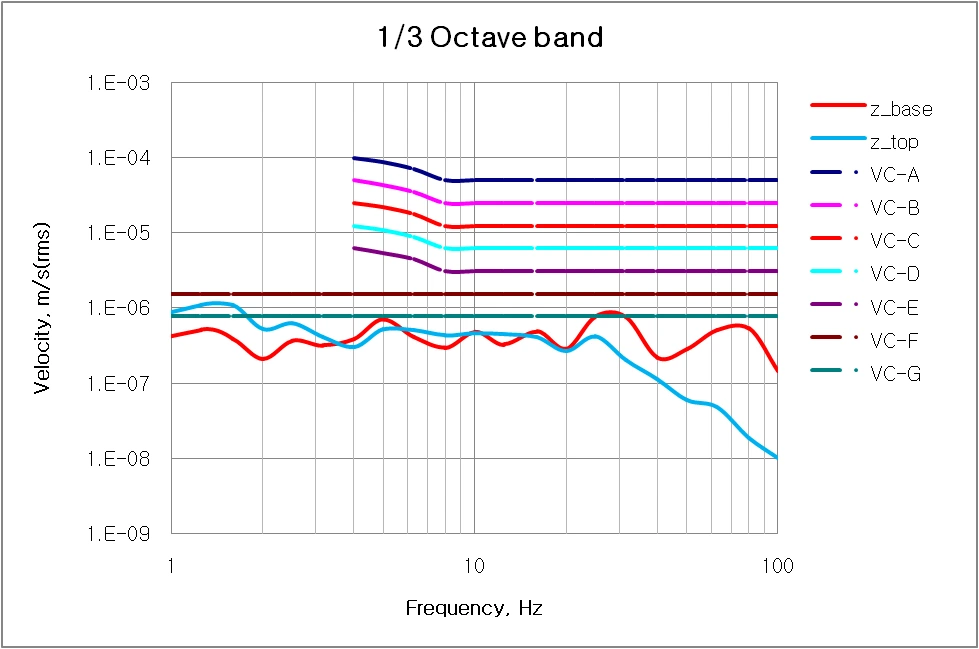

Octave Band Result (BASE: Isolator top, TOP: ZEISS top)
Z axis
X axis
Y axis

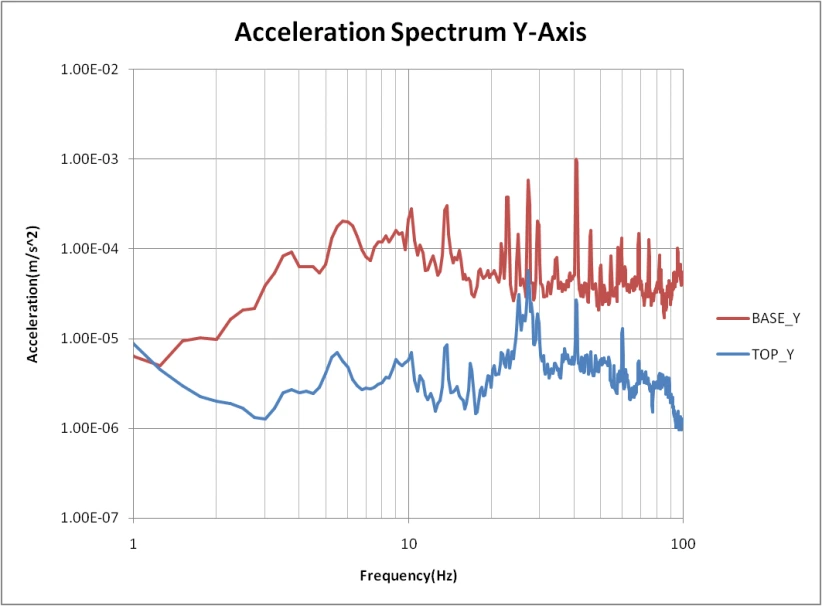

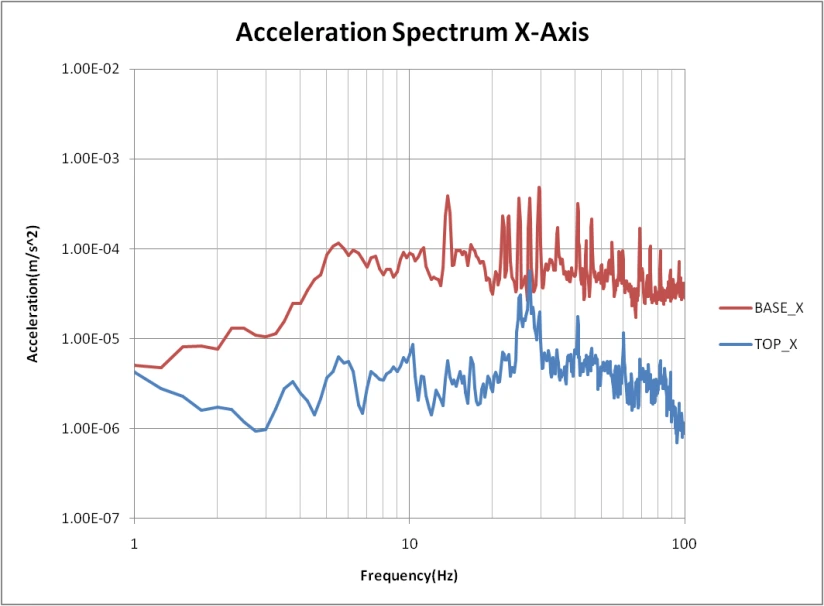

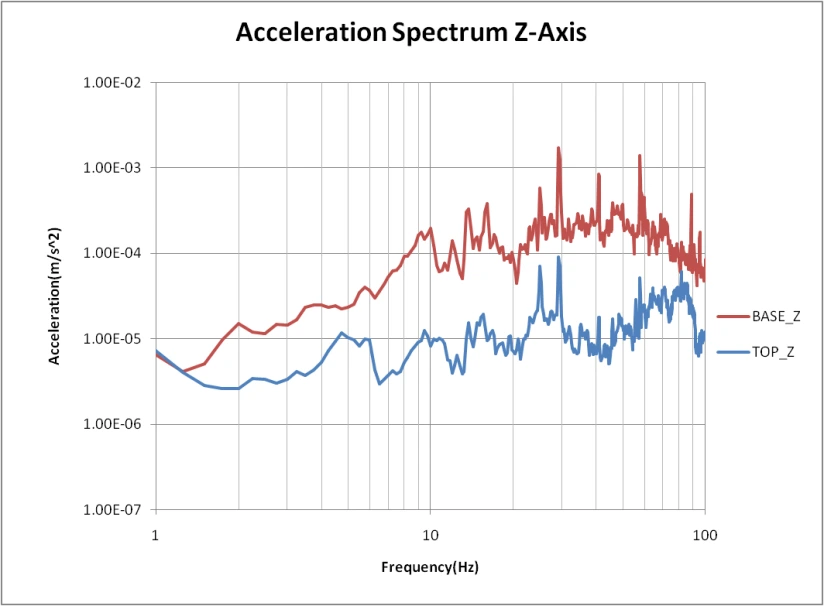

Acceleration Spectrum (BASE: Building floor, TOP: Isolator top)
Z axis
X axis
Y axis

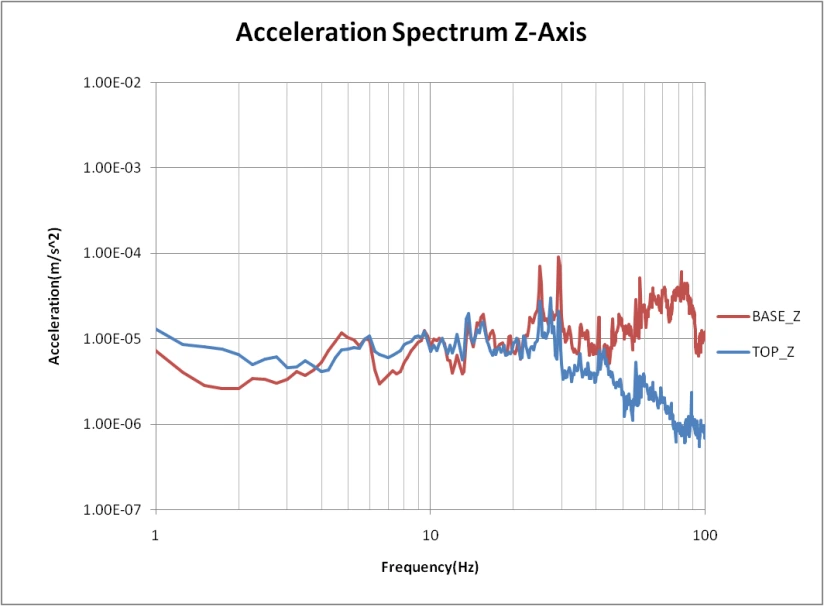

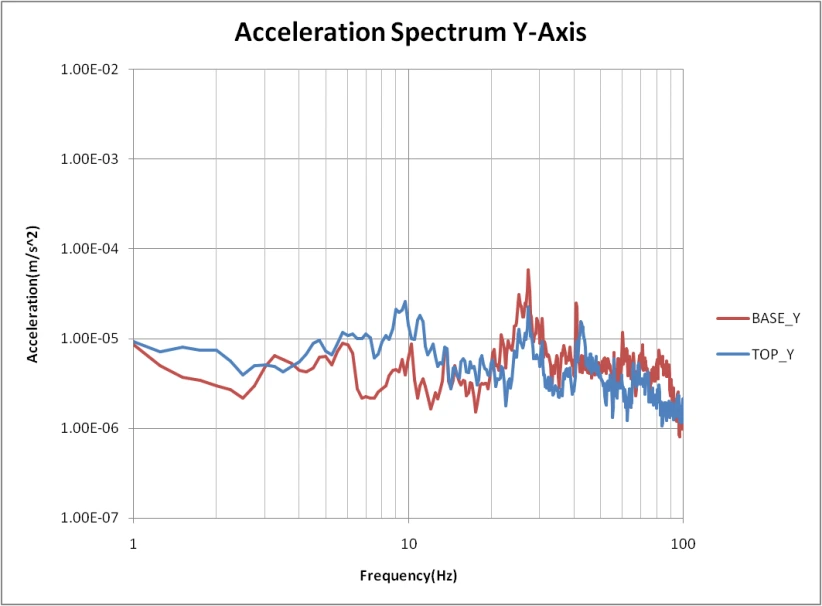

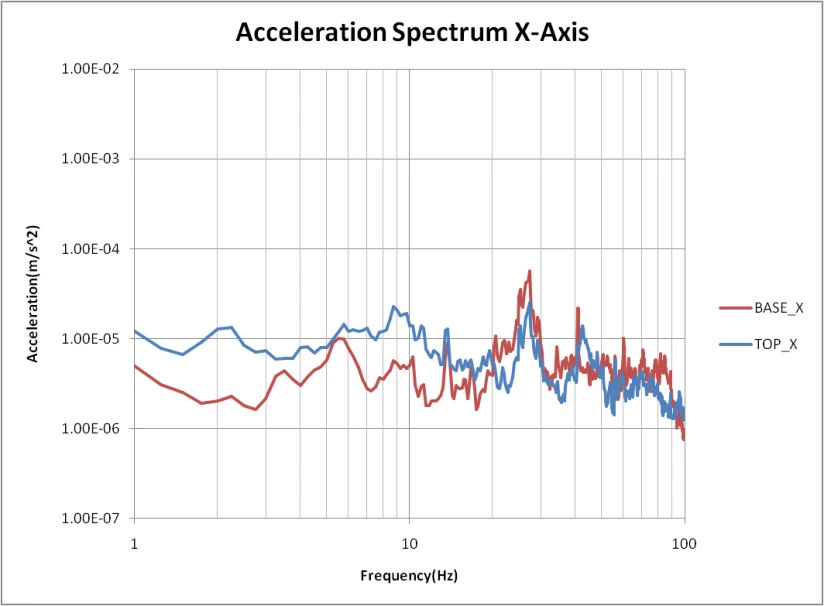

Acceleration Spectrum (BASE: Isolator top, TOP: ZEISS top)
Z axis
X axis
Y axis
