Installation Report
DVIA-M Series
06-08-2021
YIMO remote tuning — Mongolia University FEI TF20 DVIA-MB3000 (201216R1-4 P16) — 2021.06.08
DVIA-M Series
Installation Report
YIMO
DVIA-MB3000
201216R1-4
P16
FEI
TF20
Mongolia University
Hohhot
Contents
(MB3000_201216R1-4 (P16) Set up)
Target equipment
TF20 (FEI- TEM)
Place of installation
Huhehaote, Mongolia University
Remark
Good Performance
END USER
Mongolia University
Operator
Doohyun, Kim
Date of setup
Date of setup : 21.06.08
Date of reporting
Date of reporting : 21.06.09
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.06.08 (TUE)
Operator: Daeil System, Research engineer Doohyun Kim
Place of measurement
Place of measurement : Huhehaote
Equipment Model
Equipment Model: FEI TF20
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz | ||
|---|---|---|---|---|---|
| Z | -20 dB | -25 dB | -20 dB | ||
| X | -25 dB | -25 dB | -28 dB | ||
| Y | -35 dB | -20 dB | -25 dB | ||
Good omnidirectional performance.
MB1000 internal program performance measurement result

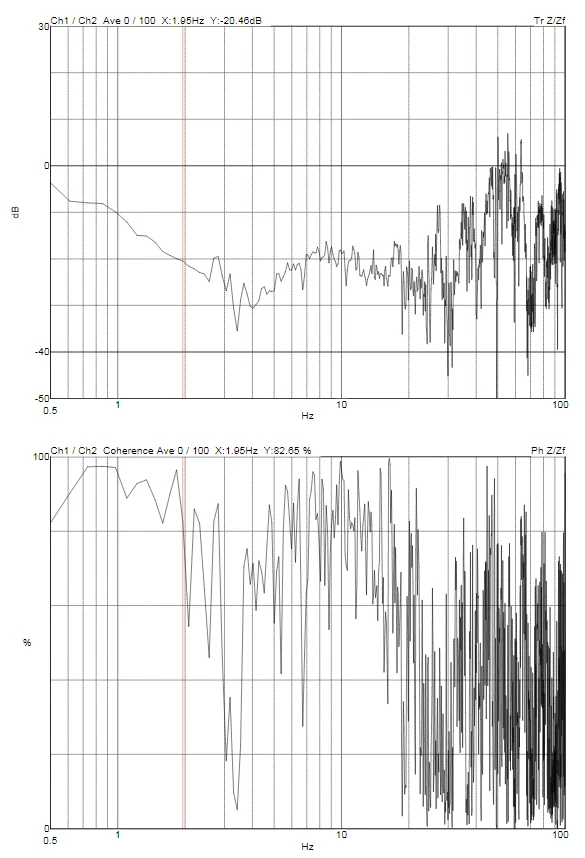

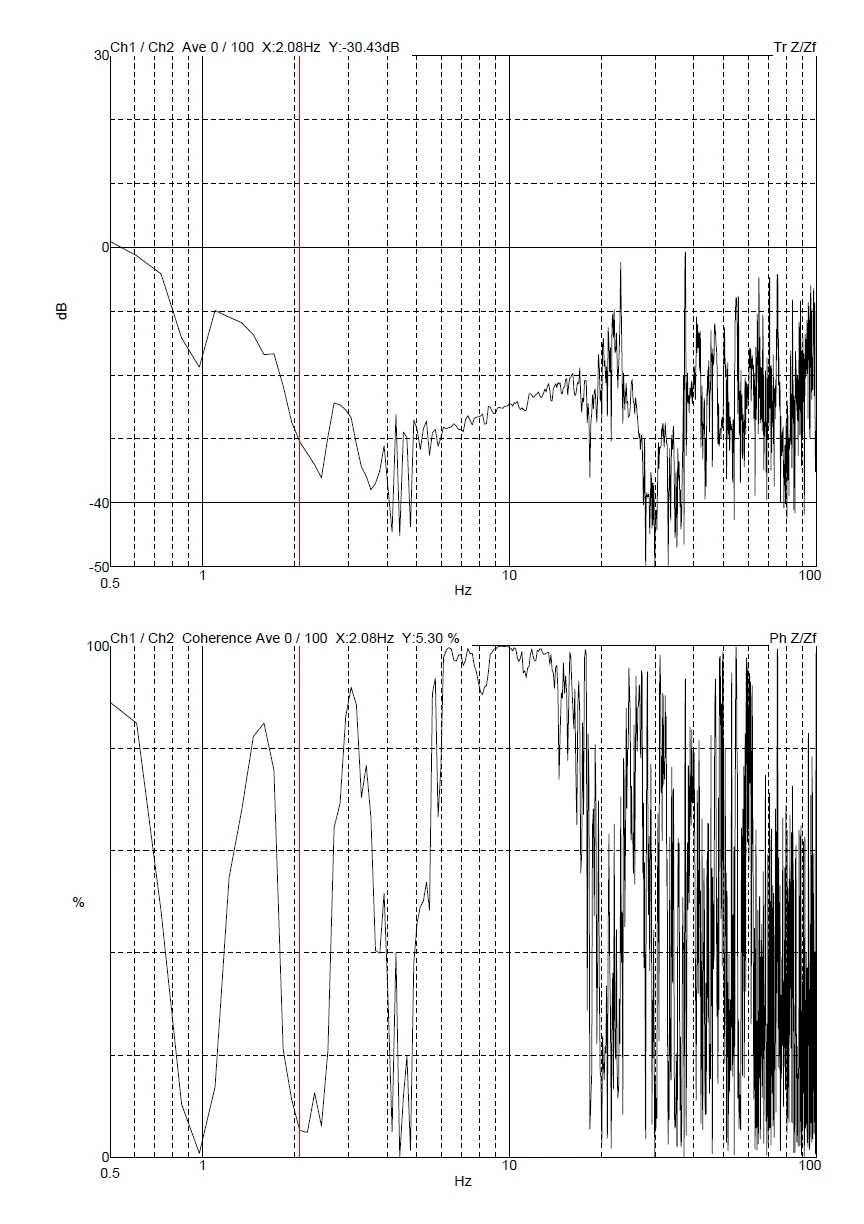

Z axis

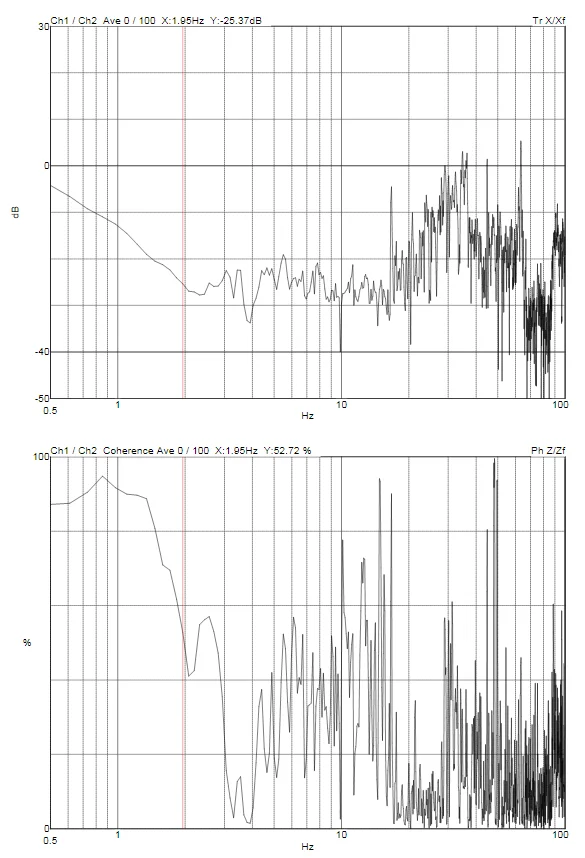

X axis

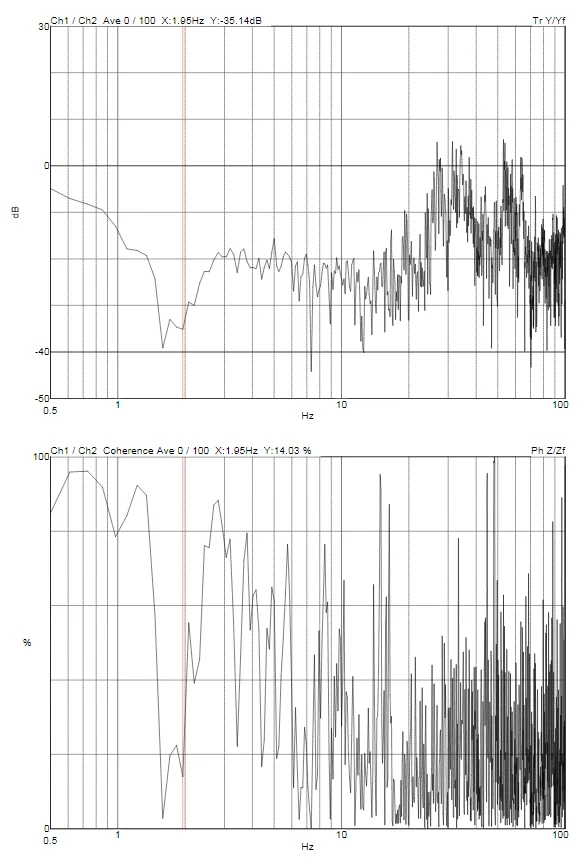

Y axis
