Installation Report
DVIA-M Series
11-05-2020
YIMO remote tuning — Zhejiang Univ. FEI Tecnai TF20 DVIA-MB3000 (200623R1 P13) — 2020.11.05
DVIA-M Series
Installation Report
YIMO
DVIA-MB3000
200623R1
P13
FEI
Tecnai TF20
Zhejiang University
Contents
(MB3000_200623R1(P13) Set up)
Target equipment
FEI Tecnai TF20
Place of installation
Zhejiang Univ., Hangzhou, China
Remark
Good Performance
End User
Zhejiang Univ.
Operator
Munho Noh
Date of setup
20.11.05
Date of reporting
20.11.09
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.11.05 (Thu)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement
Zhejiang Univ., Hangzhou, China
Equipment Model
FEI Tecnai TF20
Summary of measurement results
Good omnidirectional performance.
MB3000 internal program performance measurement result

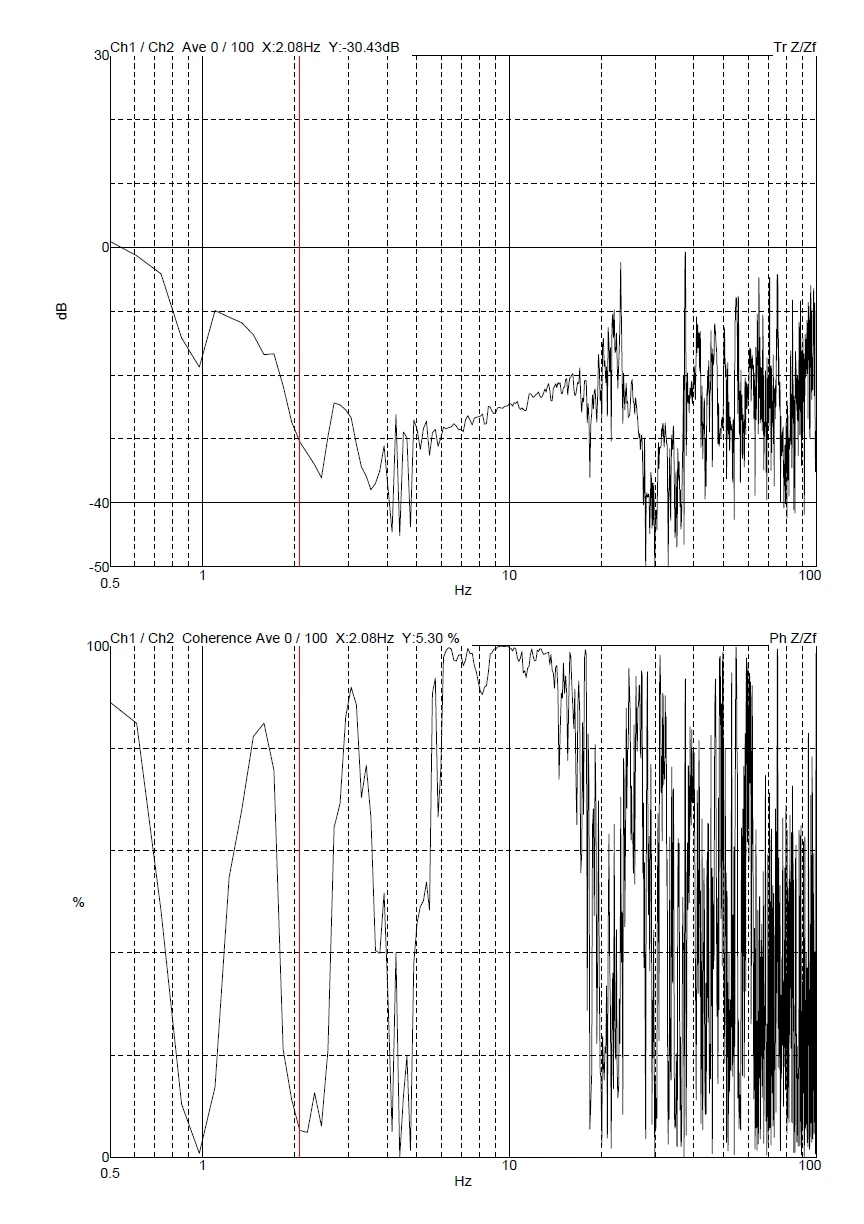

Z axis

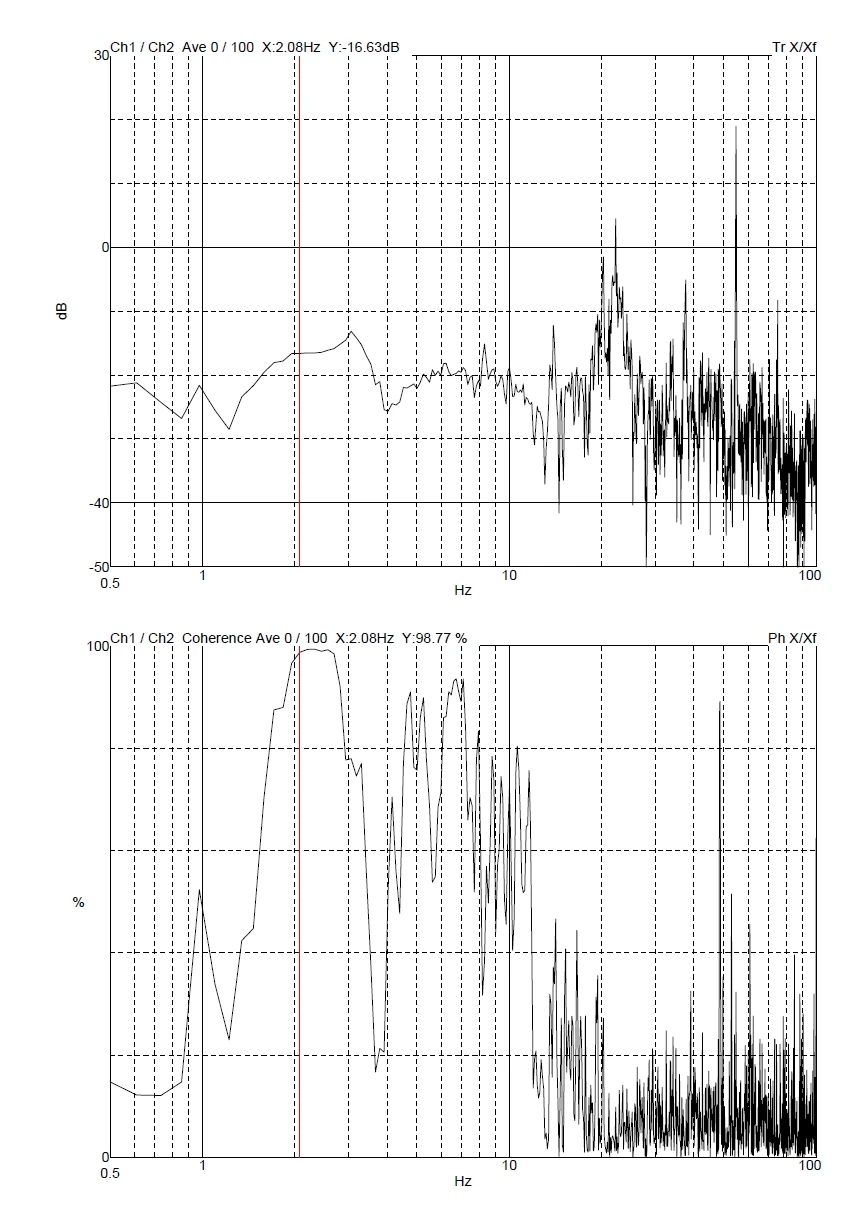

X axis

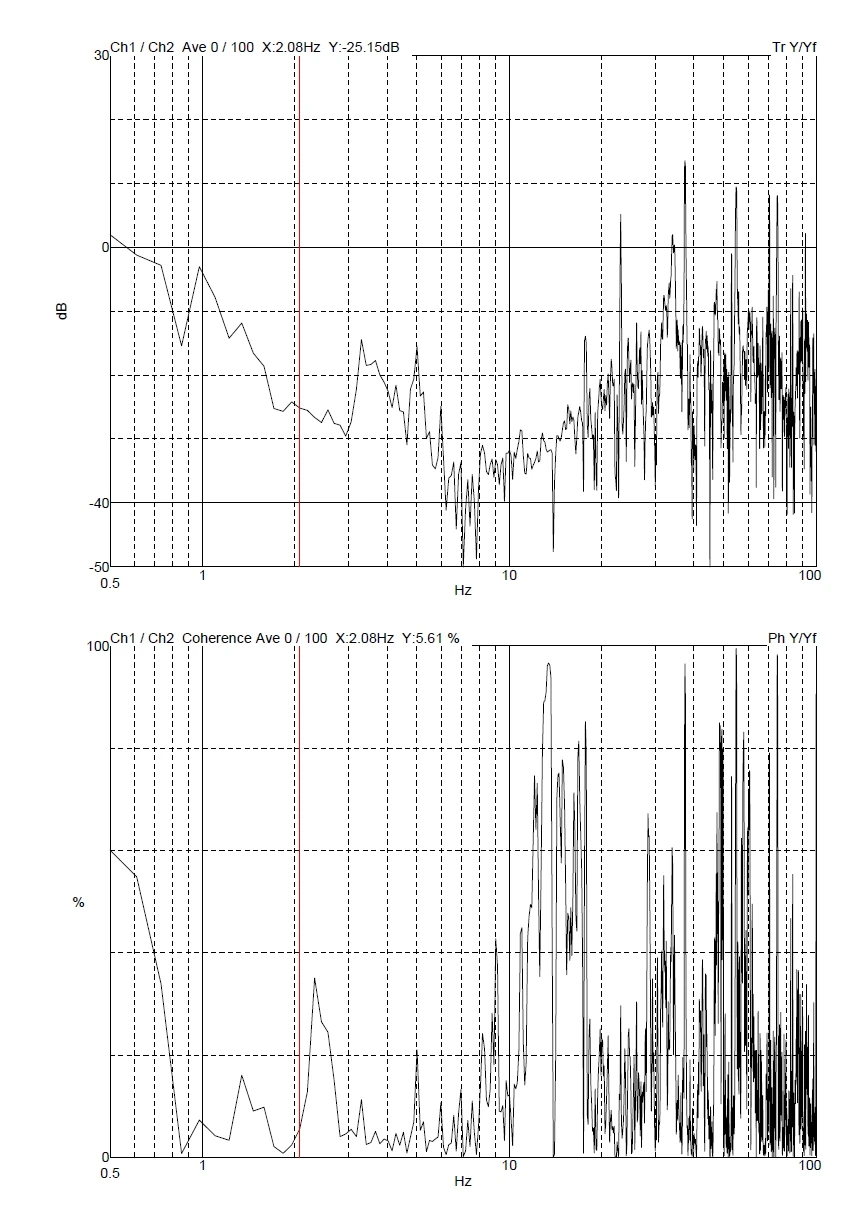

Y axis
