Installation Report
DVIA-M Series
08-23-2021
YIMO remote tuning — Mongolia University FEI TF20 DVIA-MB3000 (201216R1-4 P16) — 2021.08.23
DVIA-M Series
Installation Report
YIMO
DVIA-MB3000
201216R1-4
P16
FEI
TF20
Mongolia University
Contents
(MB3000_201216R1-4 (P16) Set up)
Target equipment
TF20 (FEI- TEM)
Place of installation
Huhehaote, Mongolia University
Remark
Good Performance
END USER
Mongolia University
Operator
Yu, HoSang
Date of setup
21.08.20
Date of reporting
21.08.23
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 21.08.23 (FRI)
Operator: Daeil System, Research engineer Yu, HoSang
Place of measurement
Huhehaote
Equipment Model
FEI TF20
Measurement conditions and results
Summary of measurement results
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -21 dB | -25 dB | -15 dB |
| X | -25 dB | -25 dB | -27 dB |
| Y | -30 dB | -23 dB | -25 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

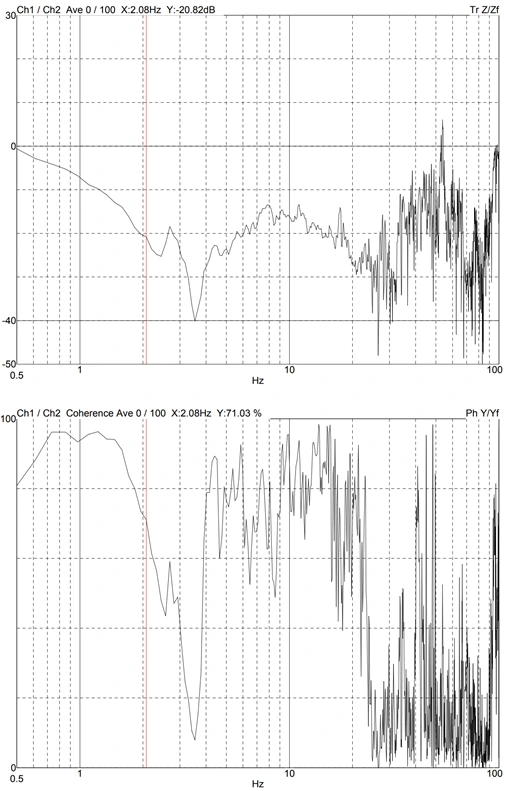

Z axis

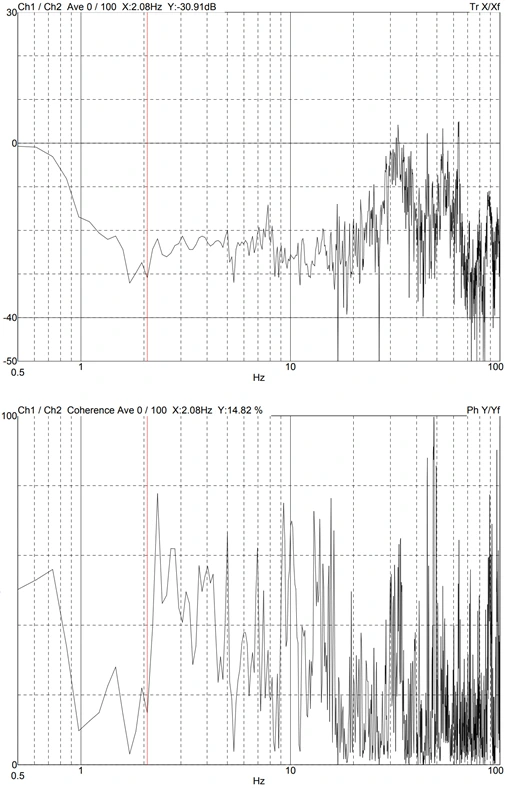

X axis

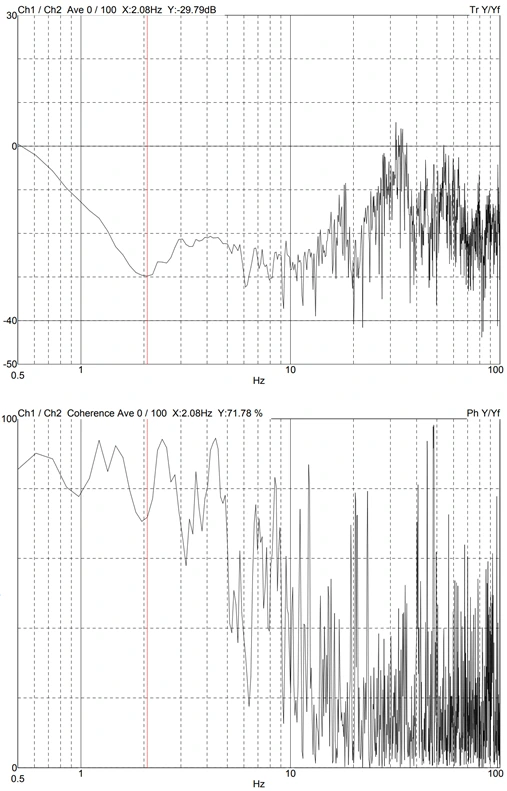

Y axis
