Installation Report
DVIA-M Series
06-10-2021
Inner Mongolia University Hitachi S4800 DVIA-MB1000 remote VEC (201216R1-1 / P209) — 2021.06.10
DVIA-M Series
Installation Report
VEC
Remote
DVIA-MB1000
YIMO
Inner Mongolia University
Hitachi
S4800
201216R1-1
P209
Contents
MB1000_201216R1-1 (P209) Set up
| Target equipment | Hitachi S4800 |
|---|---|
| Place of installation | NeiMengGu |
| Remark | Good Performance |
| END USER | 内蒙古大学 |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.06.10 | |
| Date of reporting : 21.06.10 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.06.10 (THU)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : NeiMengGu

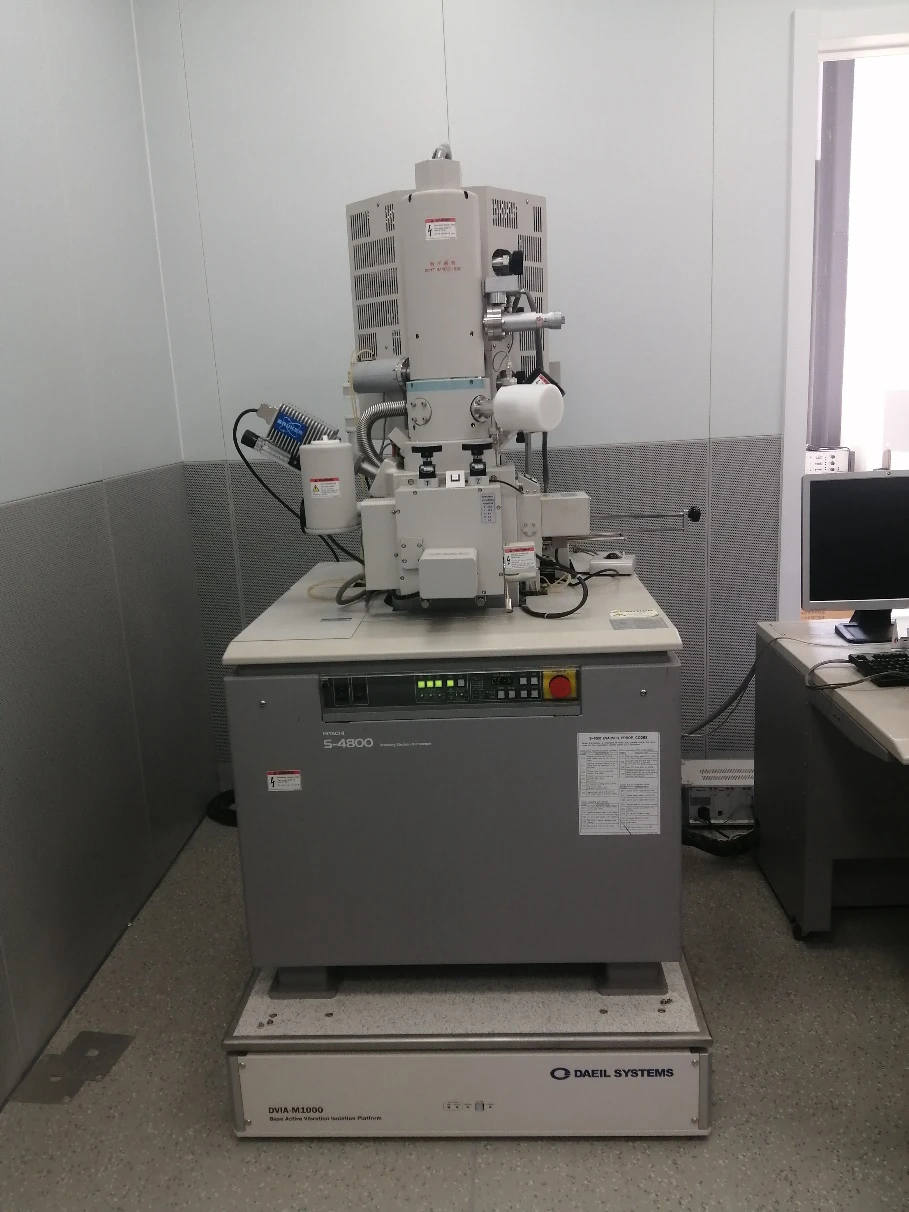

Equipment Model: Hitachi S4800
Measurement conditions and results
Summary of measurement results
Test Condition — Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -23.43 dB | -23.72 dB | -31.29 dB |
| X | -32.97 dB | -36.24 dB | -44.94 dB |
| Y | -37.12 dB | -38.61 dB | -42.15 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

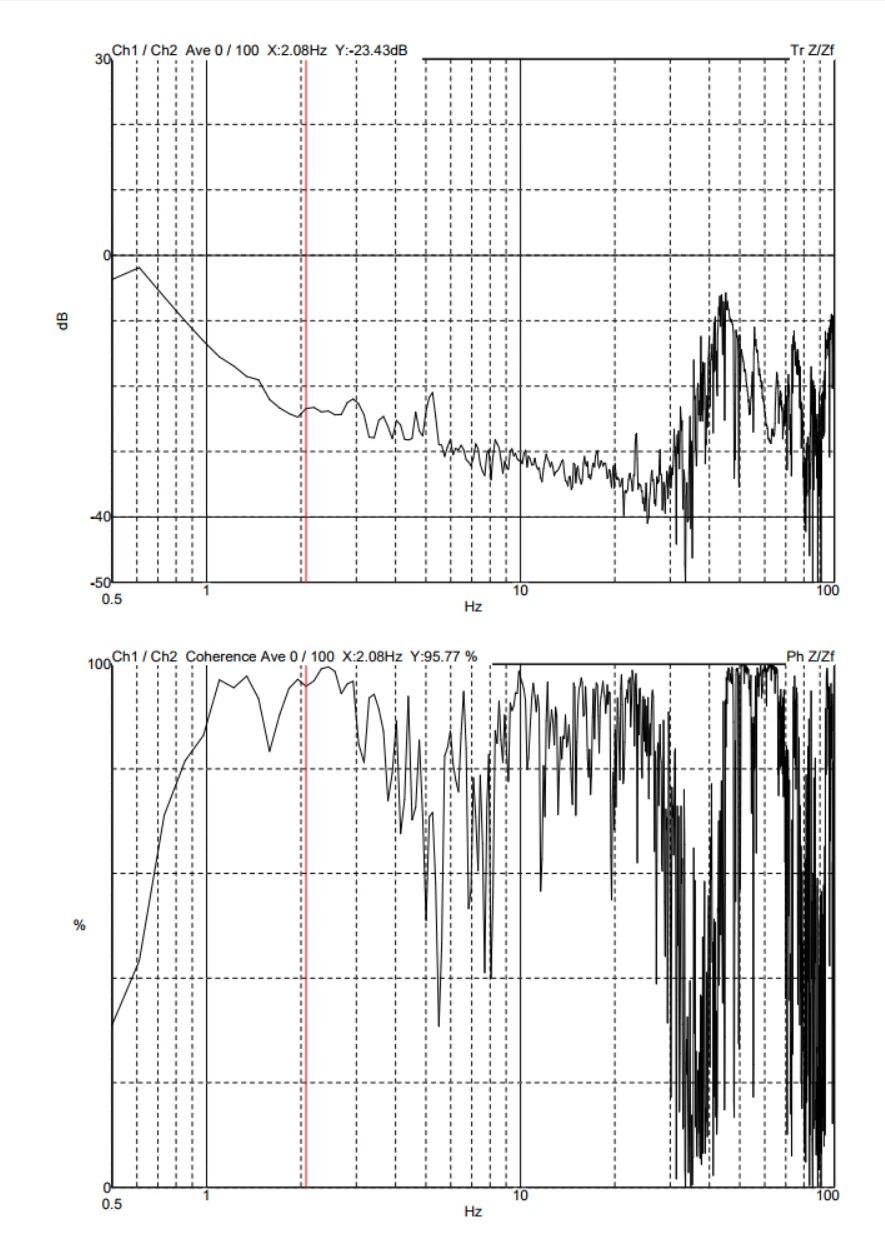

Z axis

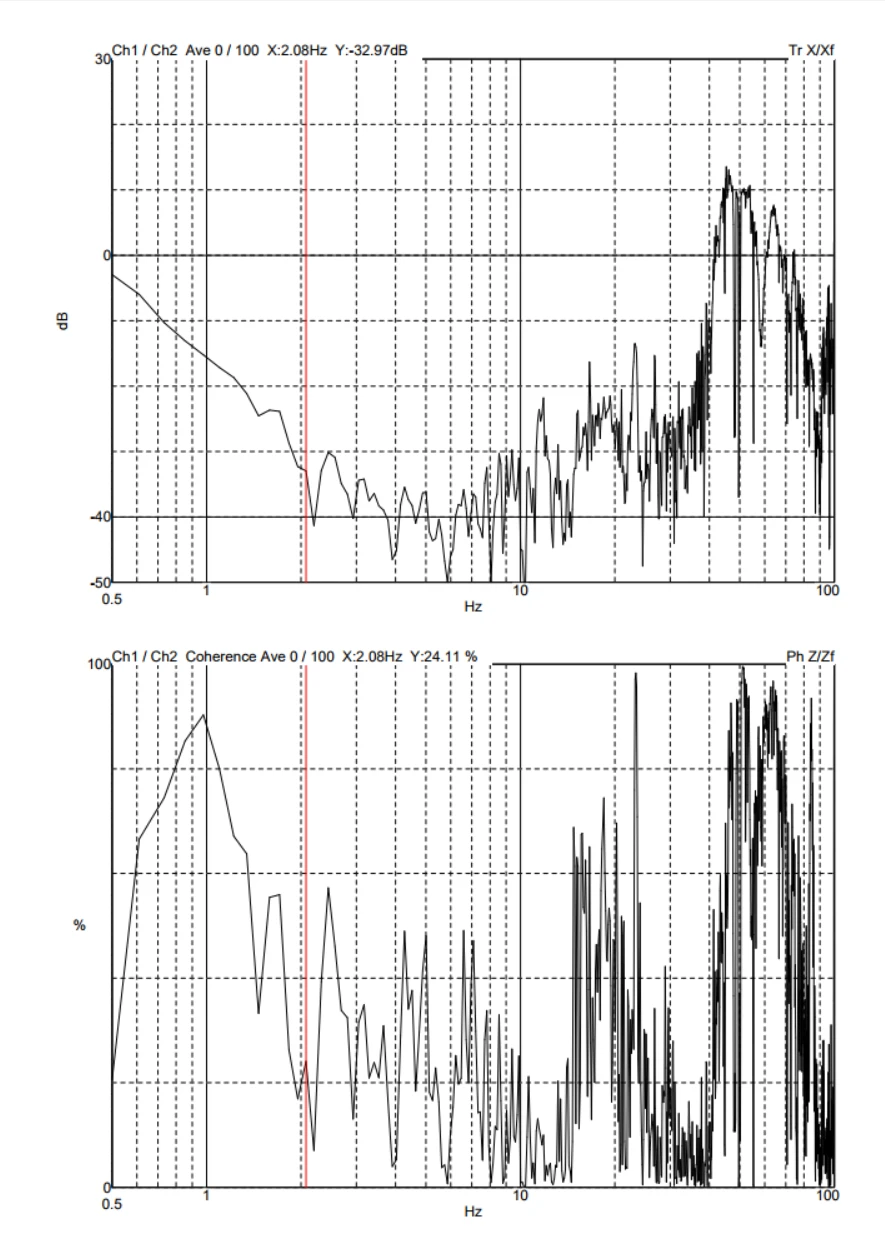

X axis

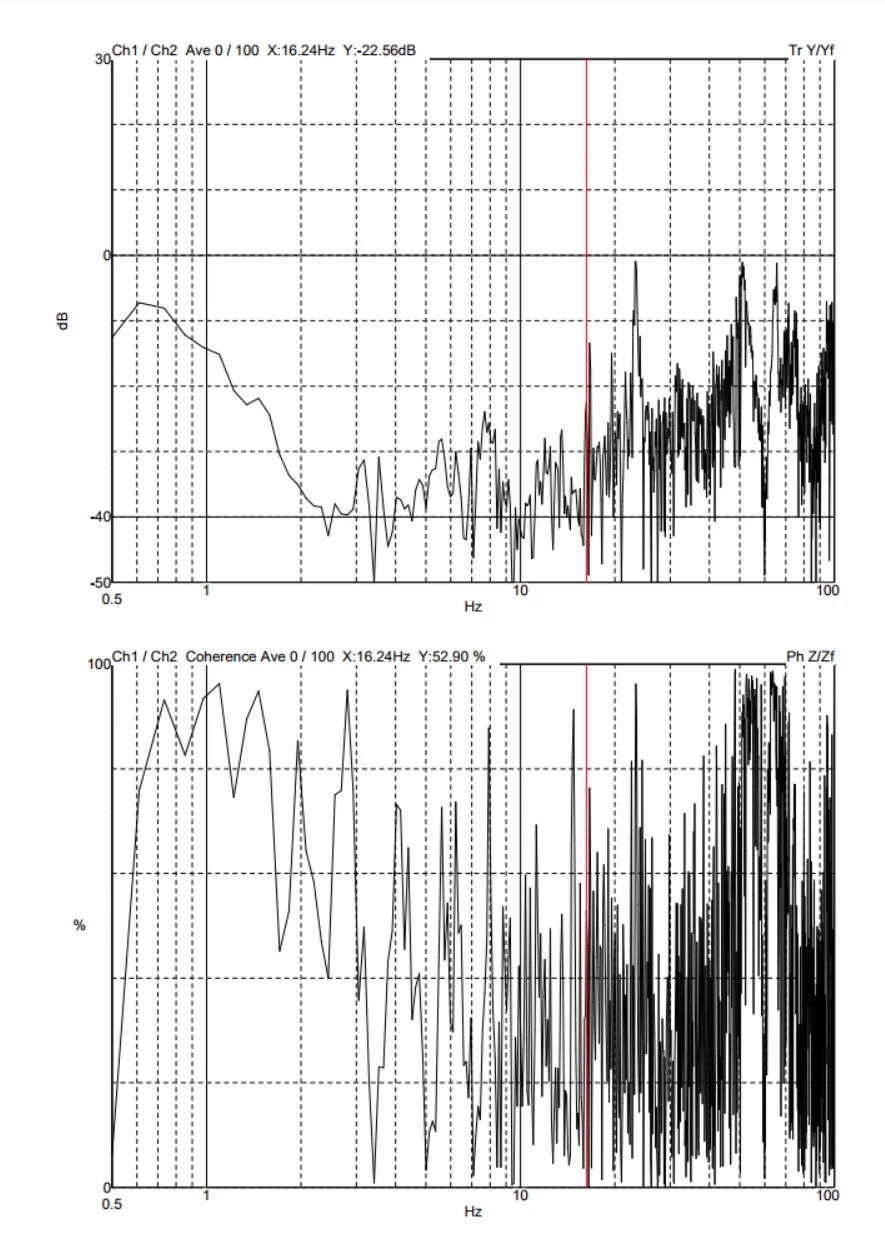

Y axis
