Installation Report
DVIA-M Series
06-24-2021
Stanford University JEOL JSM-IT500HR DVIA-MB1000 VEC remote (210120R5) — 2021.06.24
DVIA-M Series
Installation Report
VEC
Remote
DVIA-MB1000
Stanford University
JEOL
JSM-IT500HR
210120R5
Contents
MB1000_210120R5(P221) Set up
| Target equipment | JEOL JSM-IT500HR |
|---|---|
| Place of installation | Stanford University |
| Remark | Good Performance |
| END USER | Stanford University |
| Operator: Doohyun Kim | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.06.10 | |
| Date of reporting : 21.06.24 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.06.10 (Thu)
Operator: Daeil System, Research engineer Doohyun Kim
Place of measurement : Stanford University
Equipment Model: JEOL JSM-IT500HR
Measurement conditions and results
Summary of measurement results
Test Condition — Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -21 dB | -20 dB | -25 dB |
| X | -24 dB | -16 dB | -18 dB |
| Y | -13 dB | -20 dB | -28 dB |
Test Condition — VC Class
| Floor | Top Plate | |
|---|---|---|
| Z | ||
| X | ||
| Y |
Good omnidirectional performance.
MB1000 internal program performance measurement result

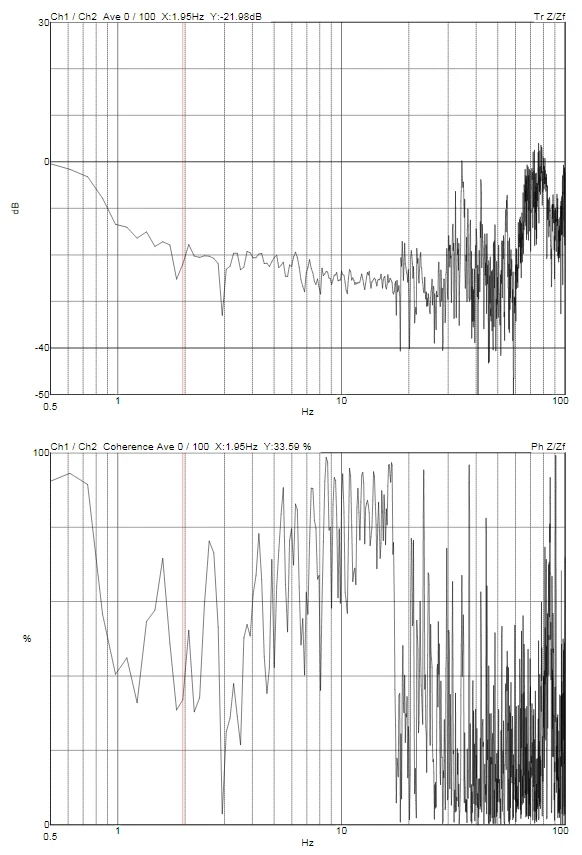

Z axis

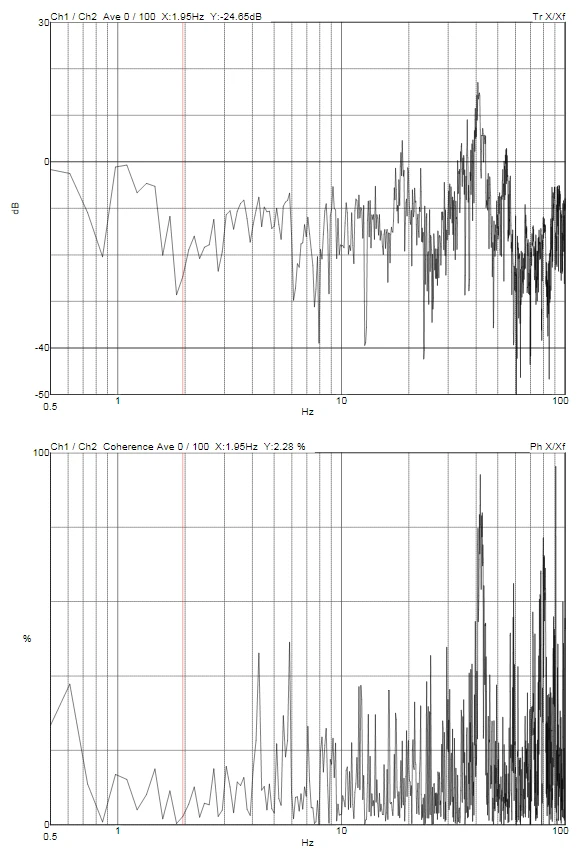

X axis

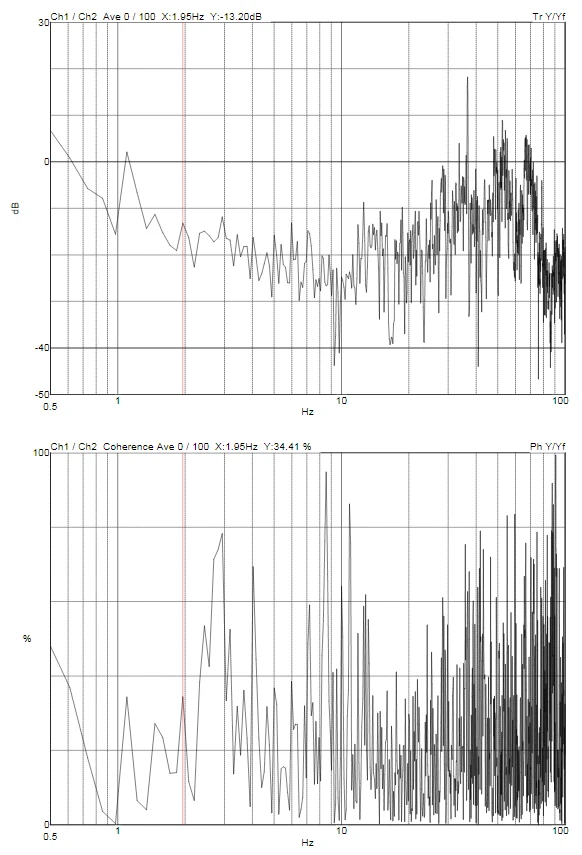

Y axis
VEC Measurement Data
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date06-24-2021
Tags
DVIA-M Series
Installation Report
VEC
Remote
DVIA-MB1000
Stanford University
JEOL
JSM-IT500HR
210120R5
