SLAC Thermo Scientific Aquilos II DVIA-MB1000 (211012R6-2) Installation Report — 2022.03.10
Contents
Prepared for
SLAC
Corey Hencksel
2575 Sand Hill Rd
Menlo Park CA 94025
Tel: (650) 420 8412
Email: hencksel@stanford.edu
Prepared by
N/A
Email:
N/A
Work completed
March 10th 2022
Summary of Work
We installed the DIVA-MB1000 by
positioning the DIVA-MB1000 under the microscope
attaching the seismic restrains between the floor and the Daeil DIVA-MB1000
connecting the seismic restrains between the Daeil DIVA-MB1000 and the Tool
attaching the Daeil DIVA-MB1000 to
attaching the Daeil to
leveling the DIVA-MB1000 to within
We tested the DIVA-MB1000 by
using our setup procedure with a commuter to calibrate the Daeil DIVA-MB1000
measuring vibrations on the top of the Daeil DIVA-MB1000 with it active and not
measuring vibrations on the floor
We left the DIVA-MB1000 in
Location Information
This Daeil DIVA-MB1000 System was installed in the Cryo EM Lab.
System Information
| Part Delivered | Serial Number | Software | Installed |
|---|---|---|---|
| Daeil DIVA-MB1000 | 211012R6-2 | N/A | N/A |
Vibration Criterion
The instrumentation utilized to conduct the testing is itemized below:
| Measuring Equipment | Technical Specifications |
|---|---|
| Spectrum Analyzer | Data Physics ACE DP-240 SN: 21635 |
| Accelerometer | Wilcoxon Reaserch 731A seismic accelerometer Serial Numbers: 10928, 11000 : |
Vibration Results
| Direction | Floor | Floor | Floor | Daeil DIVA-MB1000 ON | Daeil DIVA-MB1000 ON | Daeil DIVA-MB1000 ON |
|---|---|---|---|---|---|---|
| Direction | Specification | Measurement | Result | Specification | Measurement | Result |
Conclusions
The Daeil DIVA-MB1000 active vibration isolation platform is appropriately installed and functioning as intended.
Images and Data
Image 1: Site as VEC left it.

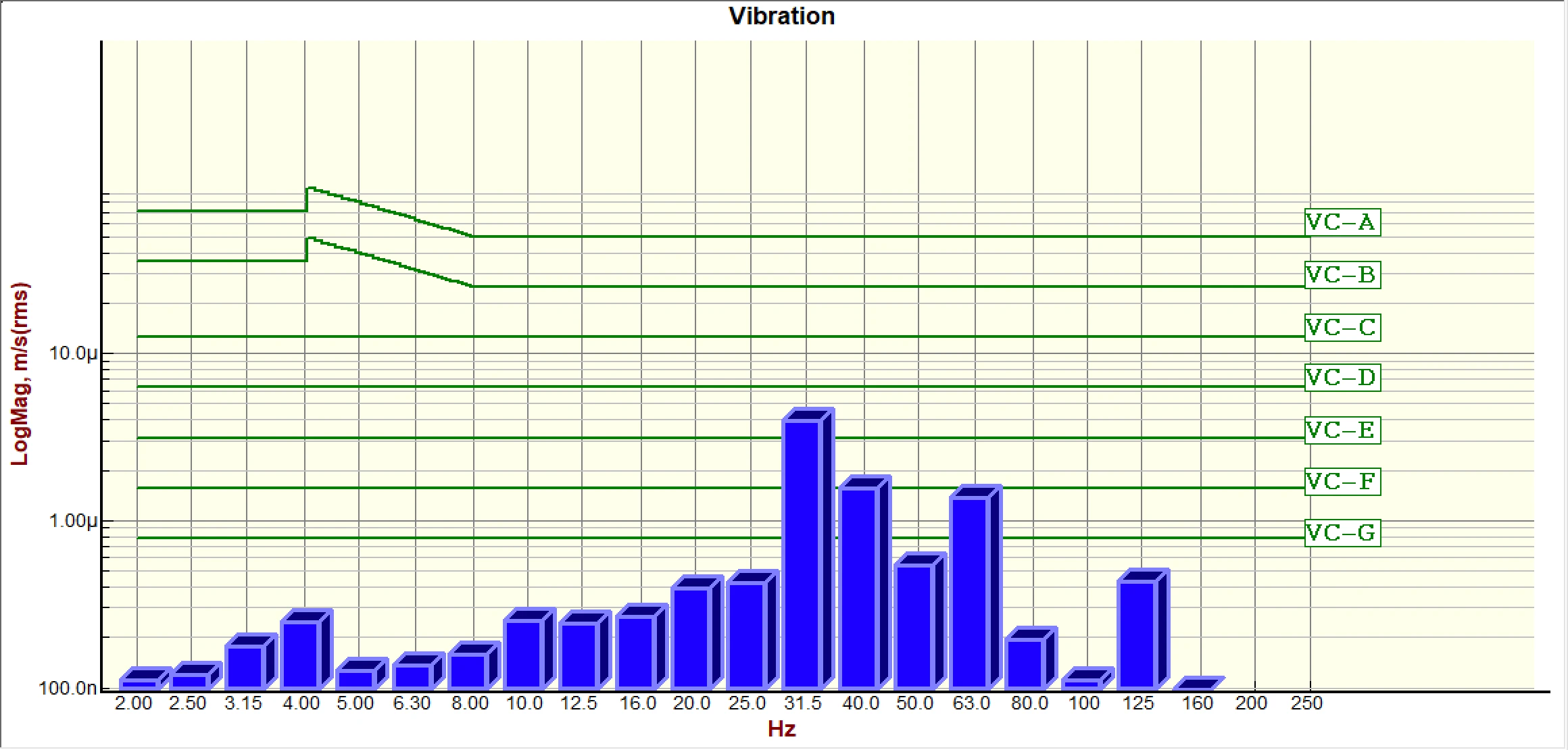

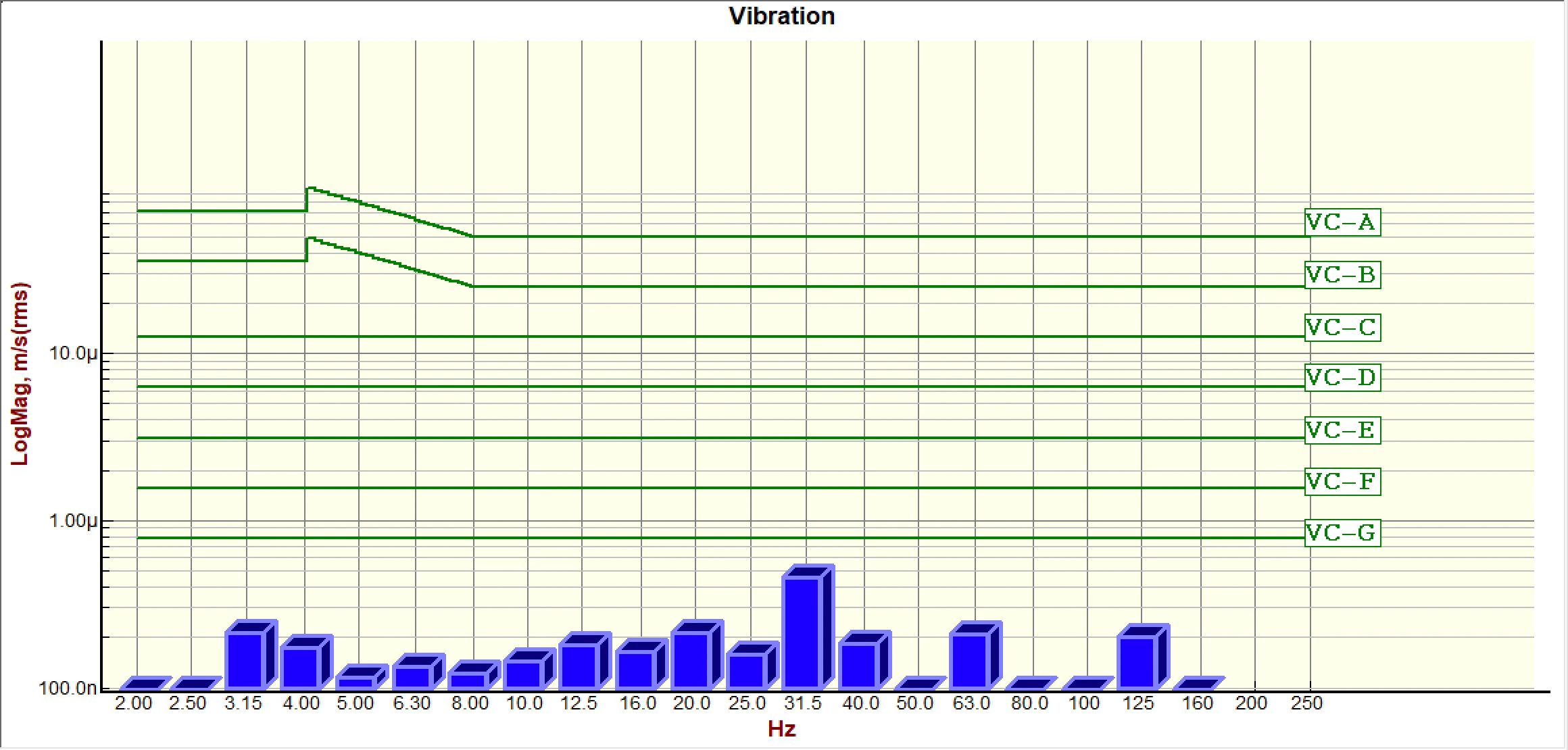

Figure 1: Floor

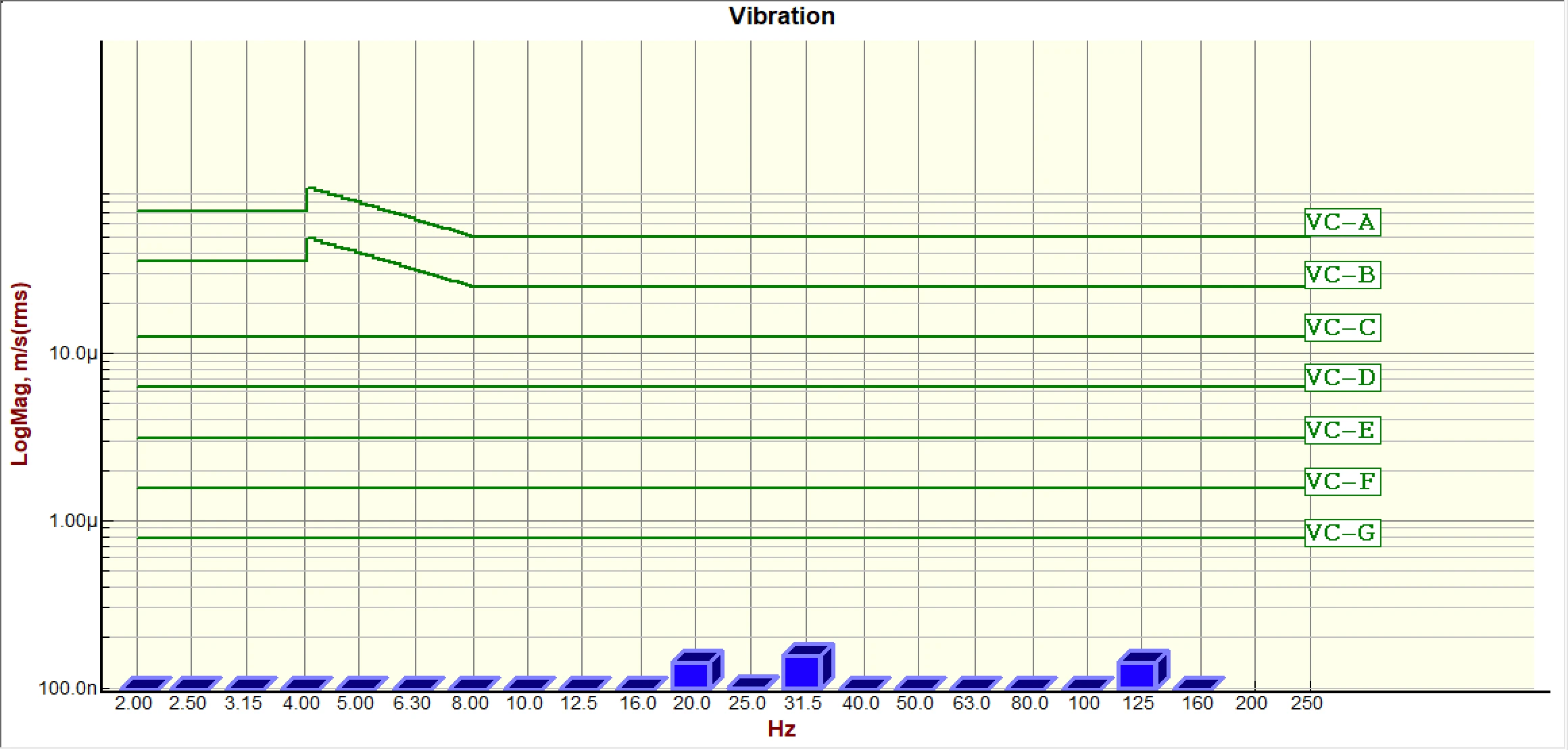

Figure 2: Daeil DIVA-MB1000 ON

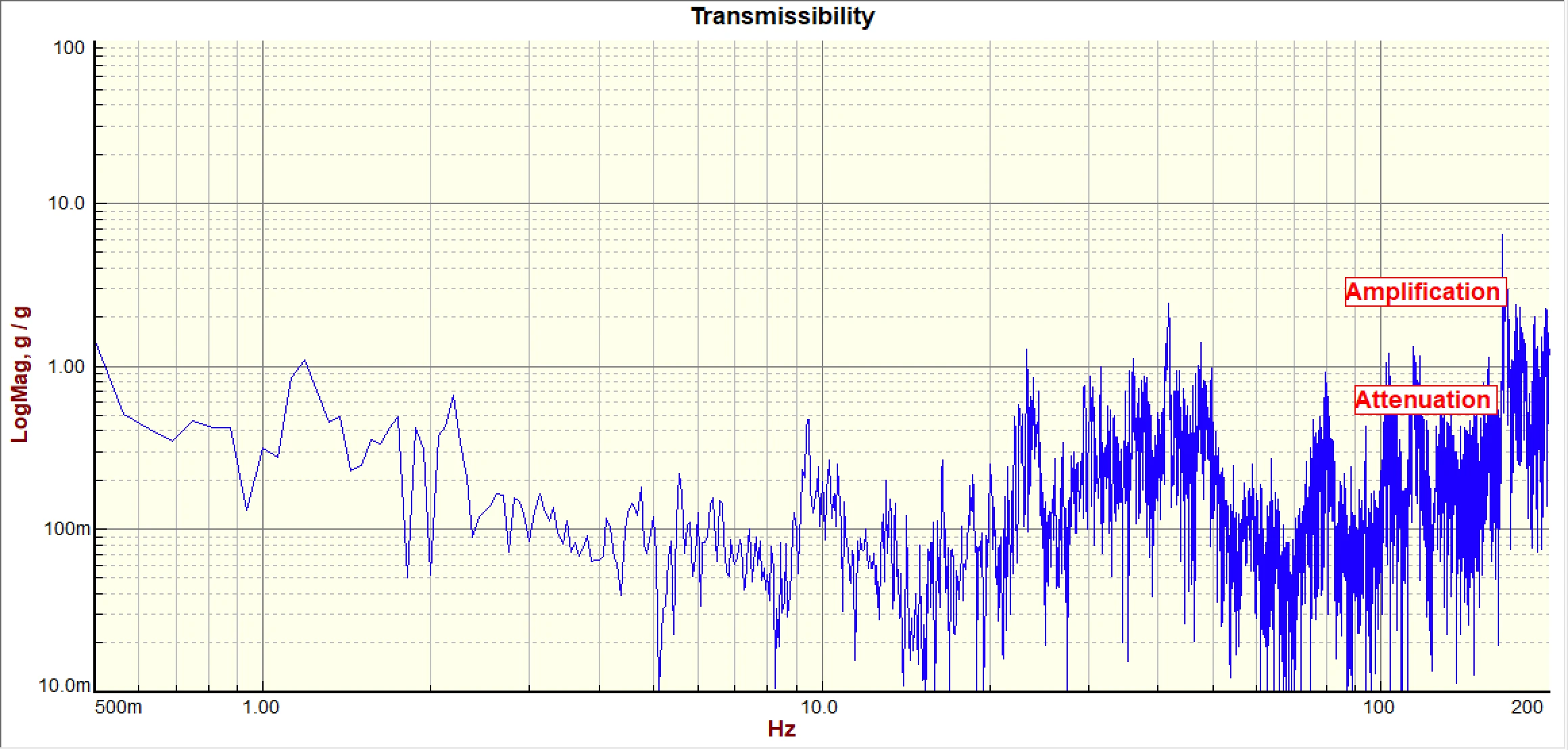

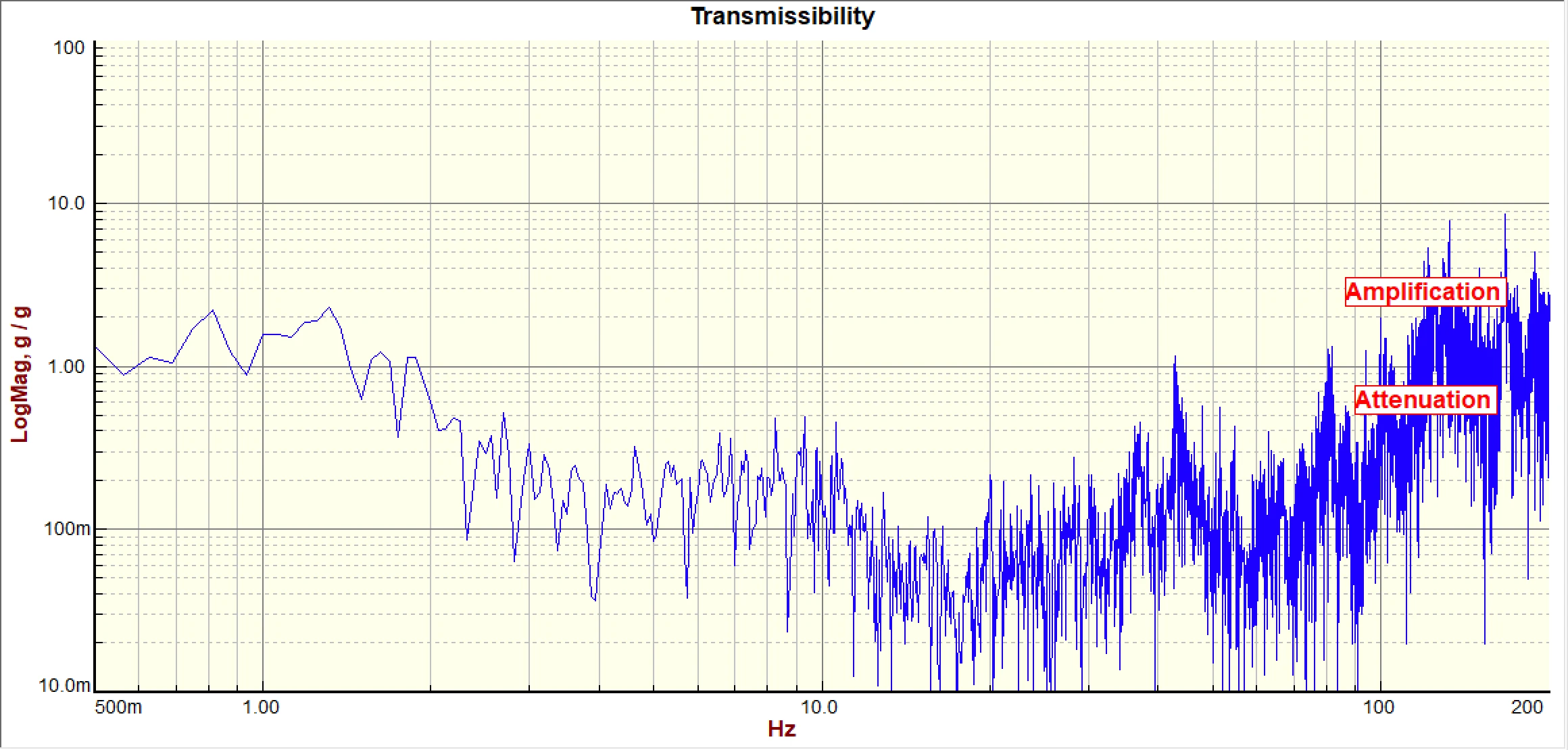

Figure 3: Transmissibility

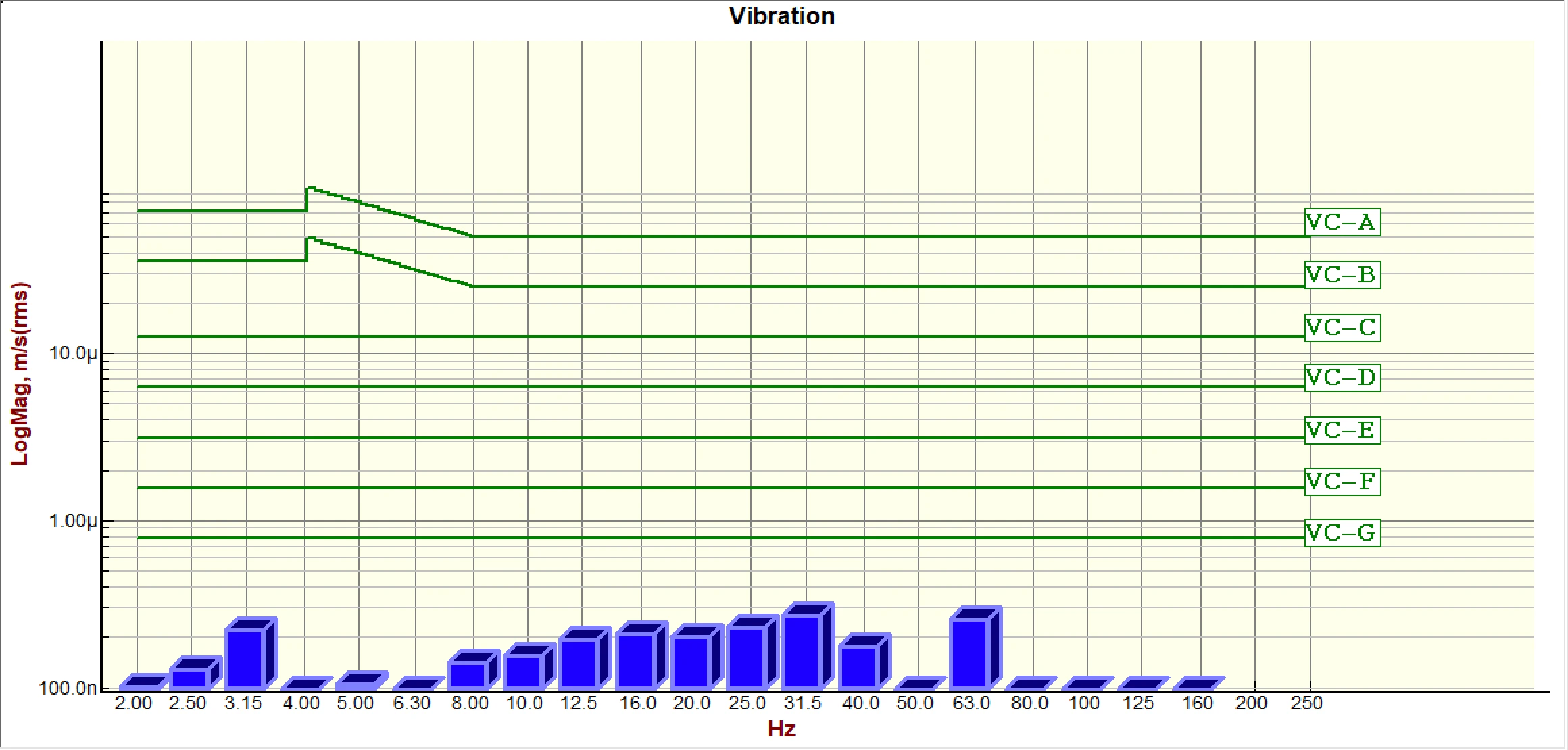

Figure 4: Floor

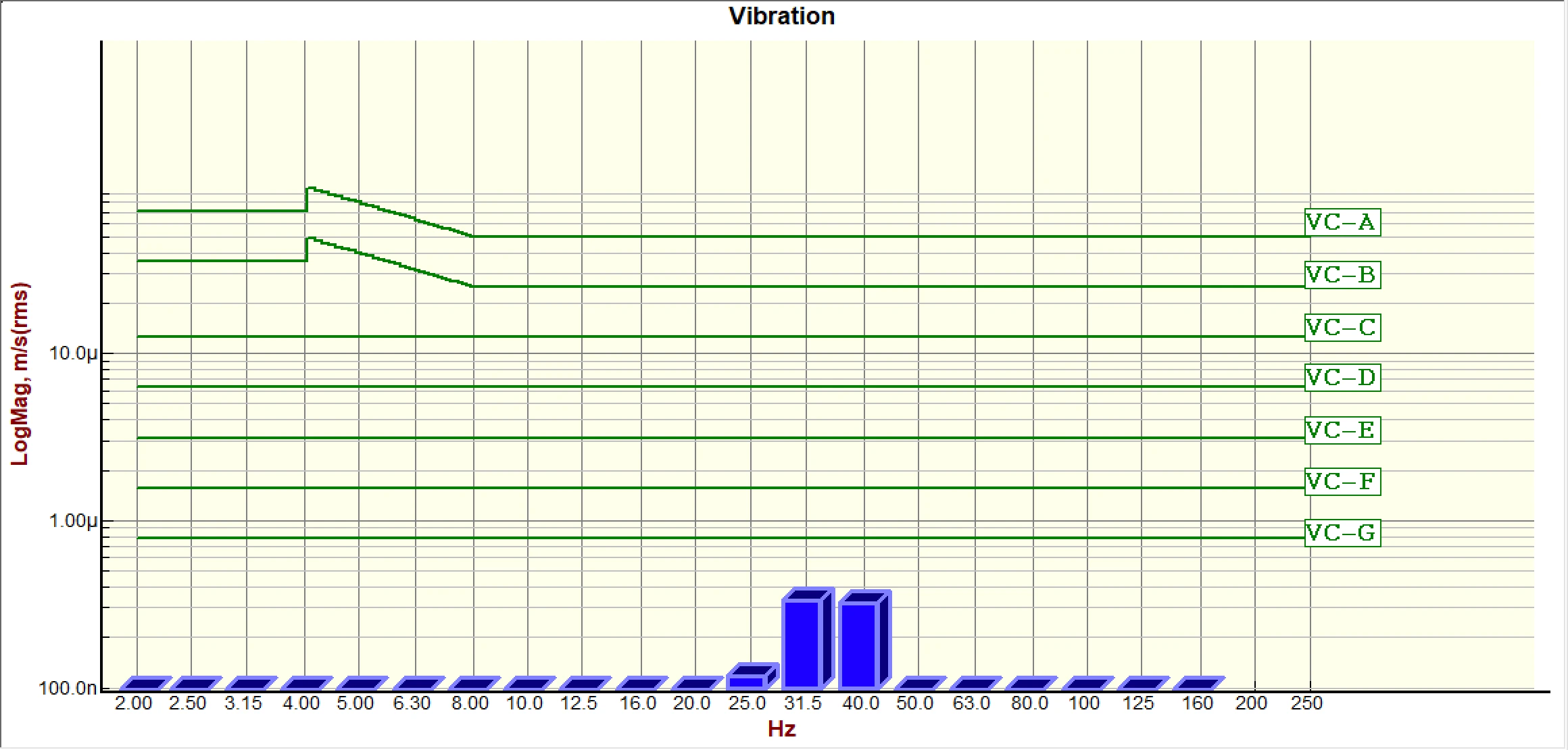

Figure 5: Daeil DIVA-MB1000 ON

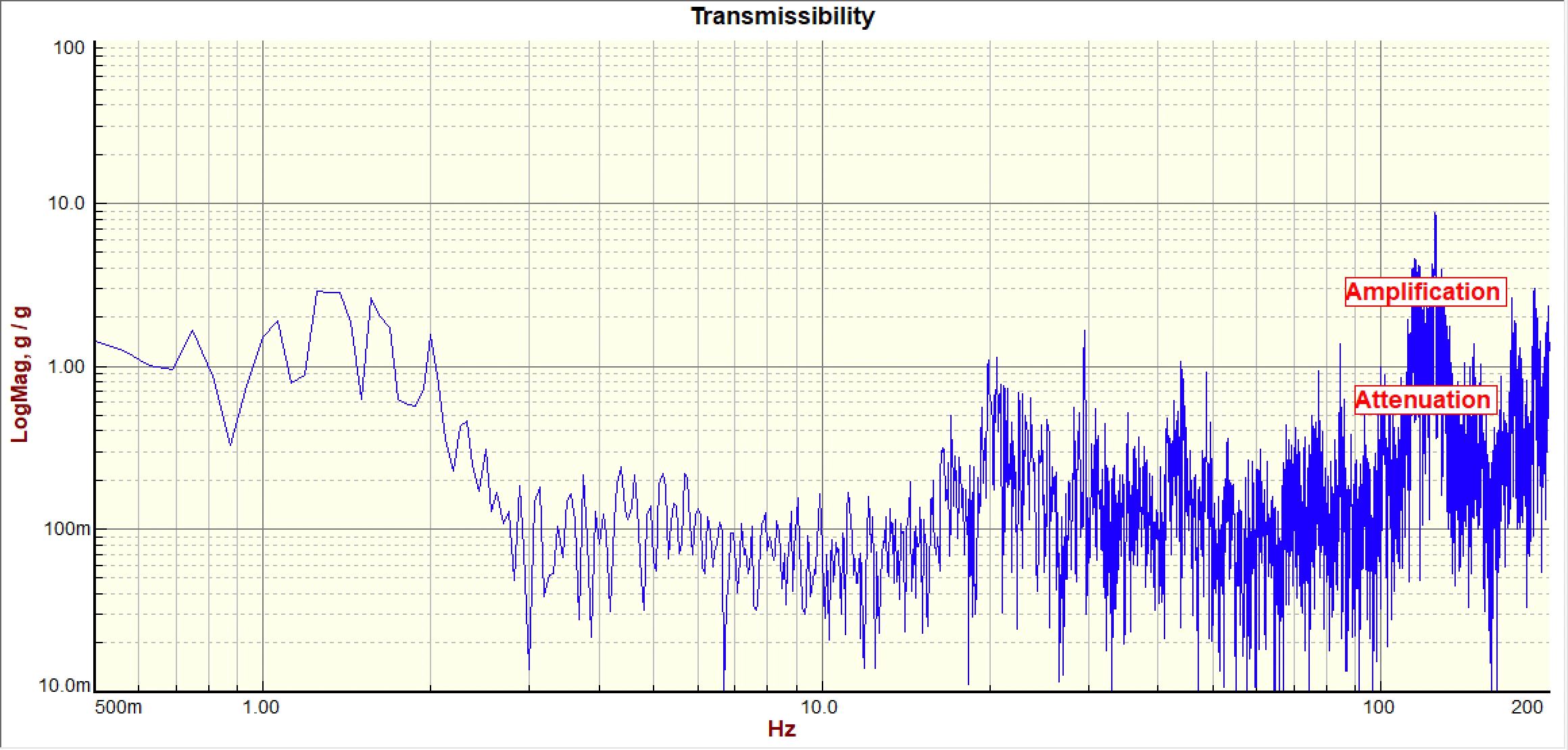

Figure 6: Transmissibility
Figure 7: Floor

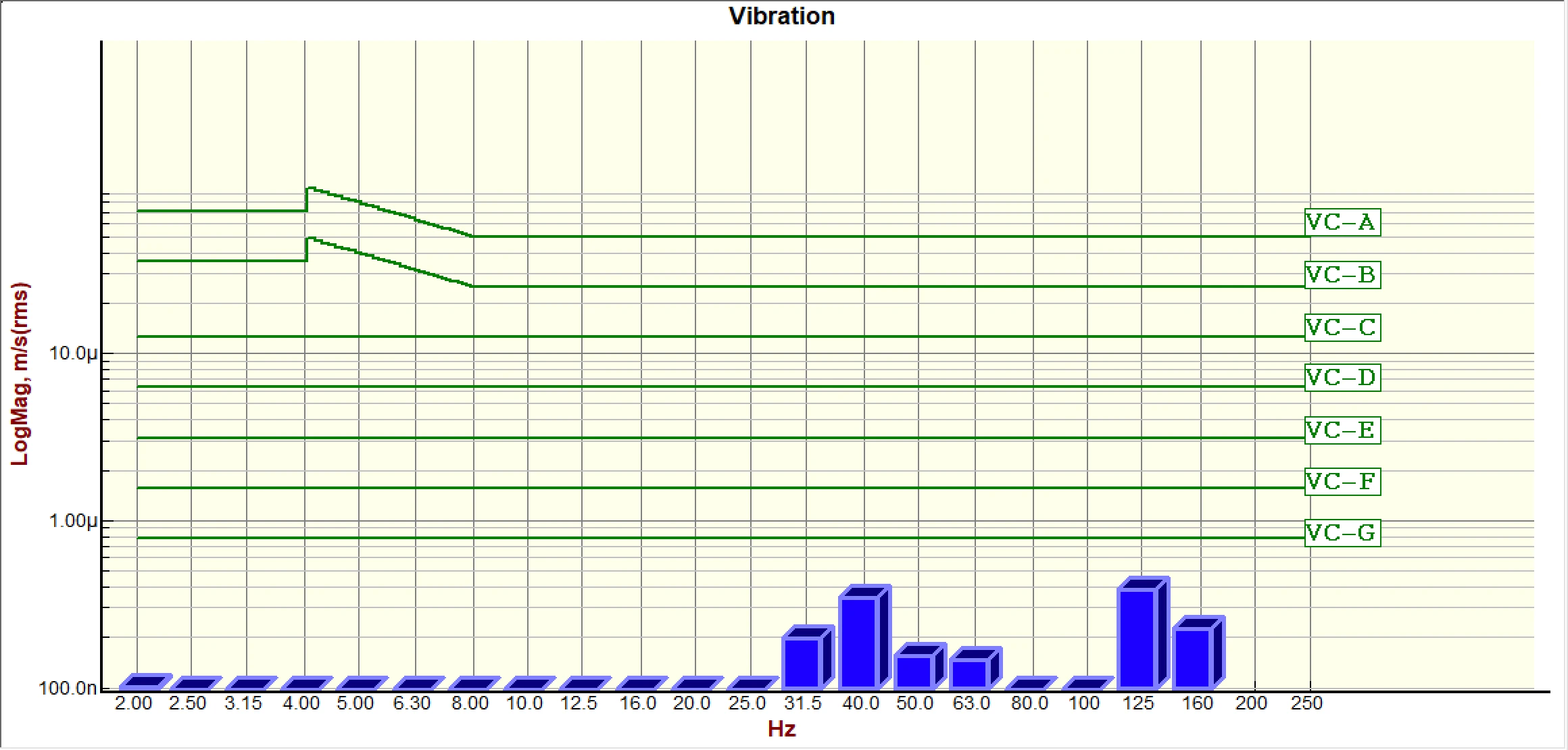

Figure 8: Daeil DIVA-MB1000 ON
Figure 9: Transmissibility
