Installation Report
DVIA-M Series
10-05-2020
Schaeffler DVIA-MB1000 (P914, 200730R1) Internal program performance — 2020.10.05
DVIA-M Series
Installation Report
DVIA-MB1000
Schaeffler
internal program performance
P914
200730R1
Contents
MB1000 P914
| Target equipment | N/A |
|---|---|
| Place of installation | N/A |
| Remark | N/A |
| END USER | N/A |
| Operator: Choim, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.10.05 | |
| Date of reporting : 20.10.05 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.10.05 (MON)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: N/A
Measurement conditions and results
Summary of measurement results
Test condition: Transmissibility
| Axis | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -18 dB | -22 dB | -26 dB |
| X | -25 dB | -38 dB | -38 dB |
| Y | -26 dB | -40 dB | -40 dB |
Good omnidirectional performance.
Notes
5. 특이사항.
필터가 들어갈 시 open loop에 이상 현상 발생 (그래프 출력이 안나옴)
신호가 안 나오다가 시간이 지나면 11개의 신호가 나오기 시작함.(오랜 시간이 필요)
MB1000 internal program performance measurement result

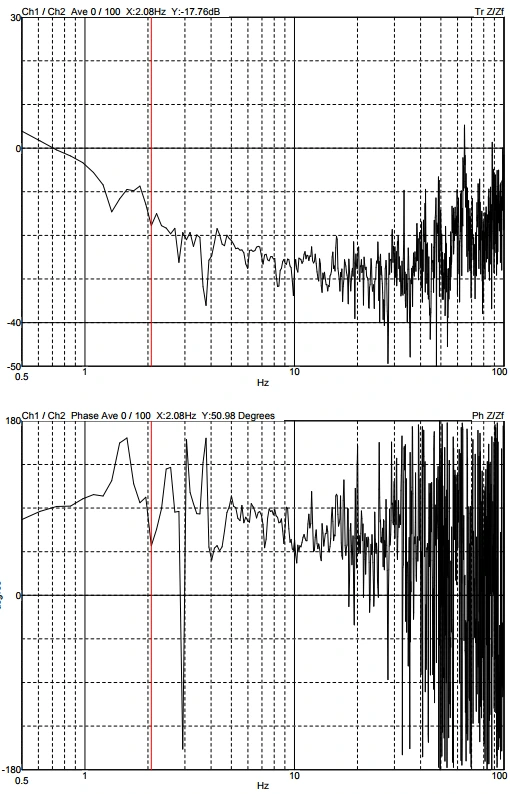

Z axis

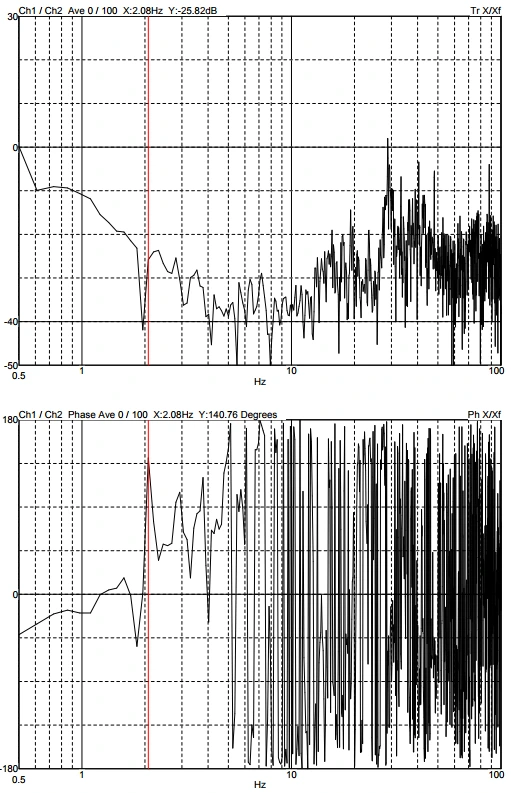

X axis

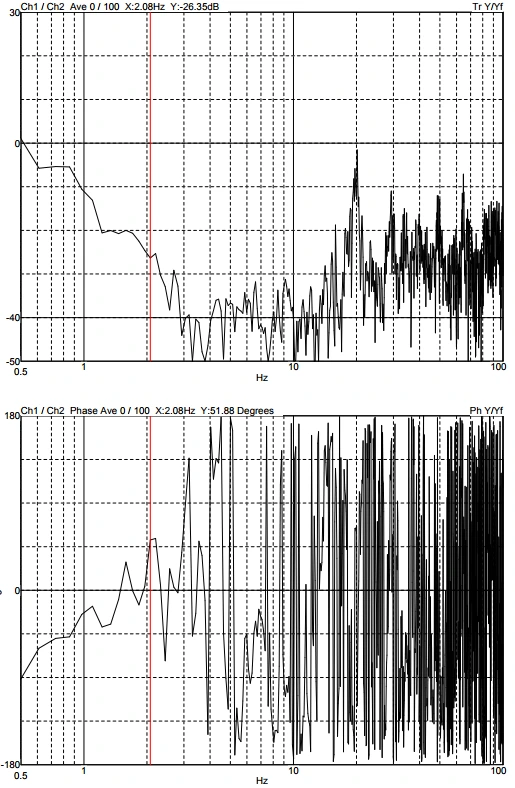

Y axis
