Installation Report
DVIA-M Series
09-22-2020
Wangbo DVIA-MO1000 (P191) Remote Tuning Installation Report — September 22, 2020
DVIA-M Series
Installation Report
Wangbo
Kunshan
DVIA-MO1000
P191
remote tuning
MO1000 internal program
Contents
MO1000_200729R1(P191) Set up
| Target equipment | Concentric distance measuring equipment |
|---|---|
| Place of installation | kunshan 1 floor |
| Remark | Good Performance |
| END USER | 昆山集萃精凯 |
Operator: Munho Noh
Date of setup : 20.09.22
Date of reporting : 20.09.22
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.09.22 (TUE)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : kunshan 1 floor
Equipment Model: Concentric distance measuring equipment
Measurement conditions and results
Summary of measurement results
Good omnidirectional performance.
| Test Condition | Transmissibility | |
|---|---|---|
| 2 Hz | 5 Hz | |
| Z | -31.23 dB | -31.99 dB |
| X | -26.38 dB | -26.42 dB |
| Y | -27.23 dB | -25.66 dB |
MB1000 internal program performance measurement result

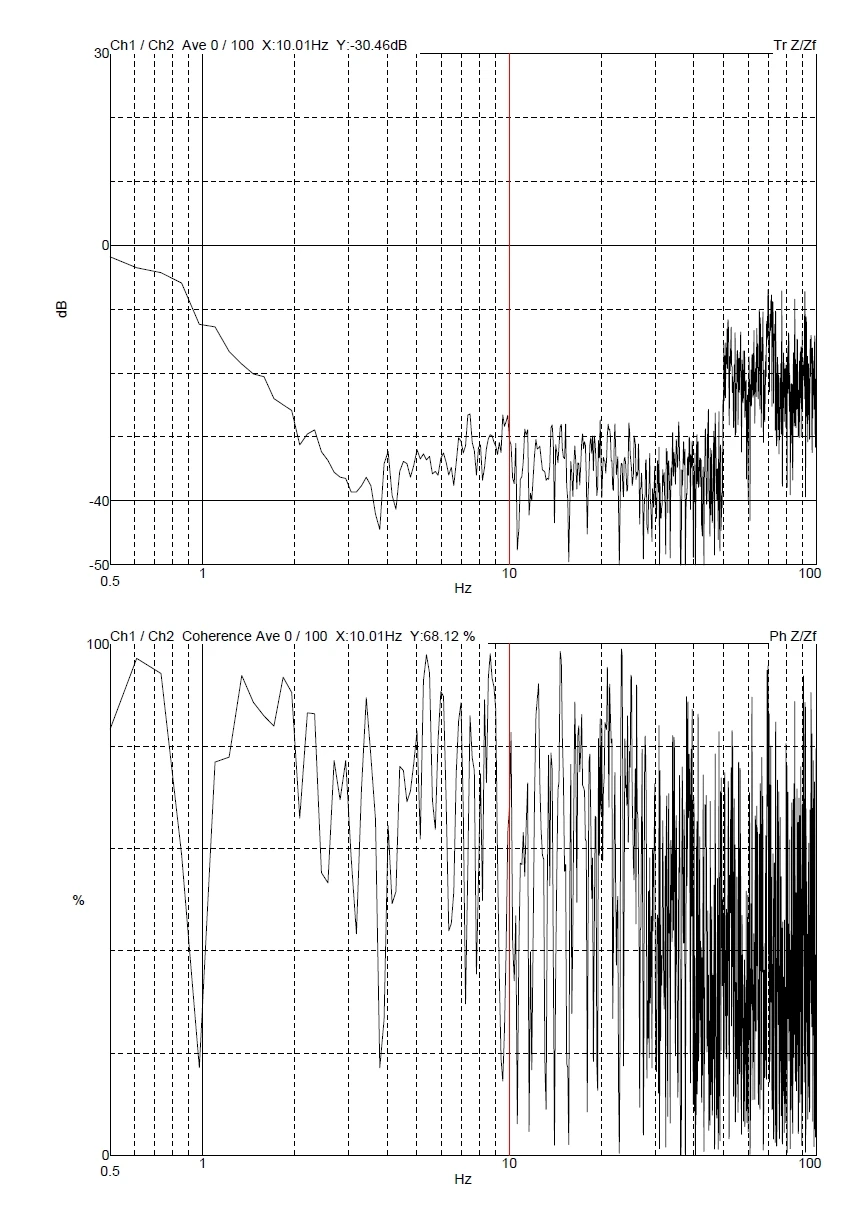

Z axis

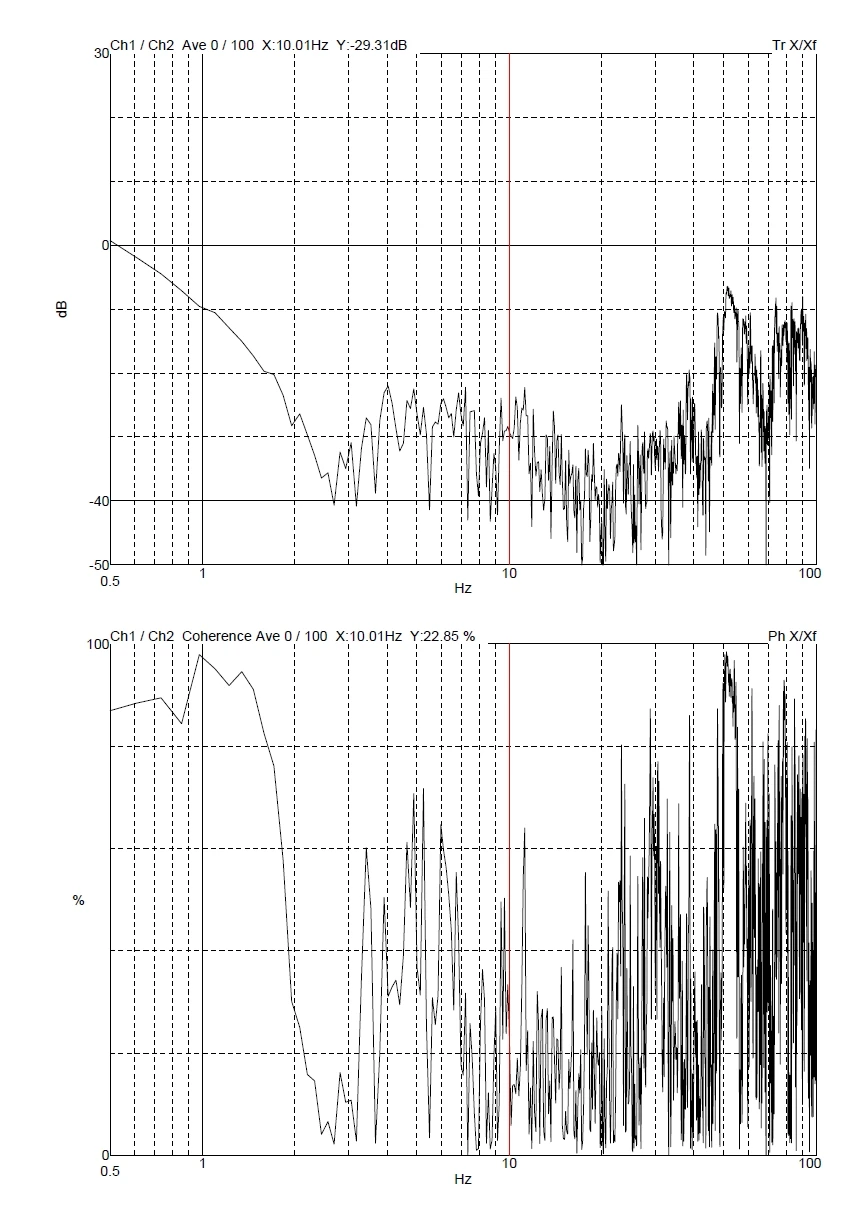

X axis

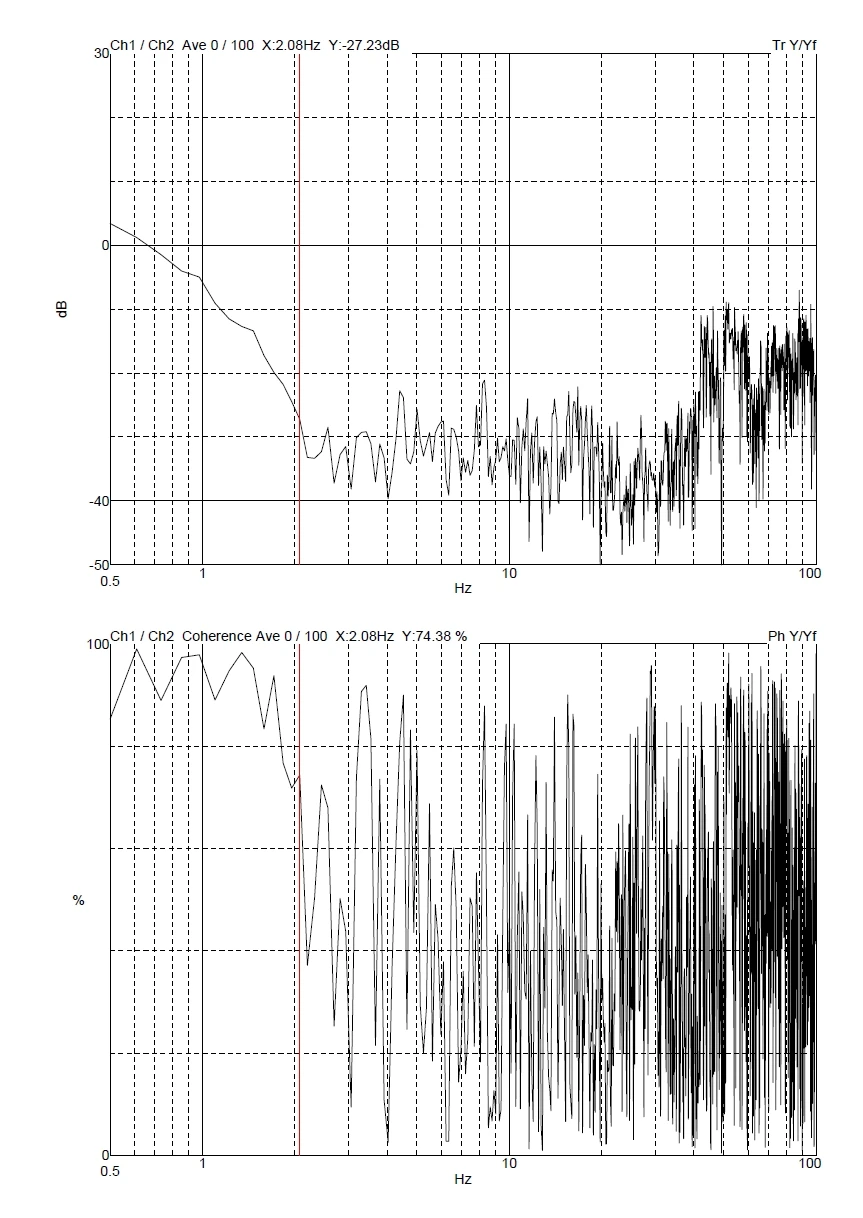

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date09-22-2020
Tags
DVIA-M Series
Installation Report
Wangbo
Kunshan
DVIA-MO1000
P191
remote tuning
MO1000 internal program
Related Case Studies
DVIA-M Series

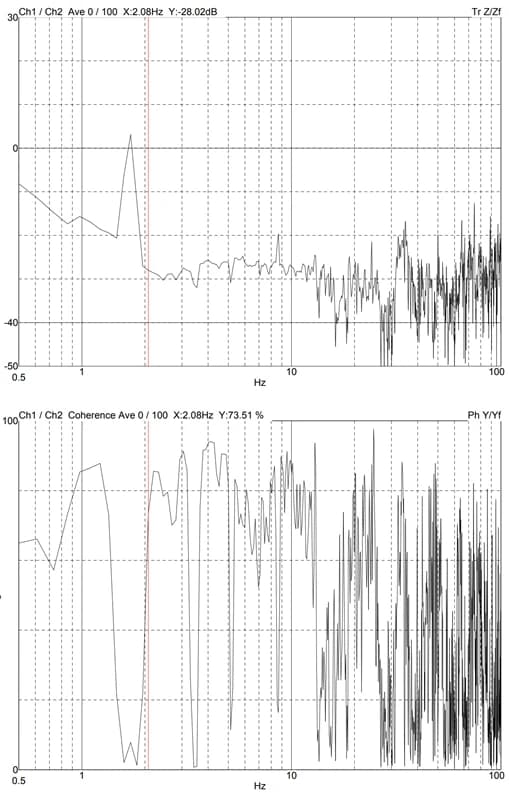

YIMO STM OEM DVIA-MO1000 (P247) Second Setup Installation Report — September 13, 2021
