Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.01.11 (MON)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Shenzen, 9F
Equipment Model: Gemini sigma300
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -21.19 dB | -46.47 dB | -25.81 dB |
| X | -37.81 dB | -32.56 dB | -28.73 dB |
| Y | -28.23 dB | -35.04 dB | -33.75 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

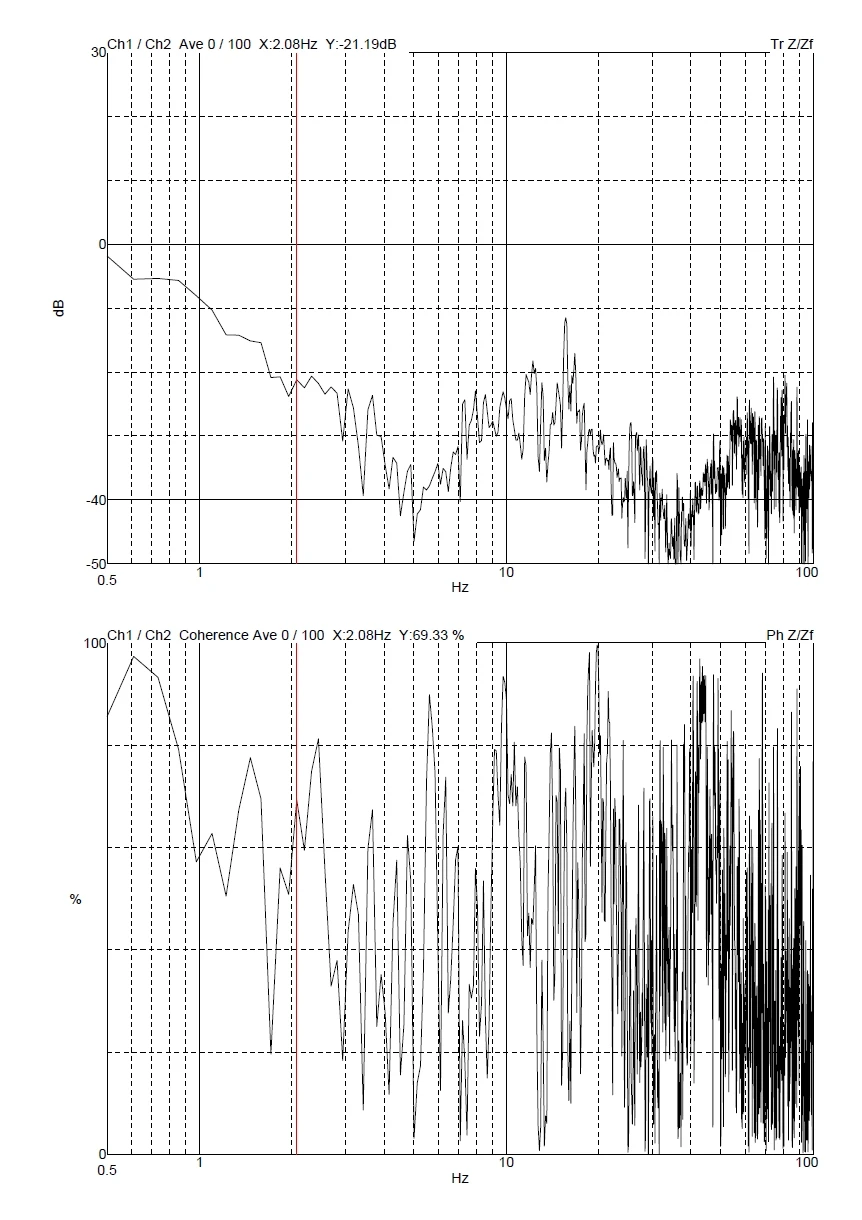

Z axis

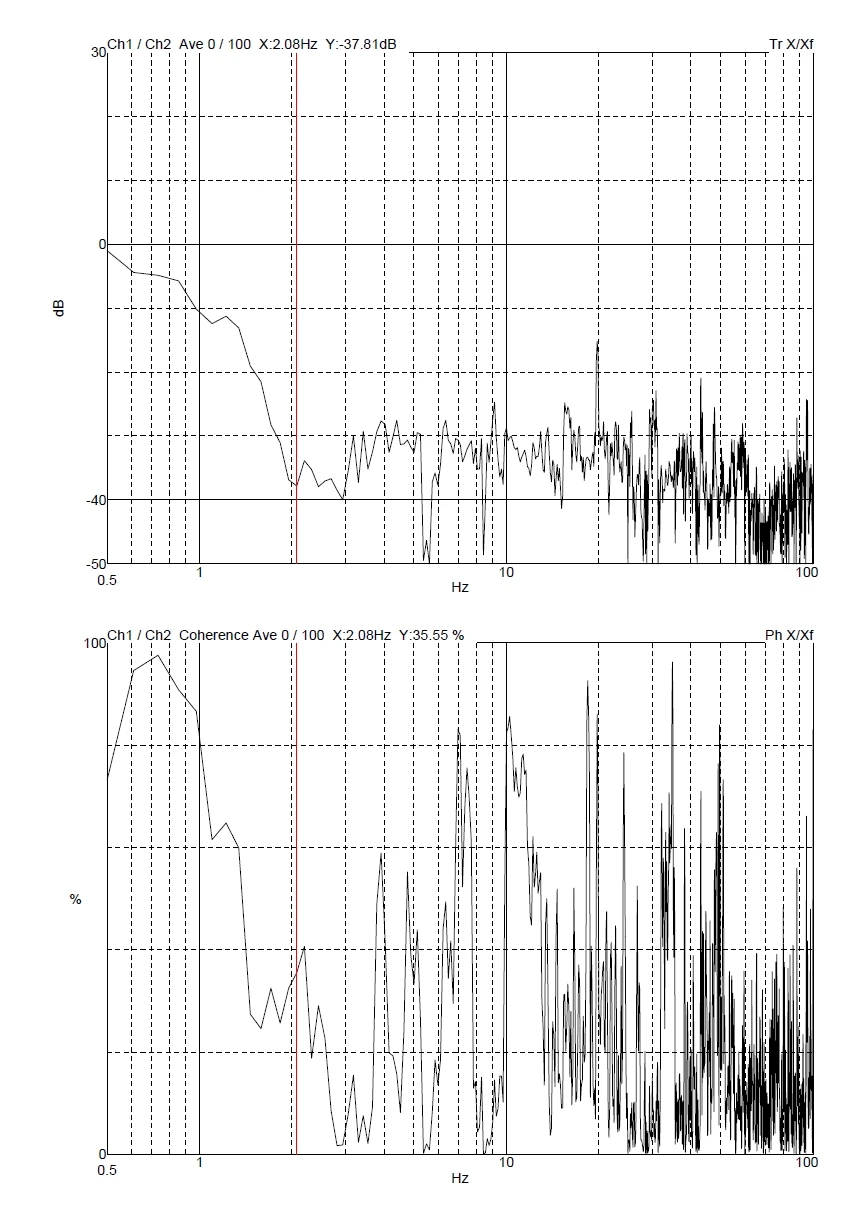

X axis

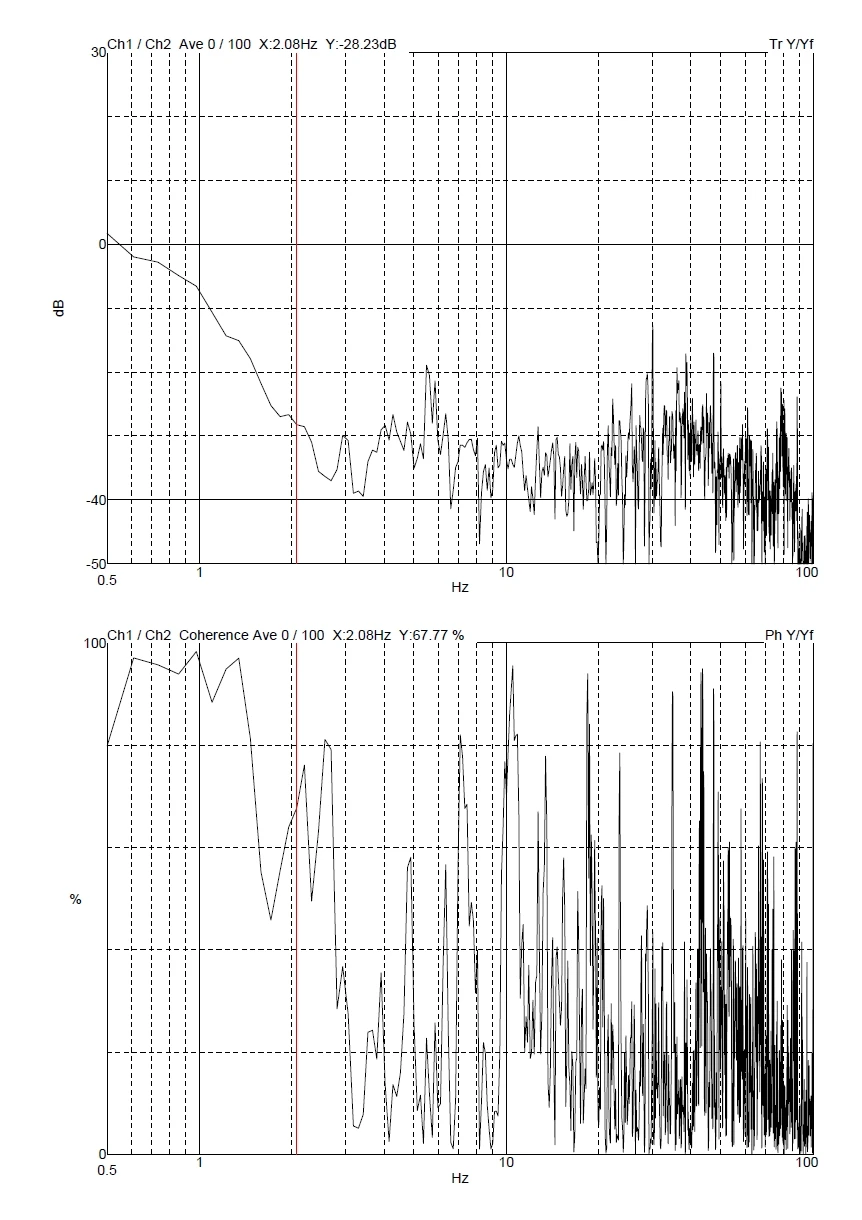

Y axis
