Installation Report
DVIA-M Series
08-11-2020
HITACHI DVIA-MB1000 (P177 / 200522R2-6) Internal Program Performance — 2020.08.11
DVIA-M Series
Installation Report
HITACHI
DVIA-MB1000
MB1000
P177
200522R2-6
Contents
(MB1000_P177 200522R2-6 Set up)
| Target equipment | HITACHI |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.11 | N/A |
| Date of reporting : 20.08.11 | N/A |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.08.11 (Tue),
Operator
Operator: Daeil System, Manager HyoungMun, Choi
Place of measurement
N/A
Equipment Model
Equipment Model: HITACHI
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | |||
| Above Active |
Good omnidirectional performance.
MB1000 internal program performance measurement result

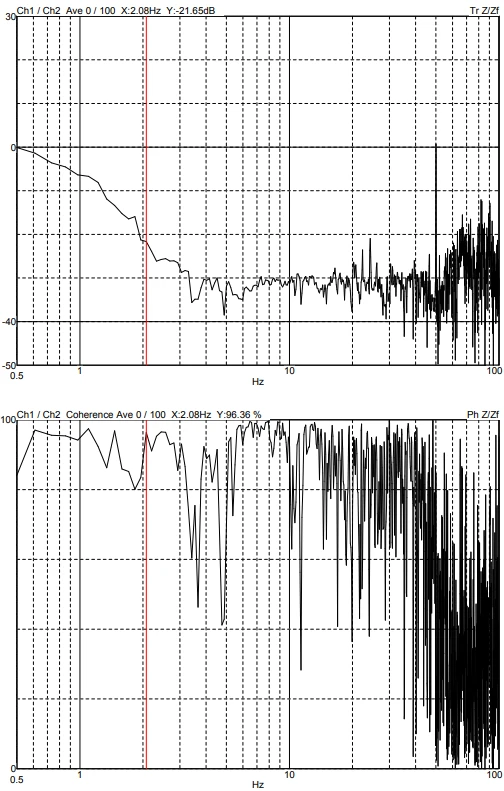

Z axis

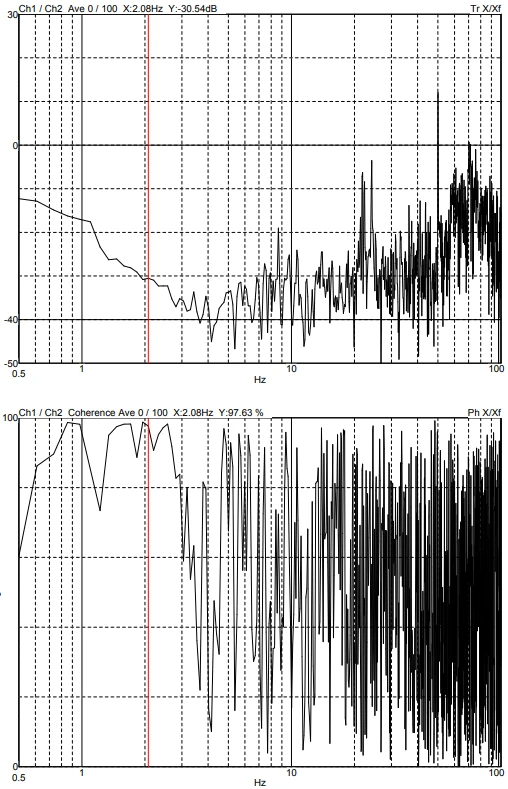

X axis

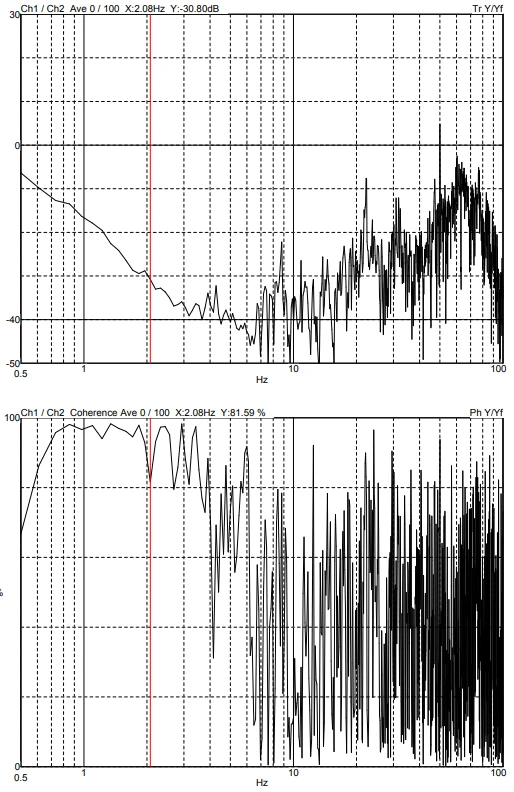

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date08-11-2020
Tags
DVIA-M Series
Installation Report
HITACHI
DVIA-MB1000
MB1000
P177
200522R2-6
Related Case Studies
DVIA-M Series
HITACHI Regulus 8230 DVIA-MB1000 Program (P173 / 191219R3-4) Installation Report — 2021.01.29
01-29-2021Read more
DVIA-M Series

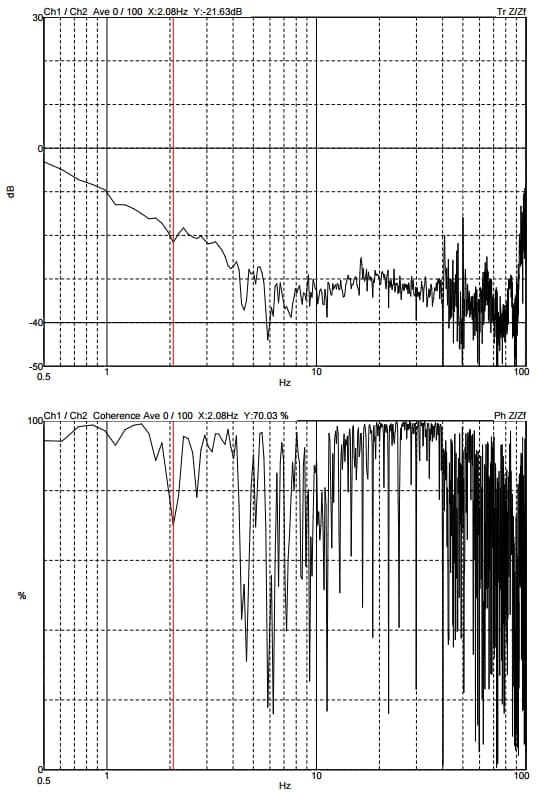

Zhejiang University HITACHI H-7650 TEM DVIA-MB1000 (MB1000 P70) Installation Report — 2018-09-17
