FEI NOVA450 DVIA-MB1000 (MB1000 P8) installation worksheet — Seoul Hanyang University — 2020-07-14
Contents
FEI NOVA450 - 서울 한양대학교
(MB1000_ P8)
Target equipment
FEI NOVA450
Place of installation
서울 한양대학교 퓨전테크센터 2층
Remark
Good Performance
END USER
서울 한양대학교
Operator
Operator: Choi, Hyoung Mun
Date of setup
Date of setup : 20.07.14
Date of reporting
Date of reporting : 20.07.14
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2020.07.14 (TUE),
Operator: Daeil System, Manager Choi, Hyoung Mun

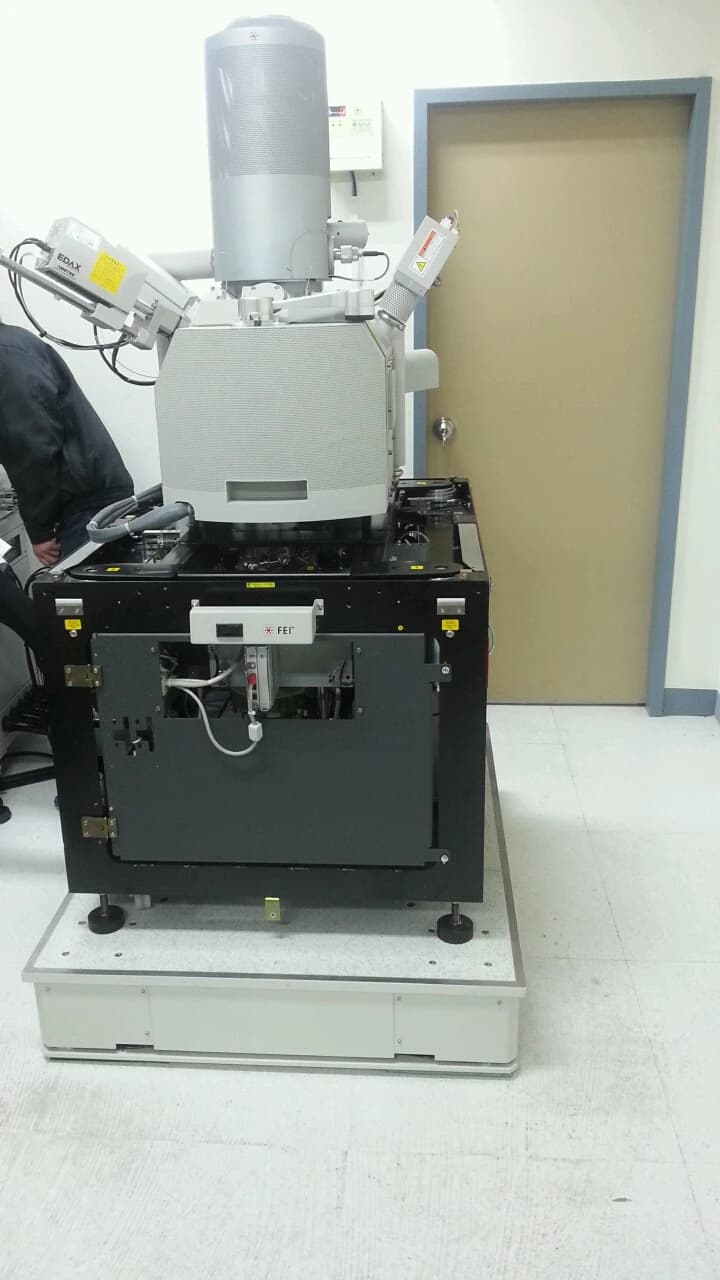

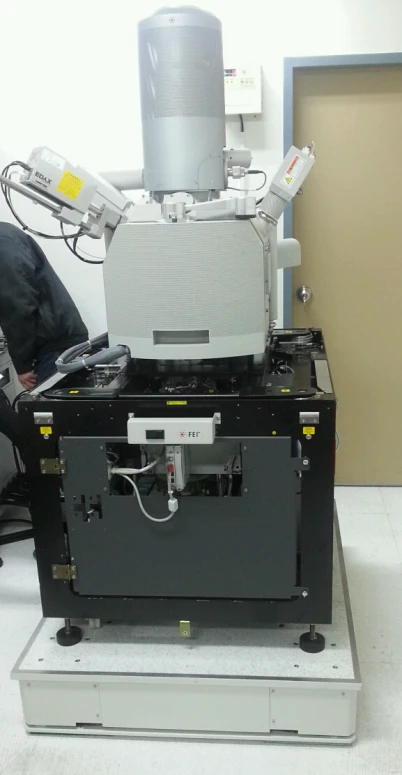

Place of measurement
Place of measurement : 서울 한양대학교 퓨전테크센터 2층
Equipment Model
Equipment Model: FEI - NOVA450
Measurement conditions and results
DAQ System : B&K PULSE 14 & LAN-XI Type 3056
Accelerometer : PCB PIEZOTRONICS 393B05
Frequency Range : 0.7 ~ 200Hz
DAQ System : B&K PULSE 14 & LAN-XI Type 3056
Accelerometer : PCB PIEZOTRONICS 393B05
PULSE LabShop
Summary of measurement results
| Test Condition | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | A | E |
| X | C | E | |
| Y | B | F |
Good omnidirectional performance.
MB1000 internal program performance measurement result

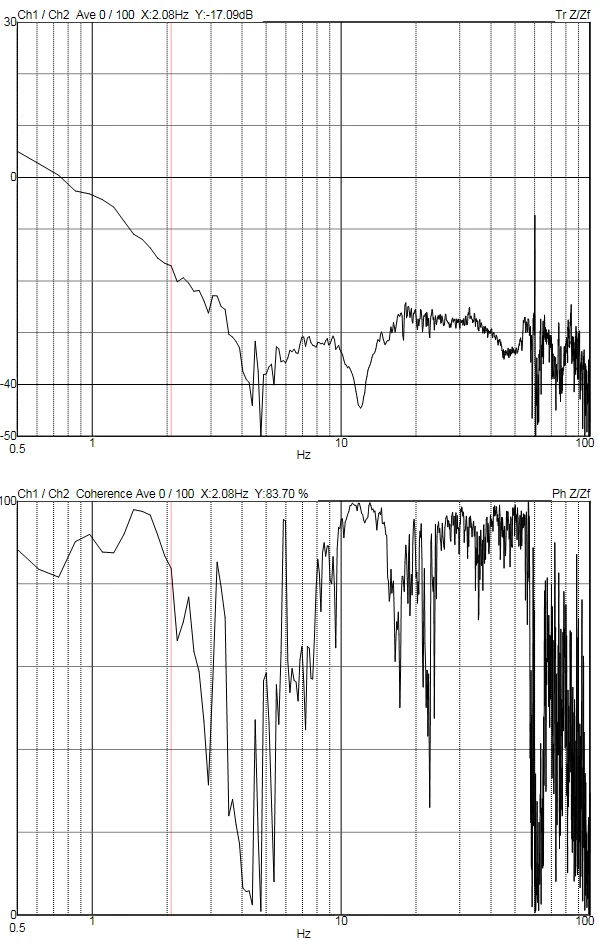

MB1000 internal program Z axis

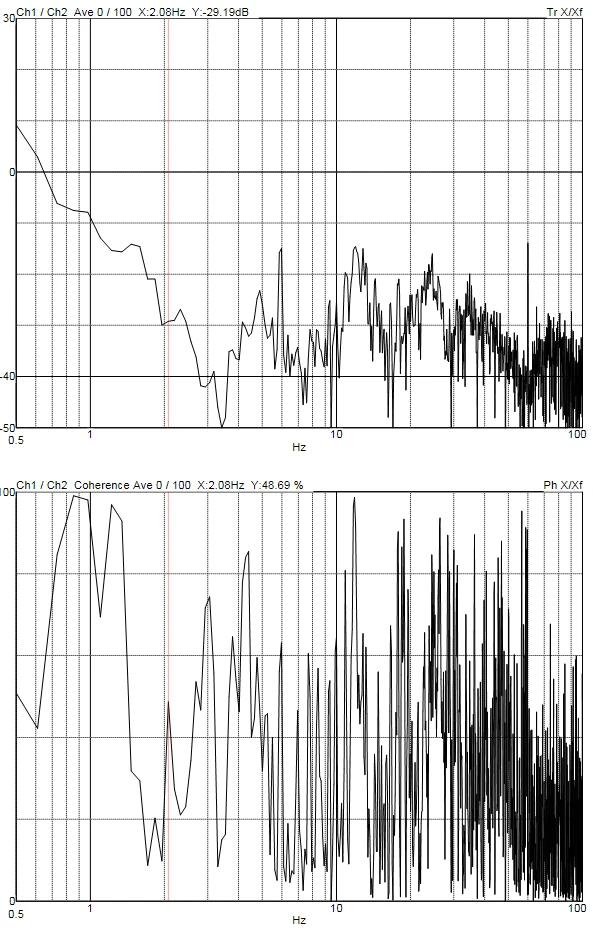

MB1000 internal program X axis

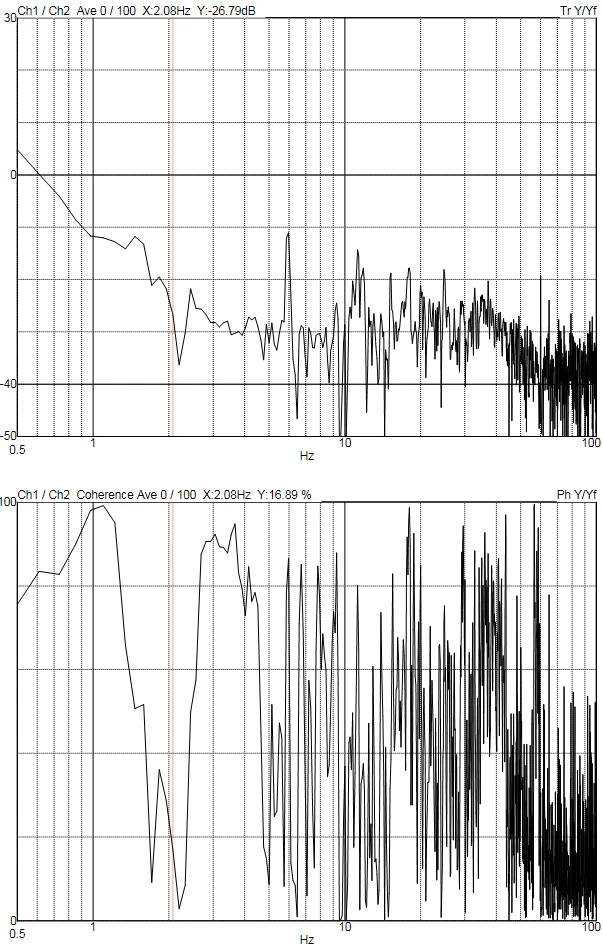

MB1000 internal program Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

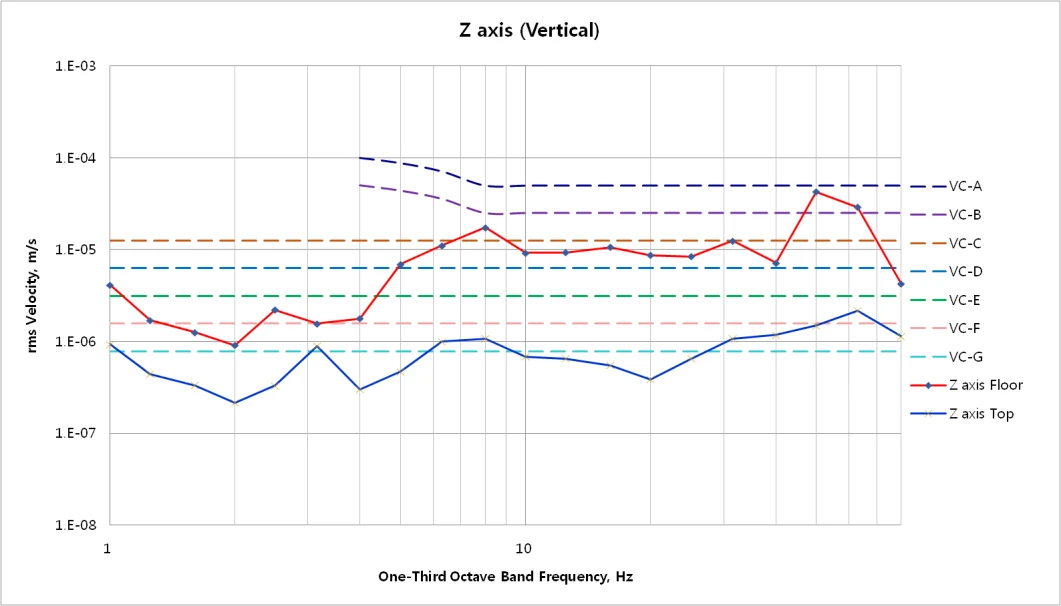

Octave band Z axis

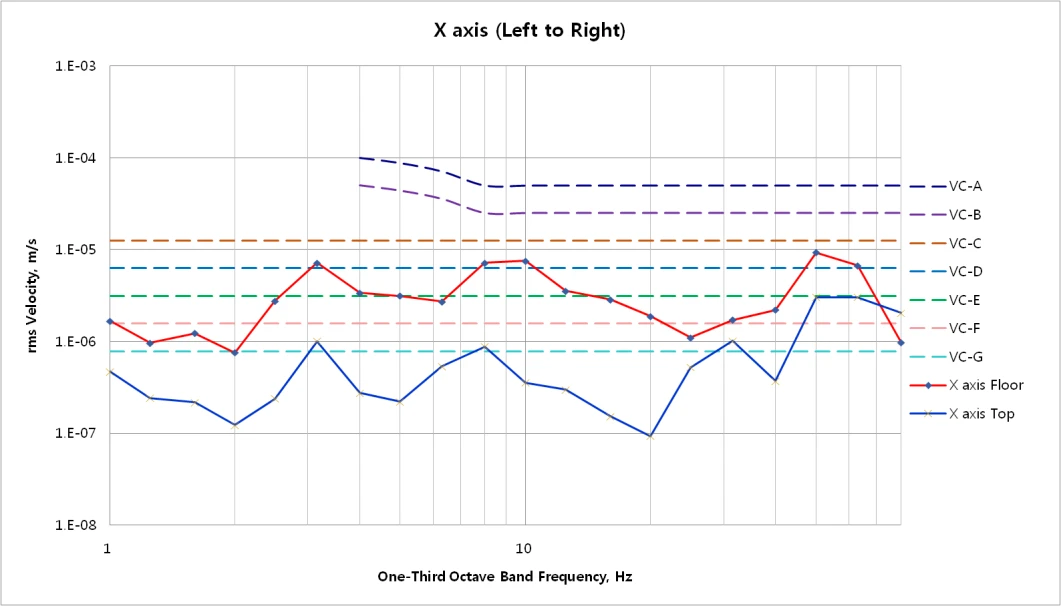

Octave band X axis

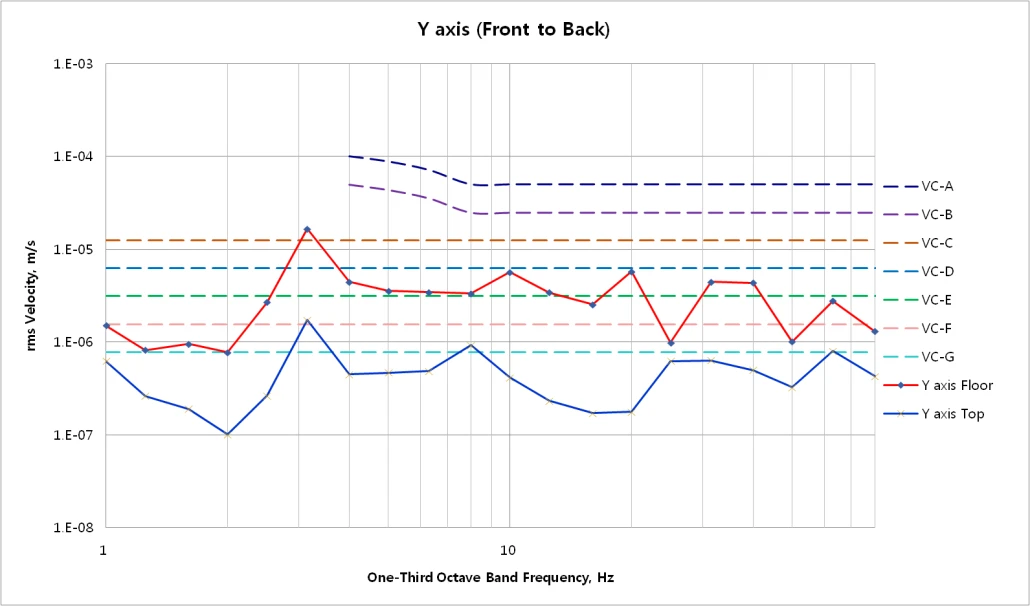

Octave band Y axis
Reference
Generic Vibration Criteria
Notes:
1. As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
2. Detail size refers to width in microelectronics fabrication or particle size in medical research.
