Installation Report
DVIA-M Series
07-01-2020
FEI DVIA-MB1000 Program (P167 / 200522R1-2) Installation Report — 2020.07.01
DVIA-M Series
Installation Report
FEI
DVIA-MB1000
P167
MB1000 Program
200522R1-2
Contents
(MB1000_200522R1-2 Set up)
| Target equipment | FEI |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.06.30 | |
| Date of reporting : 20.07.01 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.06.30 (TUE),
Operator
Operator: Daeil System, Manager HyoungMun, Choi
Place of measurement
N/A
Equipment Model
Equipment Model: FEI
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | N/A | N/A | N/A |
| Above Active | N/A | N/A | N/A |
Good omnidirectional performance.
MB1000 internal program performance measurement result
Z axis

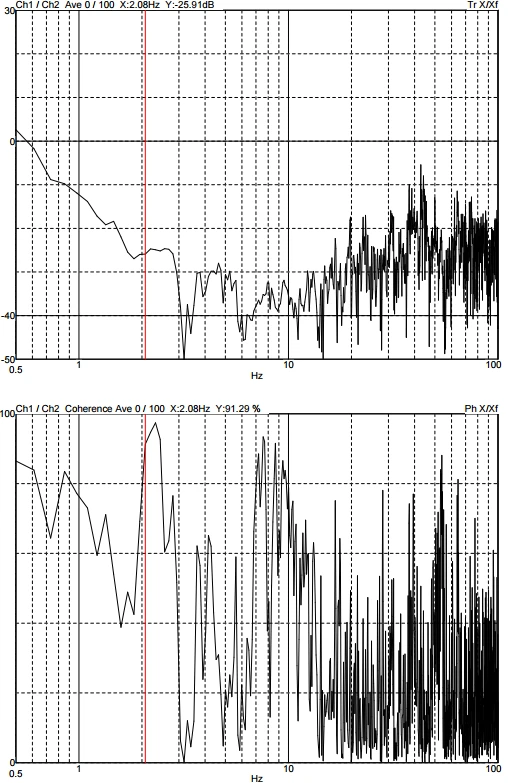

X axis

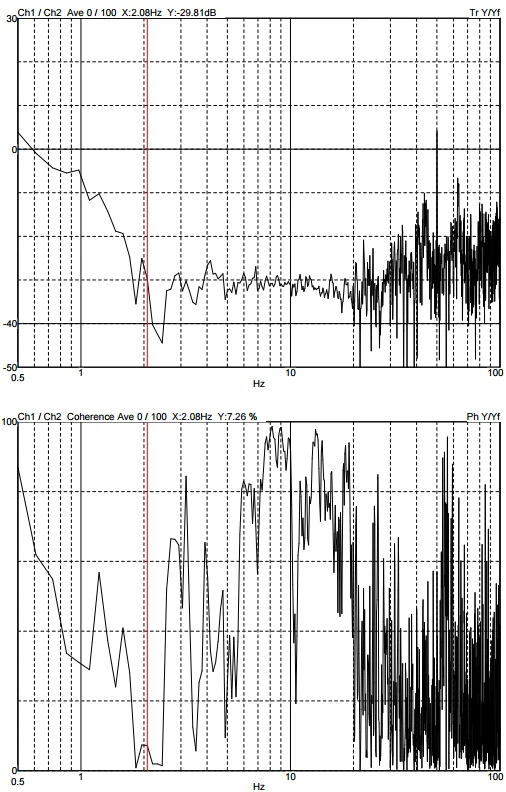

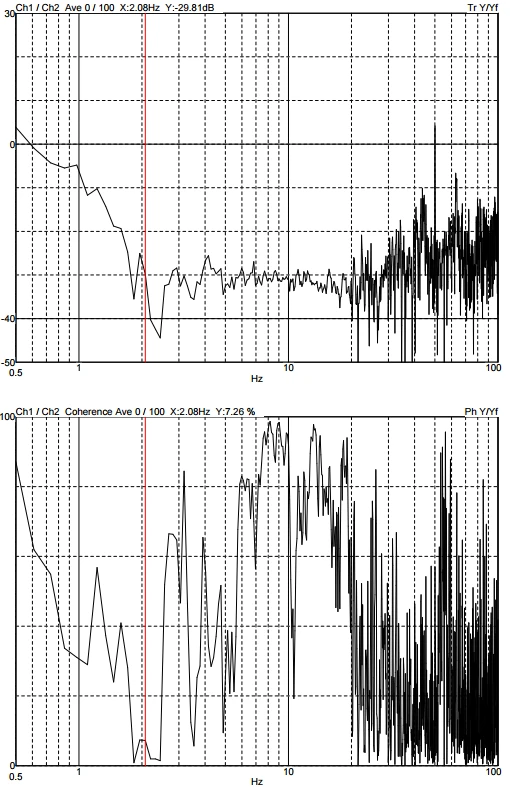

Y axis
