Installation Report
DVIA-M Series
11-02-2020
Southern University of Science and Technology FEI Volumescope2 DVIA-MB1000 (191129R6 · P151) Remote measurement — Internal program plots — 2020.11.02
DVIA-M Series
Installation Report
DVIA-MB1000
191129R6
FEI
Volumescope2
Shenzhen
YIMO
P151
SUST
Contents
(MB1000_191129R6(P151) Set up)
| Target equipment | FEI Volumescope2 |
|---|---|
| Place of installation | Southern University of science and technology In Shenzhen |
| Remark | Good Performance |
| END USER | Southern University of science and technology |
| Operator : Doohyun Kim | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.11.02 | Date of reporting : 20.11.02 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.11.02 (MON),
Operator: Daeil System, Research engineer Doohyun kim
Place of measurement : Southern University of science and technology In Shenzhen
Equipment Model: FEI Volumescope2
Measurement conditions and results
Summary of measurement results
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -20 dB | -30 dB | -33 dB |
| X | -25 dB | -30 dB | -30 dB |
| Y | -23 dB | -20 dB | -30 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

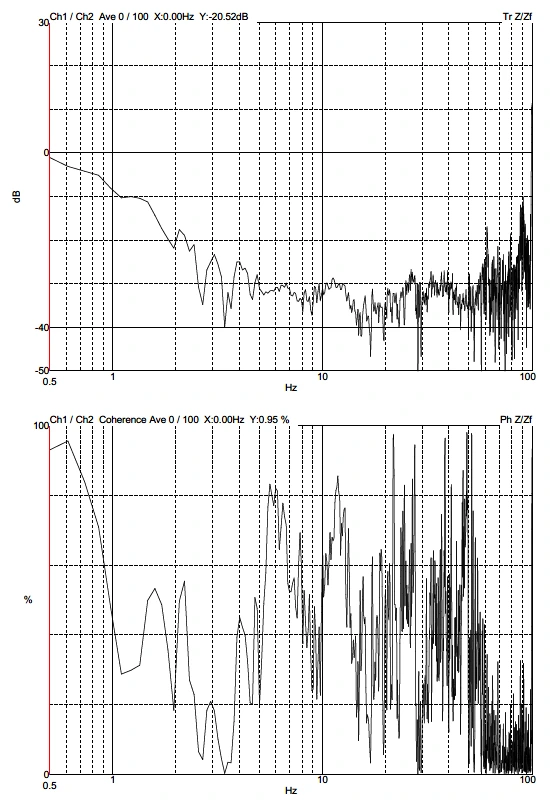

Z axis

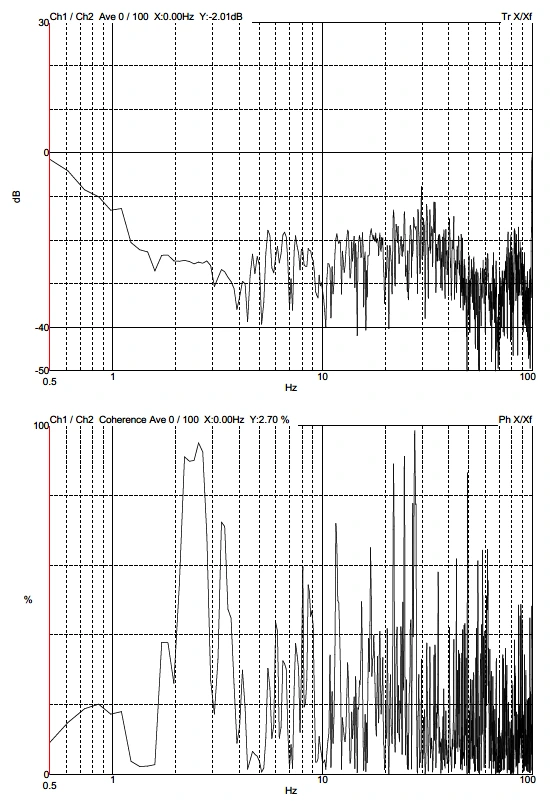

X axis

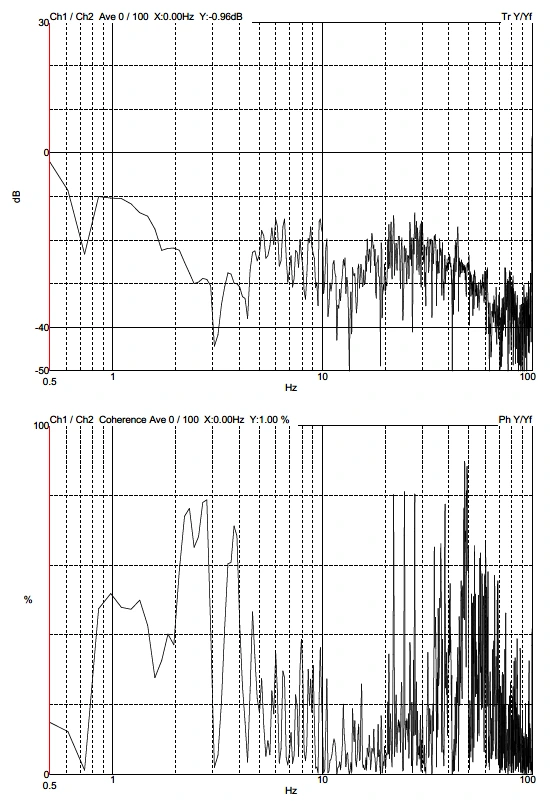

Y axis
