Installation Report
DVIA-M Series
08-25-2020
Southern University of Science and Technology Helios G4 UC DVIA-MB1000 (191121R3 · P150) Remote measurement — Internal program plots — 2020.08.25
DVIA-M Series
Installation Report
DVIA-MB1000
191121R3
P150
Helios G4 UC
Thermo Fisher Scientific
SUST
Shenzhen
YIMO
Southern University of Science and Technology
Contents
(MB1000_191121R3(P150) Set up)
| Target equipment | Helios G4 UC |
|---|---|
| Place of installation | Shenzen,1st floor |
| Remark | Good Performance |
| END USER | Southern University of science and technology, |
| Operator: Noh, Munho | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.25 | Date of reporting : 20.08.25 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.25 (TUE),
Operator: Daeil System, Manager Munho, Noh
Place of measurement : Shenzen, Southern University of science and technology, 1st floor
Equipment Model: Helios G4 UC
Measurement conditions and results
Summary of measurement results
Test Condition Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -33.01 dB | -29.72 dB | -32.45 dB |
| X | -29.91 dB | -29.21 dB | -44.71 dB |
| Y | -29.74 dB | -39.13 dB | -21.70 dB |
Good omnidirectional performance.

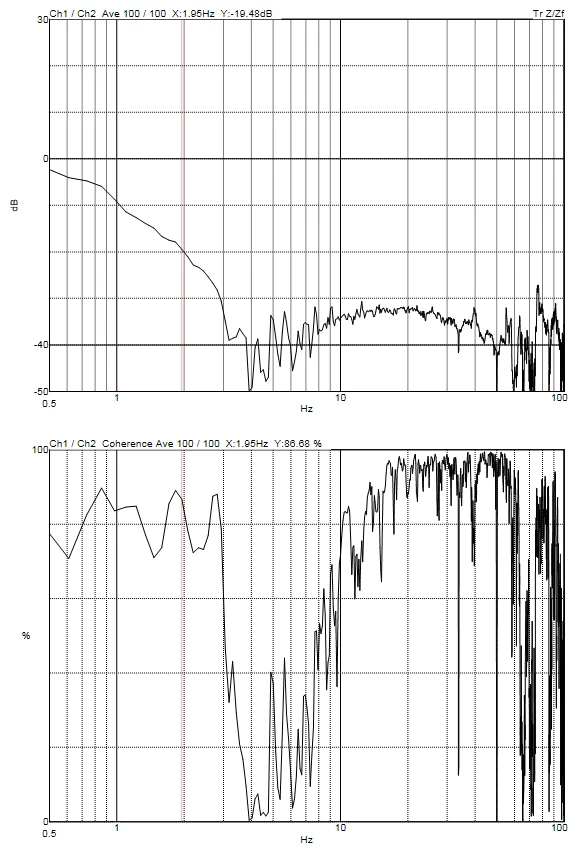

MB1000 internal program performance measurement result

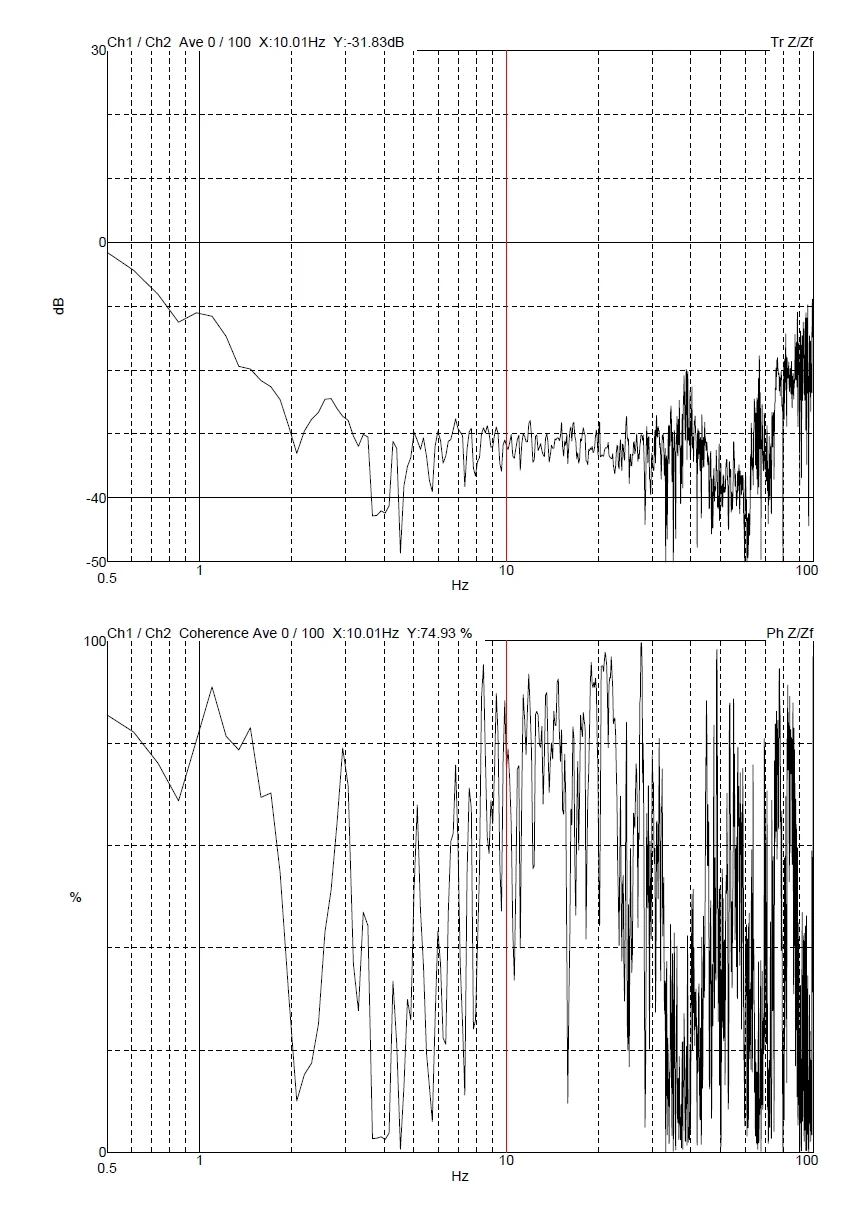

Z axis

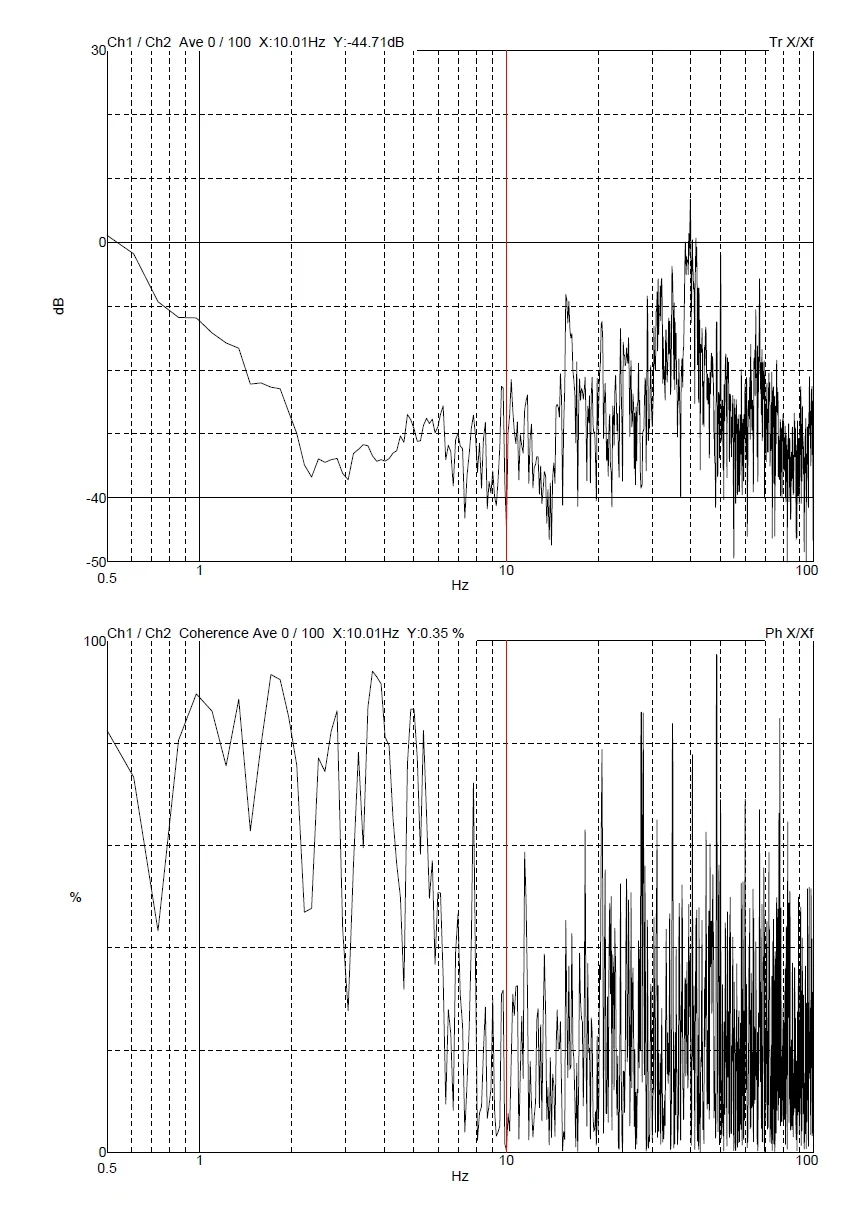

X axis

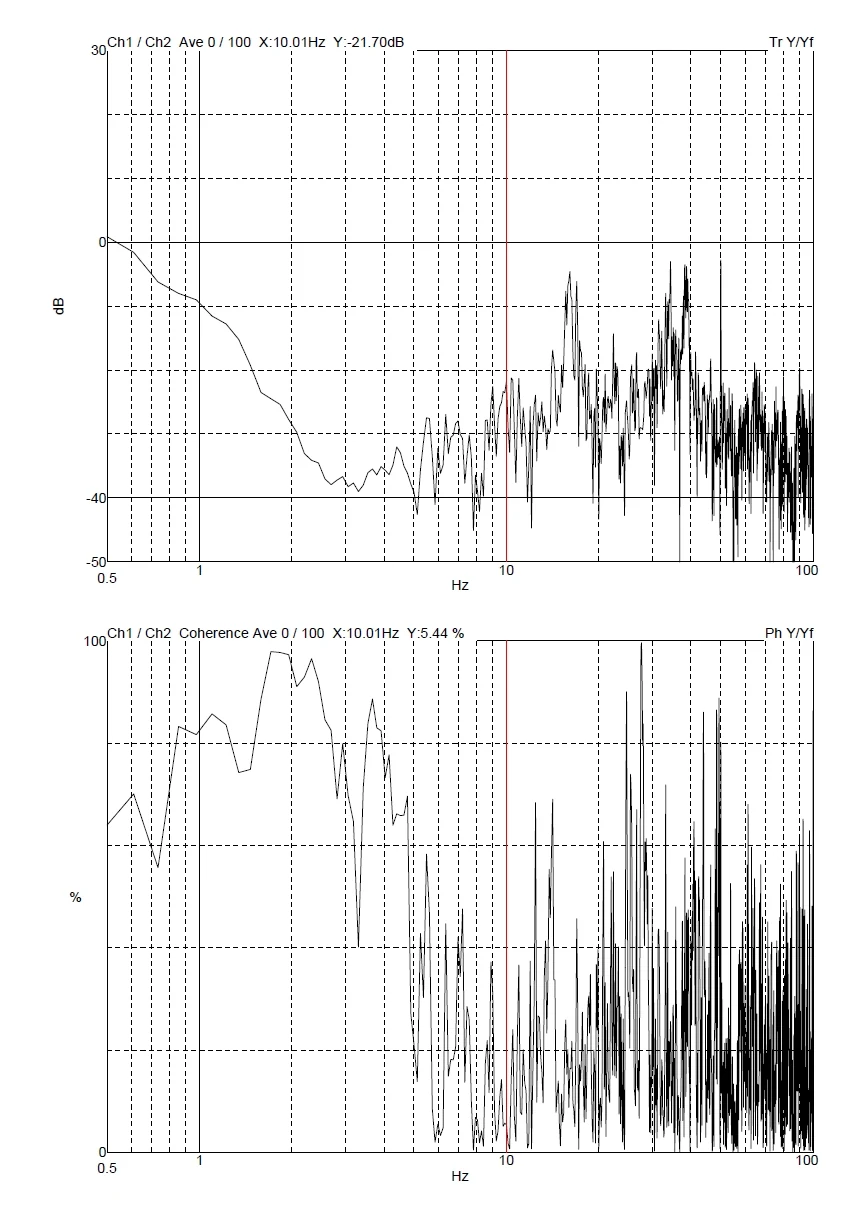

Y axis
