Installation Report
DVIA-M Series
07-14-2020
Southern University of Science and Technology Thermo Scientific Helios G4 UC DVIA-MB1000 (191121R3 · P150) Remote measurement — Internal program plots — 2020.07.14
DVIA-M Series
Installation Report
DVIA-MB1000
191121R3
P150
Thermo Fisher Scientific
Helios G4 UC
Shenzhen
YIMO
Remote tuning
Contents
(MB1000_191121R3 Set up)
| Target equipment | Thermo Scientific – Helios G4 UC |
|---|---|
| Place of installation | Southern University of science and technology In Shenzhen |
| Remark | Good Performance |
| END USER | Southern University |
| Operator: Kim, Doohyun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.07.14 | Date of reporting : 20.07.14 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.07.14 (TUE),
Operator: Daeil System, Manager Doohyun, Kim
Place of measurement : Southern University of science and technology In Shenzhen
Equipment Model: Thermo Scientific – Helios G4 UC
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | |||
| Above Active |
Good omnidirectional performance.
MB1000 internal program performance measurement result

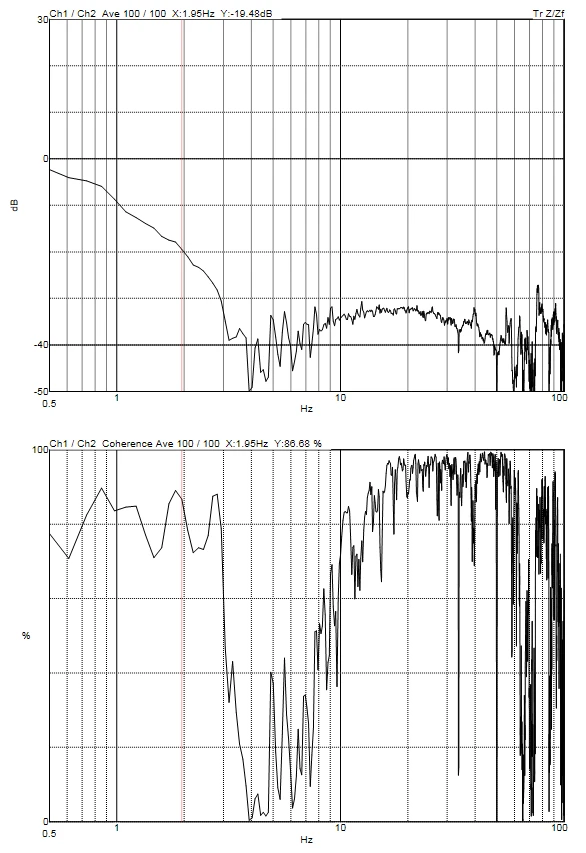

Z axis

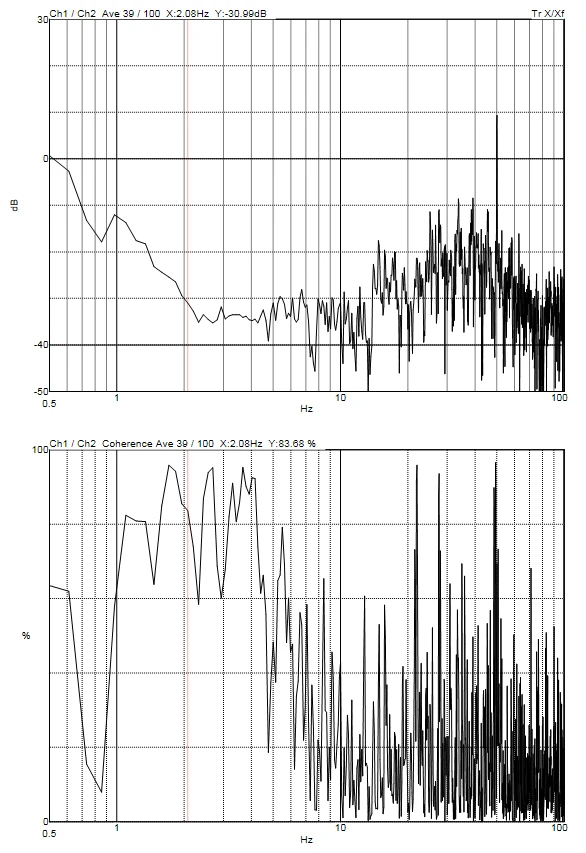

X axis

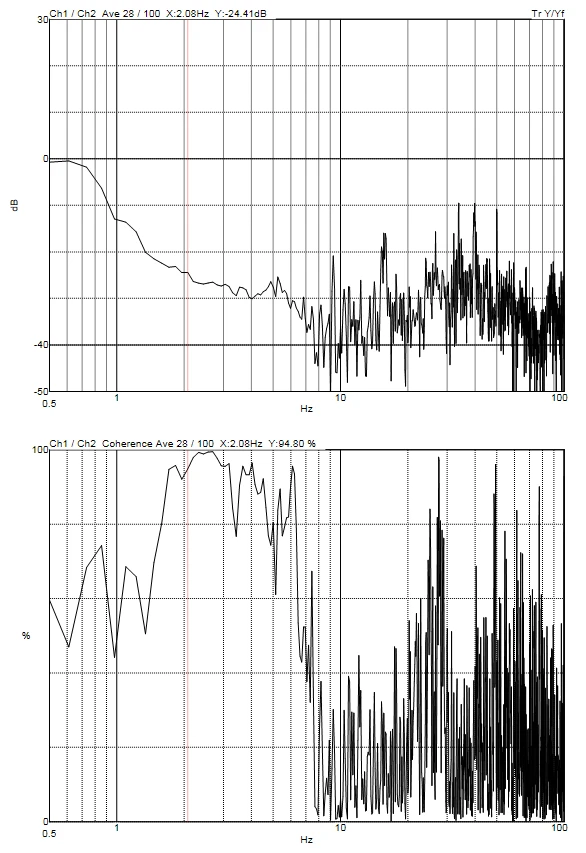

Y axis
