Installation Report
DVIA-M Series
07-14-2020
Southern University of Science & Technology Thermo Scientific Aquilos DVIA-MB1000 (191025R5 · MB1000 P152) Remote tuning — Installation site · internal program plots — 2020.07.14
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
Thermo Scientific
Aquilos
YIMO
P152
191025R5
SUST
Shenzhen
Contents
(MB1000_191025R5 Set up)
| Target equipment | Thermo Scientific - Aquilos |
|---|---|
| Place of installation | Southern University of science and technology In Shenzhen |
| Remark | Good Performance |
| END USER | Southern University |
| Operator: Kim, Doohyun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.07.14 | Date of reporting : 20.07.14 |

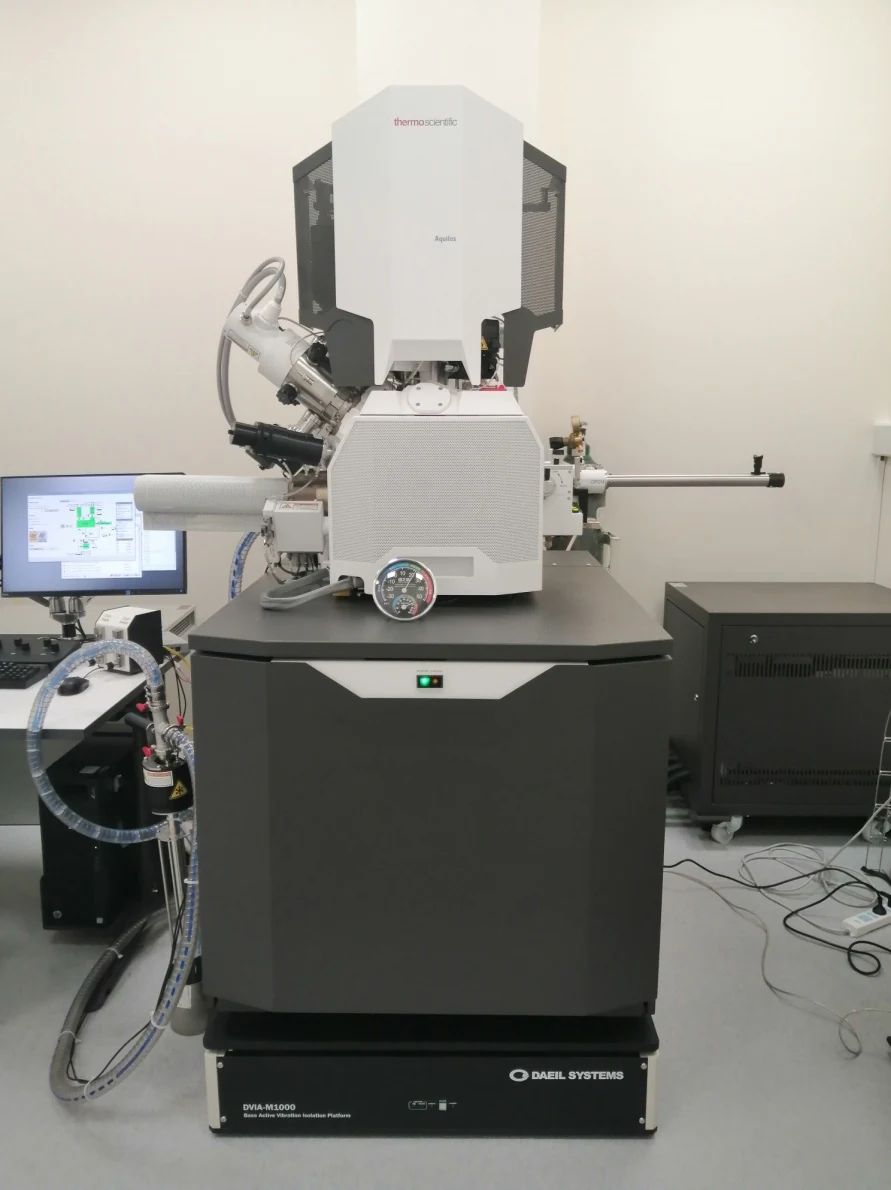

Aquilos on DVIA-M1000 installation site
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.07.14 (TUE),
Operator: Daeil System, Manager Doohyun, Kim
Place of measurement : Southern University of science and technology In Shenzhen
Equipment Model: Thermo Scientific - Aquilos
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
Good omnidirectional performance.
MB1000 internal program performance measurement result

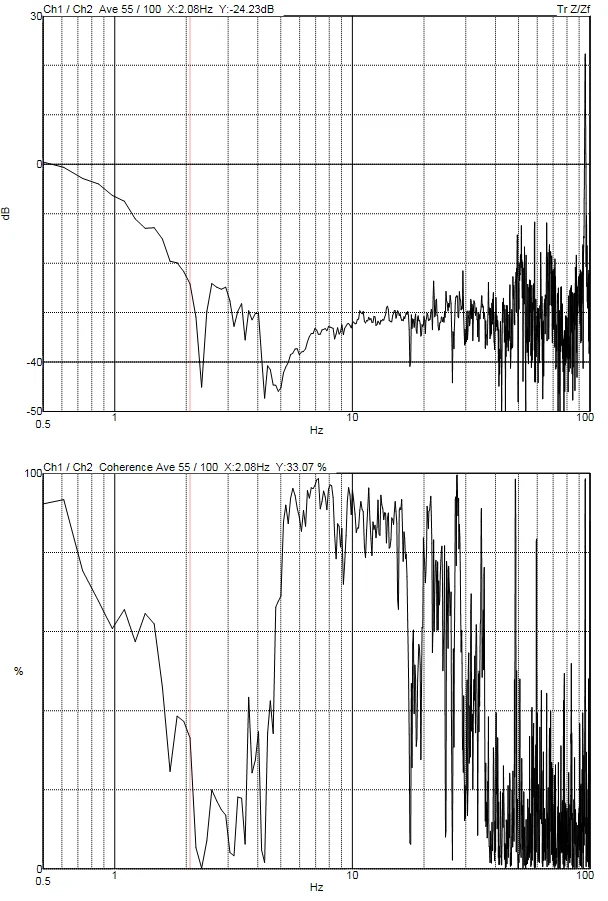

Z axis

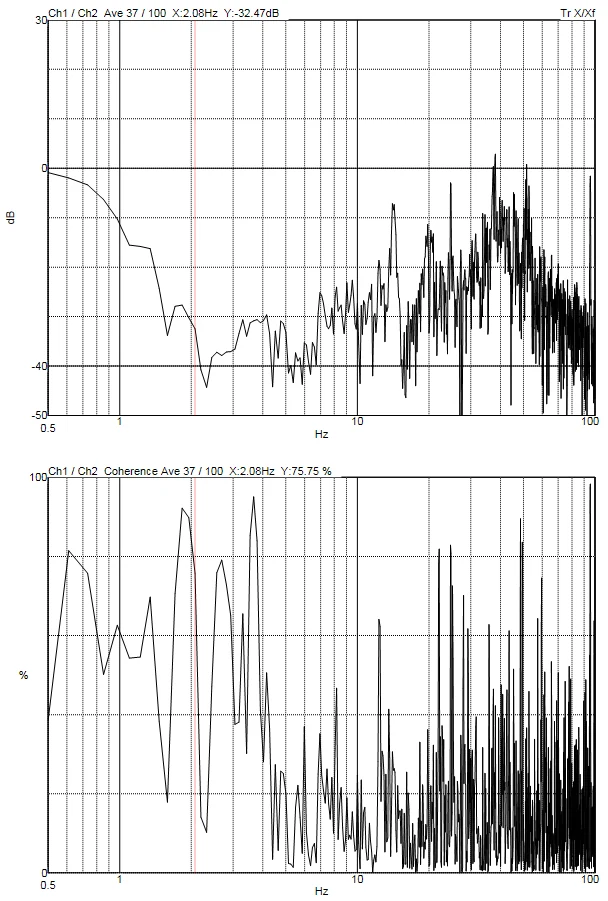

X axis

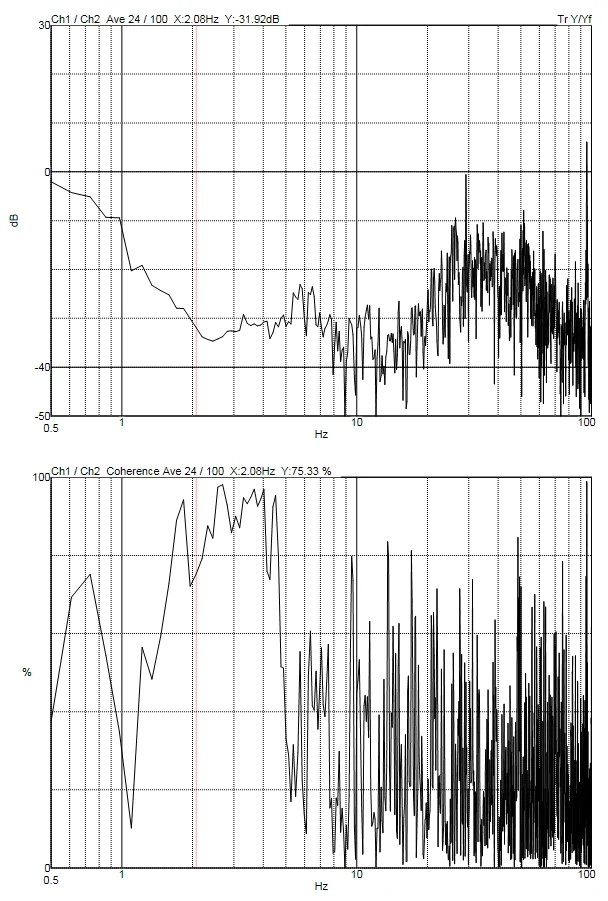

Y axis
