Installation Report
DVIA-M Series
05-12-2020
ZEISS GeminiSEM300 DVIA-MB1000 Program (P115 / MB1000_190123R1) Installation Report — 2020.05.12
DVIA-M Series
Installation Report
ZEISS
GeminiSEM300
DVIA-MB1000
P115
MB1000 Program
190123R1
Northwest Polytech University
Contents
(MB1000_190123R1 Set up)
| Target equipment | ZEISS GeminiSEM300 |
|---|---|
| Place of installation | 1F 126 SEM&TEM Room, Qixiang Building, Northwest Polytech University |
| Remark | Good Performance |
| END USER | Northwest Polytech University |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.05.11 | |
| Date of reporting : 20.05.12 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.05.11 (Mon),
Operator
Operator: Daeil System, Manager HyoungMun, Choi
Place of measurement
Place of measurement : 1st Floor, Qixiang Building, Northwest Polytech University
Equipment Model
Equipment Model: ZEISS GeminiSEM300
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | N/A | N/A | N/A |
| Above Active | N/A | N/A | N/A |
Good omnidirectional performance.
MB1000 internal program performance measurement result

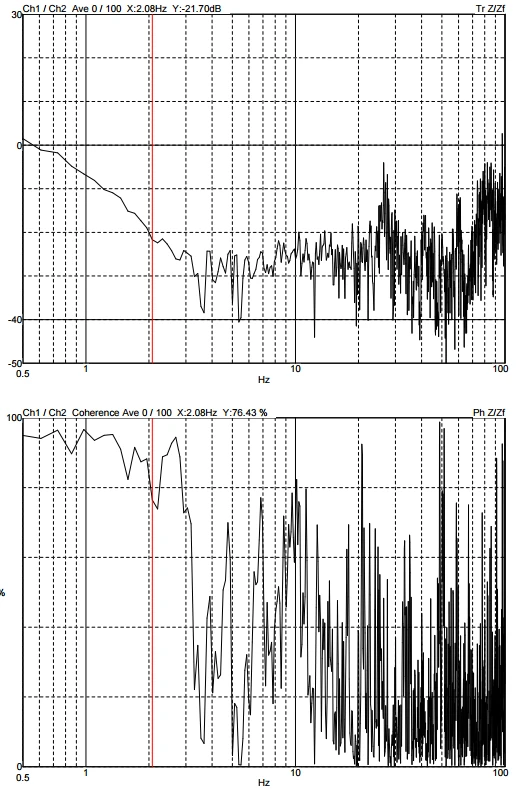

Z axis

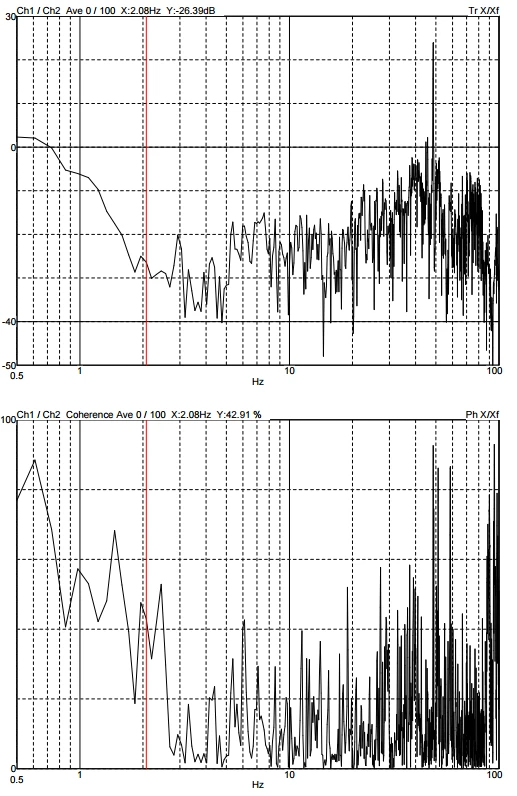

X axis

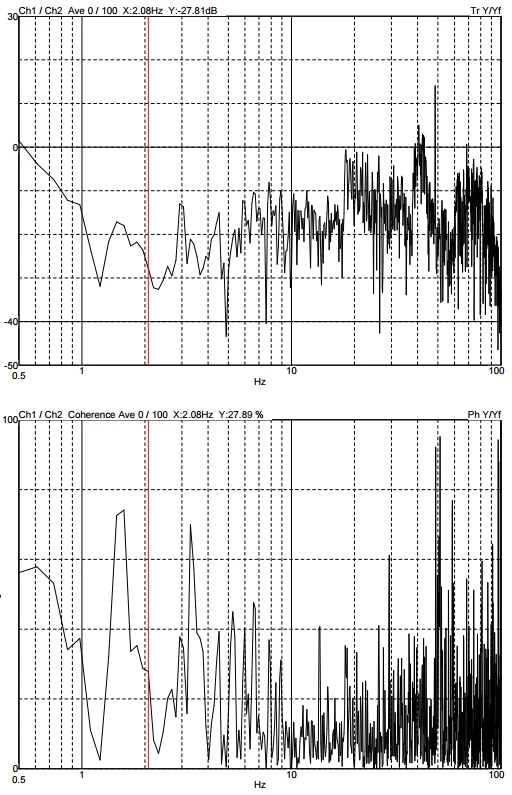

Y axis
