Installation Report
DVIA-M Series
12-16-2019
Northwest Polytechnical University ZEISS GeminiSEM300 DVIA-MB1000 (P115) trip report — 2019.12.16
DVIA-M Series
Installation Report
DVIA-MB1000
Northwest Polytechnical University
NPU
ZEISS
GeminiSEM300
SEM
China
MB1000 P115
Contents
China business trip report (MB1000 P115 Set up)
Target equipment
ZEISS GeminiSEM300
Installation site
1F 126 SEM&TEM Room, Qixiang Building,
Northwest Polytech University
Remarks
Good Performance
End user
Northwest Polytech University
Trip personnel
최성원
Trip date
19.12.12
Report date
19.12.16
Installation result summary
| Test Direction | VC-Class | ||
|---|---|---|---|
| Base | Top | ||
| ACTIVE | Z | E | G |
| X | G | G | |
| Y | G | G |
전 방향 성능 양호
MB1000 internal program performance measurement result

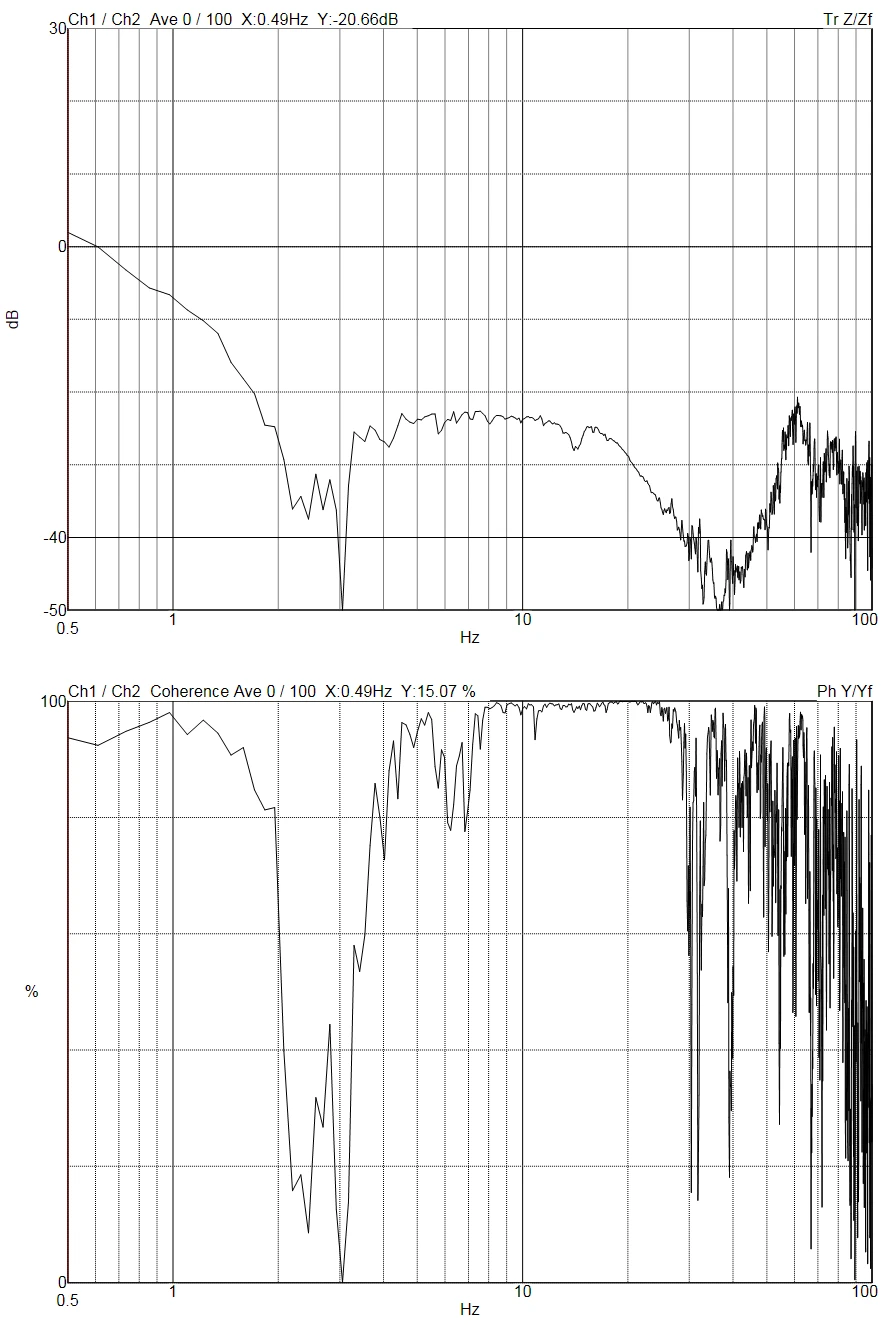

Z axis

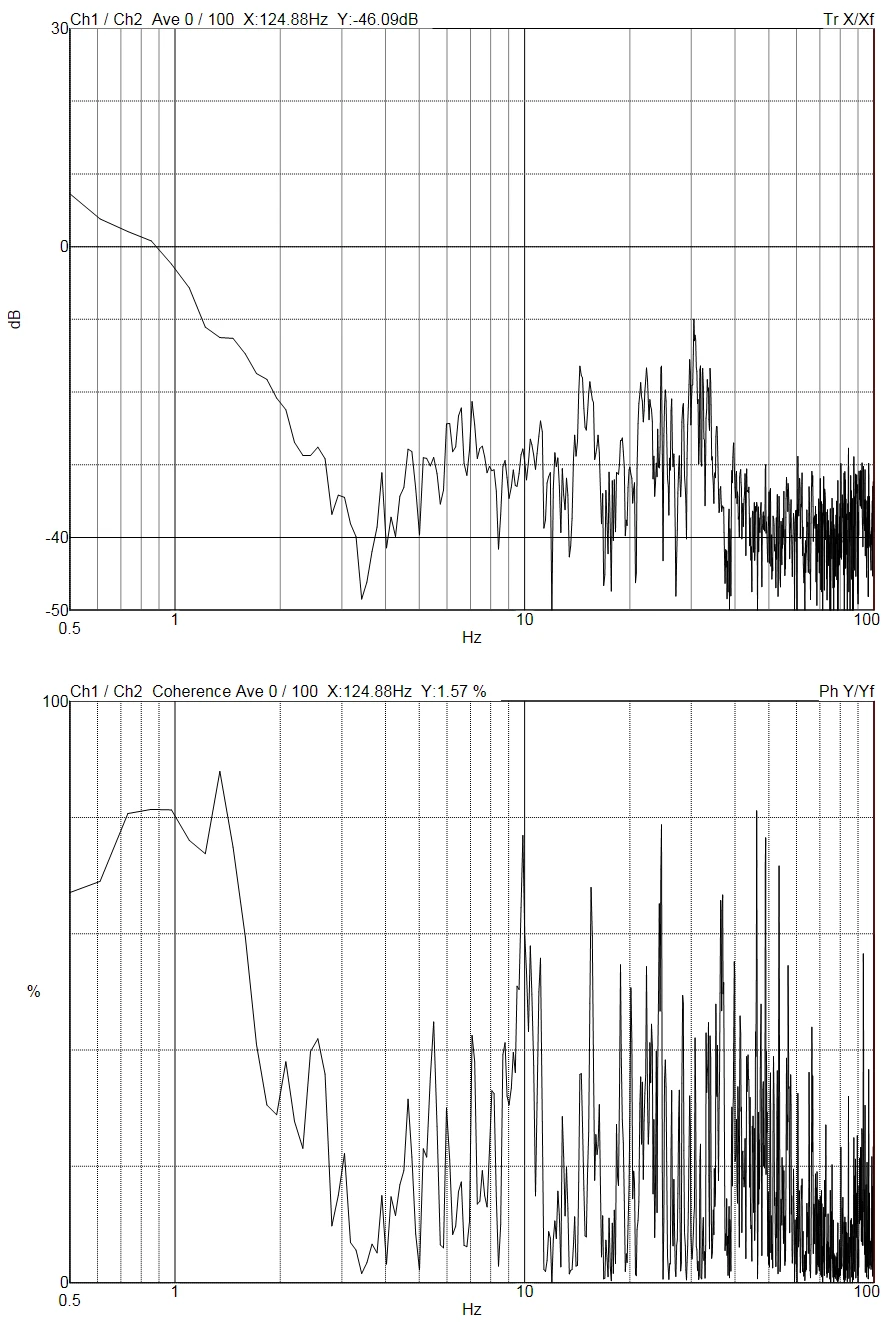

X axis

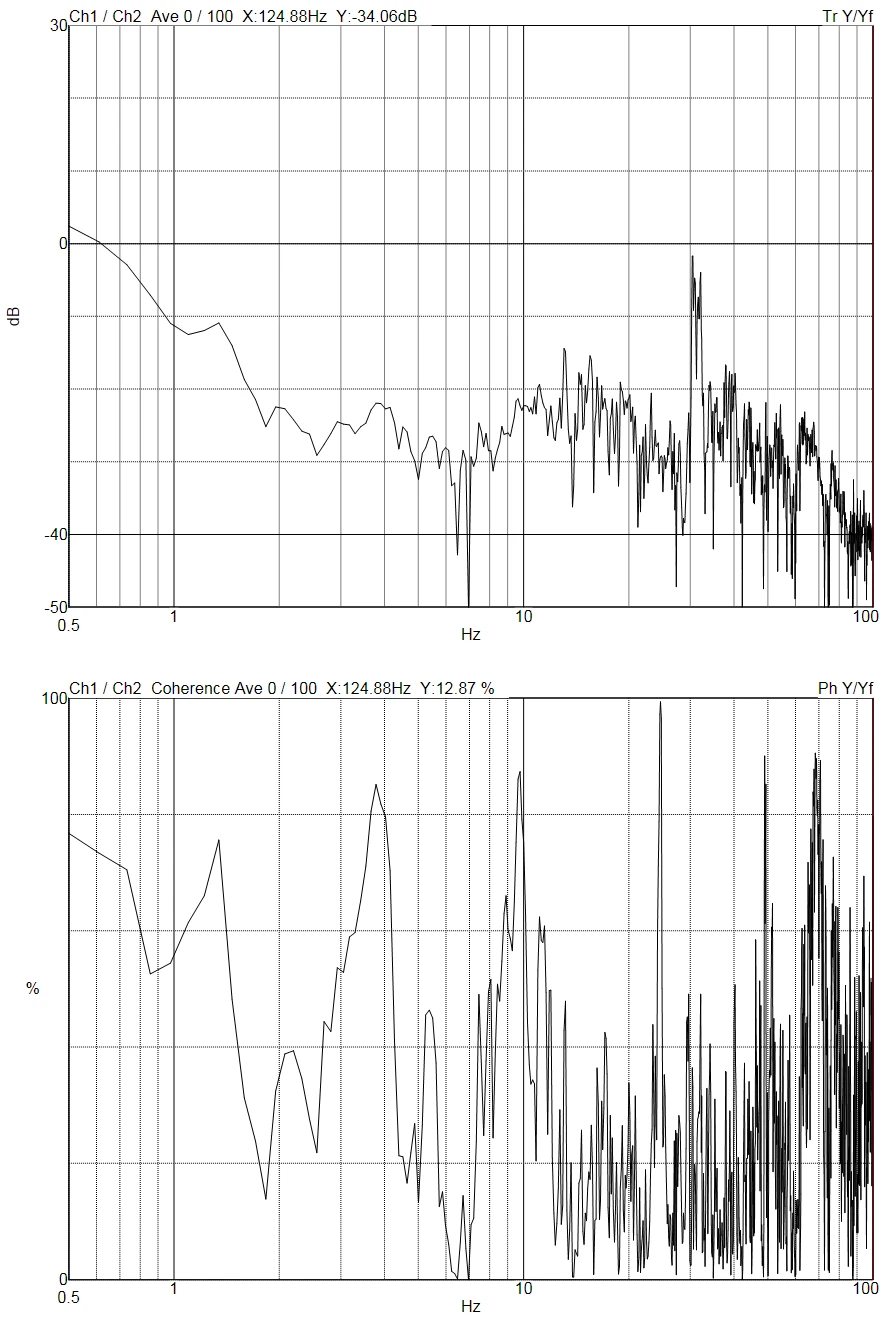

Y axis
Vibration environment measurement results

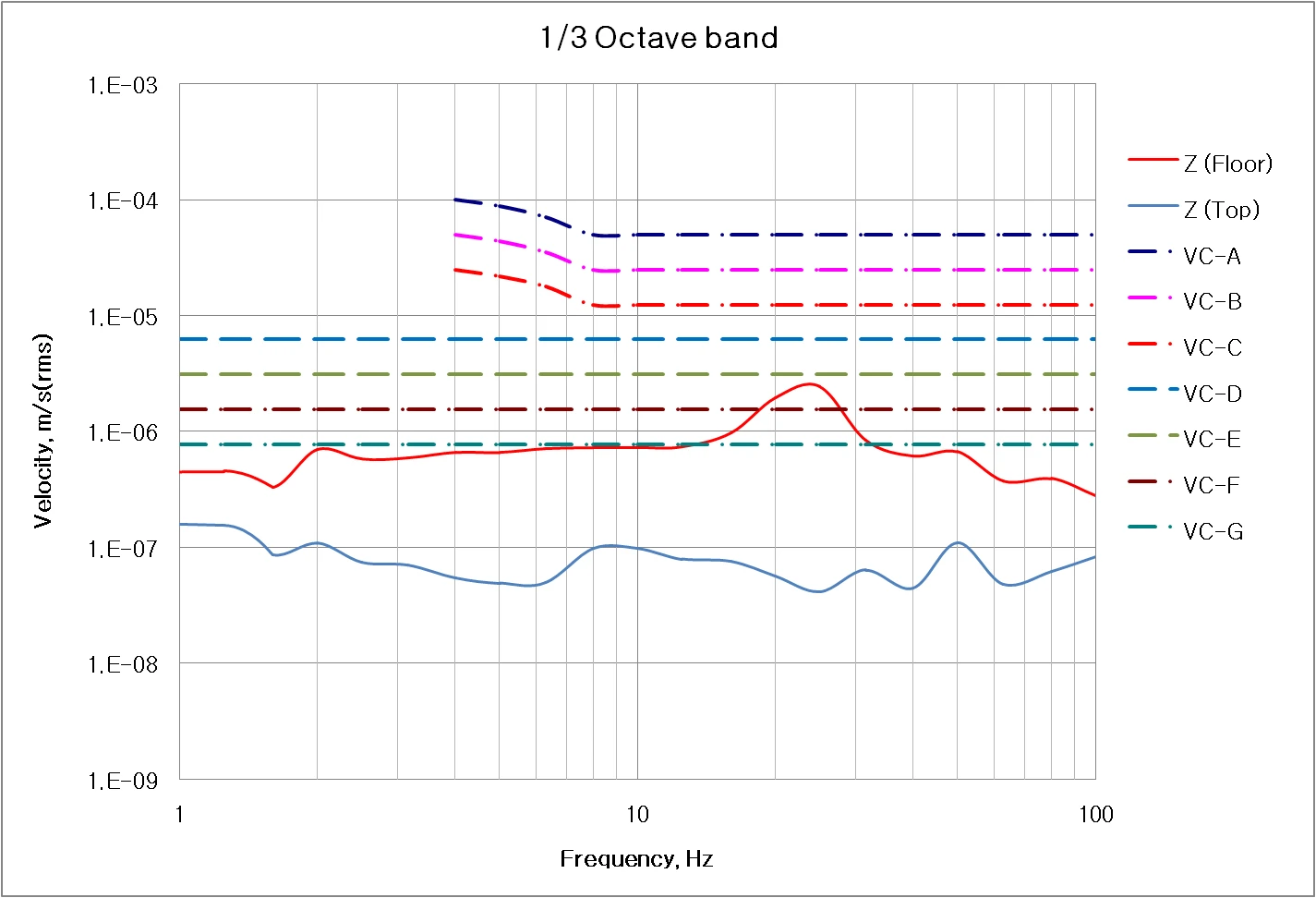

Z axis

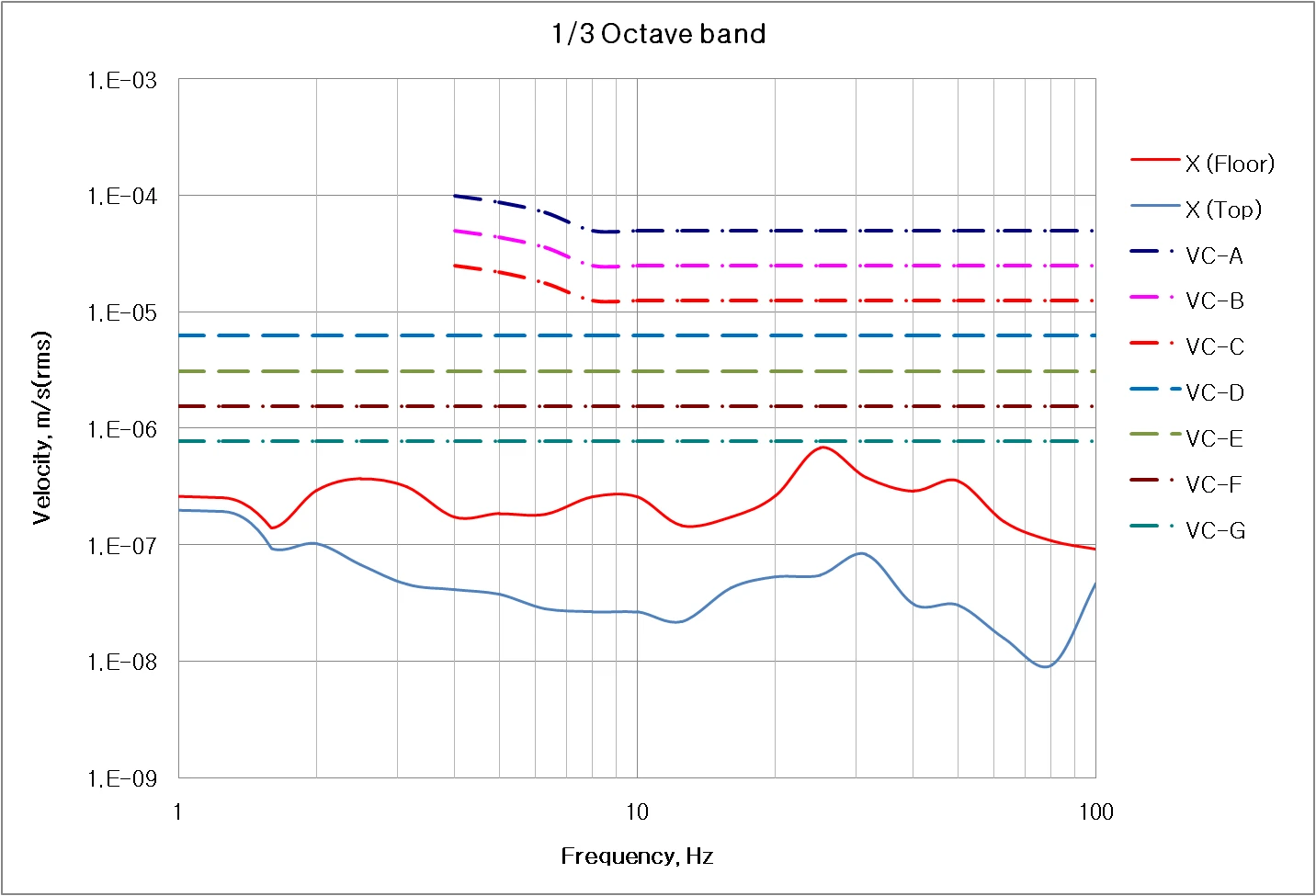

X axis

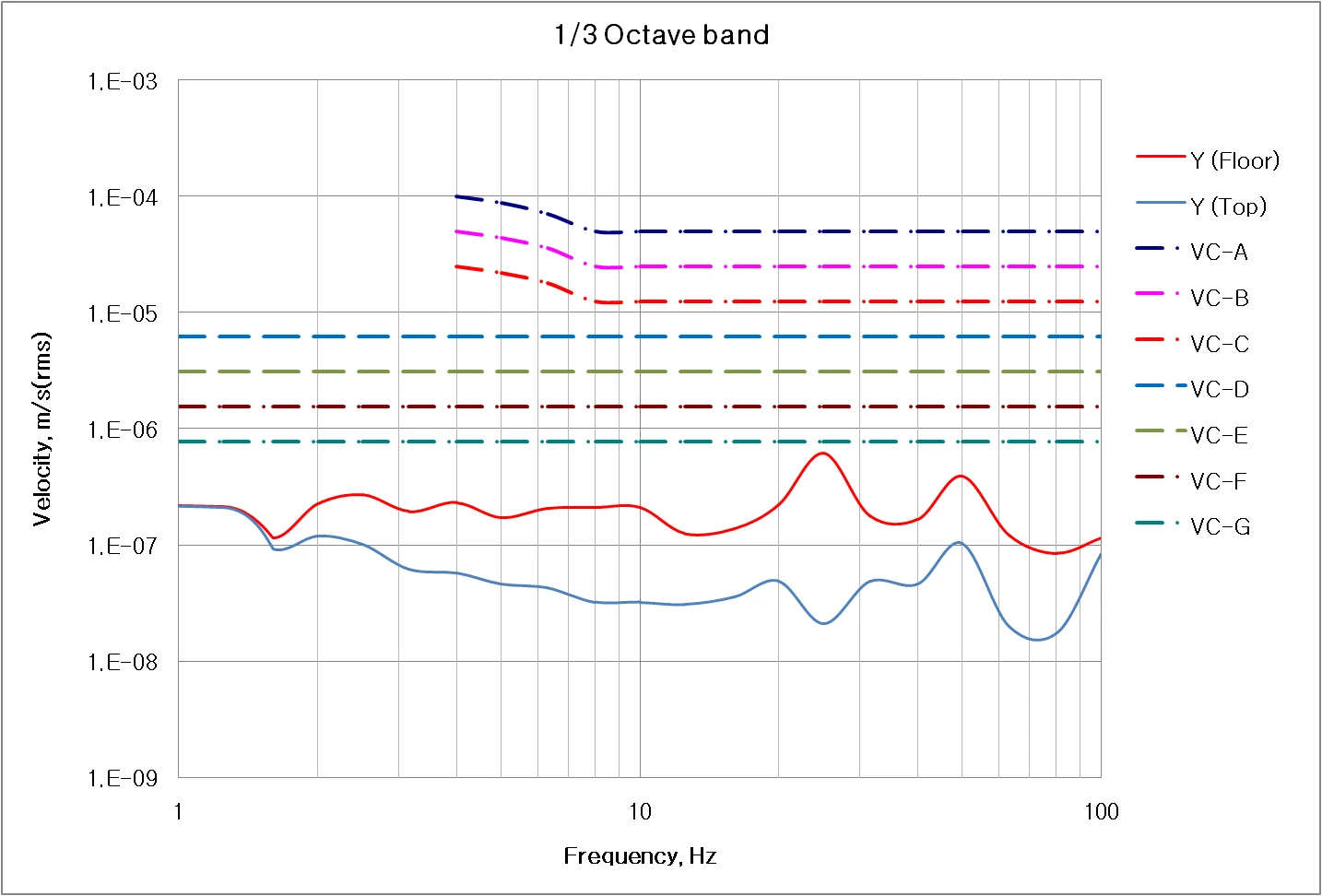

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date12-16-2019
Tags
DVIA-M Series
Installation Report
DVIA-MB1000
Northwest Polytechnical University
NPU
ZEISS
GeminiSEM300
SEM
China
MB1000 P115
Related Case Studies
DVIA-M Series

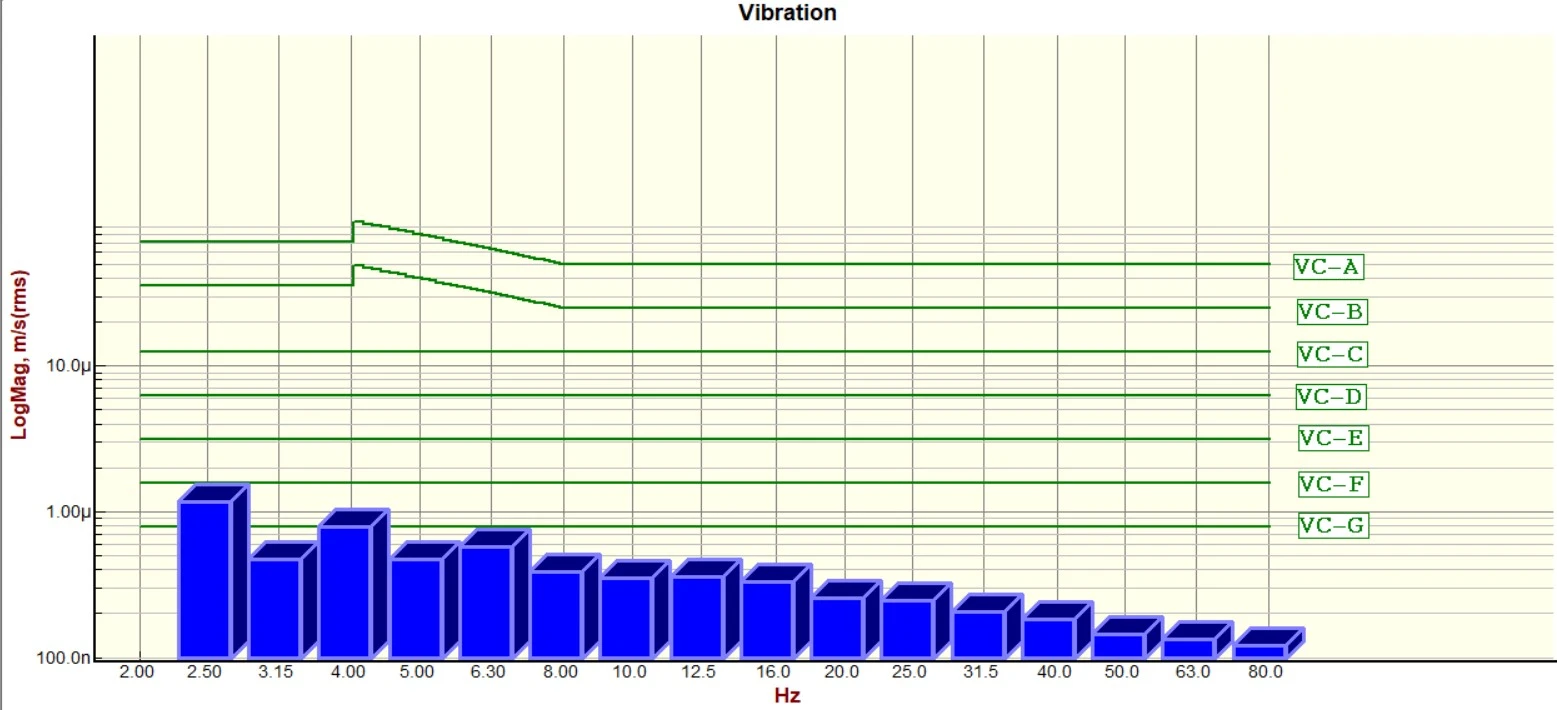

POSCO FUTURE M GeminiSEM 560 DVIA-MB1000 (230704R3) Installation Report
11-10-2023Read more
DVIA-M Series

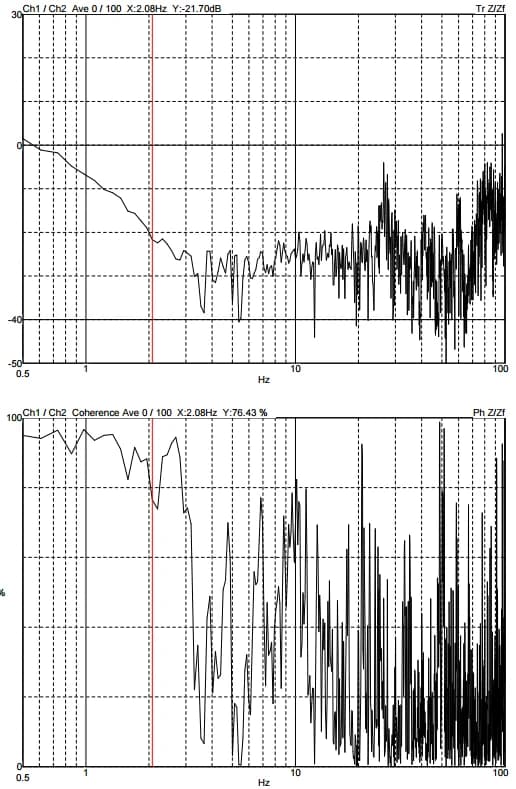

ZEISS GeminiSEM300 DVIA-MB1000 Program (P115 / MB1000_190123R1) Installation Report — 2020.05.12
