Installation Report
DVIA-M Series
01-15-2020
OMYA ZEISS Gemini DVIA-M1000 (MB1000_P149 / 190816R4) Installation Report — 2020.01.15
DVIA-M Series
Installation Report
OMYA
ZEISS
Gemini
DVIA-M1000
MB1000_P149
190816R4
Contents
OMYA
(MB1000_ 190816R4 Set up)

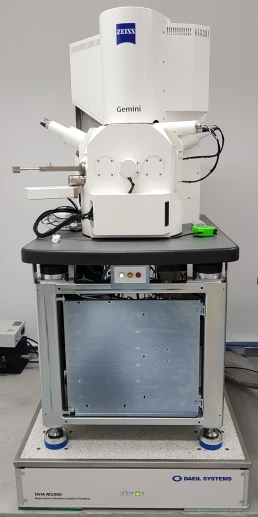

Installation site photo
| Target equipment | ZEISS-GEMINI |
|---|---|
| Place of installation | F1, OMYA |
| Remark | Good Performance |
| END USER | OMYA |
Operator: Choi, Hyoung Mun
Date of setup : 20.01.13
Date of reporting : 20.01.15
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2020.01.13 (MON),
Operator: Daeil System, Manager Choi, Hyoung Mun
Place of measurement : F1, OMYA
Equipment Model: ZEISS-GEMINI
Measurement conditions and results
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | B | D | E |
| Above Active | G | G | G |
Good omnidirectional performance.

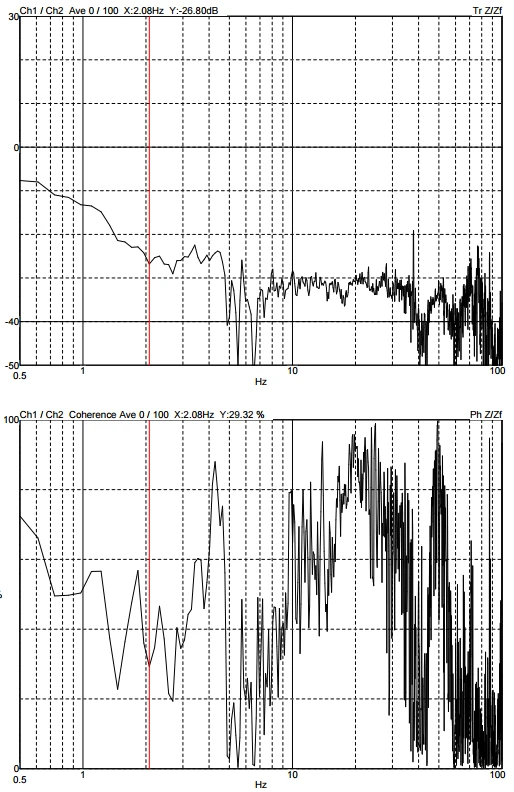

MB1000 internal program performance measurement result

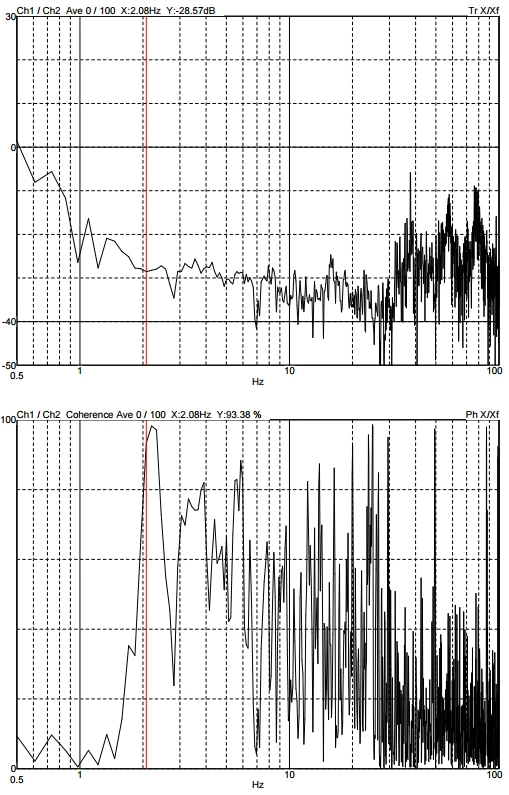

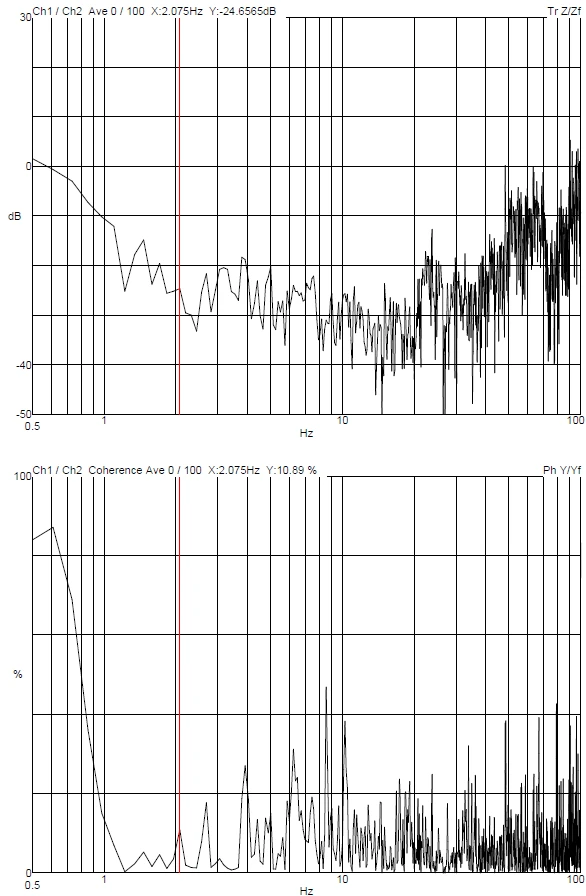

Internal program Z axis
Internal program X axis

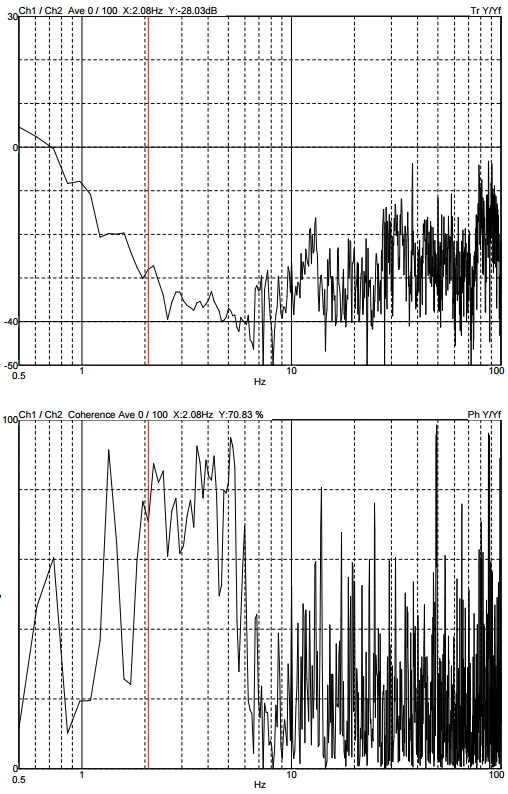

Internal program Y axis

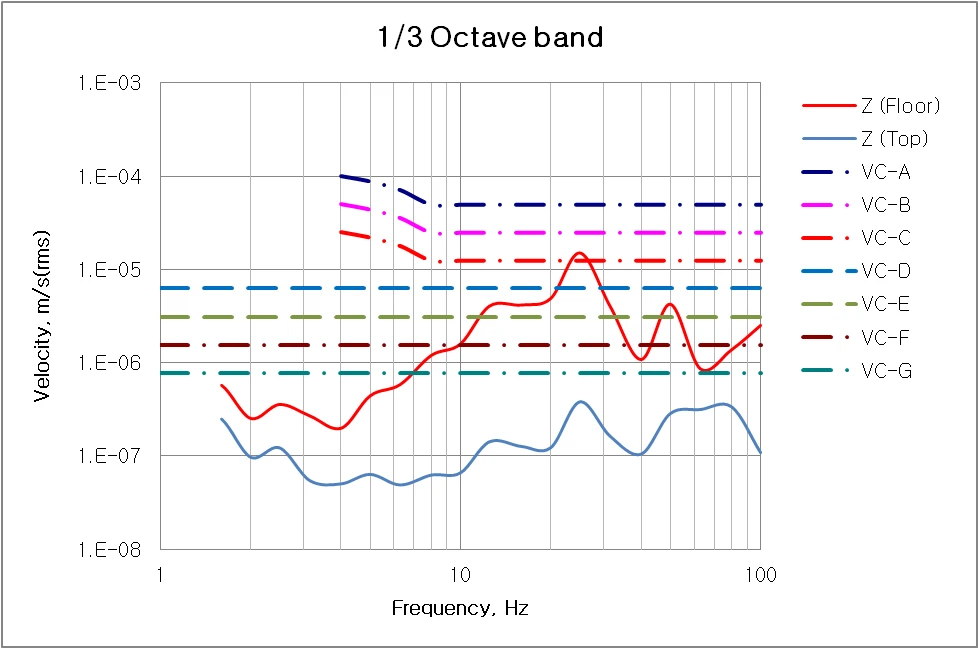

Octave Band Result (BASE: Floor, TOP: Above Active)
Octave band Z axis

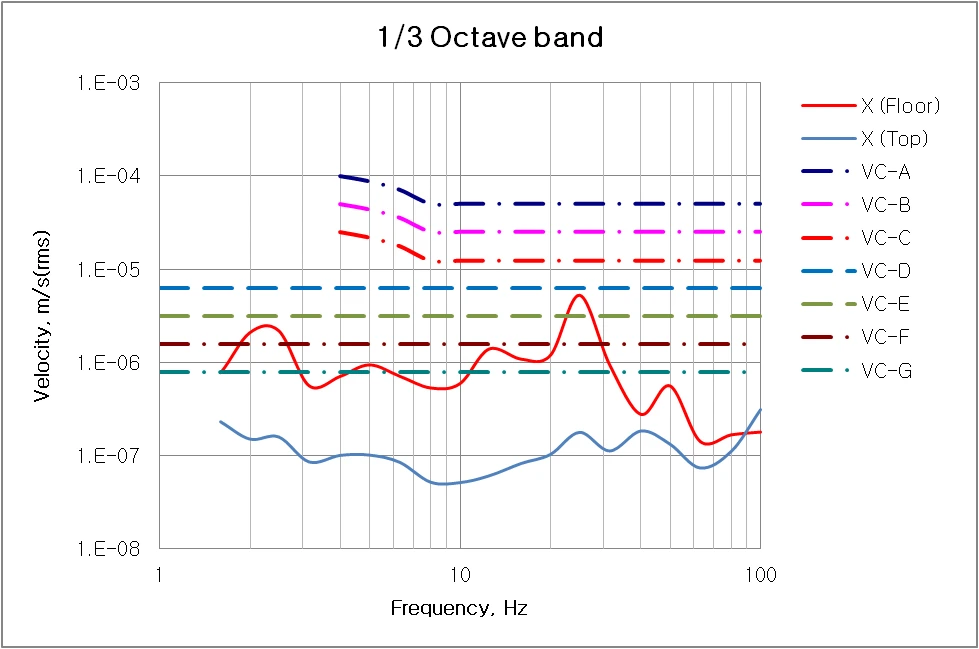

Octave band X axis

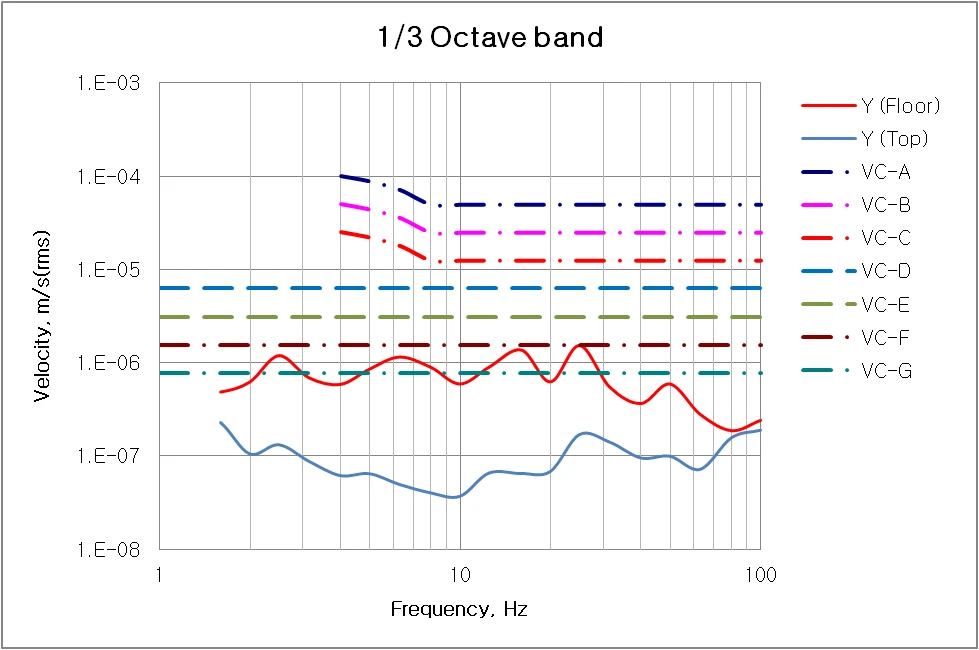

Octave band Y axis
Auto Spectrum (BASE: Floor, TOP: Above Active)

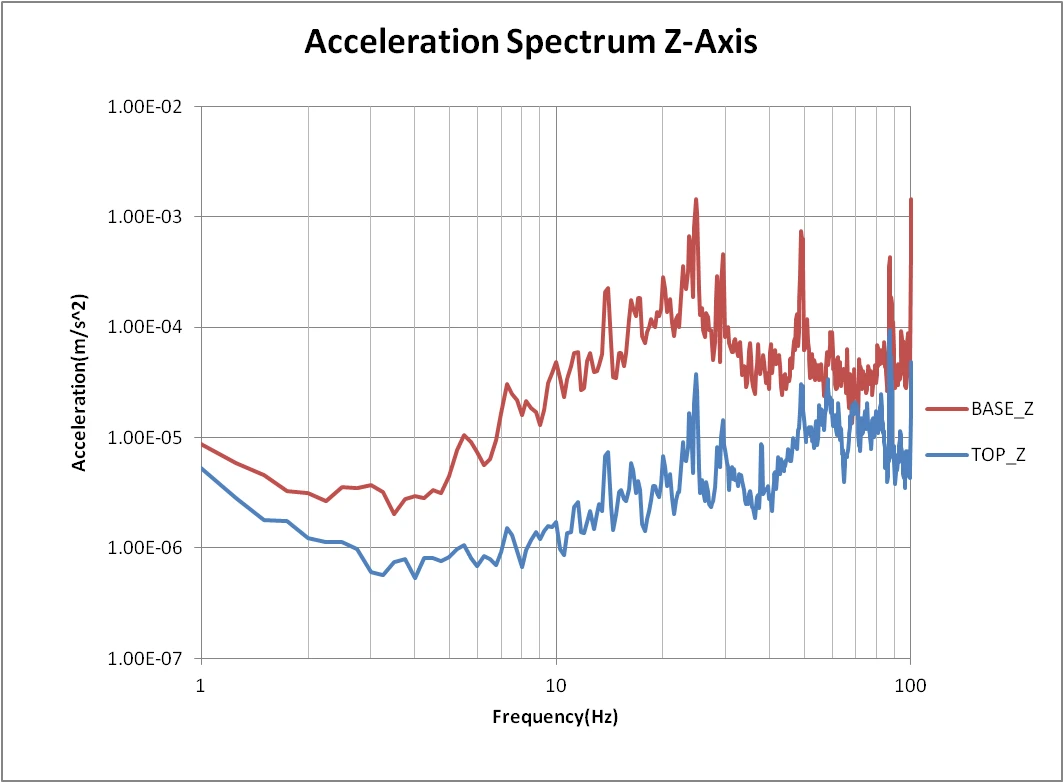

Auto spectrum Z axis

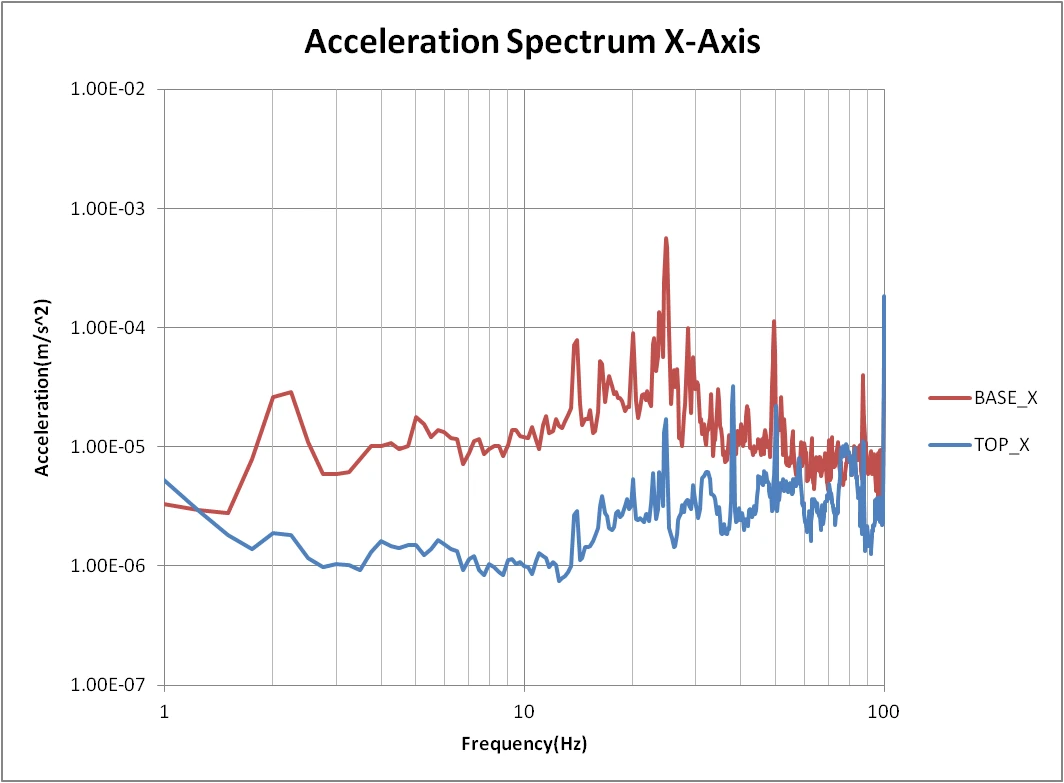

Auto spectrum X axis

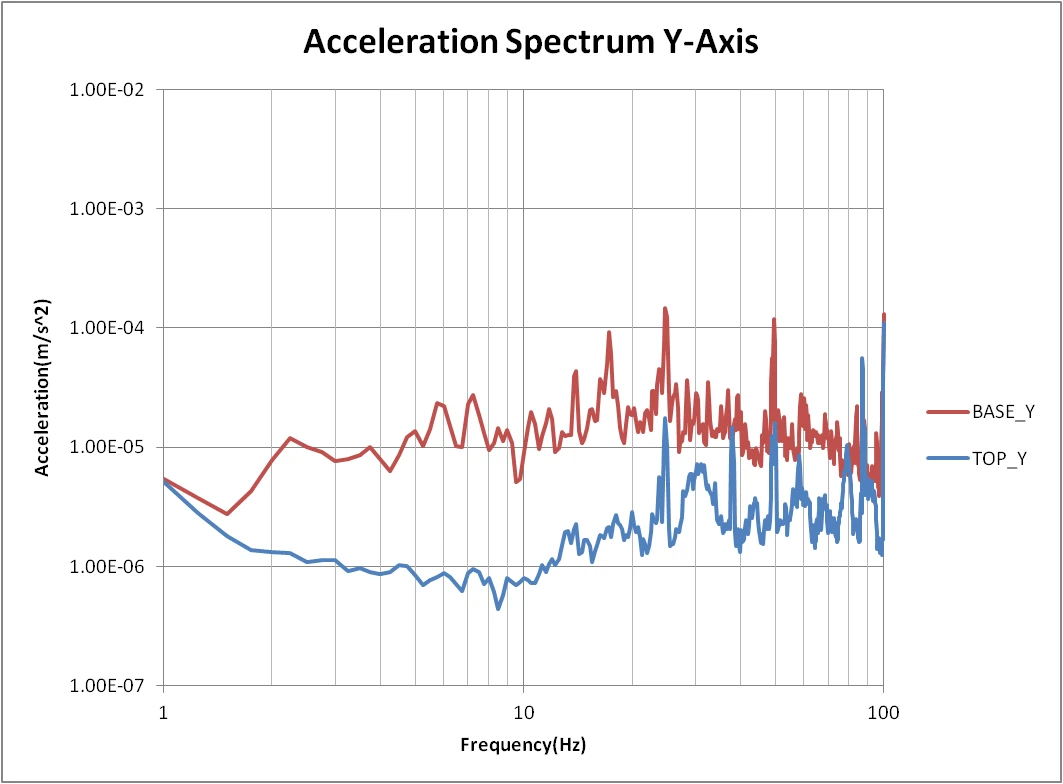

Auto spectrum Y axis
