Installation Report
DVIA-M Series
05-27-2020
University of Science and Technology of China (Hefei) STM DVIA-MB3000 (191129R1) Worksheet — May 27, 2020
DVIA-M Series
Installation Report
USTC
University of Science and Technology of China
STM
DVIA-MB3000
191129R1
Contents
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.05.26 (TUE),
Operator: Daeil System, Manager HyoungMun, Choi
Place of measurement : Hefei
Equipment Model: STM
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | N/A | N/A | N/A |
| Above Active | N/A | N/A | N/A |
Good omnidirectional performance.
MB3000 internal program performance measurement result

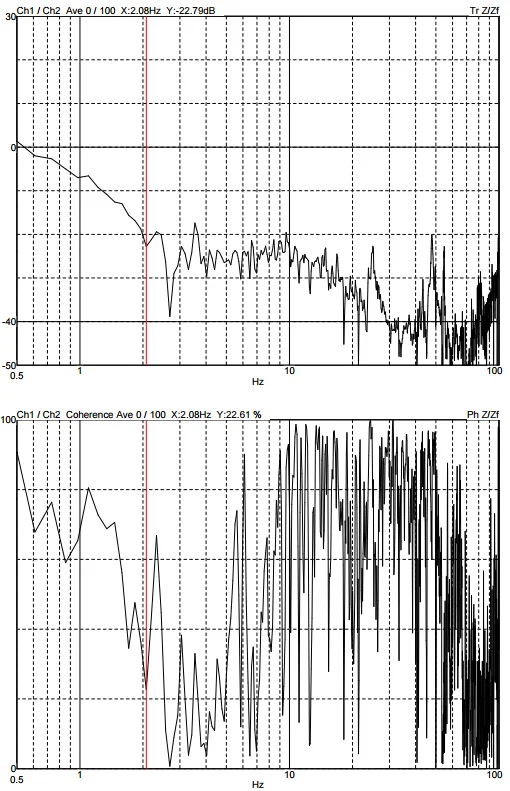

Z axis

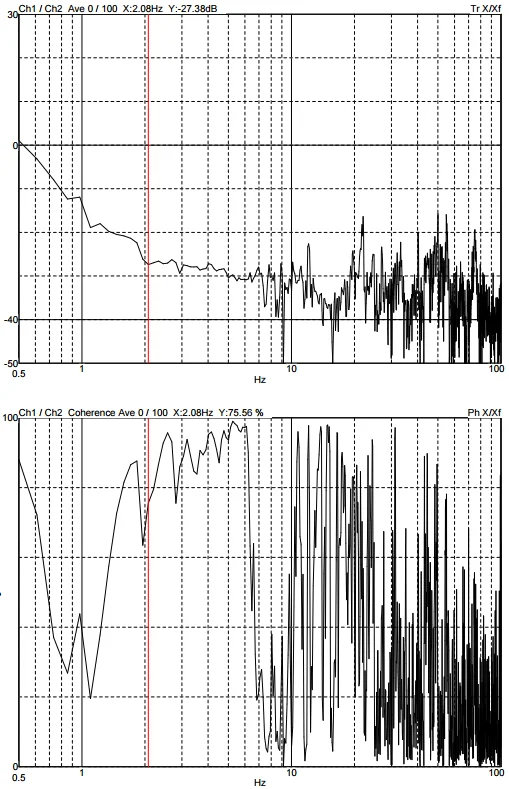

X axis

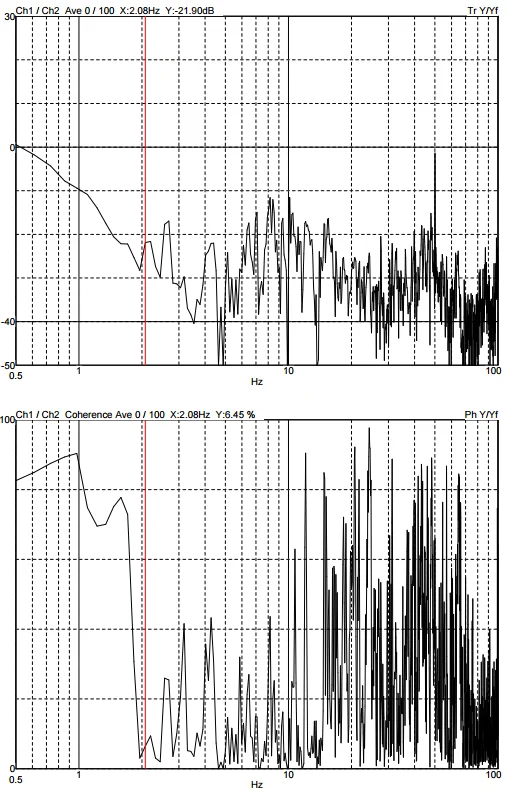

Y axis
