Installation Report
DVIA-M Series
08-12-2020
Beijing University of Aeronautics and Astronautics Thermo scientific Scios 2 DVIA-MB1000 (190925R1 · P180) Remote measurement — Internal program plots — 2020.08.12
DVIA-M Series
Installation Report
DVIA-MB1000
190925R1
Thermo scientific
Scios 2
Beijing
YIMO
remote
Contents
(MB1000_190925R1(P180) Set up)
| Target equipment | Thermo scientific Scios 2 |
|---|---|
| Place of installation | Beijing University of Aeronautics and Astronautics |
| Remark | Good Performance |
| END USER | Beijing University of Aeronautics and Astronautics |
| Operator: Noh, Munho | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.12 | Date of reporting : 20.08.12 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.12 (WED),
Operator: Daeil System, Manager Munho, Noh
Place of measurement : Beijing University of Aeronautics and Astronautics
Equipment Model: Thermo scientific Scios 2
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -24.43 dB | -34.21 dB | -31.10 dB |
| X | -29.86 dB | -35.33 dB | -29.42 dB |
| Y | -28.16 dB | -36.84 dB | -28.41 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

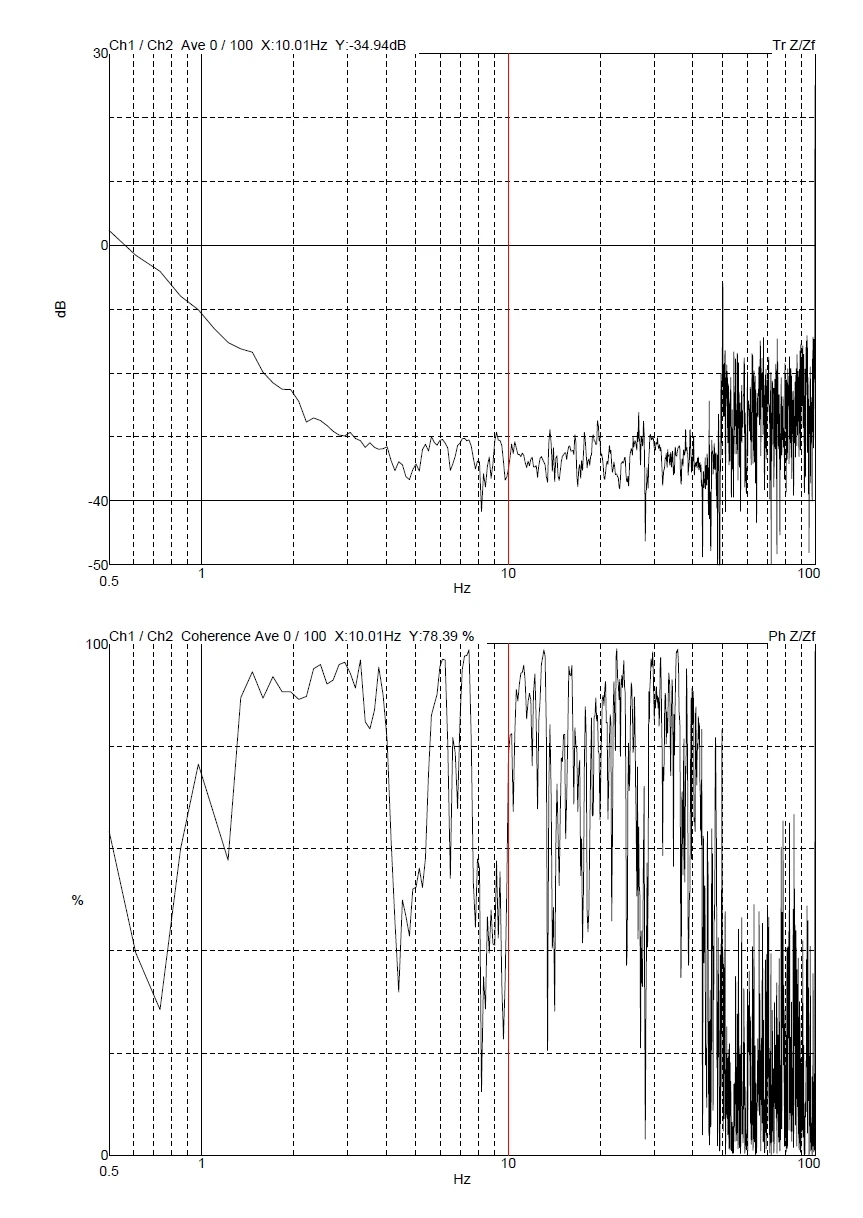

Z axis

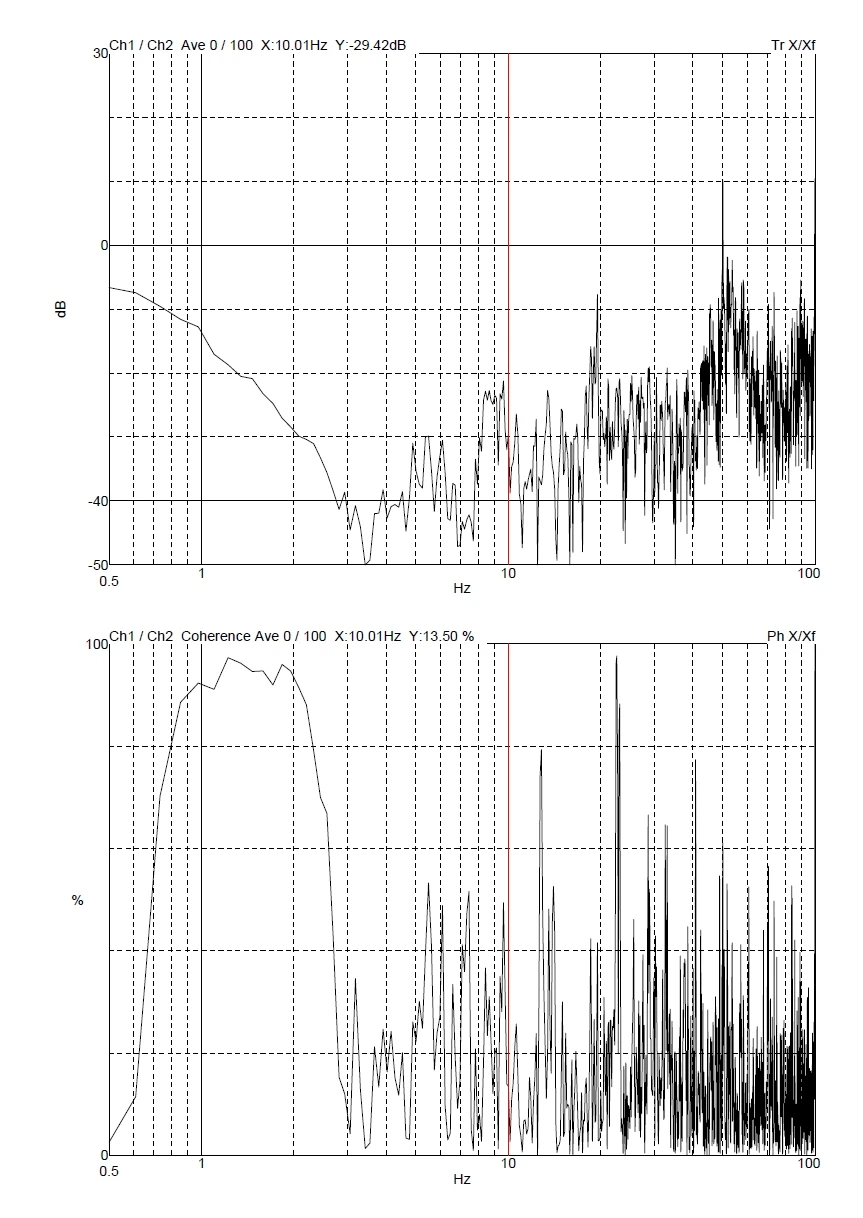

X axis

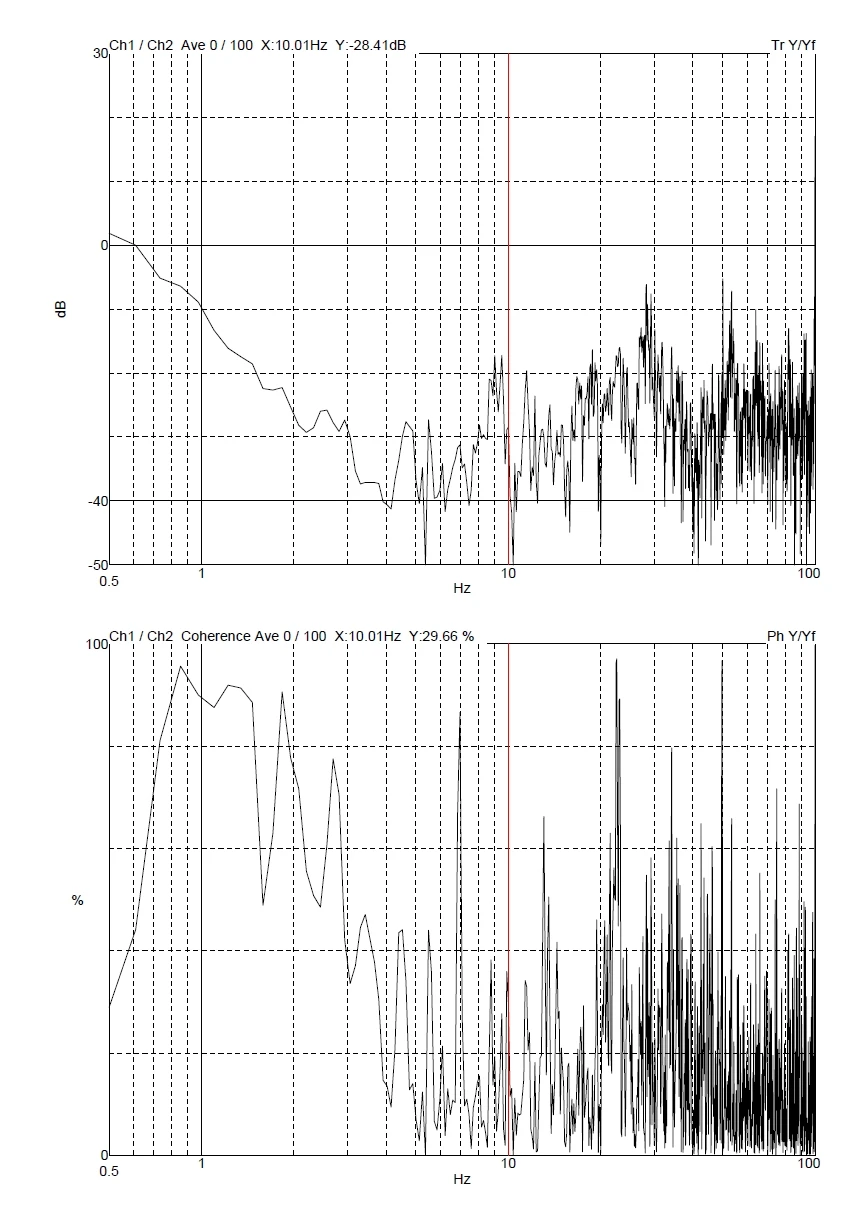

Y axis
