Installation Report
DVIA-M Series
09-17-2019
Hyundai Steel JEOL JSM-7900F DVIA-MB1000 (MB1000 P138) Installation Report — 2019.09.17
DVIA-M Series
Installation Report
Hyundai Steel
JEOL
JSM-7900F
SEM
DVIA-MB1000
MB1000
P138
Contents
MB1000_P138 현대제철 JEOL
| Target equipment | JSM-7900F |
|---|---|
| Place of installation | 현대제철 기술연구소 1층 |
| Remark | Good Performance |
| END USER | 현대제철 재료분석실 |
| 출장일 : 19.09.17 | |
| 출장자 : 최 형 문 | |
| 작성일 : 19.0917 |

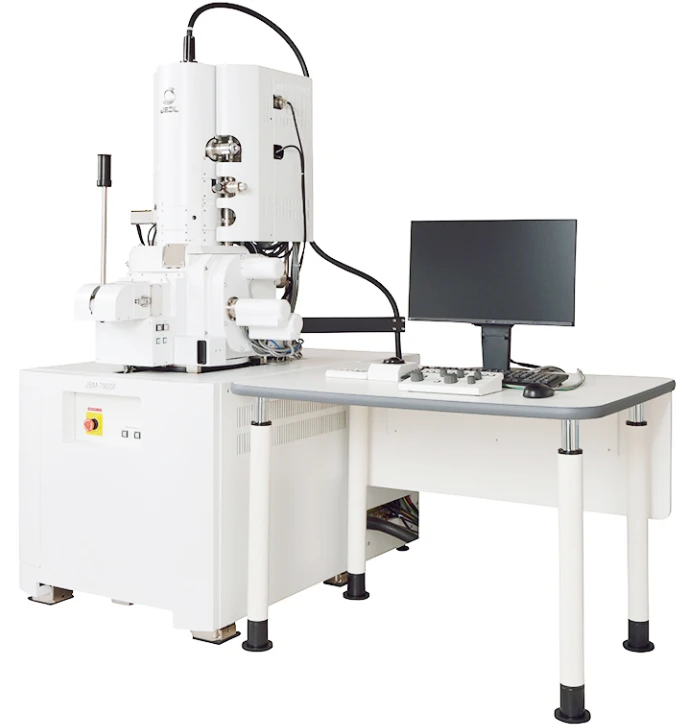

Installation photograph
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 19.09.17 (THE),
Rater: Daeil System, Manager Choi , Hyoung Moon
Place of measurement : 1층 기술연구소
Equipment Model: JEOL_JSM-7900F
Measurement conditions and results
Summary of measurement results
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal performance measurement result

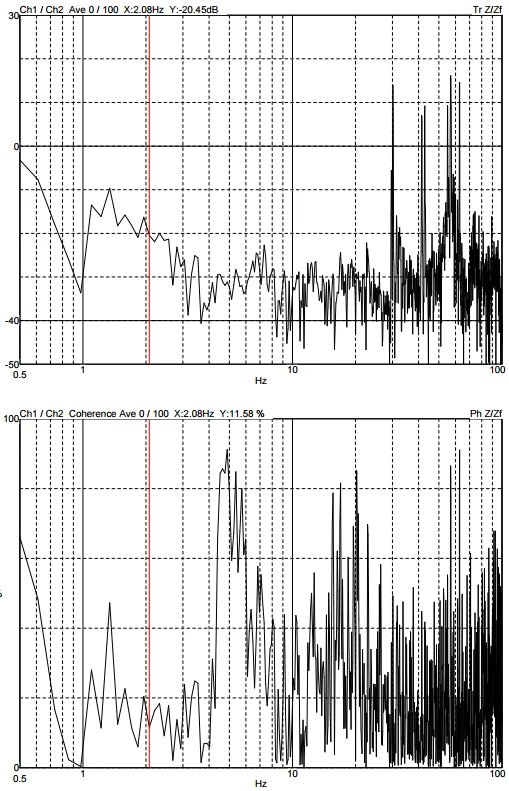

Z axis

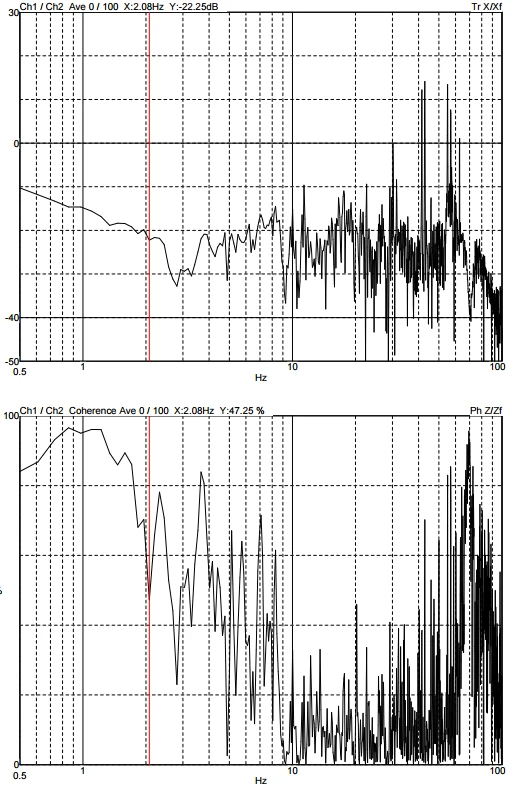

X axis

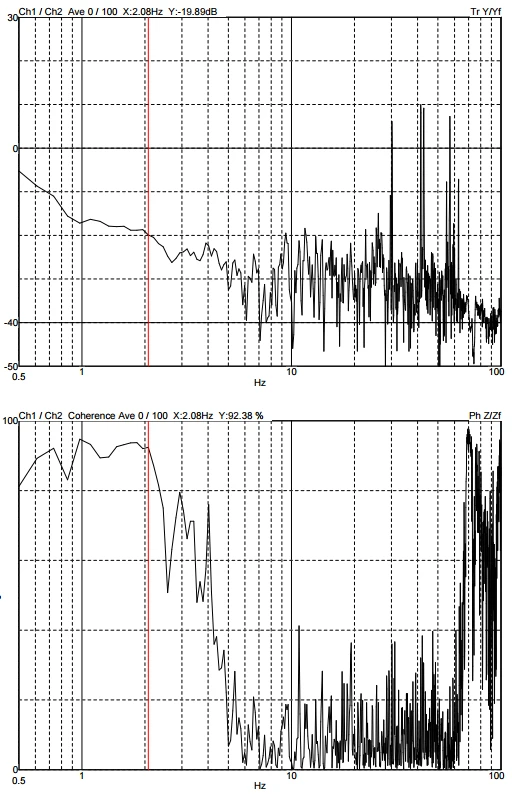

Y axis
