Installation Report
DVIA-M Series
07-05-2017
Tier-1 Semiconductor JSM-7800F PRIME DVIA-MB1000 (P46) vibration survey — 2017.07.05
DVIA-M Series
Installation Report
Tier-1 Semiconductor
DVIA-MB1000
MB1000
P46
JEOL
SEM
Contents
MB1000 P46 vibration environment measurement results
(Tier-1 Semiconductor Suwon campus)

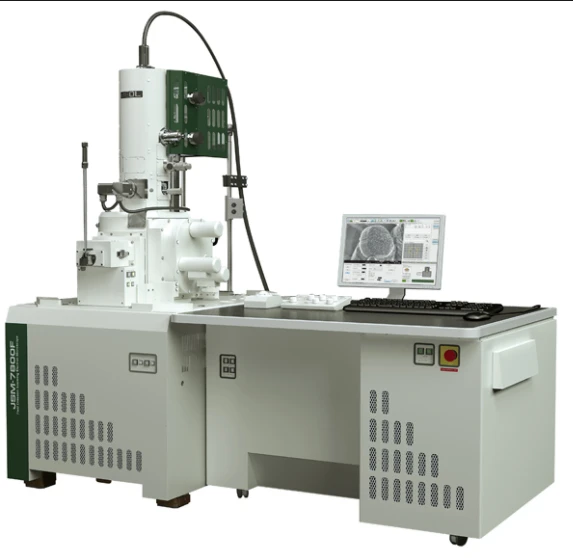

Target equipment photo
Target equipment and site
| Target equipment | ZEOL JSM7800F PRIME |
|---|---|
| Installation site | Suwon — Tier-1 Semiconductor |
| Remarks | No remarks |
| END USER | Tier-1 Semiconductor |
Business trip, engineer, and report dates
출장일 : 17.06.30
출장자 : 임종욱 대리
작성일 : 17.07.05
Installation result summary
| Test Direction | Axis | Base | Top |
|---|---|---|---|
| ACTIVE | Z | B | F |
| X | D | F | |
| Y | E | F |
Omnidirectional performance is satisfactory.
Images reviewed; images are satisfactory.
Vibration environment measurement results

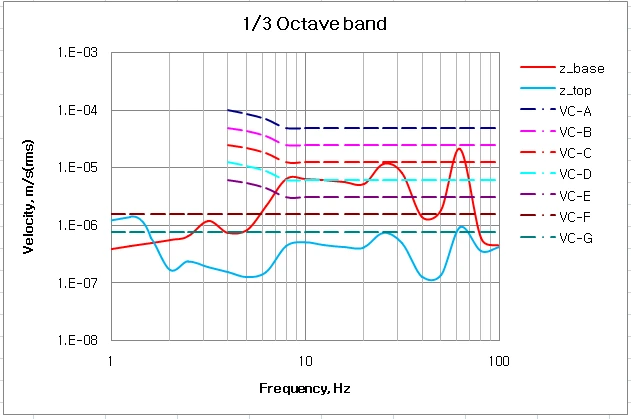

Z axis

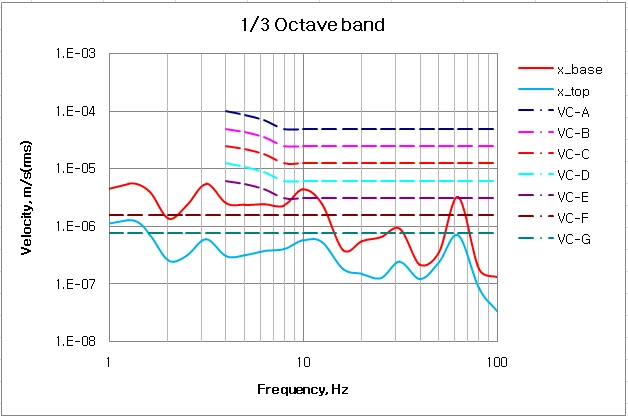

X axis

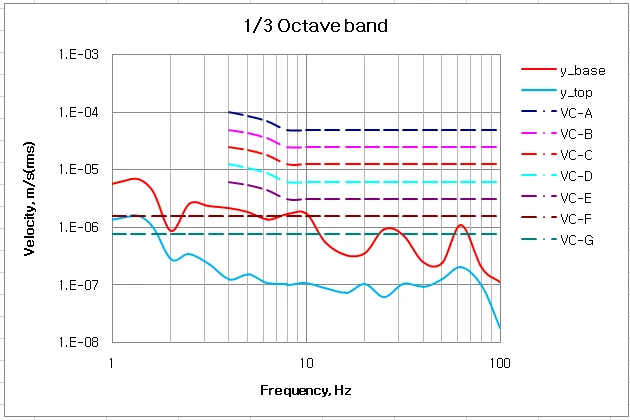

Y axis
