Installation Report
DVIA-M Series
01-15-2020
EAST UNIV FEI Quanta FEG650 DVIA-MB1000 (190702R5, P141) Installation Report — 2020.01.15
DVIA-M Series
Installation Report
DVIA-MB1000
FEI
Quanta
FEG650
SEM
190702R5
P141
EAST UNIV

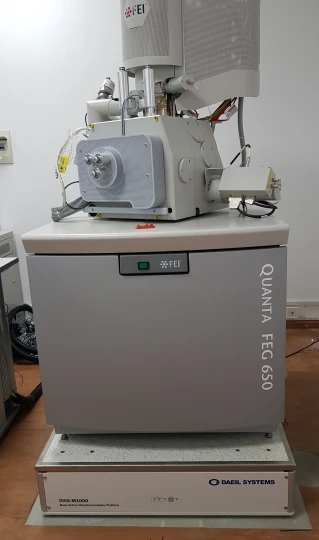

Equipment picture
Target equipment
FEI-QUANTA FEG650
Place of installation
F2, EAST UNIV
Remark
Good Performance
END USER
EAST UNIV
Operator
Choi, Hyoung Mun
Date of setup
20.01.10
Date of reporting
20.01.15
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2020.01.10 (FRI),
Operator: Daeil System, Manager Choi, Hyoung Mun
Place of measurement : F2, EAST UNIV
Equipment Model: FEI-QUANTA FEG650
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class | ||
|---|---|---|---|
| Z | X | Y | |
| Floor | B | D | E |
| Above Active | G | G | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

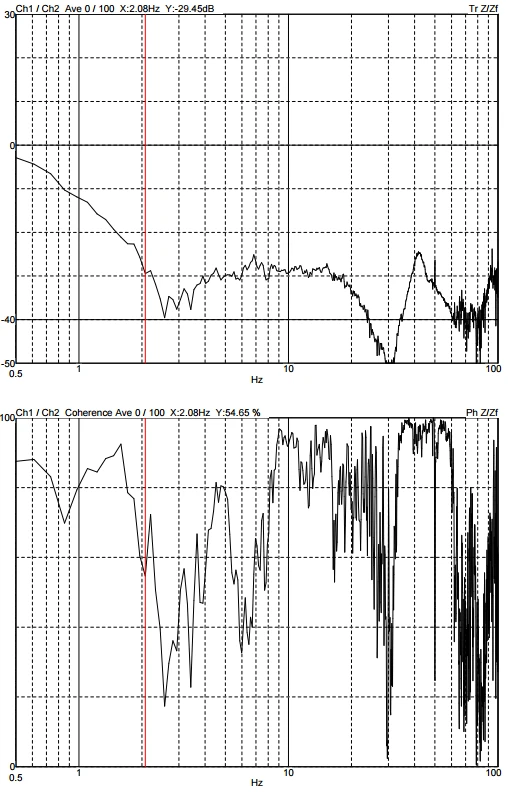

Z axis

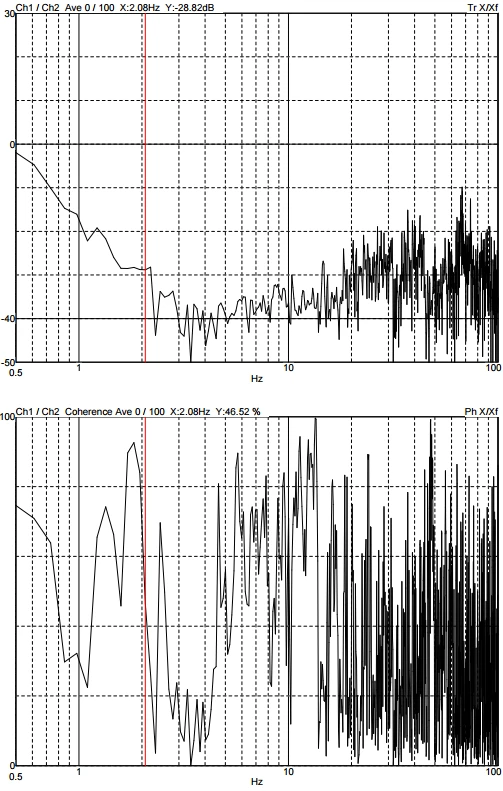

X axis

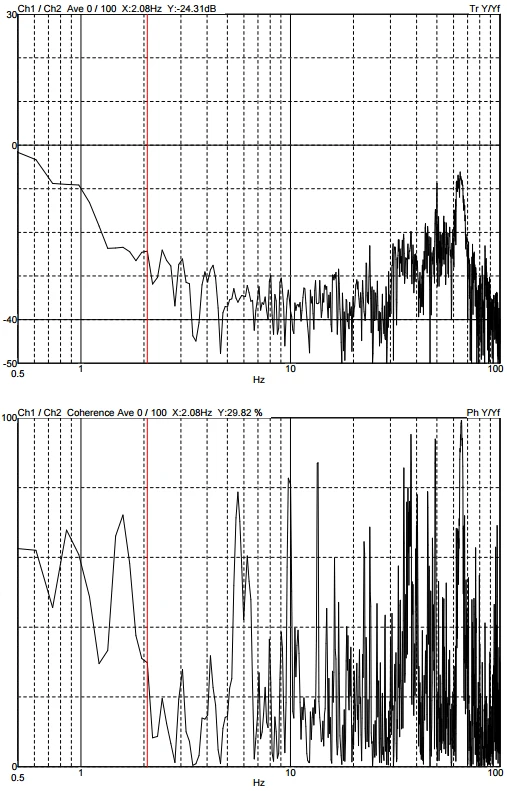

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

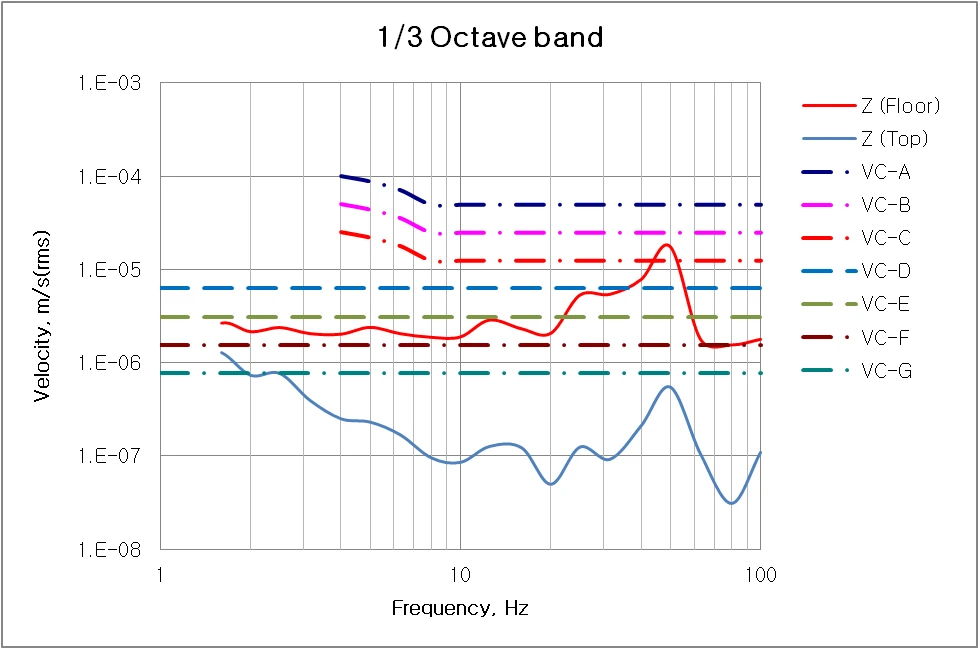

Z axis (Octave Band)

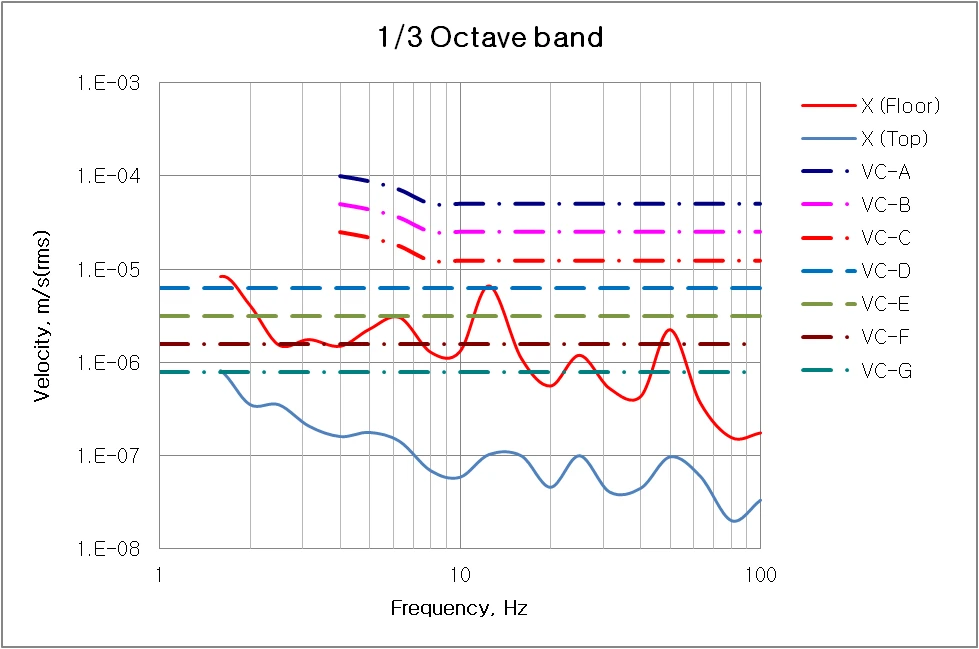

X axis (Octave Band)

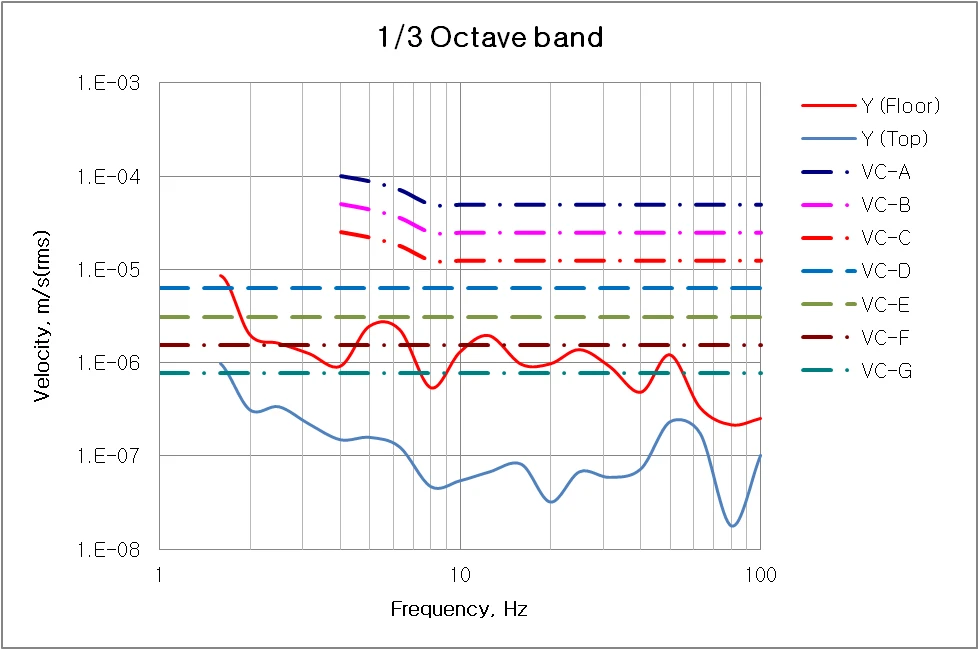

Y axis (Octave Band)
