Installation Report
DVIA-M Series
12-09-2019
BOSCH TESCAN-MIRA3 DVIA-MB1000 (MB1000 P141 · 190702R5) Internal program worksheet — 2019.12.09
DVIA-M Series
Installation Report
BOSCH
TESCAN
MIRA3
DVIA-MB1000
MB1000
P141
190702R5
Contents
BOSCH
(MB1000_ 190702R5 Set up)
Target equipment
TESCAN-MIRA3
Place of installation
F2, BOSCH
Remark
Good Performance
END USER
BOSCH
Operator
Operator: Choi, Hyoung Mun
Date of setup
Date of setup : 19.12.05
Date of reporting
Date of reporting : 19.12.09
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2019.12.05 (Thu),
Operator: Daeil System, Manager Choi, Hyoung Mun
Place of measurement
Place of measurement : F2, BOSCH
Equipment Model
Equipment Model: TESCAN-MIRA3
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | D | E | E |
| Above Active | G | G | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

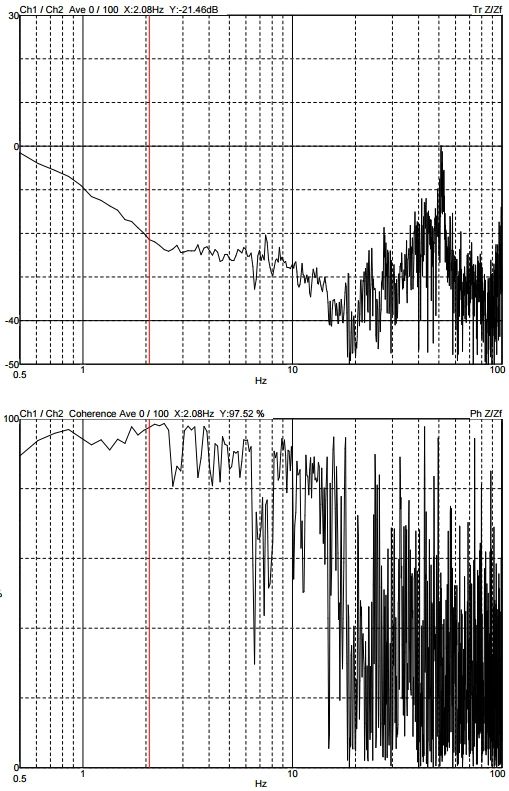

Z axis - internal program

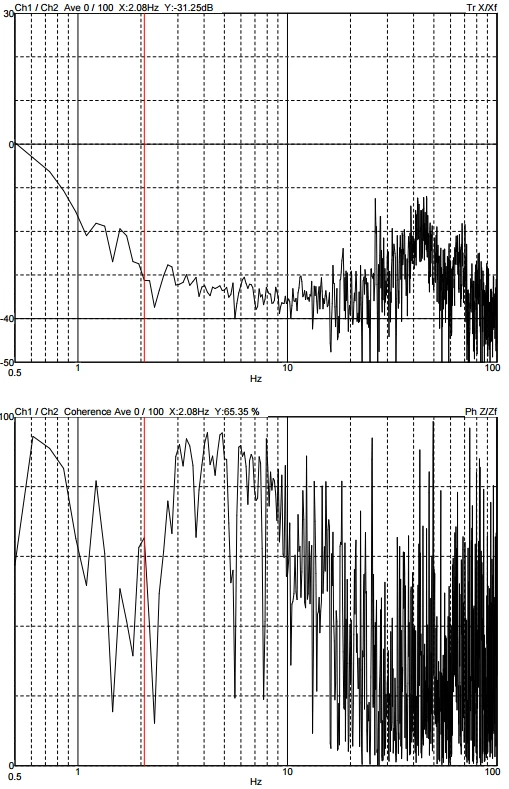

X axis - internal program

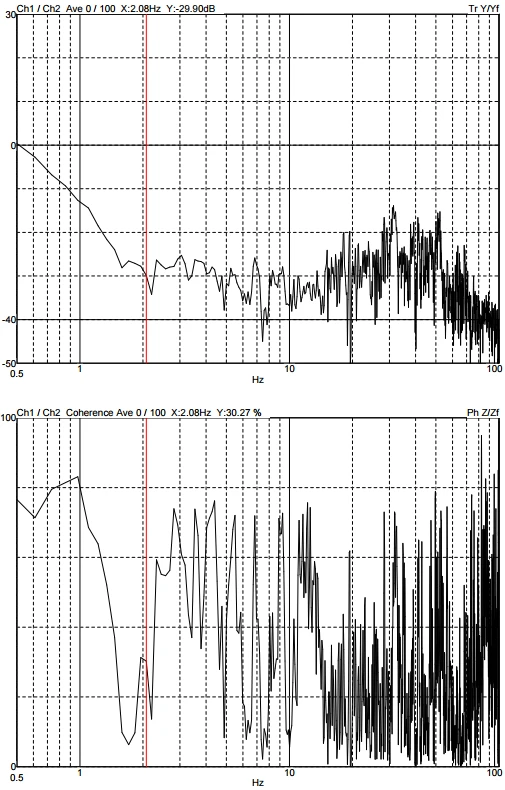

Y axis - internal program
Octave Band Result (BASE: Floor, TOP: Above Active)

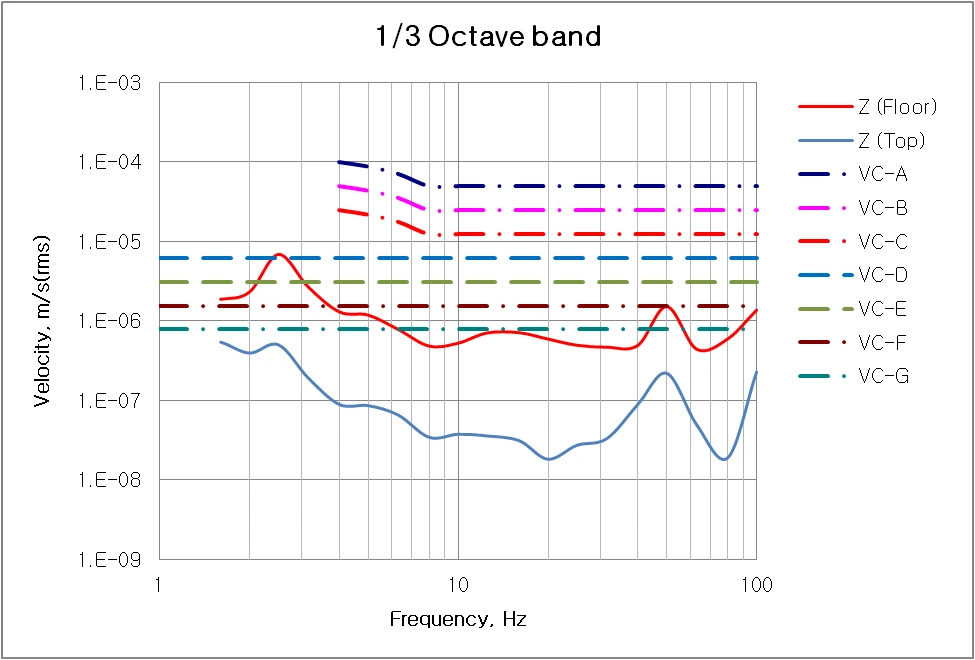

Z axis - octave band result

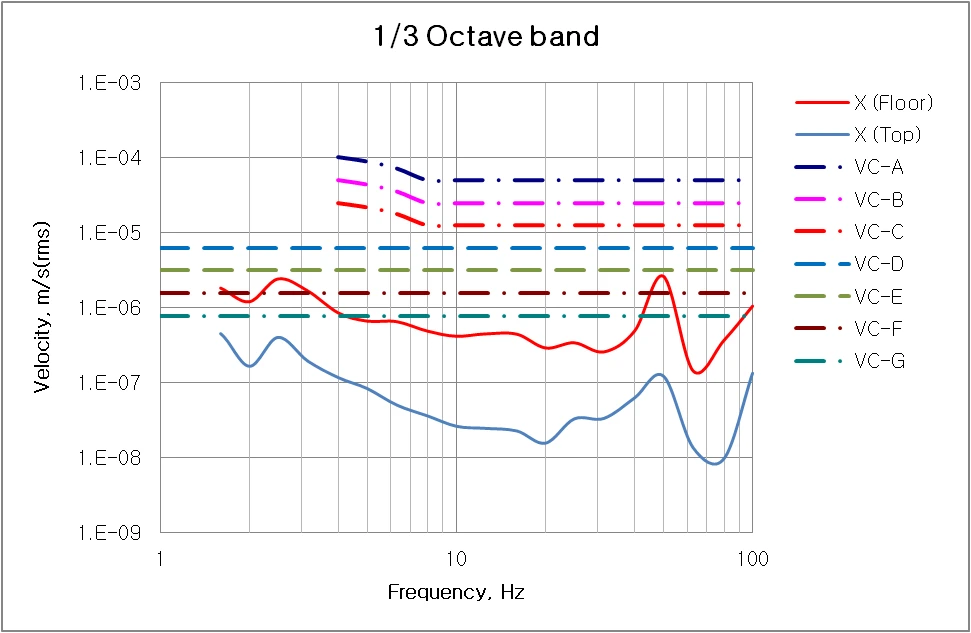

X axis - octave band result

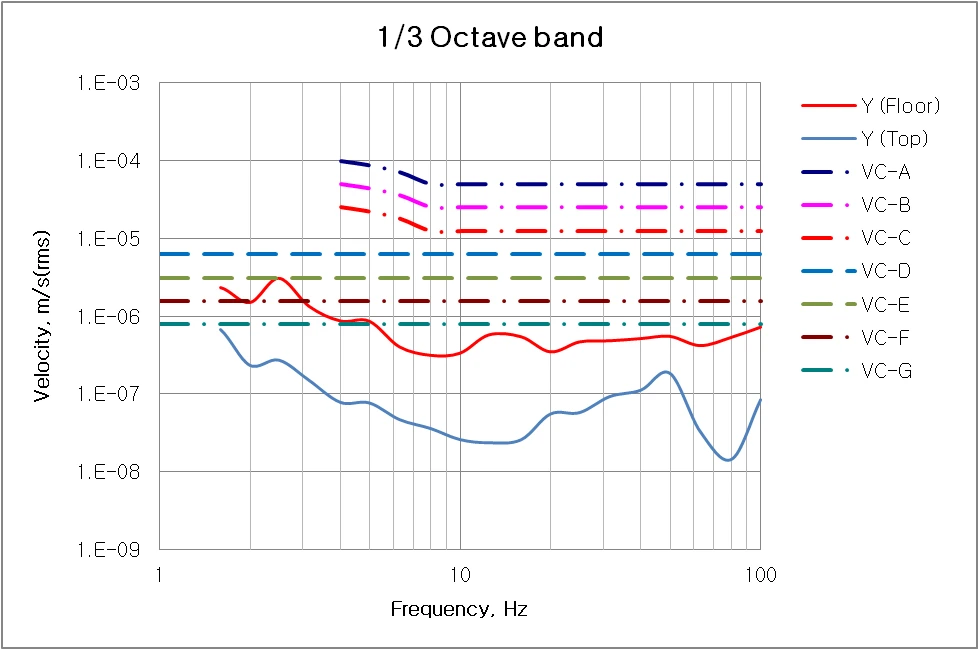

Y axis - octave band result
