Installation Report
DVIA-M Series
07-30-2019
South China University of Technology Hitachi Regulus 8100 DVIA-MB1000 (190117R3) Installation Report — 2019.07.30
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
South China University of Technology
Hitachi Regulus
190117R3
Guangzhou
Contents

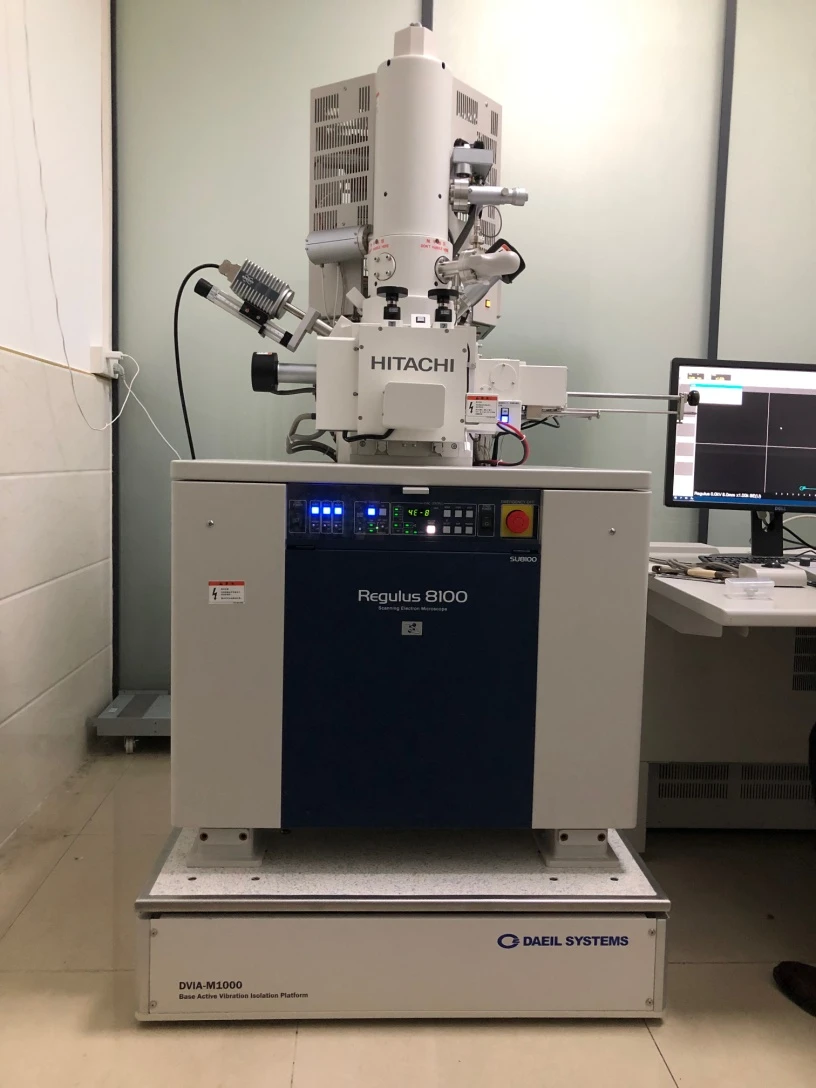

Installation photograph
Target equipment
Hitachi Regulus 8100
Place of installation
South China University of Technology F1
Remark
Good Performance
END USER
South China University of Technology
Operator: Choi, Sung Won
Date of setup : 19.07.24
Date of reporting : 19.07.30
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2019.07.24 (wednesday),
Operator: Daeil System, Manager Sung Won Choi
Place of measurement : 1st Floor, South China University of Technology
Equipment Model: Hitachi Regulus 8100
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Test Condition | VC-Class | ||
|---|---|---|---|
| Z | X | Y | |
| Floor | D | D | D |
| Above Active | F | E | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

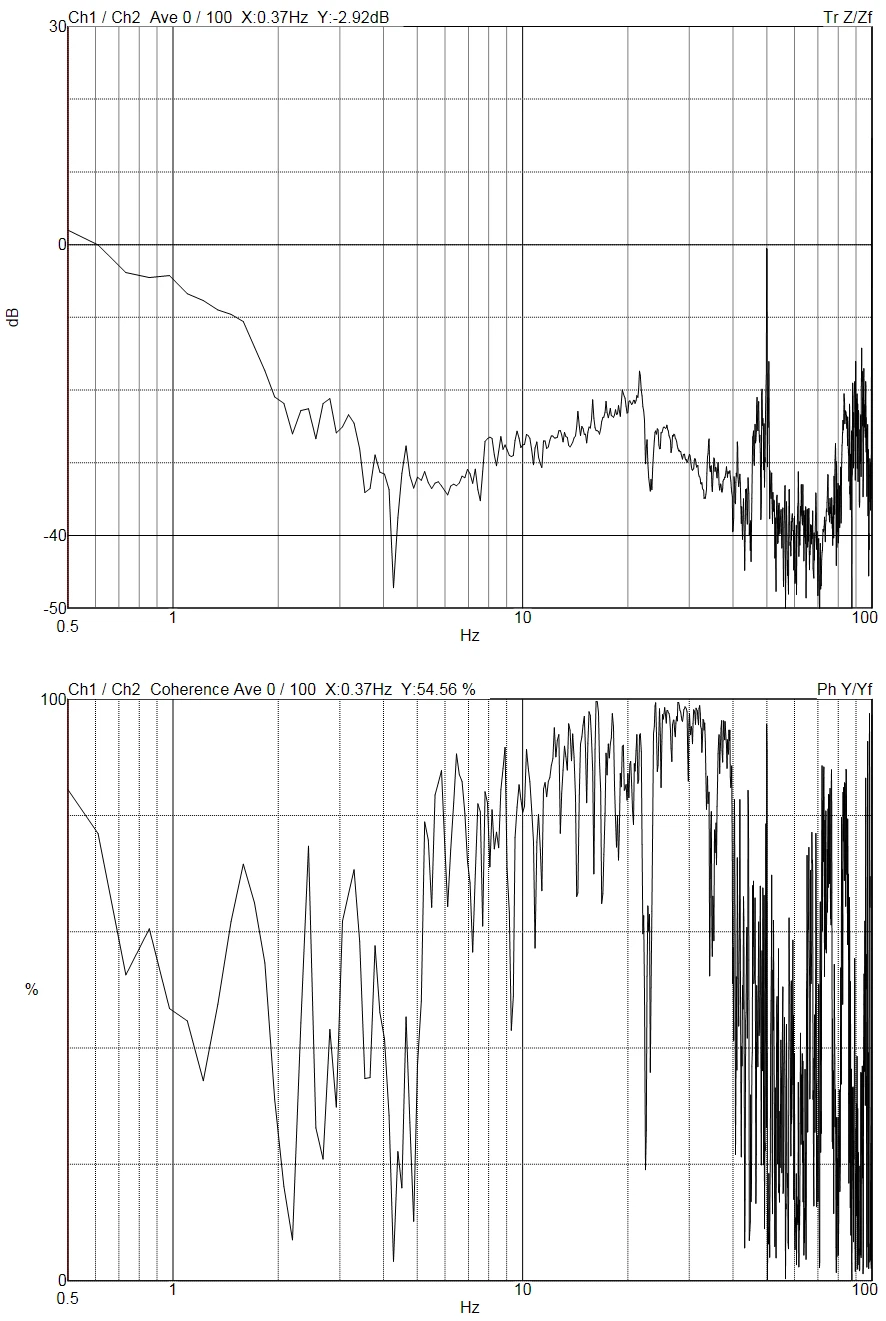

Z axis (MB1000 internal program)

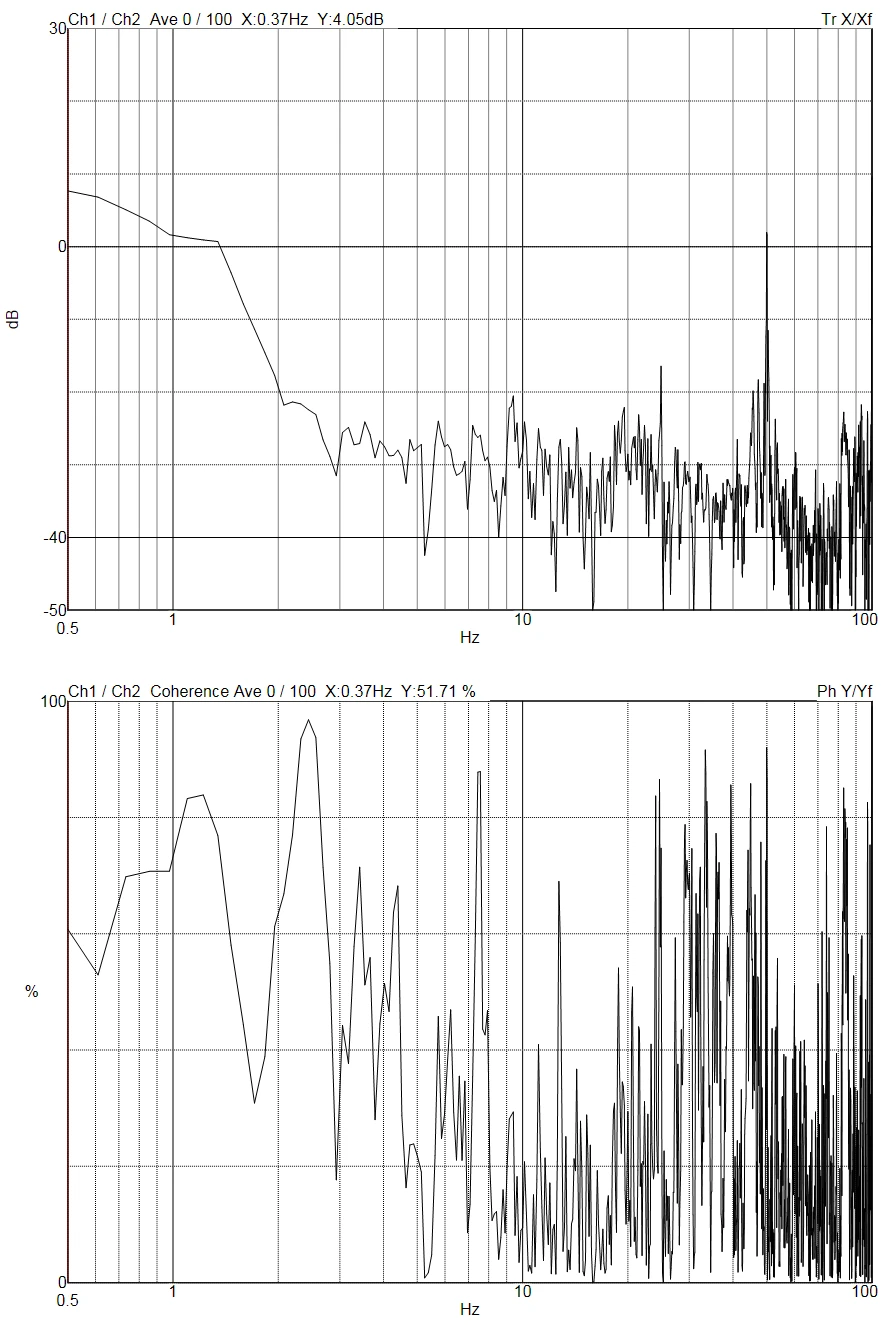

X axis (MB1000 internal program)

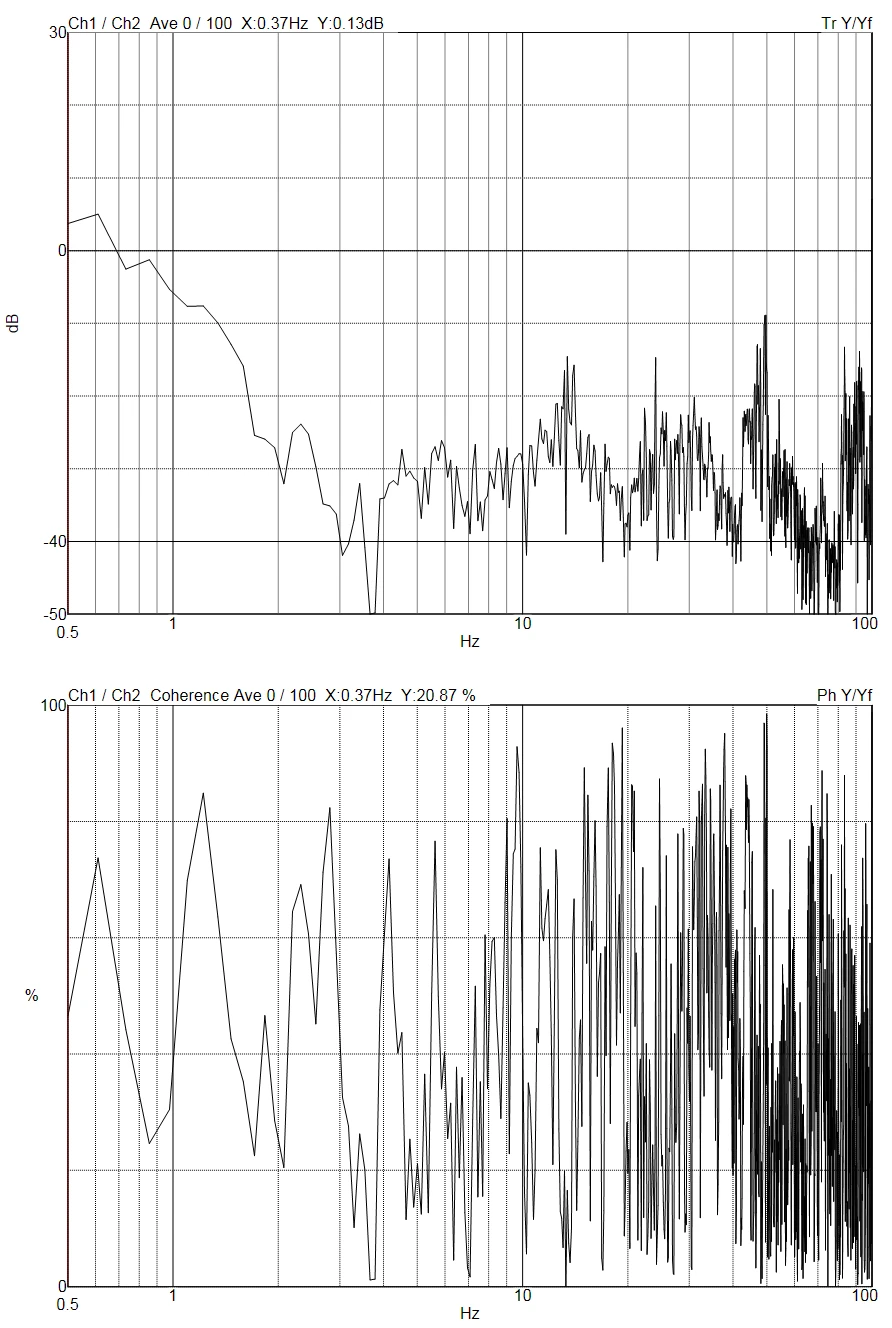

Y axis (MB1000 internal program)
Octave Band Result (BASE: Floor, TOP: Above Active)

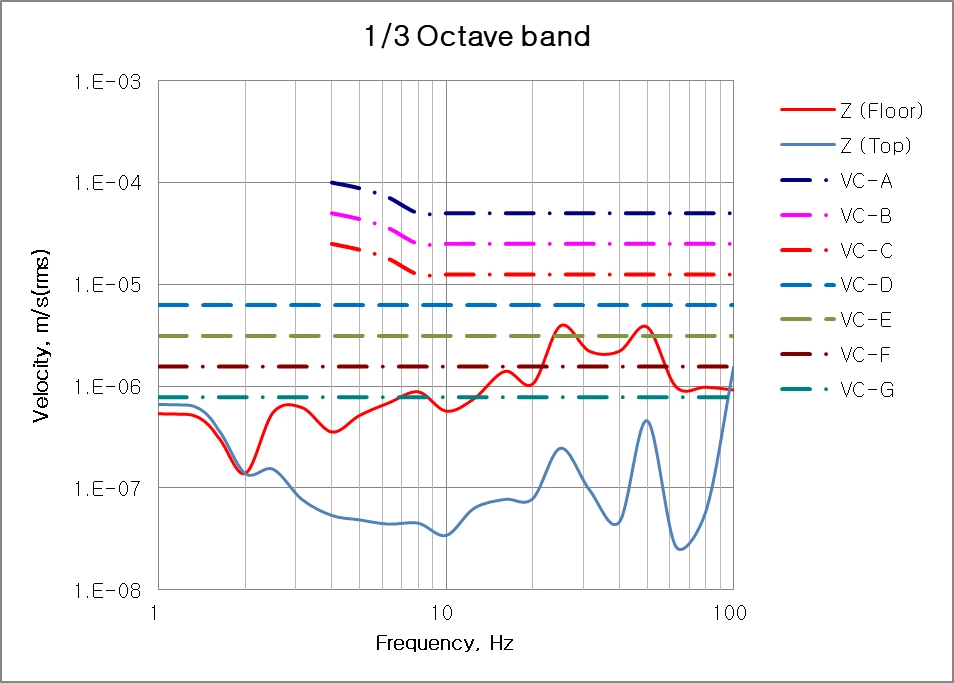

Z axis (octave band result)

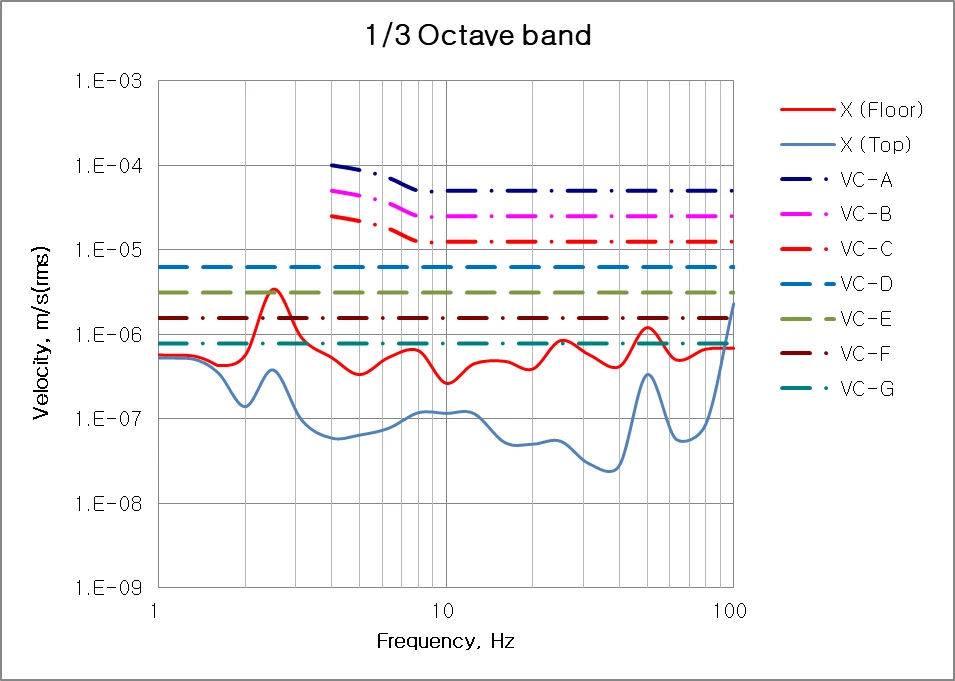

X axis (octave band result)

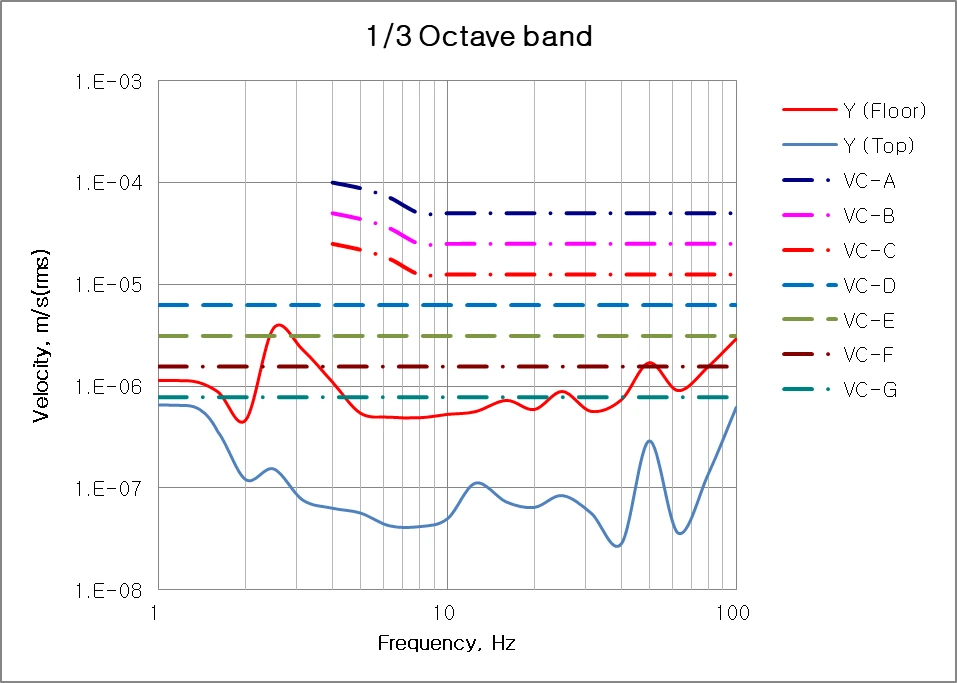

Y axis (octave band result)
