Installation Report
DVIA-M Series
04-12-2018
Guangzhou Monalisa Tile R&D ZEISS evo18 DVIA-MB1000 (MB1000 P51) business-trip report — 2018.04.12
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
P51
ZEISS
evo18
Guangzhou
Monalisa Tile
Contents
중국 출장 결과 보고서
(MB1000_P51 셋업)

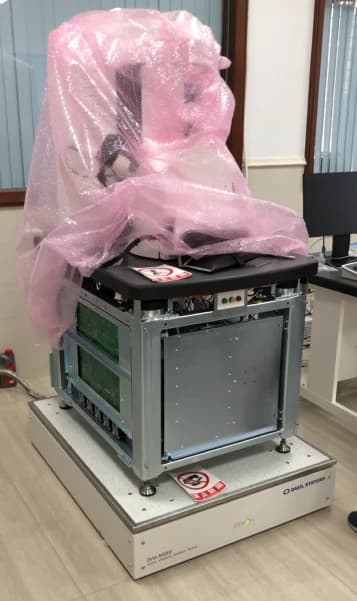

| Target equipment | ZEISS-evo18 |
|---|---|
| Installation site | Guangzhou Monalisa Tile R&D building, 1st floor |
| Notes | Good performance |
| End user | Monalisa Tile |
| Trip dates | 18.04.08~18.04.09 |
| Traveler | Choi Seong-won |
| Report date | 18.04.12 |
Trip and report dates
Trip dates: 18.04.08~18.04.09
Traveler: Choi Seong-won
Report date: 18.04.12
Overview
액티브 제진대 적용 결과, 장비 사용 상 문제가 없는지 확인하기 위하여 진동측정 수행.
Measurement date
Measurement date and time: 2018.04.09 (Mon), measurer: Choi Seong-won (Manager)
Measurement site
Measurement site: Guangzhou Monalisa Tile R&D building, 1st floor
Equipment model
Applied equipment: ZEISS-evo18
Measurement results
Summary
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | C | E | E |
| Above Active | F | G | F |
전 방향 성능 양호
수직방향 5Hz에서 가장 진동레벨이 높으며, 회전운동으로 인해 Y방향에 일부 영향을 주고 있음.
MB1000 internal program measurement results

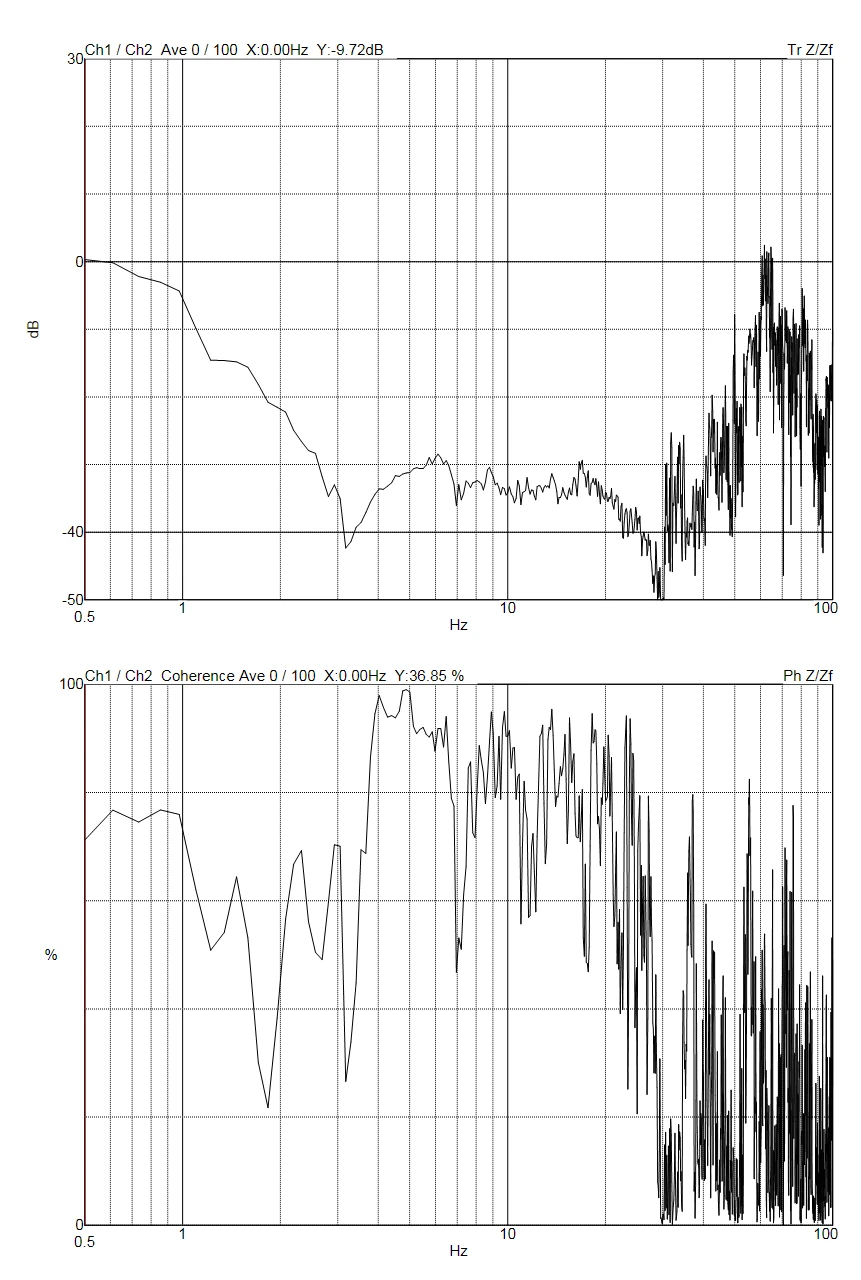

Z axis (internal program)

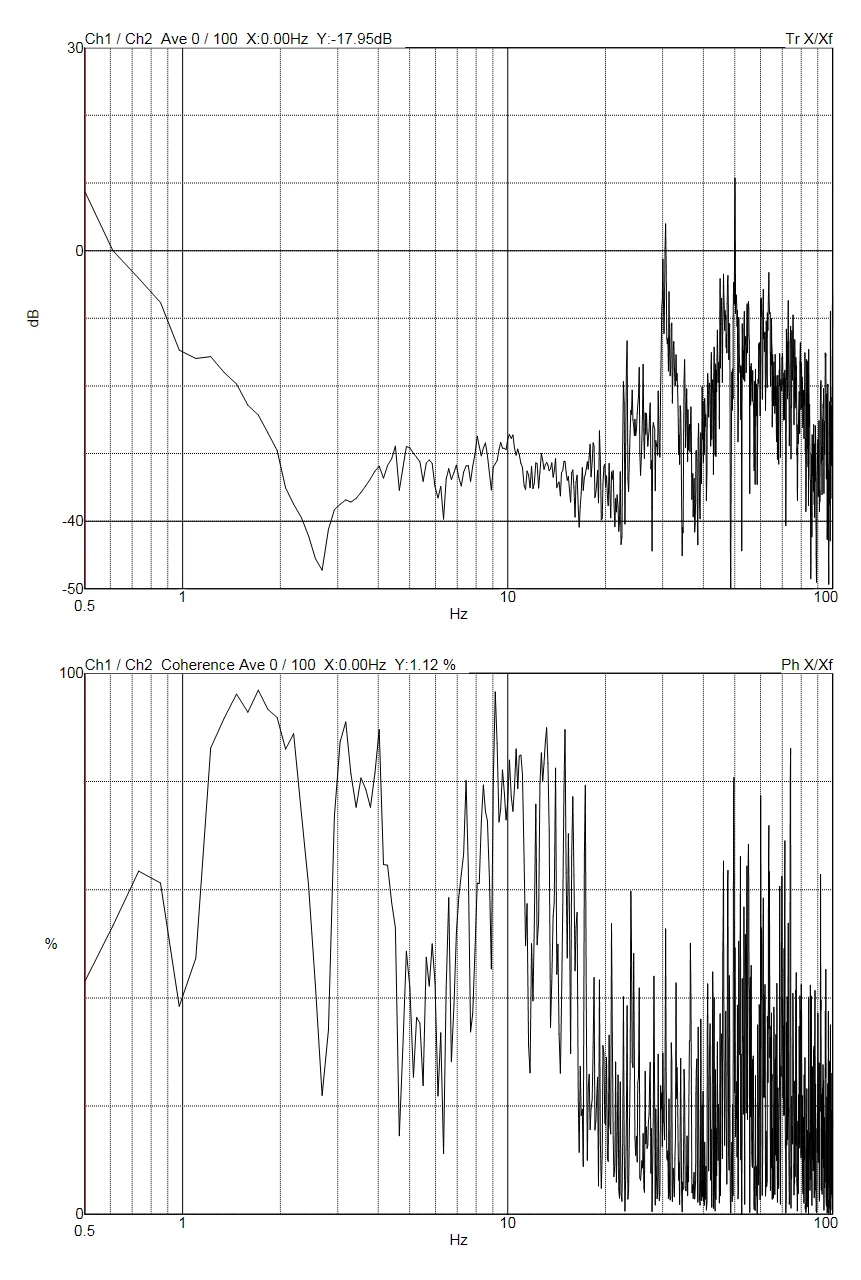

X axis (internal program)

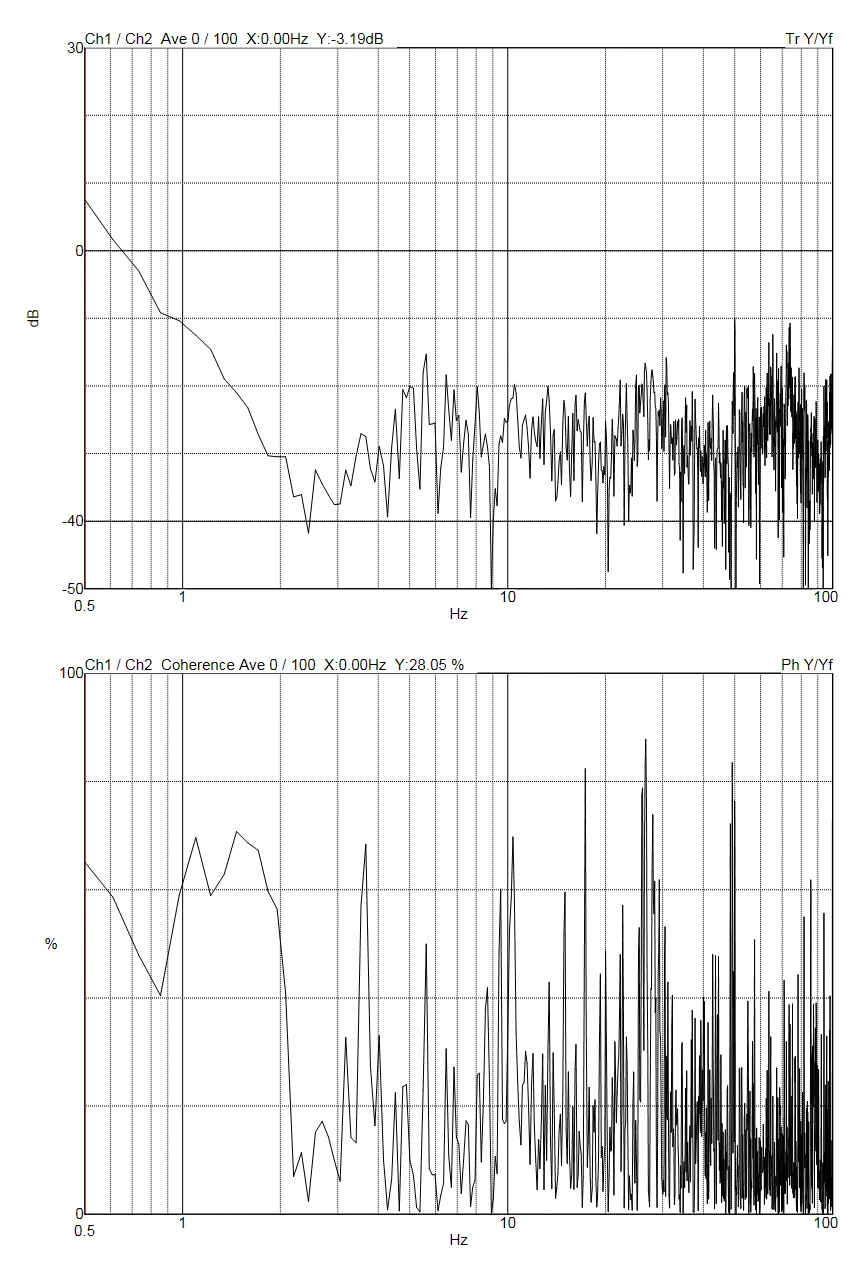

Y axis (internal program)
Octave-band measurement results (BASE: floor, TOP: isolator top)

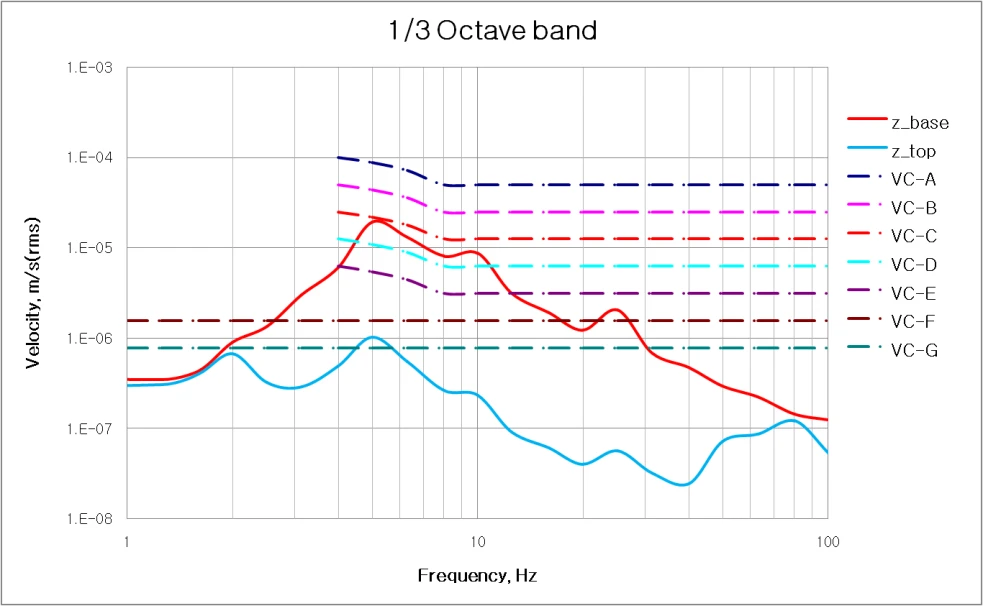

Z axis (octave band)

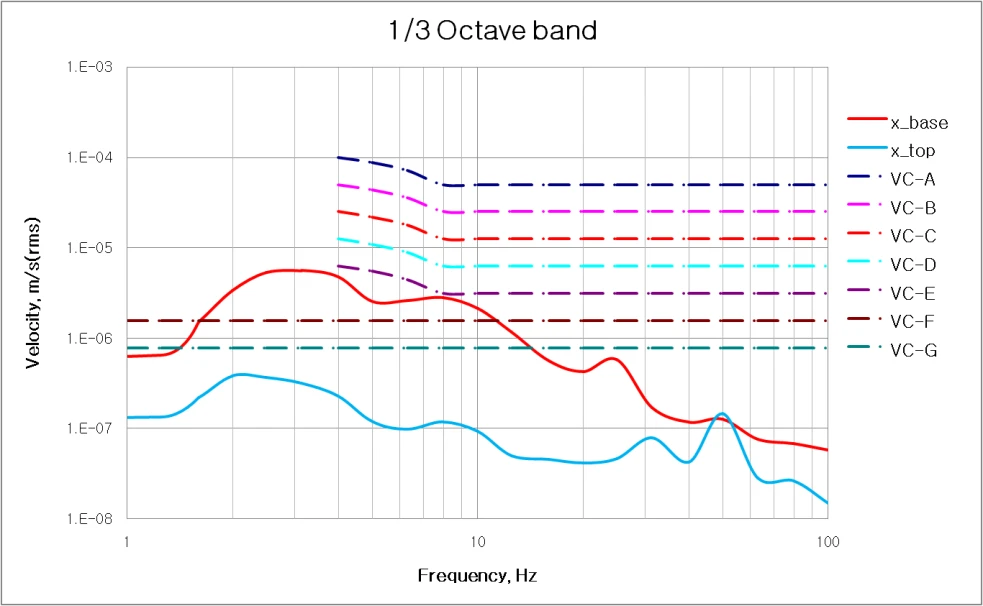

X axis (octave band)

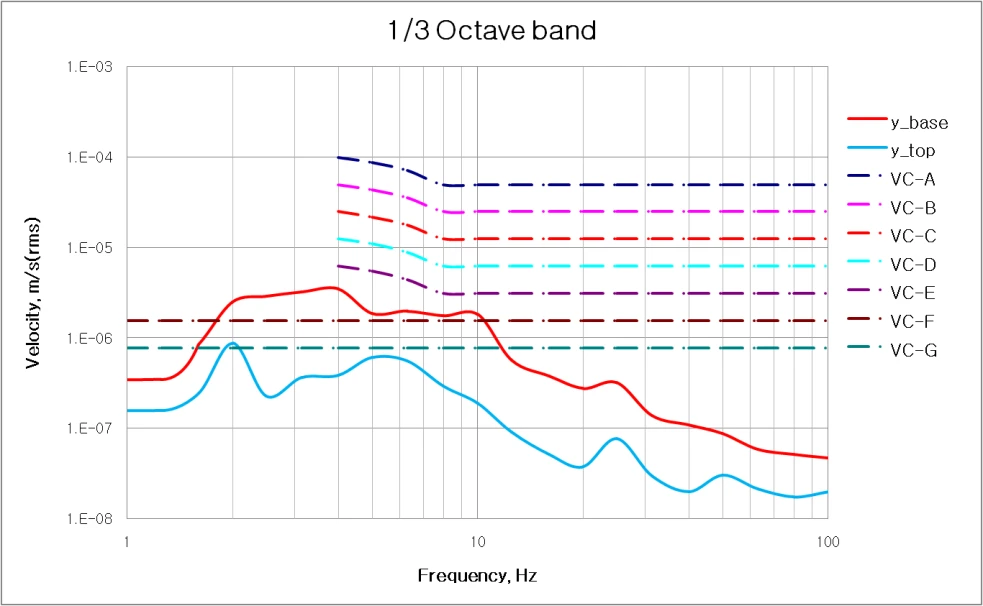

Y axis (octave band)
