Installation Report
DVIA-M Series
04-12-2018
MONALISA TILES ZEISS evo18 DVIA-MB1000 (MB1000) Installation worksheet — 2018.04.12
DVIA-M Series
Installation Report
MONALISA TILES
ZEISS
evo18
DVIA-MB1000
MB1000
Contents
DVIA-M type (MB1000)
Installation Test Data
< USER : MONALISA TILES>

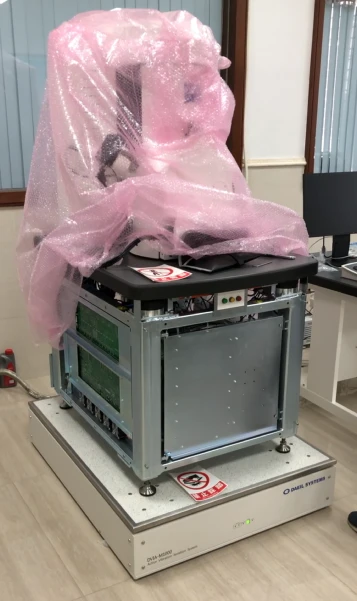

Installation photograph
Target equipment
ZEISS-evo18
Place of installation
1th Floor, Research center of MONALISA TILES
Remarks
Good performance
END USER
MONALISA TILES
Business traveler
Business traveler: Choi, SungWon
Date of business trip
Date of business trip : 18.04.08~18.04.09
Date Created
Date Created : 18.04.12
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.04.09 (Monday), Rater: Daeil System, Manager Sung Won Choi
Place of measurement
Place of measurement : 1th Floor, Research center of MONALISA TILES
Equipment Model
Equipment Model: ZEISS-evo18
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | C | E | E |
| Above Active | F | G | F |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

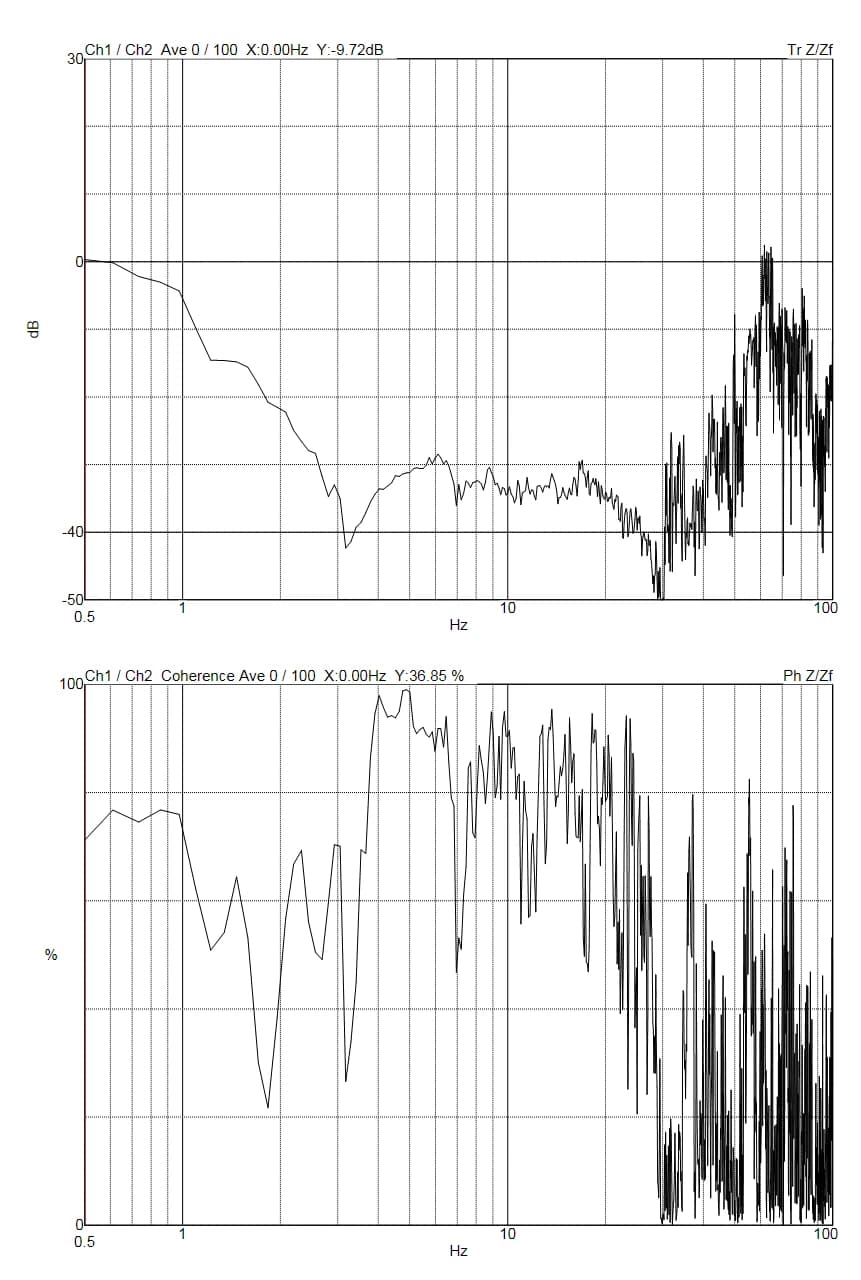

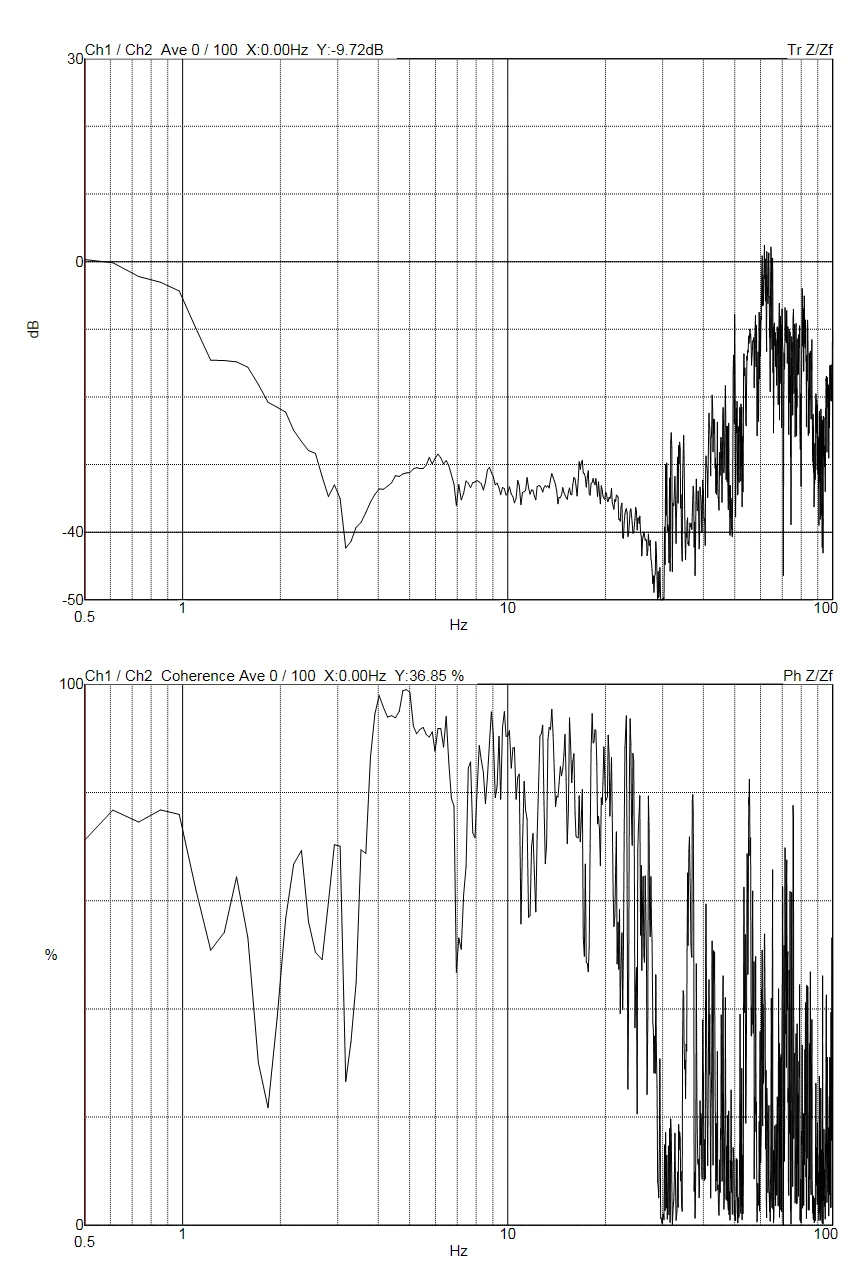

Z axis

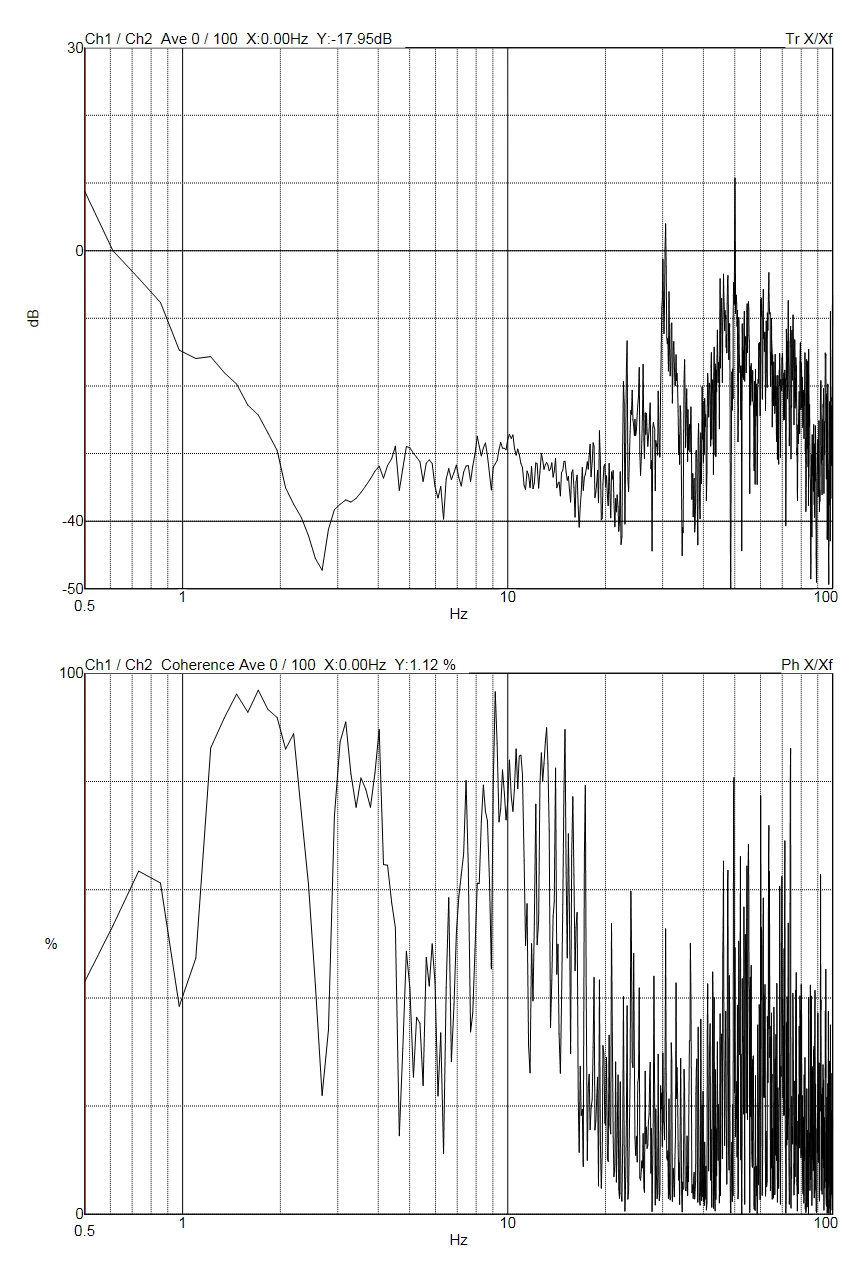

X axis

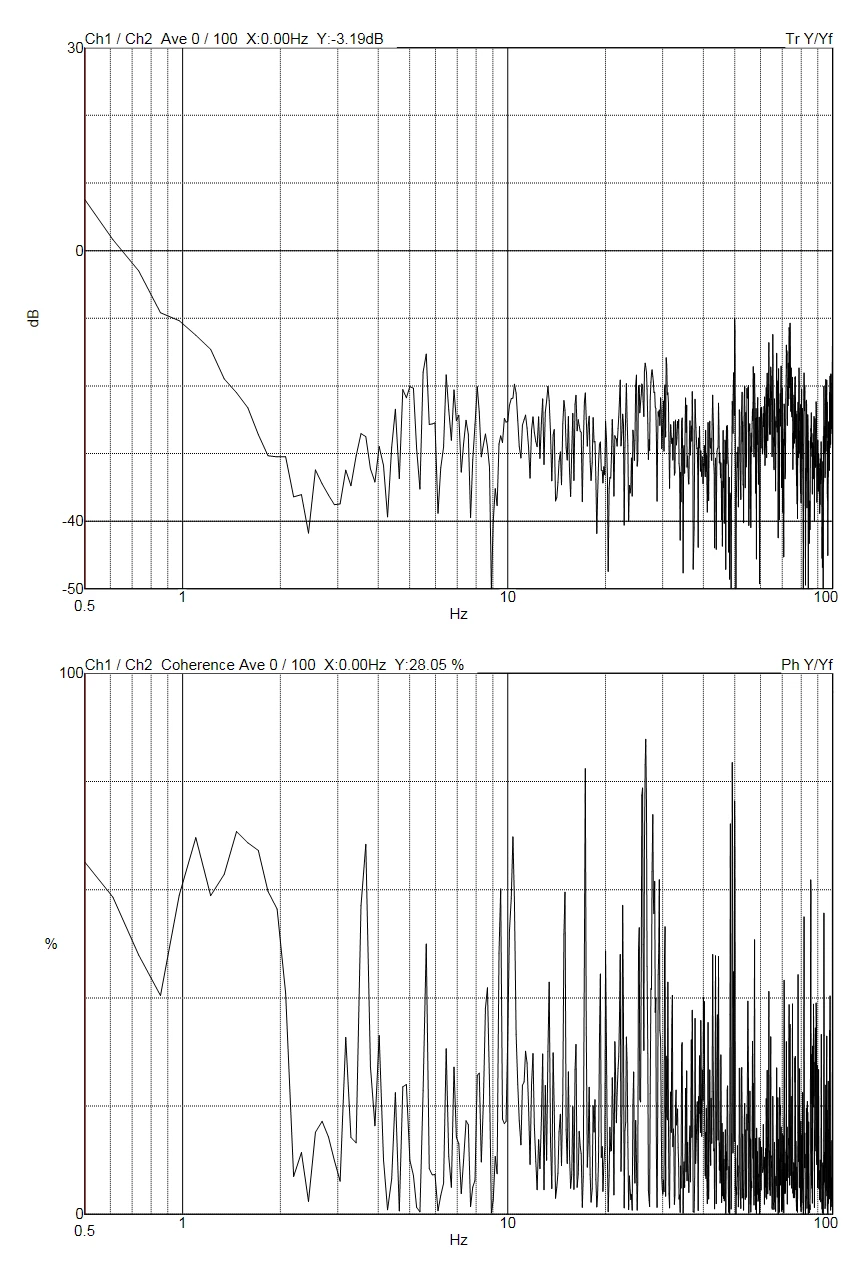

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

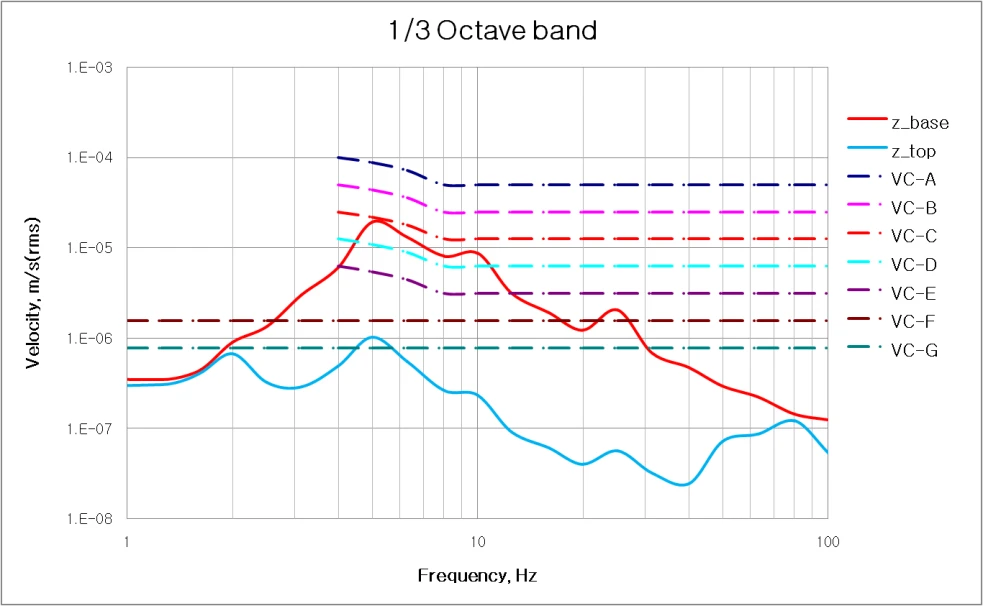

Octave band — Z axis

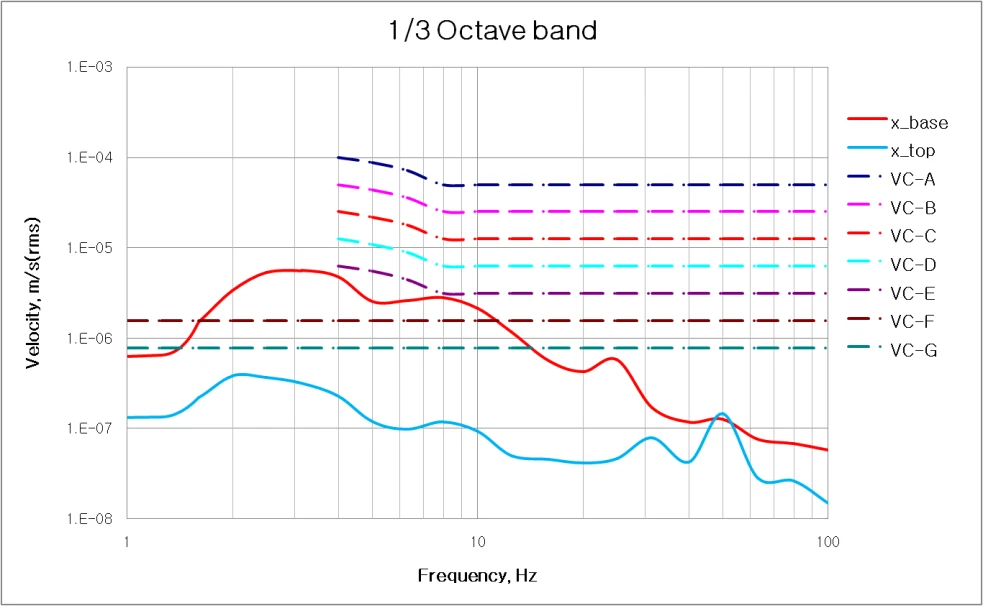

Octave band — X axis

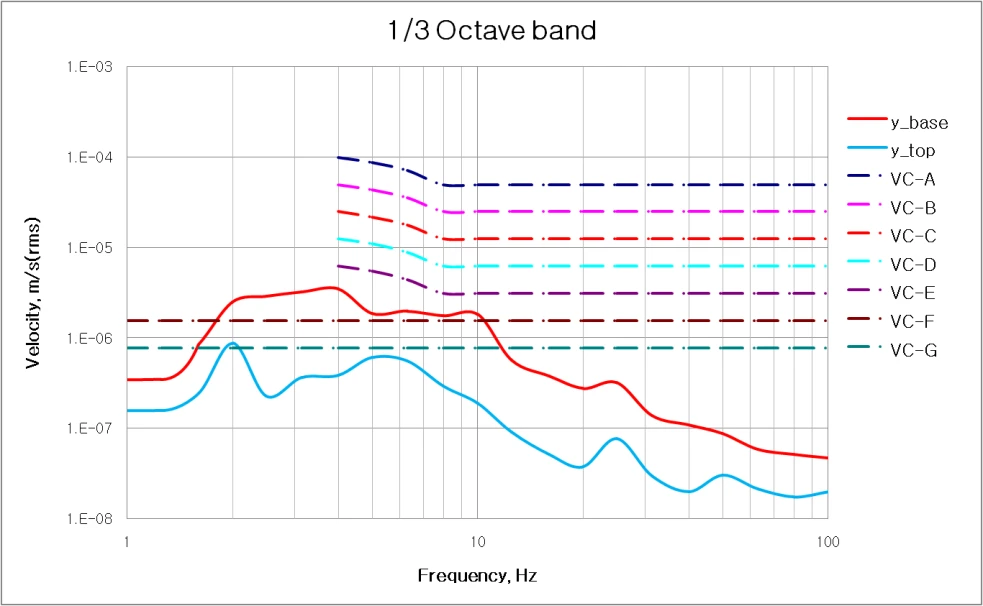

Octave band — Y axis
