Installation Report
DVIA-M Series
06-05-2017
South China University of Technology ZEISS SIGMA 300 VP DVIA-MB1000 (P19) Guangzhou trip report — 2017.06.05
DVIA-M Series
Installation Report
South China University of Technology
SCUT
DVIA-MB1000
P19
Zeiss
SIGMA 300 VP
Guangzhou
China
Contents
China business trip report (MB1000_P19 Set up)

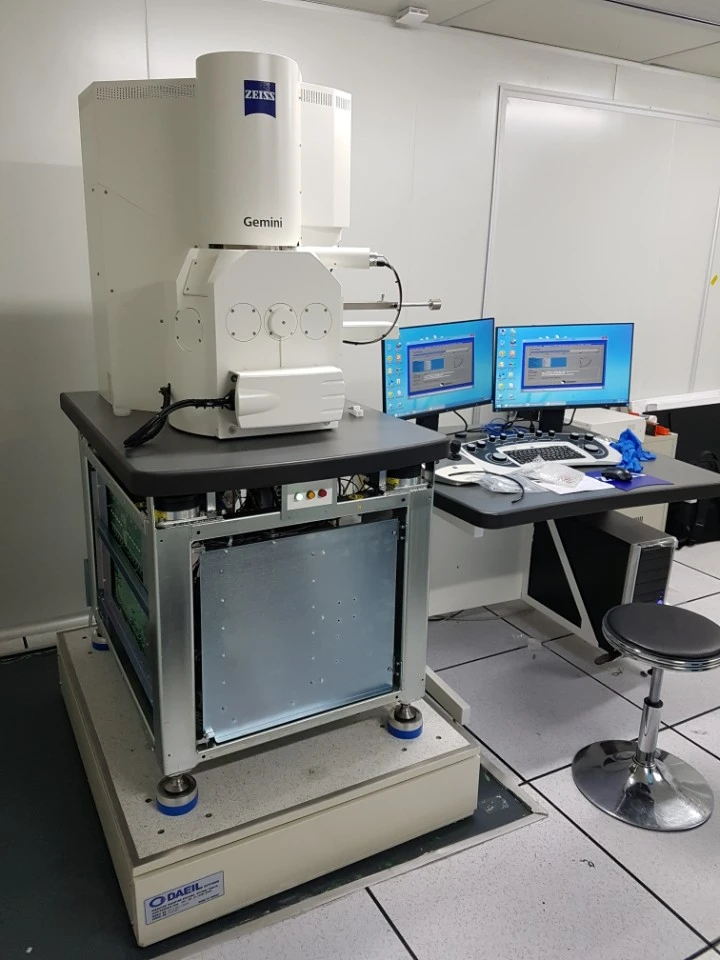

Installation photograph
Target equipment
ZEISS SIGMA 300 VP
Place of installation
Guangzhou, China
Remark
Installed in the cleanroom on the 1st floor of the university research building.
END USER
SOUTH CHINA UNIVERSITY OF TECHNOLOGY
Date of business trip
Date of business trip: 17.06.01~17.06.03
Operator
Operator: Lim Jong-wook, Deputy Manager
Date of reporting
Date of reporting: 17.06.05
Installation summary
| Test Direction | Base | Top | ACTIVE |
|---|---|---|---|
| Z | B | G | |
| X | B | G | |
| Y | C | G |
Good performance in all directions.
MB1000 internal program performance measurement result

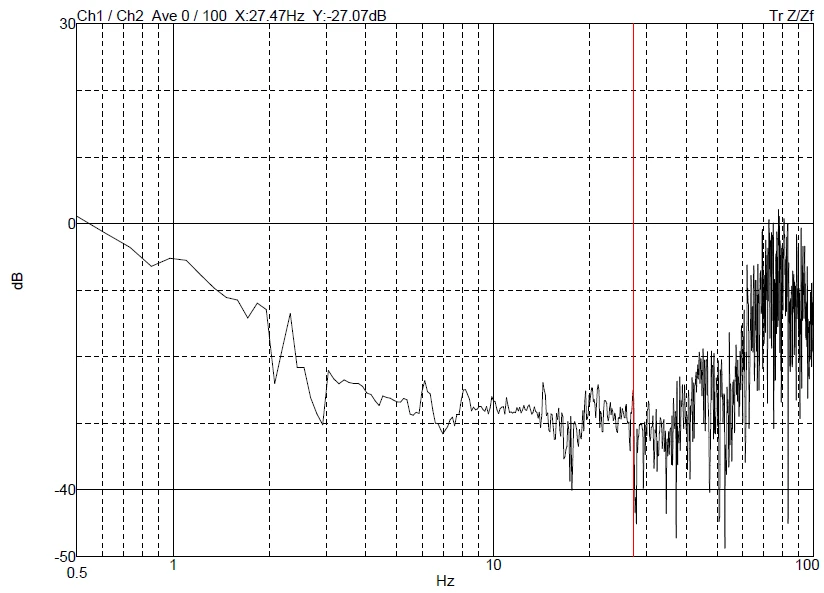

Internal program: Z axis

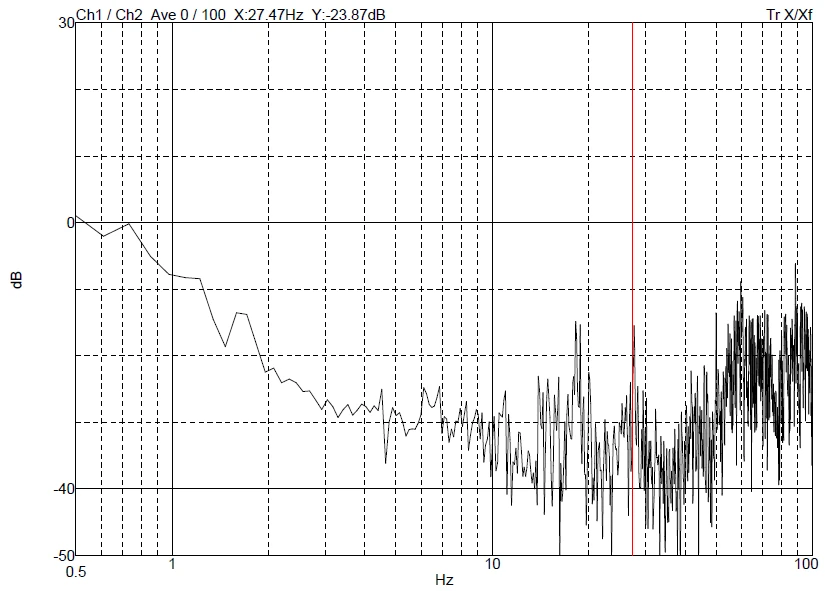

Internal program: X axis

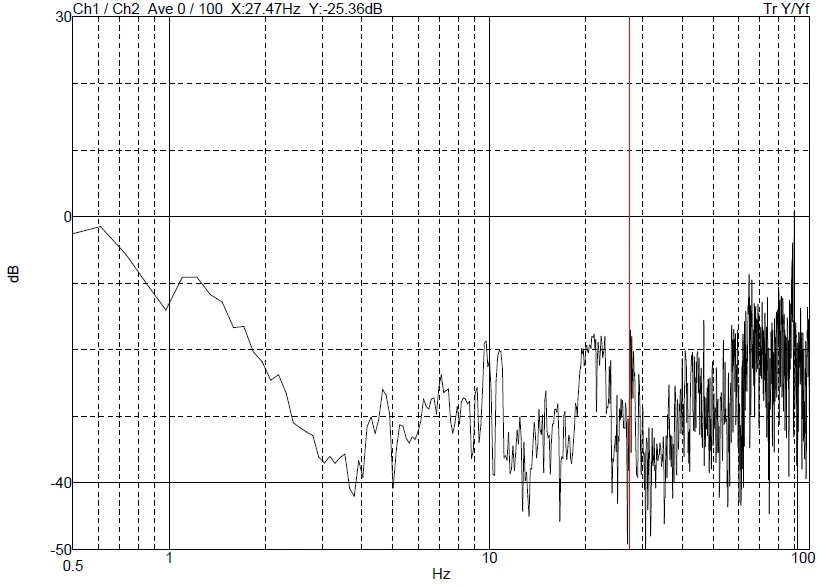

Internal program: Y axis
Vibration environment measurement result

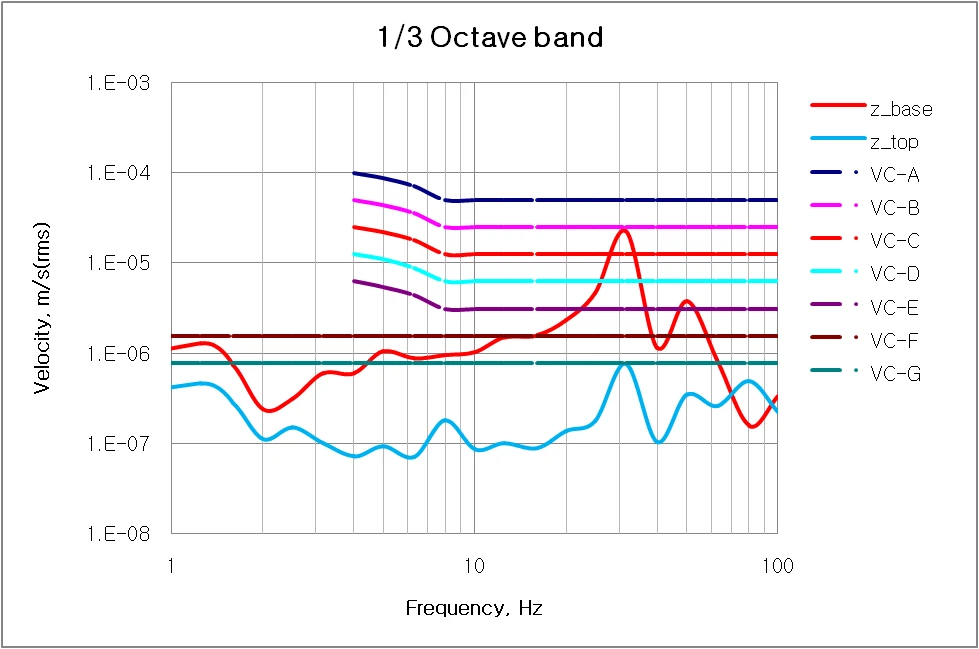

Vibration environment: Z axis

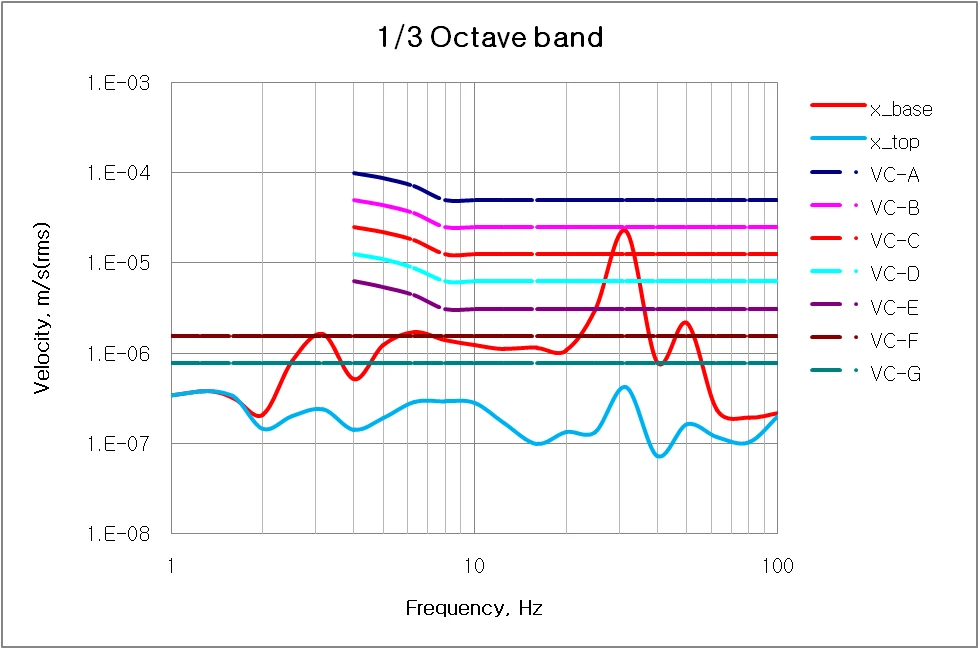

Vibration environment: X axis

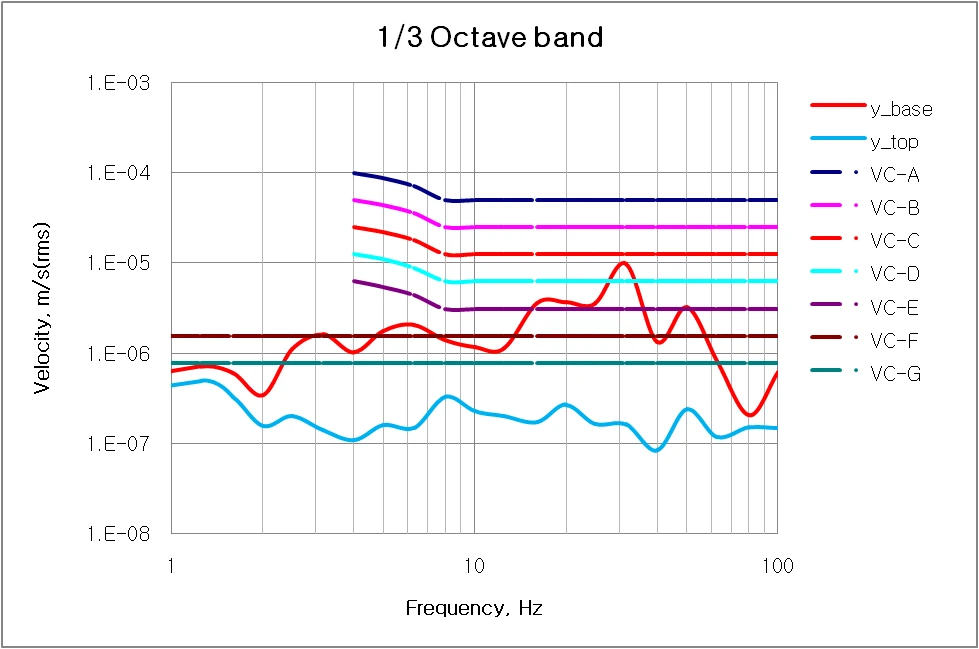

Vibration environment: Y axis
