Installation Report
DVIA-M Series
04-10-2018
Fudan University Bruker D8 VENTURE DVIA-MB1000 (MB1000 program P60) Performance Report — 2018.04.10
DVIA-M Series
Installation Report
Fudan University
Bruker
D8 VENTURE
DVIA-MB1000
MB1000
P60
Contents
Pudan Univ (MB1000_P60 Set up)
| Target equipment | D8 VENTURE |
|---|---|
| Place of installation | Fudan University, 1 FLOOR |
| Remark | Good Performance |
| END USER | Fudan University |
| Date of business trip : 18.03.31 | |
| Business traveler: Choi, HyoungMun | |
| Date Created : 18.04.10 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.03.31 (Saturday), Rater: Daeil System,
Manager Choi , Hyoung Moon
Business traveler
Business traveler: Choi, HyoungMun
Place of measurement
Place of measurement : Fudan University, 1 FLOOR
Equipment Model
Equipment Model: D8 VENTURE
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | |||
| Above Active |
Good omnidirectional performance and attached VC-Class graph.
FLOOR MB1000 internal program performance measurement result

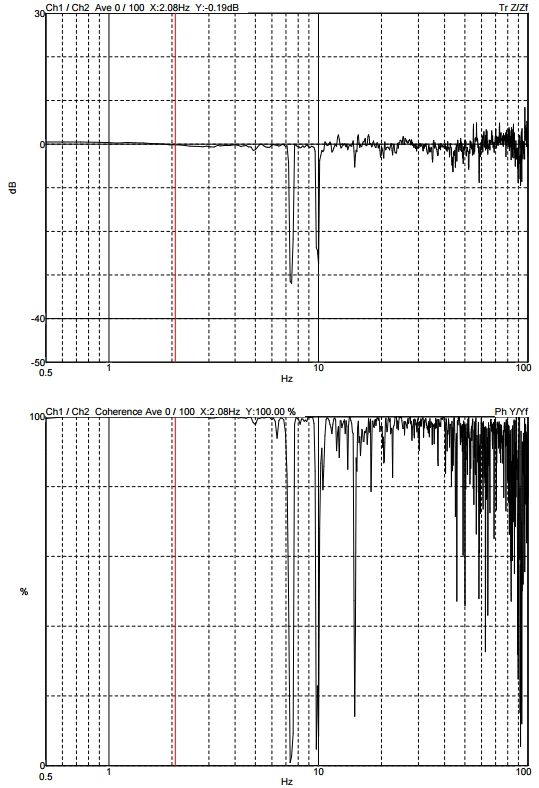

FLOOR — Z axis
FLOOR — X axis
FLOOR — Y axis
PASSIVE MB1000 internal program performance measurement result

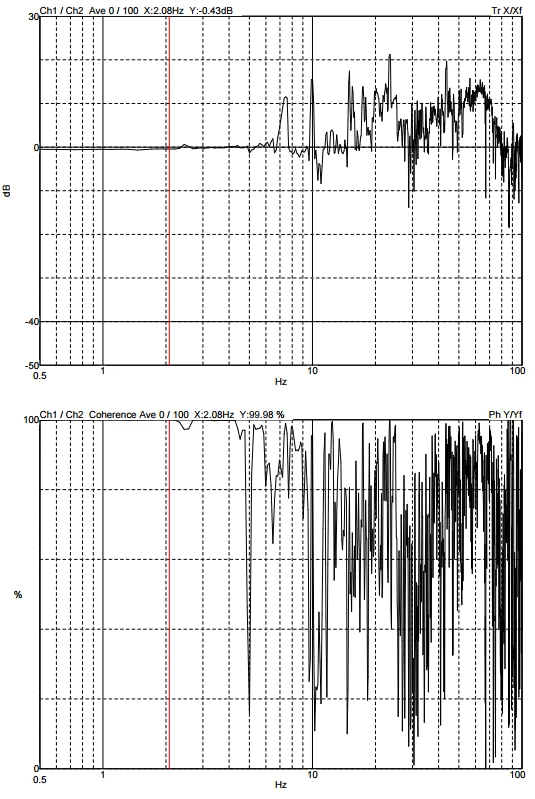

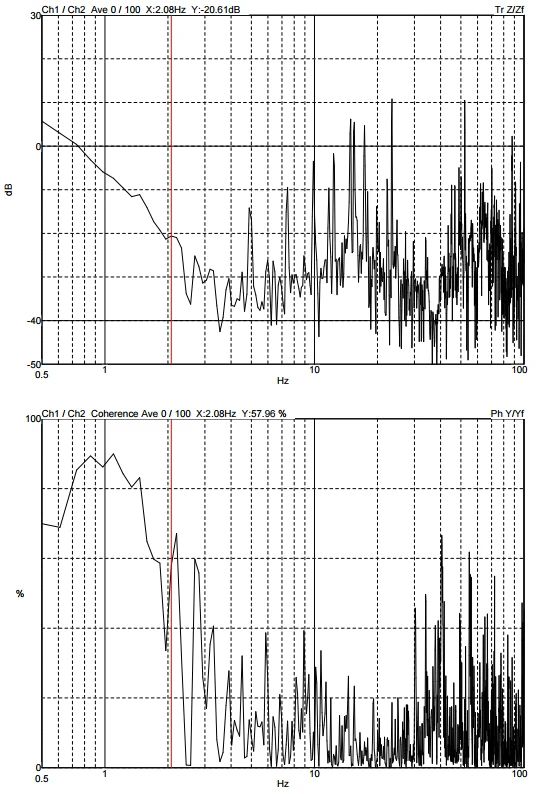

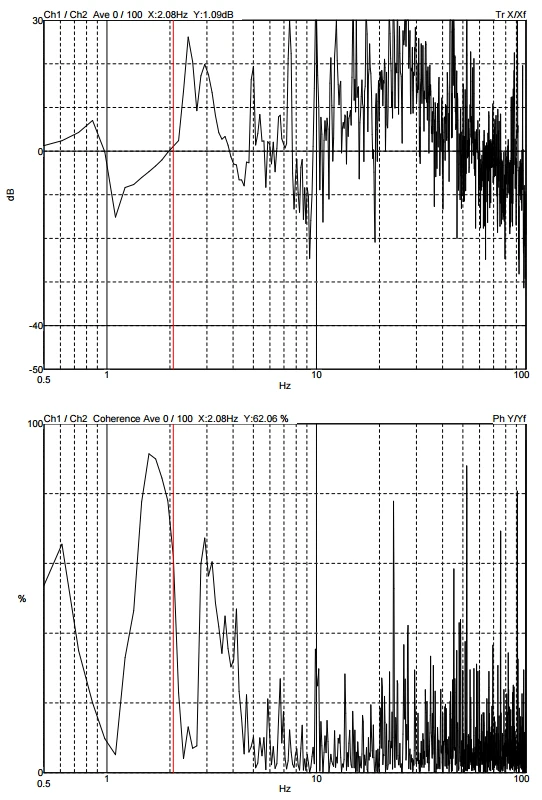

PASSIVE — Z axis

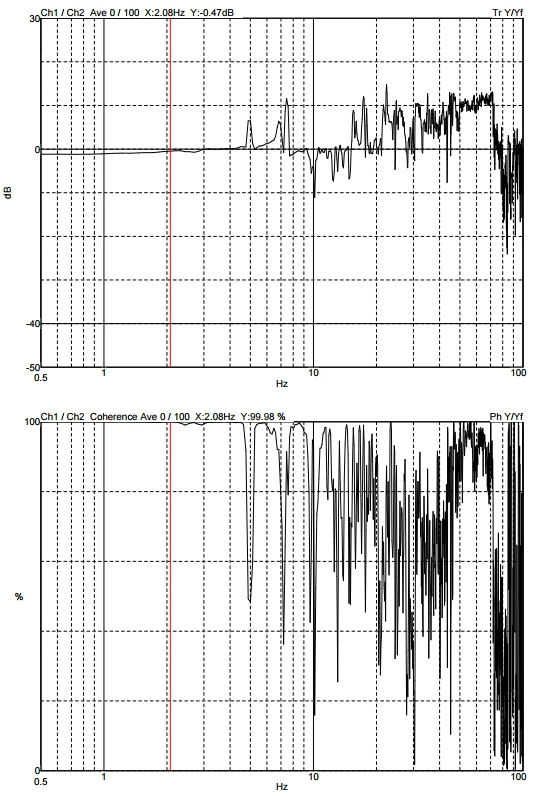

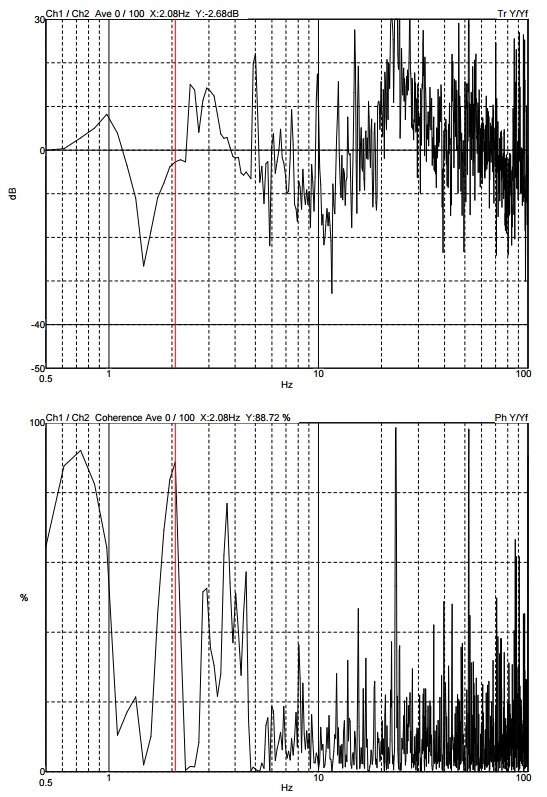

PASSIVE — X axis

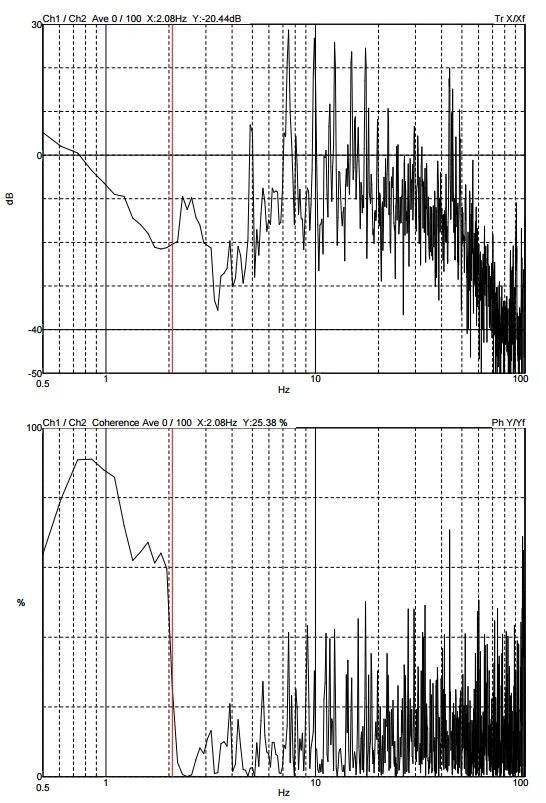

PASSIVE — Y axis
ACTIVE MB1000 internal program performance measurement result

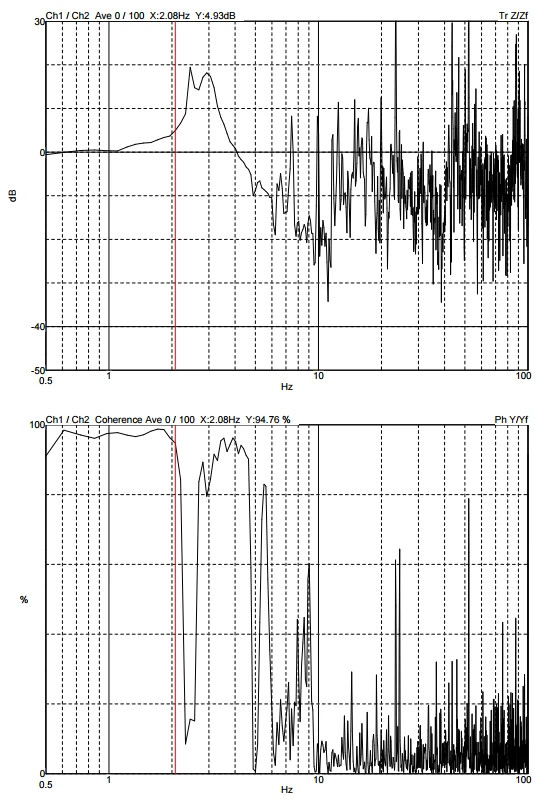

ACTIVE — Z axis
ACTIVE — X axis

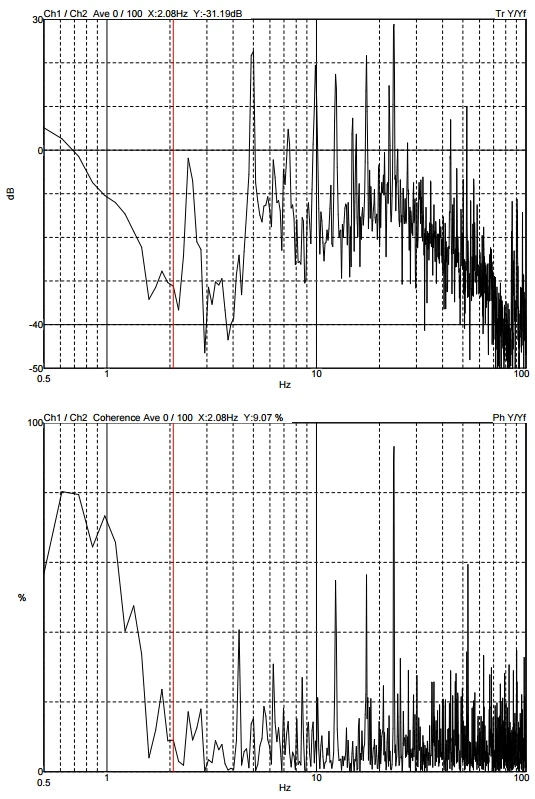

ACTIVE — Y axis
Passive Octave Band Result (BASE: Floor, TOP: Above Active)

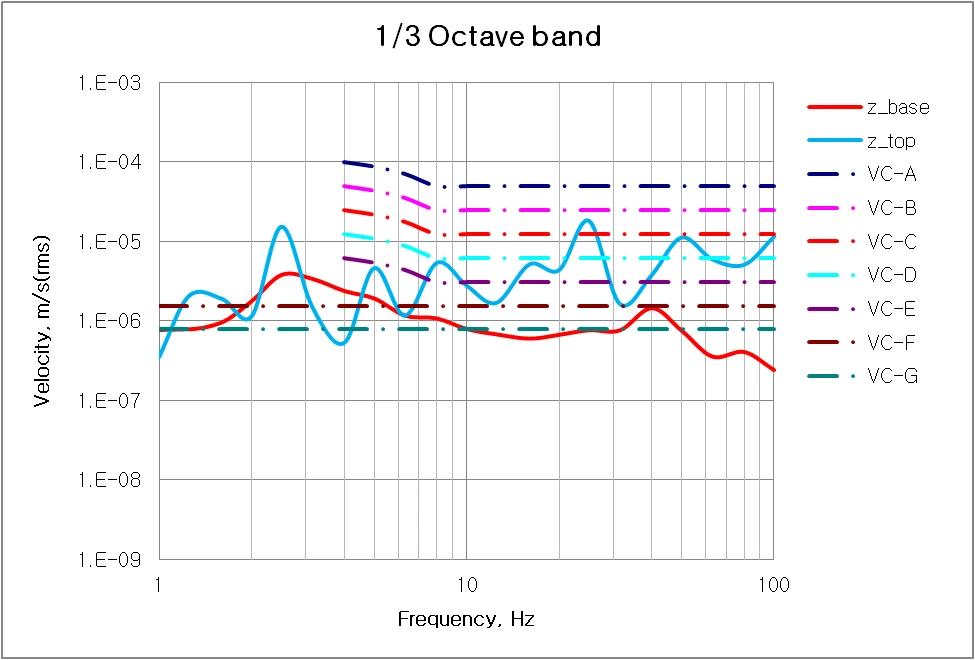

Passive octave — Z axis

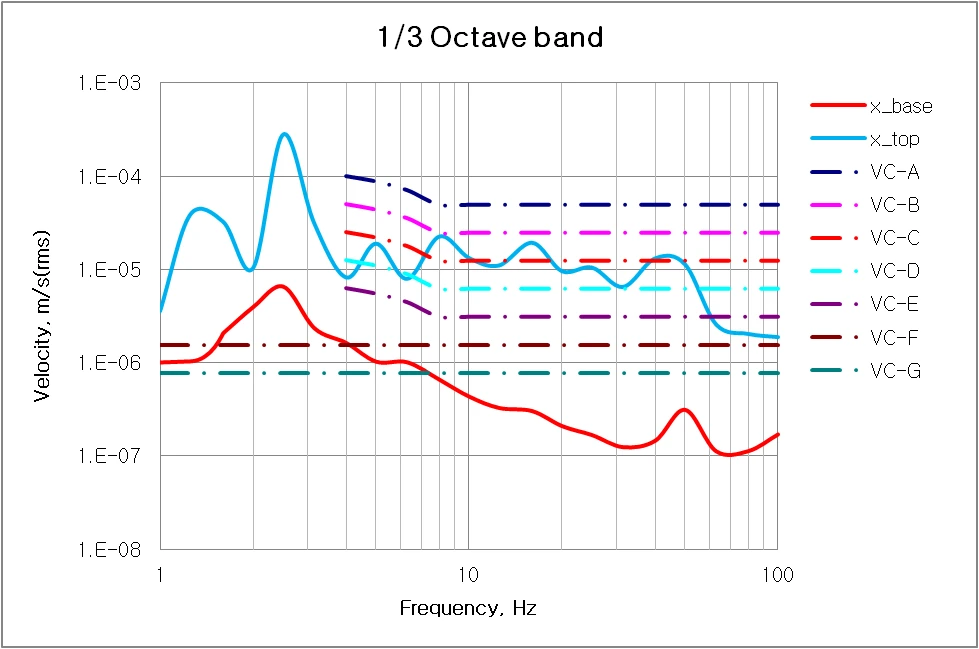

Passive octave — X axis
Passive octave — Y axis
Active Octave Band Result (BASE: Floor, TOP: Above Active)

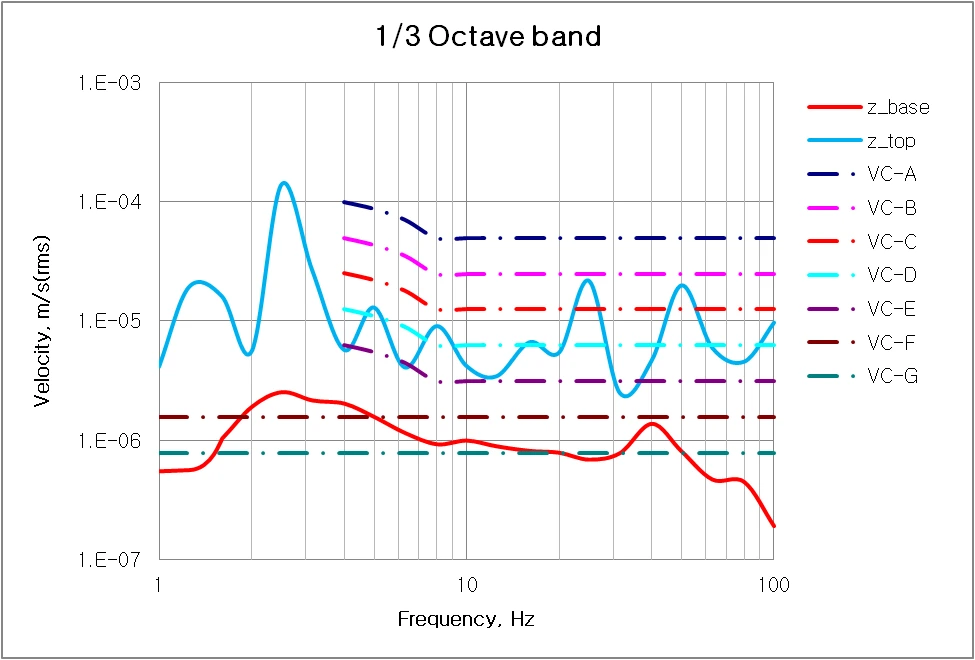

Active octave — Z axis

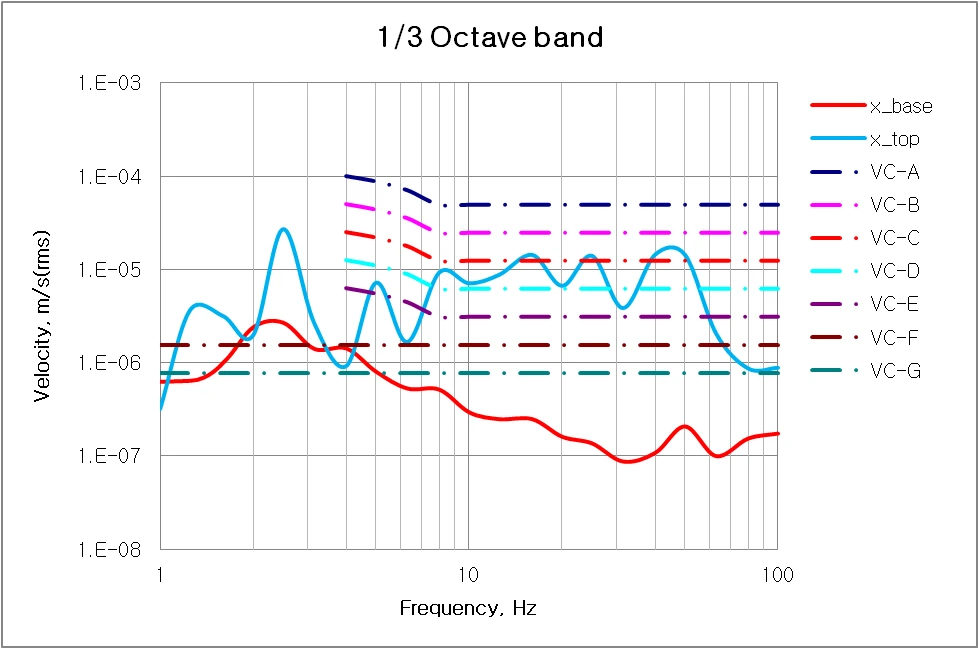

Active octave — X axis

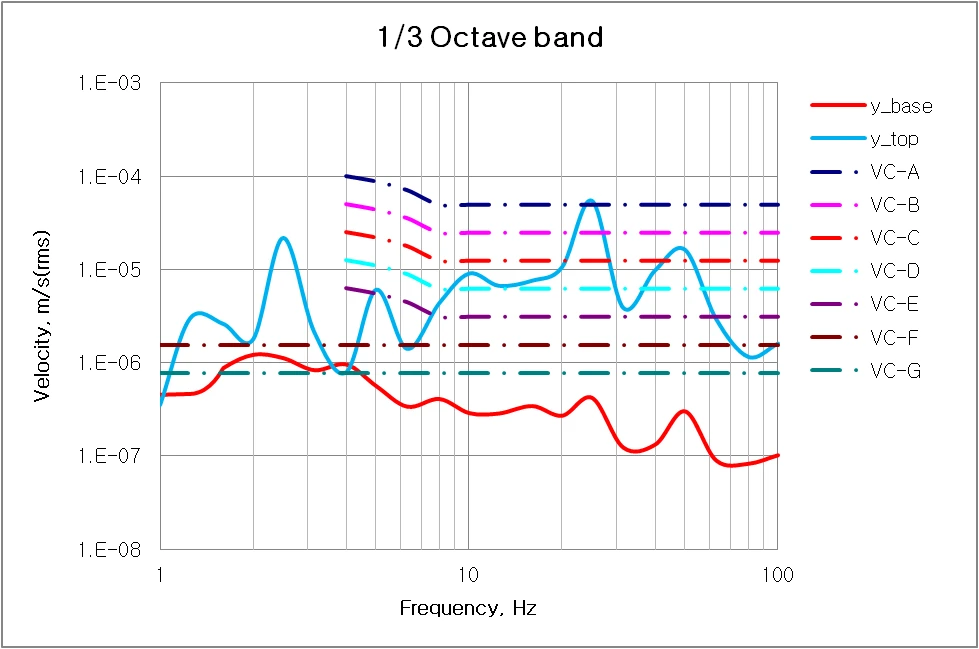

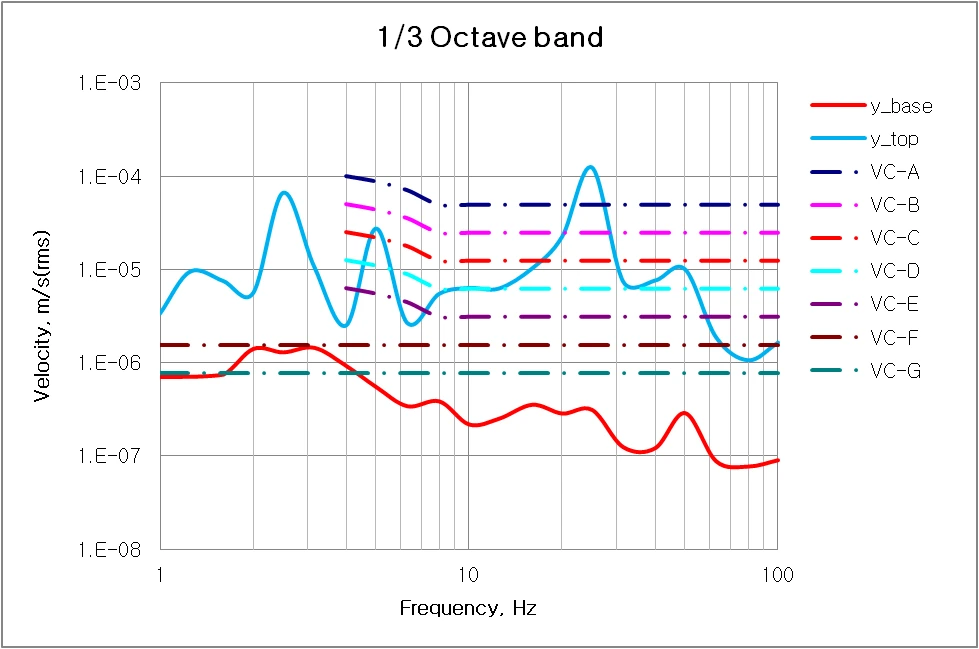

Active octave — Y axis
