Installation Report
DVIA-M Series
04-10-2018
Fudan University OXFORD AS400 NMR DVIA-MB1000 (MB1000 program P75) Performance Report — 2018.04.10
DVIA-M Series
Installation Report
Fudan University
Oxford Instruments
NMR
DVIA-MB1000
MB1000
P75
Contents
Pudan Univ (MC1000_P75 Set up)
Target equipment
| Target equipment | OXFORD AS400 NMR |
|---|---|
| Place of installation | Pudan UNIV, Basement 1FLOOR |
| Uniqueness | Good Performance |
| END USER | Pudan Univ |
| Date of business trip : 18.03.30 | Business traveler: Choi, HyoungMun |
| Date Created : 18.04.10 |

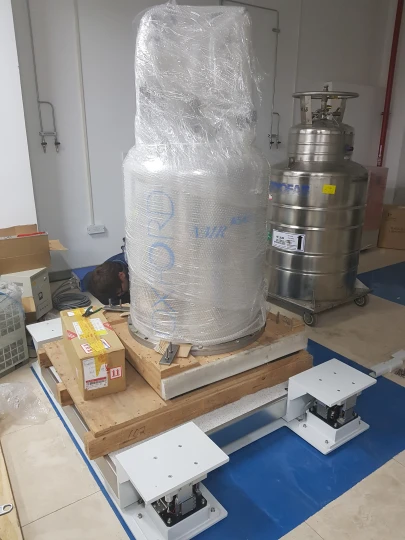

Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.03.30 (Friday), Rater: Daeil System, Manager Choi , Hyoung Moon
Place of measurement
Place of measurement : Pudan UNIV, Basement 1FLOOR
Equipment Model
Equipment Model: OXFORD AS400 NMR
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | E | E | E |
| Above Active | G | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

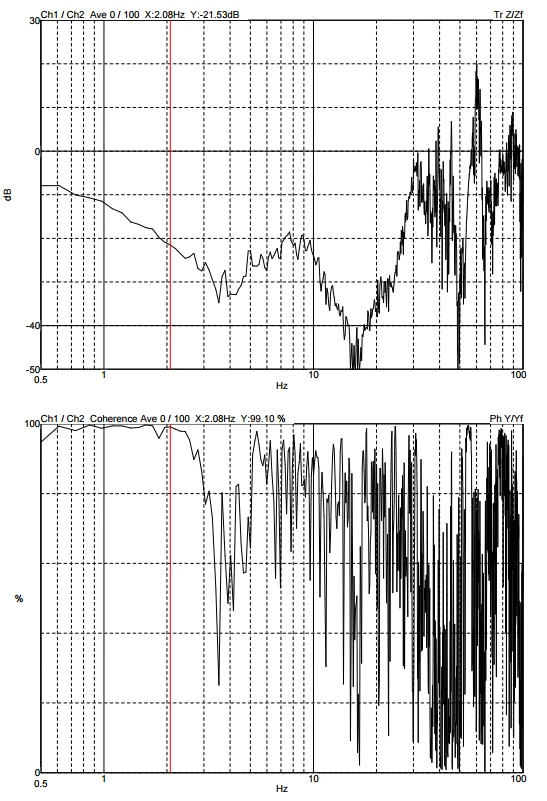

Z axis - internal program

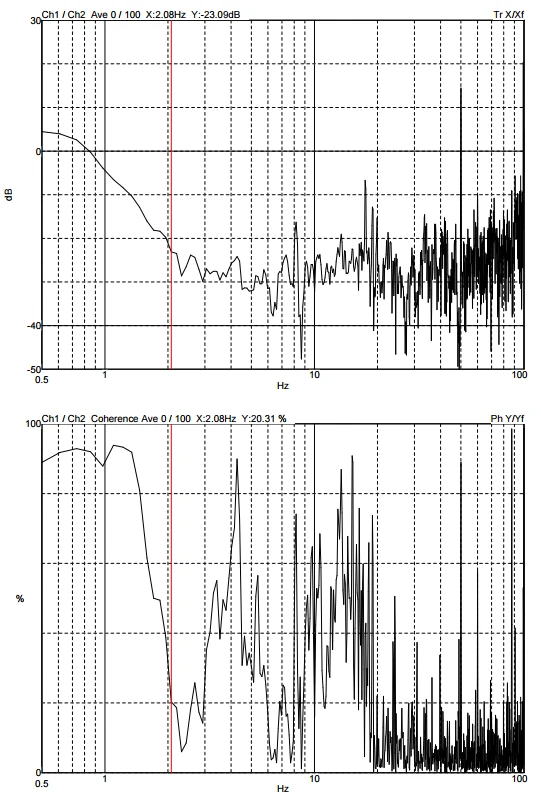

X axis - internal program

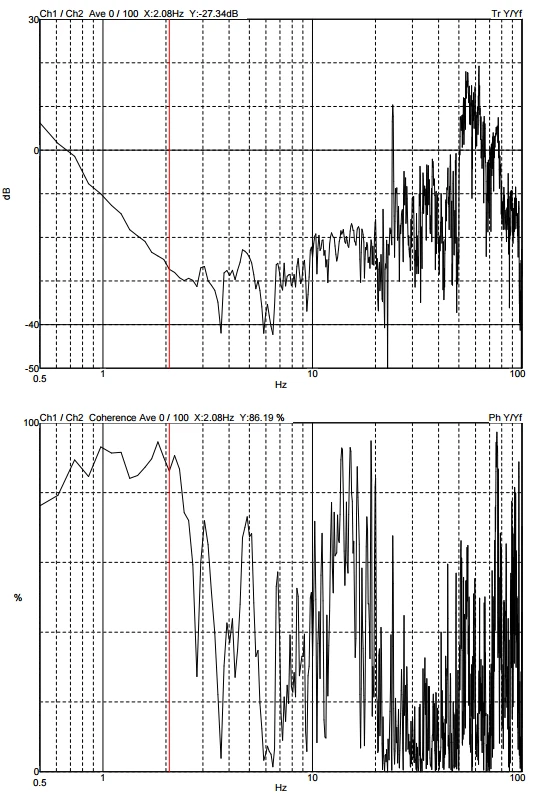

Y axis - internal program
Octave Band Result (BASE: Floor, TOP: Above Active)

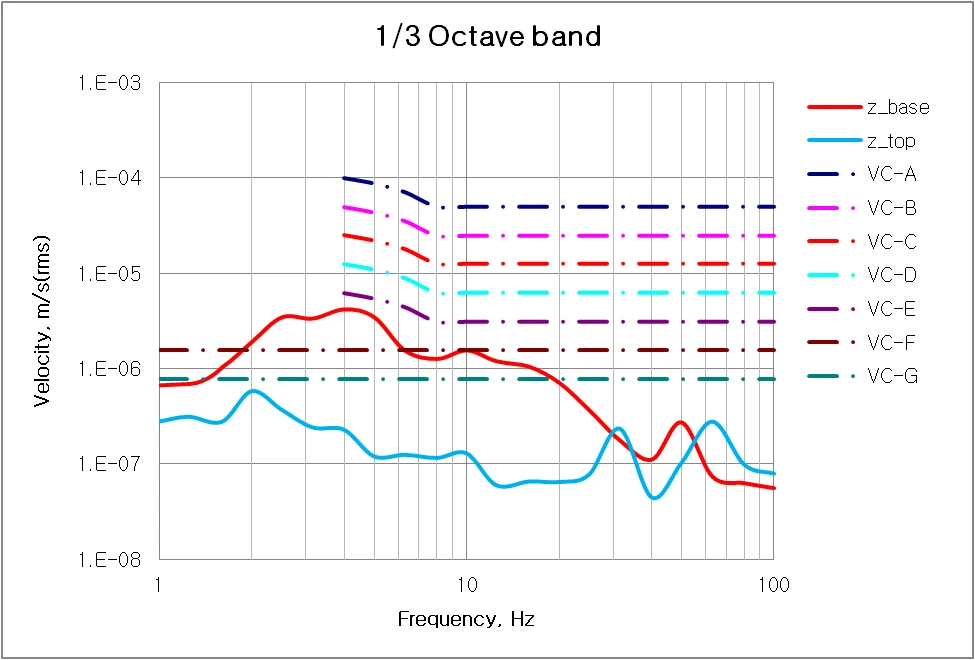

Z axis - octave band result

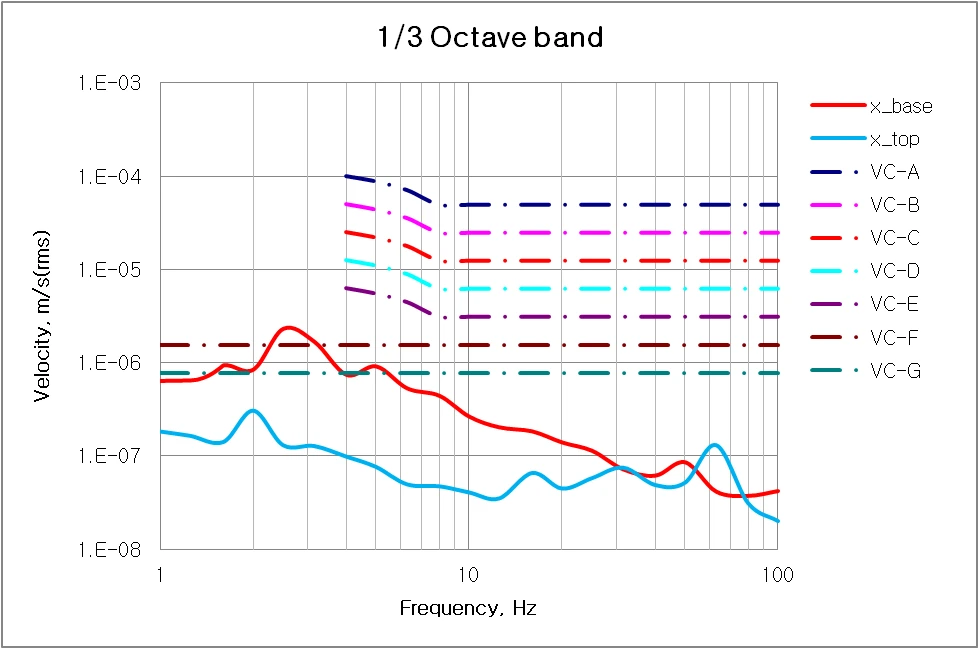

X axis - octave band result

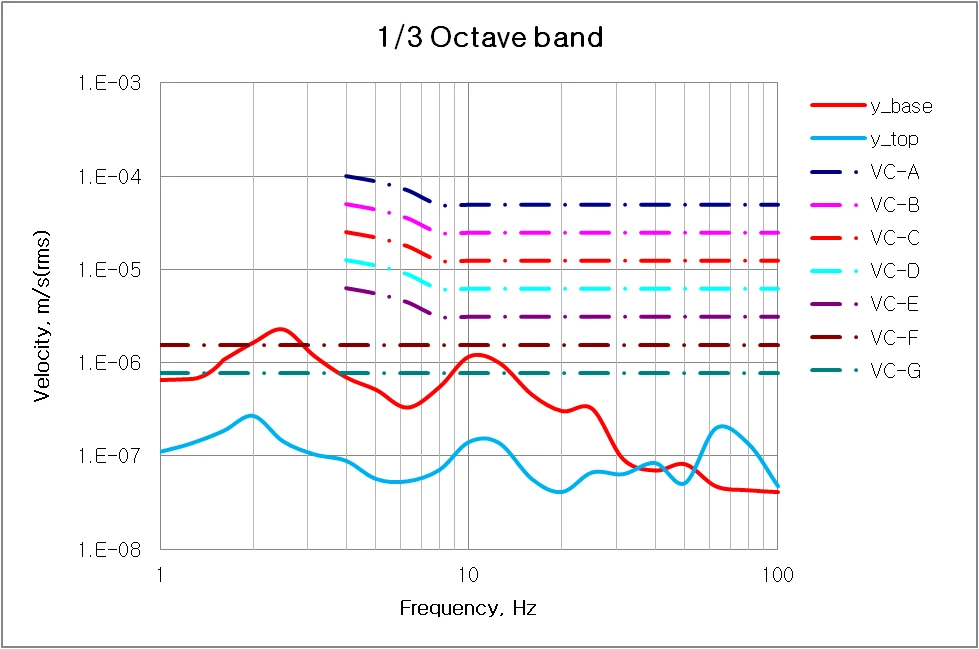

Y axis - octave band result
