Installation Report
DVIA-M Series
07-02-2018
Shanghai Institute of Material Research ZEISS Gemini 500 DVIA-MB1000 (171201R1) Installation Report — 2018.07.02
DVIA-M Series
Installation Report
Shanghai Institute of Material Research
DVIA-MB1000
171201R1
ZEISS
Gemini 500
China
Contents
(MB1000_171201R1 Set up)
Target equipment
ZEISS-Gemini500
Place of installation
Room 111, Shanghai Institute of material research
Remarks
Good performance
END USER
Shanghai institute of material research
Operator
Operator: Choi, Sung Won
Date of setup
Date of setup : 18.06.29
Date of reporting
Date of reporting : 18.07.02
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.06.29 (Friday),
Operator: Daeil System, Manager Sung Won Choi
Place of measurement
Place of measurement : Room 111, 1st Floor, Shanghai Institute of materials research
Equipment Model
Equipment Model: ZEISS-Gemini500
Measurement conditions and results
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | B | E | E |
| Above Active | F | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

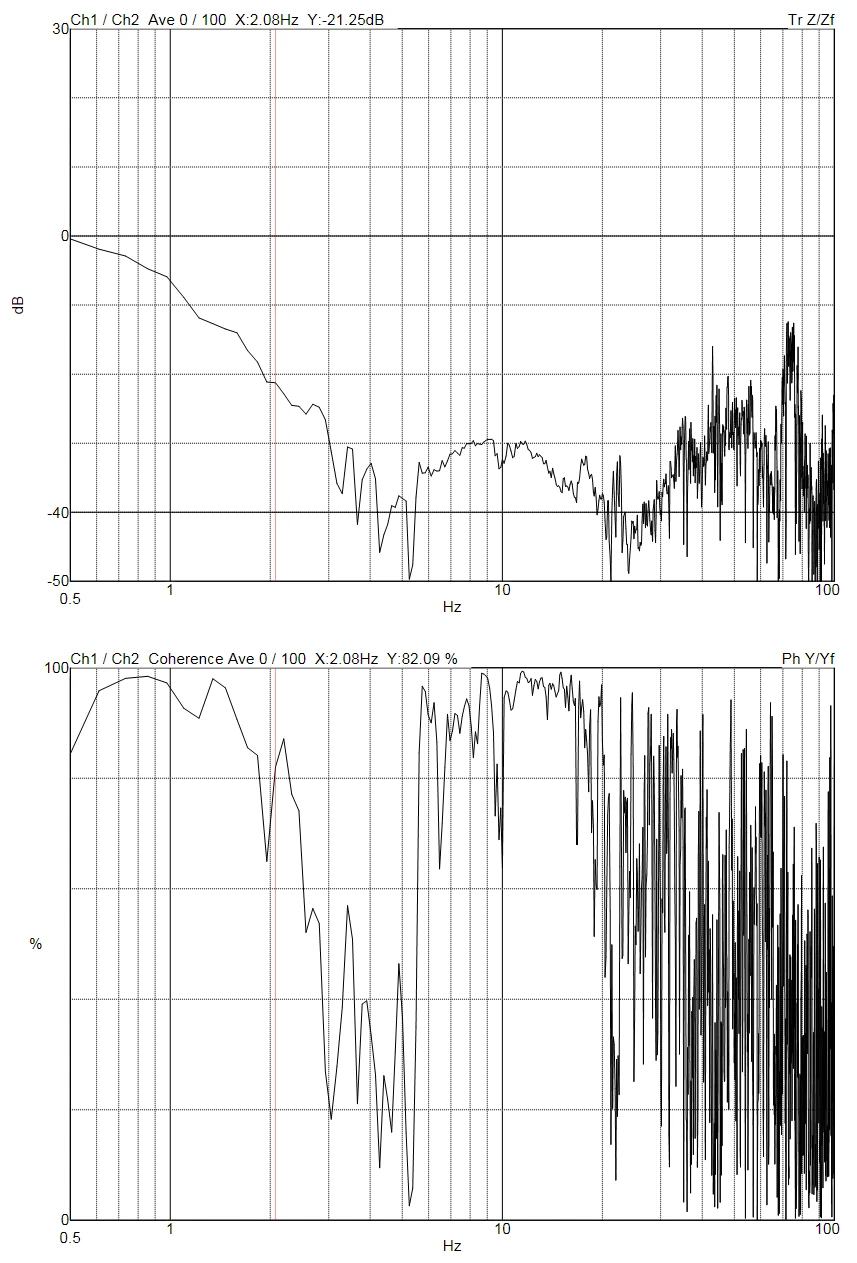

Z axis - internal program

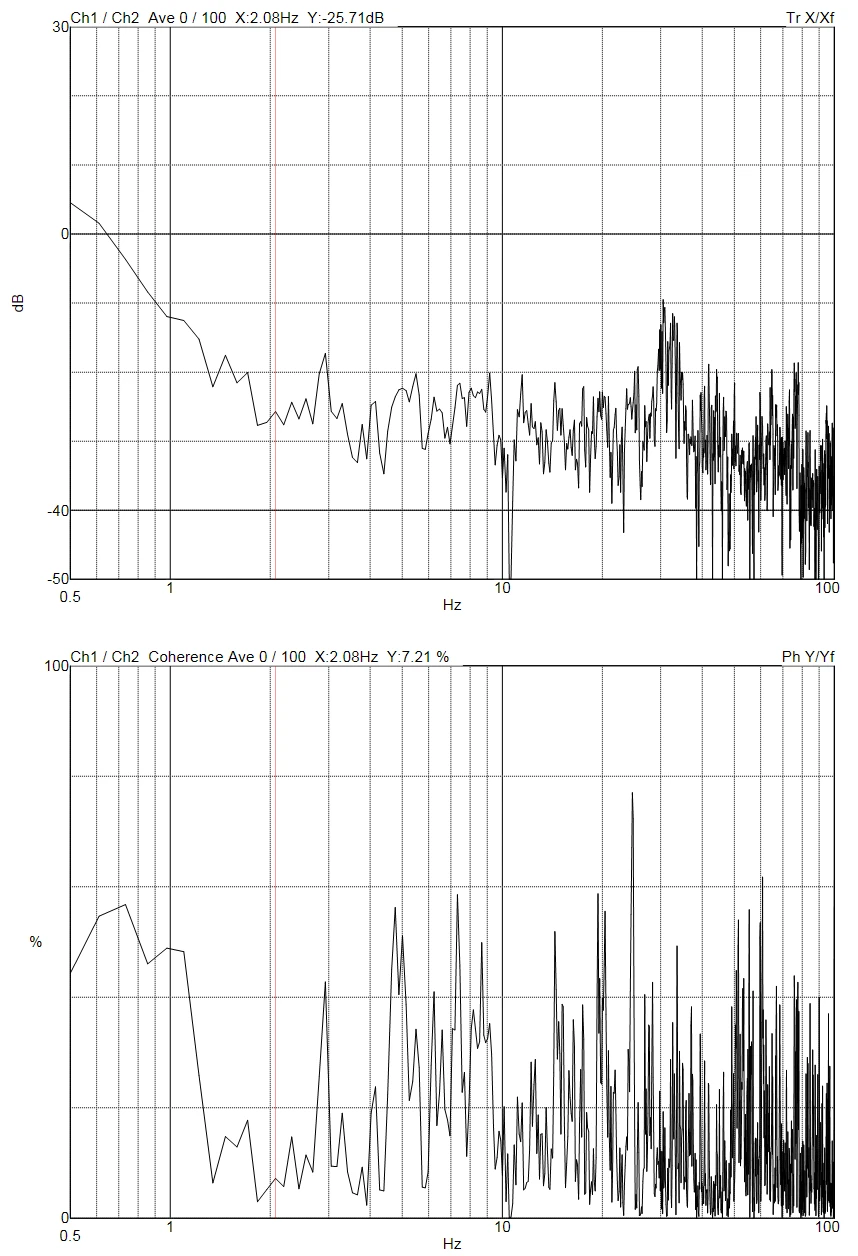

X axis - internal program

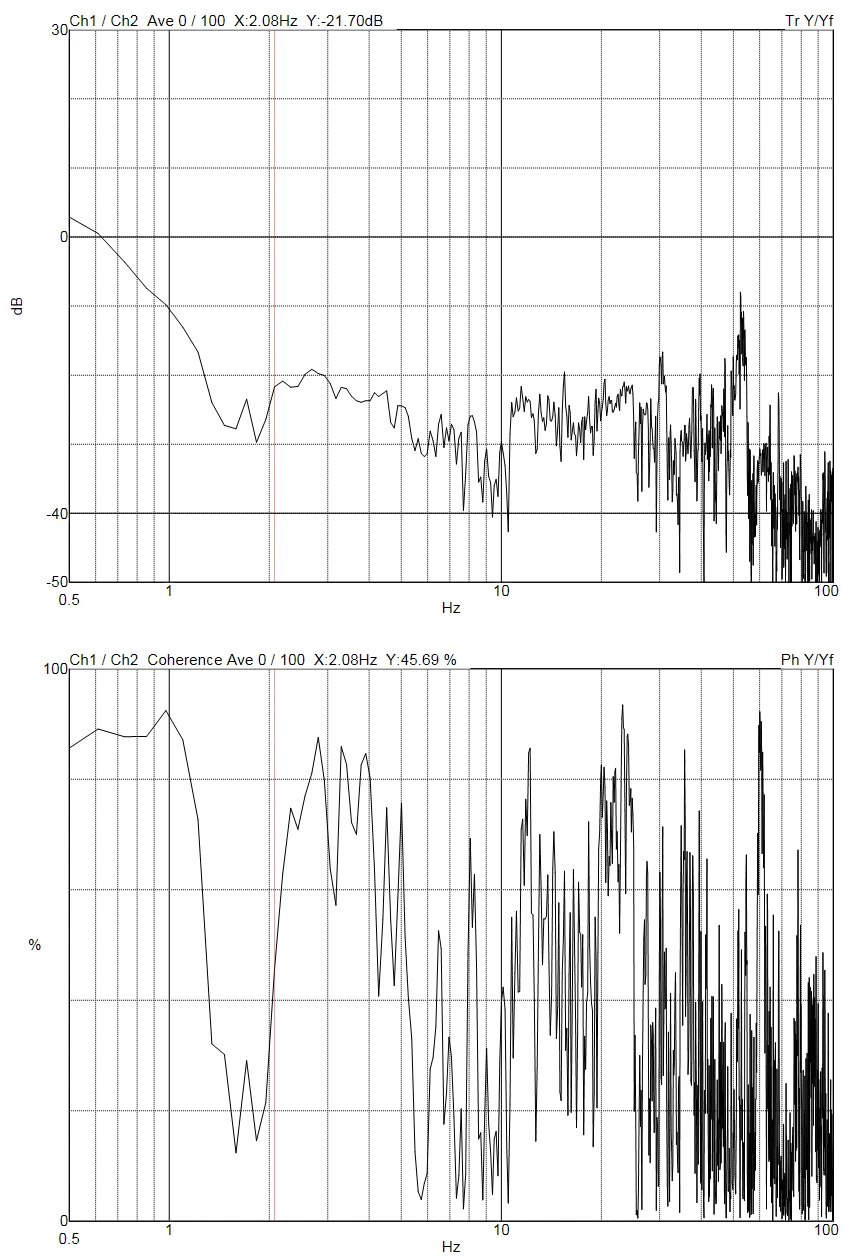

Y axis - internal program
Octave Band Result (BASE: Floor, TOP: Above Active)

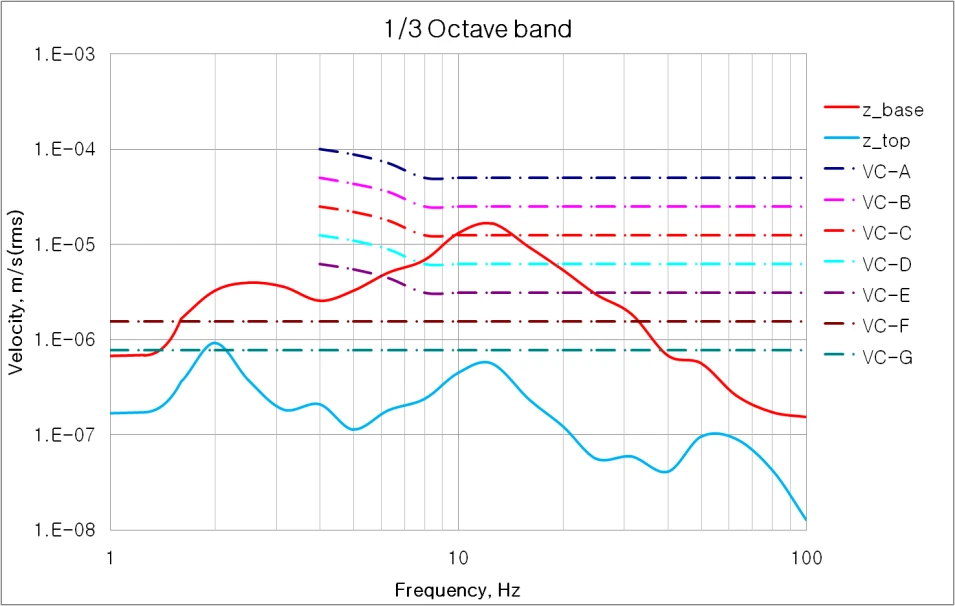

Z axis - octave band result

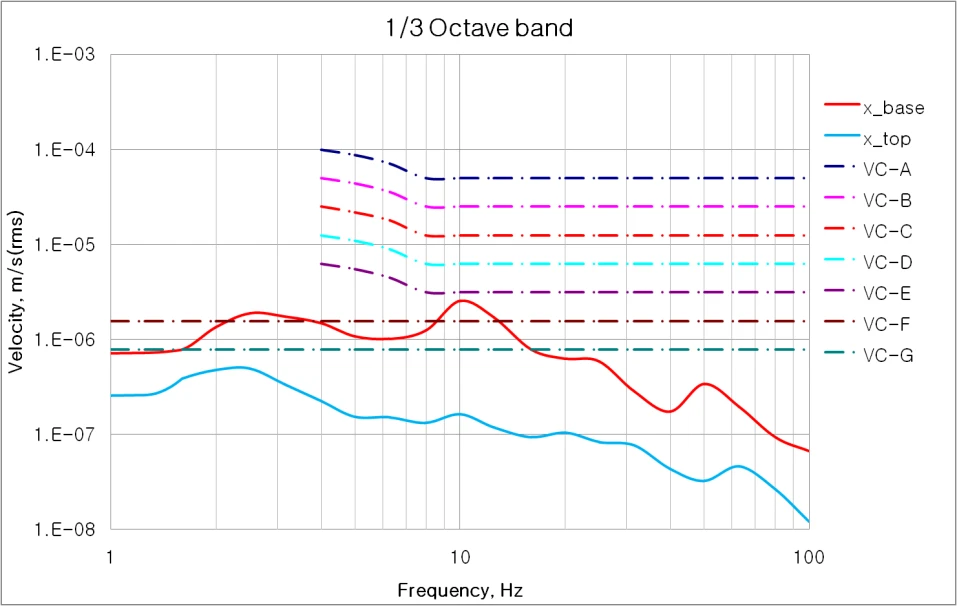

X axis - octave band result

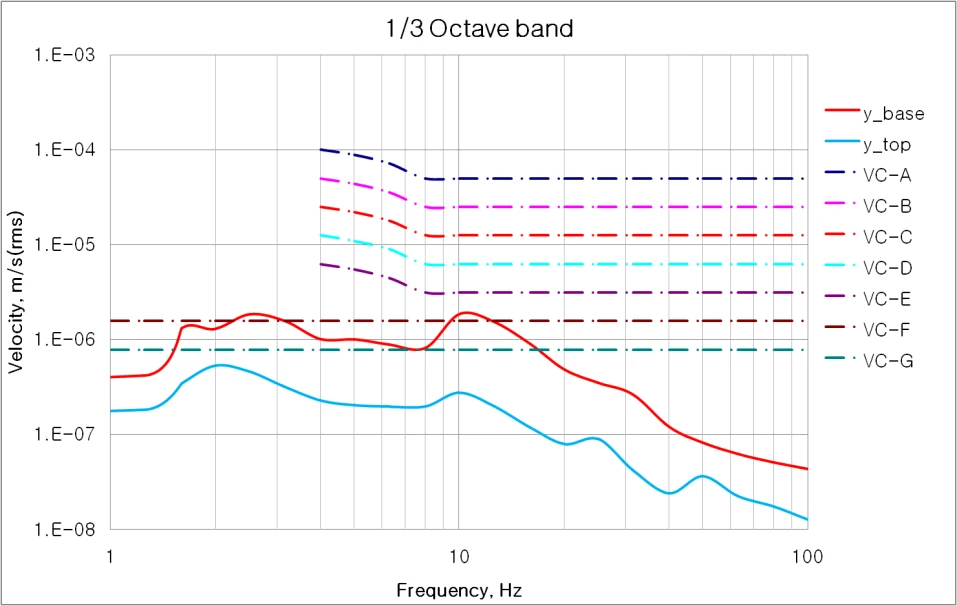

Y axis - octave band result
