Fudan University Bruker Ascend400 (NMR) DVIA-MC1000 (MC1000 P65 · 171114R5) — YIMO setup report — 2018-01
Contents
1. Overview
Among YIMO Tech’s 10-set tender, setup and vibration measurement were performed for a total of five active isolation platforms including an MC1000 for NMR equipment:
MC3000(P6) - FEI TECNAI G2-F20
MC1000(P65) - Bruker Ascend400 (NMR)
MB1000(P57) - Hitachi HT7700
MB1000(P59) - Bruker APEX DUO x-ray
MB1000(P61) - FEI Nova NanoSEM450
2. Measurement period and installation site
2018-01-25–2018-01-26
B1 analytical laboratory, Fudan University, Shanghai, China (source form: Pudan University)
3. Setup and measurement personnel
DAEIL SYSTEMS, Doohyun Kim (doohyun.kim@daeilsys.com)
DAEIL SYSTEMS, Jongwook Lim (lju@daeilsys.com)
4. MC1000(P65) — Bruker Ascend400 (NMR)
| Item | Details |
|---|---|
| Model / Serial | MC1000(P65) 171114R5 |
| Target equipment | Bruker Ascend400 (NMR) |
| Installation site | B1 analytical laboratory, Fudan University, Shanghai, China (source form: Pudan University) |
Performance summary (VC-Class)
| Test direction | Base (floor vibration) | Top (isolator top) |
|---|---|---|
| Z-axis | VC-E | VC-F |
| X-axis | VC-F | VC-F |
| Y-axis | VC-E | VC-G |
Overall isolation performance is favorable.
For the target equipment, only the product is on the platform and operation/setup has not been completed; re-measurement is required after the target equipment is fully set up.
Installation photograph

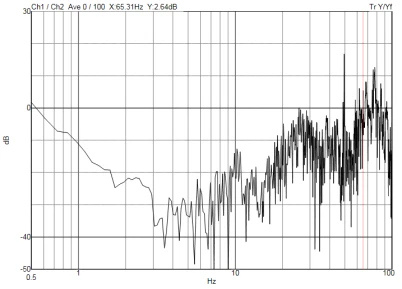

UI program measurement result - Z axis
UI program measurement result - X axis
UI program measurement result - Y axis

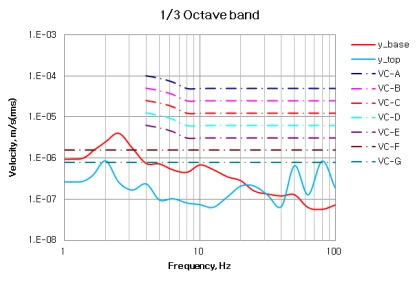

Vibration environment measurement result - Z axis

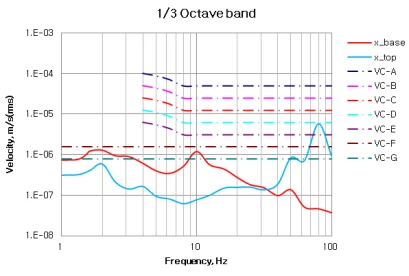

Vibration environment measurement result - X axis

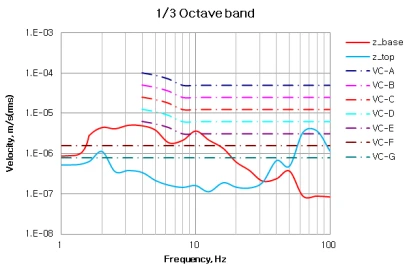

Vibration environment measurement result - Y axis
